Single-Ended Rectangular Freestanding Tub, Raked Backrest, 59 & 67 in

SKU D-8016-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 29.5" × 23.6" (1500 × 750 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8016-150

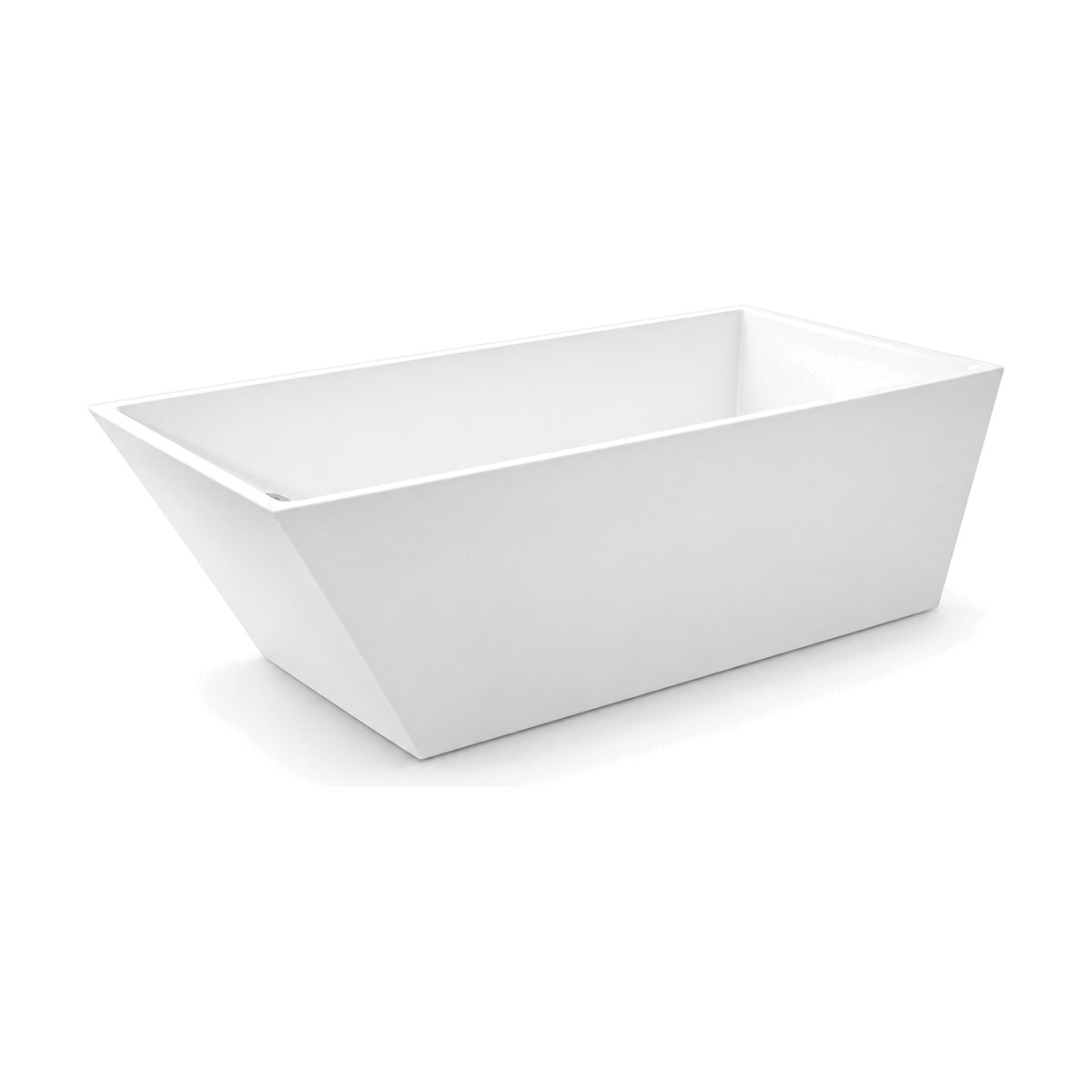

SANIKB D-8016 is a single-ended rectangular tub for freestanding installation, in white acrylic. One end is raked well outward as a long slanted backrest, while the other end is almost vertical and holds the drain. Corners are square, the thin rim stays level, and the base sits flat on the floor.

D-8016-150 is the compact size at 1500 x 750 x 600 mm (59 x 29.5 x 23.6 in); D-8016-170 is the larger one at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The rim has no tap holes, so it works with a floor-standing or wall-mounted filler, and it is cUPC certified. More designs are in the freestanding bathtub collection.

Product PDF D-8016-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8016

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

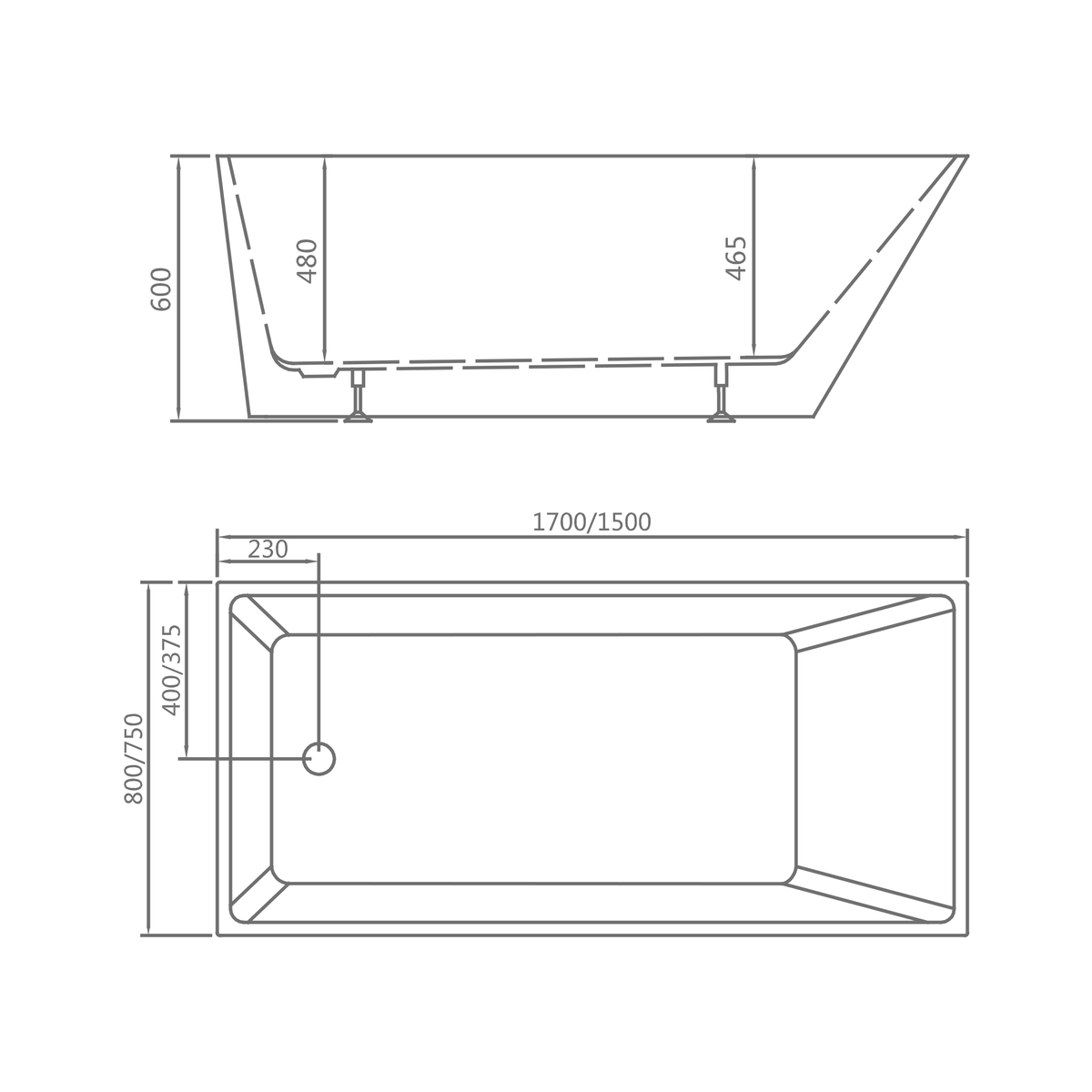

SANIKB D-8016 dimension drawing
Dimension drawing
Size range59" / 67" × 29.5" / 31.5" × 23.6" (1500 / 1700 × 750 / 800 × 600 mm)
Sizes59" x 30"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8016-15059" x 30"
D-8016-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 30"D-8016-15067" x 31"D-8016-170
Overall L×W×D
59″ × 29.5″ × 23.6″
1500 × 750 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Single-Ended Rectangular Freestanding Tub, Raked Backrest, 59 & 67 in SKU D-8016-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Backrest

    One raked end, one near-vertical end

    D-8016 is asymmetric in elevation: the backrest end leans out in a long slanted facet, and the drain end rises almost straight. The rim is level all round, so it is not a slipper.

    01 / BACKREST

    Long slanted facet

    The raked end gives the bather a reclined position facing the drain end. Inner depth is drawn at 465 mm (18.3 in) at the backrest end.

    02 / DRAIN

    End drain, 230 mm in

    The drain is 230 mm (9.1 in) from the near-vertical end and centered in the width, where the drawing gives 480 mm (18.9 in) of inner depth.

    Other single- and double-ended shapes are in the freestanding range.

    Fit & Footprint

    Raked end on 1500 or 1700 mm lengths

    The two D-8016 sizes change in both length and width: D-8016-150 is 59 x 29.5 x 23.6 inches and D-8016-170 is 67 x 31.5 x 23.6 inches.

    D-8016-150
    59" x 29.5" x 23.6" (1500 x 750 x 600 mm)
    D-8016-170
    67" x 31.5" x 23.6" (1700 x 800 x 600 mm)
    Drain (as drawn)
    9.1" (230 mm) from the end, centered in width
    Faucet Mounting
    Floor-standing or wall-mounted filler

    The drain is 375 mm from the side on the 750 mm width and 400 mm on the 800 mm width. Since the drain end is fixed, decide which way the bather faces before the floor waste is set.

    Confirm the D-8016 end-drain position on the approved drawing for the size ordered.

    Construction & Finish

    White acrylic with square corners

    D-8016 is formed in white from pure acrylic sheet, including the long raked backrest facet.

    SANIKB D-8016 - white single-ended rectangular freestanding tub with raked backrest end, square corners and level rim

    White

    Surface agreed on sample

    D-8016 is made in white; its gloss level is confirmed on the approval sample before the order is released.

    The long slanted facet is the most visible face of the tub, so check it on the sample for an even surface.

    The signed D-8016 sample is the finish reference.

    Compliance

    D-8016 cUPC documentation

    Name the size

    Each document request should cite D-8016-150 or D-8016-170.

    D-8016-150 and D-8016-170 both hold cUPC certification. The current certificate number and validity can be supplied for your submittal.

    Note your destination market and required paperwork in the enquiry, and expect a written reply within 12 business hours.

    Procurement

    Ordering D-8016

    D-8016 quotations list the two sizes separately, both on a lead time of 30-45 days after sample approval.

    Size SKUs
    D-8016-150, D-8016-170
    Standard Lead Time
    30-45 days after sample approval

    Ask for carton dimensions of each D-8016 size so container loading can be planned before the quotation is confirmed.

    Include these details with the RFQ

    • D-8016-150 and D-8016-170 counts
    • Market and destination port
    • Filler type: floor-standing or wall spout
    • Carton labeling
    • Shipping period required
    Request D-8016 Quote View OEM & ODM Program

    The D-8016 quotation states the confirmed lead time.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the D-8016 sizes?

    The sizes differ in width as well as length, with D-8016-150 at 1500 x 750 x 600 mm (59 x 29.5 x 23.6 in) and D-8016-170 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in).

    Which end of D-8016 carries the backrest, and which the drain?

    The backrest is the raked end, which leans outward in a long slanted facet. The opposite end is almost vertical and carries the drain.

    Is D-8016 a slipper tub?

    No. The rim is level all the way round; only the end wall is raked.

    How far is the D-8016 drain from the near-vertical end?

    230 mm (9.1 in) from the near-vertical end, centered in the width. Inner depth is 480 mm (18.9 in) at the drain end and 465 mm (18.3 in) at the backrest end.

    What faucet does D-8016 use?

    D-8016 has a level rim with no tap holes, so pair it with a floor-standing or wall-mounted filler. Placing it at the drain end keeps the raked backrest clear.

    How do I get a D-8016 quotation?

    Send the quantity for each size and the destination port. Quotes return within 12 business hours, with production 30-45 days after sample approval.
