Compact Freestanding Soaking Tub with Built-In Seat, 51 & 55 in

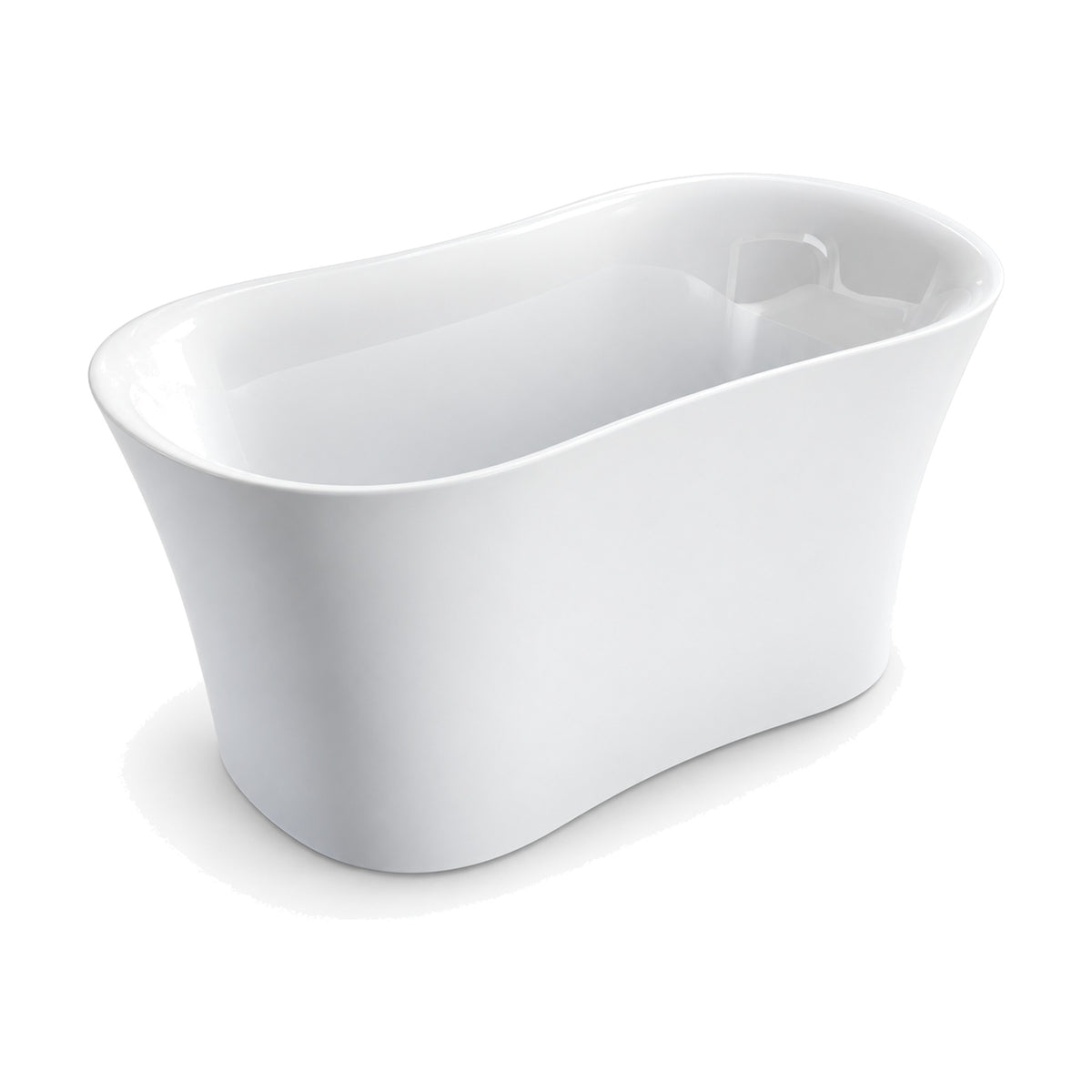

SANIKB D-8332 is a compact acrylic freestanding soaking tub with a waisted plan, ends that flare out to a slim rim and a built-in seat at one end. It stands 700 mm (27.6 in) high, with a footwell drawn 570 mm (22.4 in) deep.
Two sizes are made: D-8332-130 at 1300 x 800 x 700 mm (51 x 31.5 x 27.6 in) and D-8332-140 at 1400 x 800 x 700 mm (55 x 31.5 x 27.6 in). D-8332 is finished in glossy white and is cUPC certified. The rim has no tap holes, so it takes a floor-standing or wall-mounted filler. See the small bathtubs collection for other short lengths.
More in Small Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
-
D-8138Round Freestanding Tub with Deck-Mount Faucet Ledge, 54 in Diameter54" × 54.3" × 22.8"Freestanding
-
D-8028Round Cylinder Freestanding Tub on Recessed Plinth, 55 in Diameter55" × 55.1" × 23.6"Freestanding
-
FT060–FT065Hammock-Style Slipper Freestanding Tub, Six Sizes, 51-70 in51" / 55" / 59" / 62" / 67" / 70" × 29.9" / 31.5" / 33.5" × 25.2" / 26.8" / 27.6" / 30.3"Freestanding
-
D-8331Compact Slipper Soaking Tub, Freestanding, 29.5 in Tall, 51 & 55 in51" / 55" × 31.5" × 29.5"Freestanding
-
FT013/FT014/FT023/FT024Black Rectangular Freestanding Tub, White Interior, 55-71 in55" / 59" / 67" / 71" × 29.5" / 31.5" × 23.2"Freestanding
-
D-8330Compact Rounded-Rectangle Deep Soaking Tub, 27.6 in High, 51 & 55 in51" / 55" × 31.5" × 27.6"Freestanding
-
D-8202Compact Deep Soaking Freestanding Tub on Plinth Base, 47 & 51 in47" / 51" × 29.5" × 27.6"Freestanding
-
D-8028QCompact Round Drop-In Bathtub, 55 in Diameter55" × 55.1" × 19.3"Drop-in (deck or platform)
Tub sheet
Size and installation of D-8332
Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size |
|---|---|
| D-8332-130 | 51" x 31" |
| D-8332-140 | 55" x 31" |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Compare · 2 sizes
Size & spec comparison
| 51" x 31"D-8332-130 | 55" x 31"D-8332-140 | |
|---|---|---|
| Overall L×W×D | 51″ × 31.5″ × 27.6″ 1300 × 800 × 700 mm | 55″ × 31.5″ × 27.6″ 1400 × 800 × 700 mm |
Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Shape & Seat
Waisted plan with a built-in seat
D-8332 pinches in at the middle and flares at both ends, an hourglass outline with no flat side. Inside, a seat is formed at one end and the floor steps down to a deeper footwell.
Seat 430 mm below the rim
The built-in seat is drawn 440 mm (17.3 in) long and sits 430 mm (16.9 in) below the rim. The drain is at the opposite end from the seat.
570 mm footwell
Beyond the seat, the interior drops to a footwell 570 mm (22.4 in) deep. Interior width is drawn at 470 mm (18.5 in).
D-8332 also appears among the soaking tubs for projects that need depth in a short footprint.
Fit & Footprint
1300 or 1400 mm long, 700 mm high
D-8332-130 measures 51 x 31.5 x 27.6 inches (1300 x 800 x 700 mm) and D-8332-140 measures 55 x 31.5 x 27.6 inches (1400 x 800 x 700 mm).
- D-8332-130
- 51" x 31.5" x 27.6" (1300 x 800 x 700 mm)
- D-8332-140
- 55" x 31.5" x 27.6" (1400 x 800 x 700 mm)

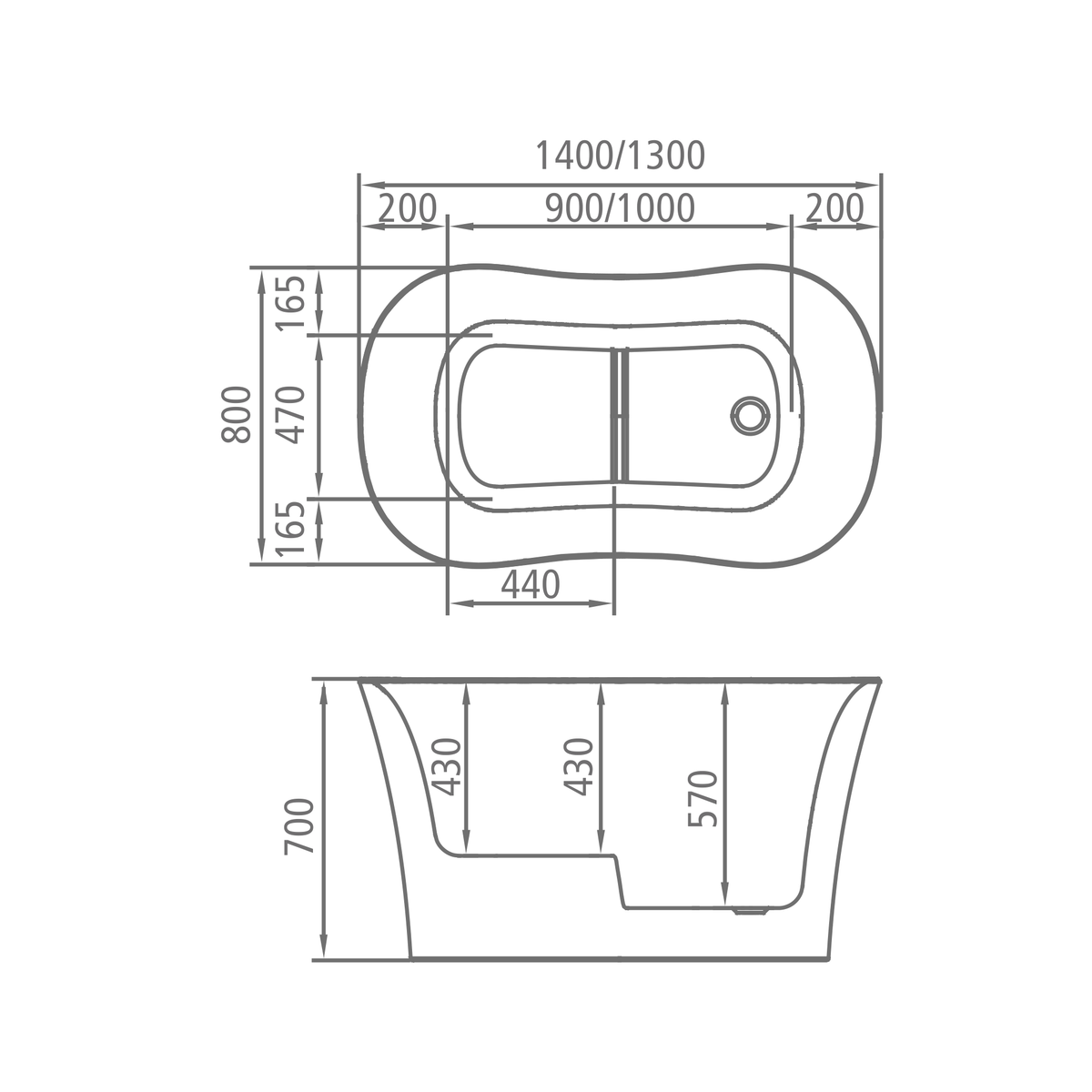

- Interior (as drawn)
- 900 / 1000 mm (35.4 / 39.4 in) long; 470 mm (18.5 in) wide
- Seat & Footwell
- Seat 430 mm (16.9 in) below rim; footwell 570 mm (22.4 in) deep
A 700 mm (27.6 in) rim is a high step-over, so leave standing room beside D-8332 for getting in and out. The drain is at the end opposite the seat; set the floor waste there to the approved drawing.
Confirm the waste position for D-8332 on the approved drawing before the floor is finished.
Construction & Finish
Glossy white acrylic, stepped interior
D-8332 is formed from pure acrylic sheet and finished in glossy white.
White
One finish, seat included
The built-in seat is part of the same glossy white shell, so there is no separate seat piece to match or fix.
Inspect the seat edge and the step down into the footwell on arrival, along with the rim.
Cover the seat edge and footwell step in any D-8332 damage report.
Compliance
D-8332 and cUPC
Use D-8332-130 or D-8332-140 when asking for D-8332 documents.
Both D-8332 lengths carry cUPC certification; the certificate number and validity are supplied on request for your submittal.
If your market asks for more than the certificate, name those papers in the D-8332 inquiry. Replies are written and sent within 12 business hours.
Procurement
D-8332 ordering
D-8332 quotations are made out per size, and the standard lead time is 30-45 days after sample approval.
- Size SKUs
- D-8332-130, D-8332-140
- Standard Lead Time
- 30-45 days after sample approval
For hotel or multi-unit projects that mix the 1300 mm and 1400 mm sizes, give the room-by-room split so the quotation matches the schedule. Private label orders run through our OEM and ODM service.
Include these details with the RFQ
- How many of D-8332-130 and D-8332-140 are needed
- Destination market and port
- Floor-standing or wall-mounted filler requirement
- Carton marking and label
- Required shipping window for D-8332
D-8332 lead time is confirmed at quotation.
