SANIKB D-8178 - white double-ended freestanding tub with vertical walls, molded backrests and chrome overflowSANIKB D-8178 dimension drawing
01 / 02
01 / 02

Vertical-Wall Double Slipper Freestanding Tub, 63 in

SKU D-8178
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 63" × 31.5" × 22.8" (1600 × 800 × 580 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8178

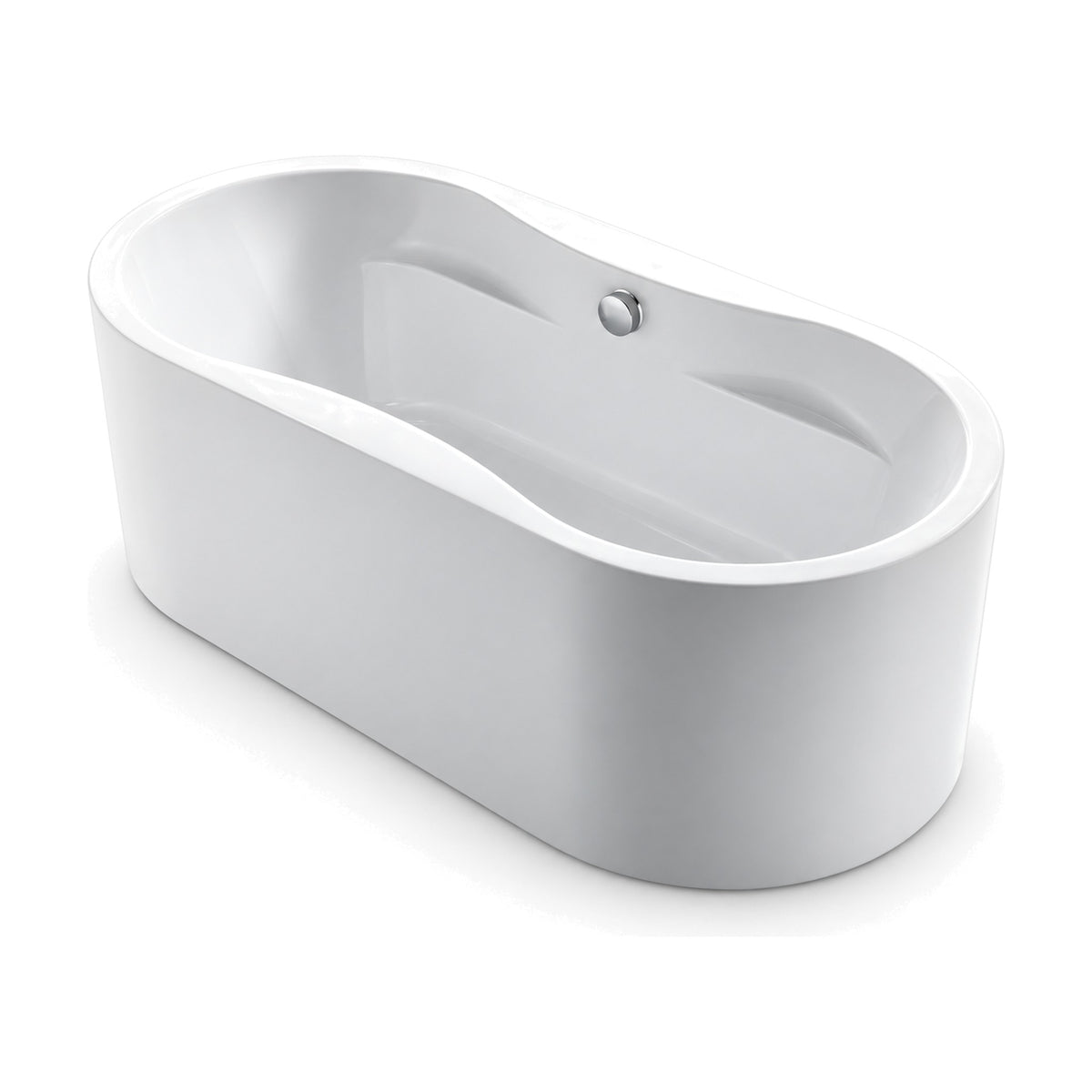

SANIKB D-8178 is a white acrylic freestanding bathtub with vertical walls, a stadium-shaped plan and contoured backrests molded into both ends. Its thin rim dips at the middle of each long side, a chrome overflow sits at mid-length, and the drain is centered. The single size, D-8178, measures 1600 × 800 × 580 mm (63 × 31.5 × 22.8 in), with inner depths of 440 and 450 mm on the drawing.

The rim has no tap holes, so D-8178 takes a floor-standing or wall-mounted filler. It is cUPC certified, and a quote for the 1600 mm size follows within 12 business hours. Double-ended models of this kind are also in the slipper tub collection.

Product PDF D-8178

More in Slipper Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 33

Tub sheet

Size and installation of D-8178

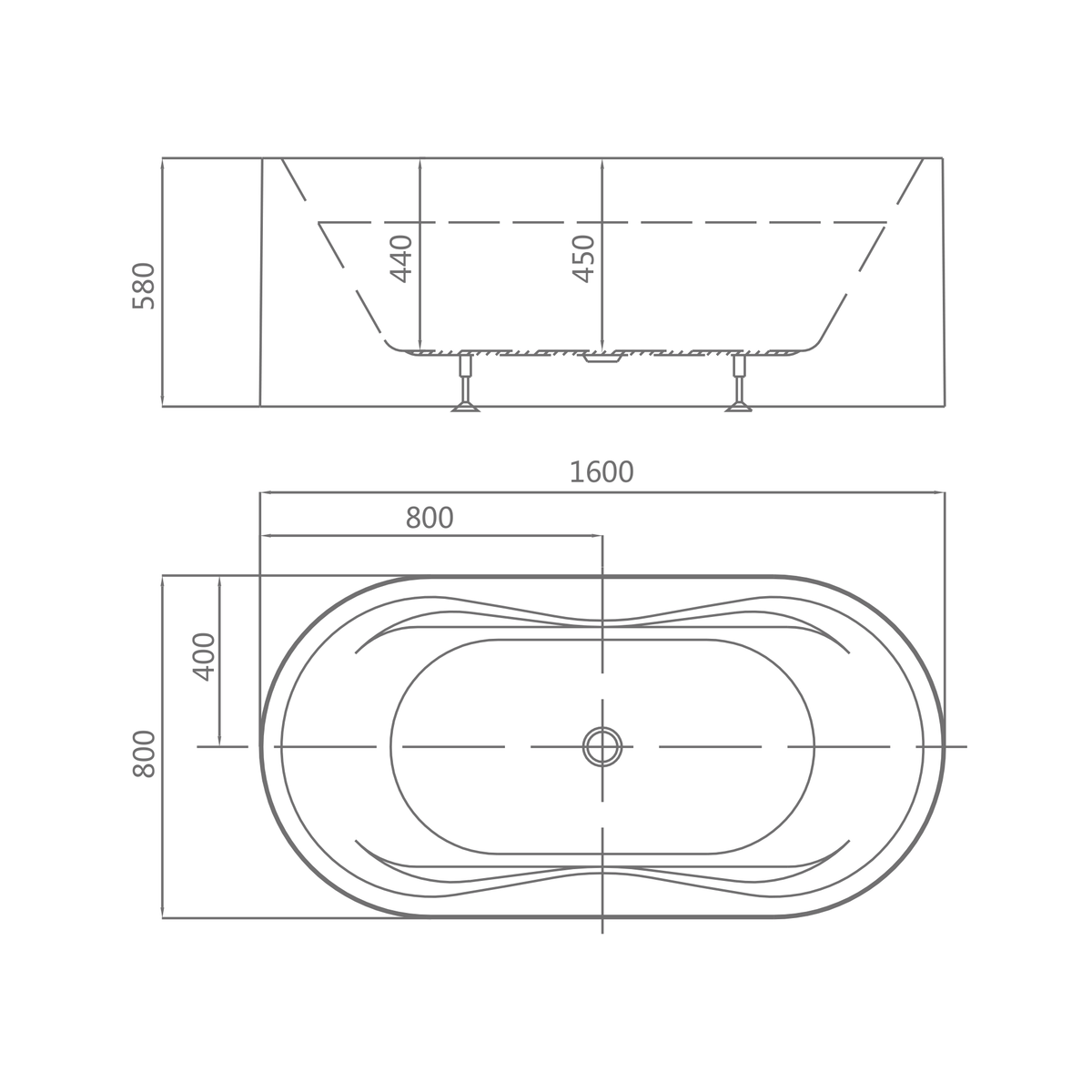

SANIKB D-8178 dimension drawing
Dimension drawing
Size range63" × 31.5" × 22.8" (1600 × 800 × 580 mm)
InstallationFreestanding
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Vertical-Wall Double Slipper Freestanding Tub, 63 in SKU D-8178
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Walls & Backrests

    Upright outer walls, backrests molded inside

    D-8178 keeps its outer walls vertical, and the drawing shows the outer ends vertical as well. The slipper shape is inside: both ends carry a contoured backrest.

    01 / BACKRESTS

    Contoured at both ends

    The inner end walls are shaped as backrests, so the bather can recline at either end while the outside keeps a straight, upright line.

    02 / RIM

    Wavy inner rim line

    The thin rim dips at the middle of each long side, giving the inner edge a wavy line seen from above. The chrome overflow sits at mid-length.

    Other double-ended shapes are in the freestanding bathtub collection.

    Fit & Footprint

    1600 mm long at 580 mm high

    D-8178 is 63 × 31.5 × 22.8 inches (1600 × 800 × 580 mm). With vertical walls, the footprint on the floor is close to the rim outline.

    D-8178
    63" × 31.5" × 22.8" (1600 × 800 × 580 mm)
    Inner Depth (as drawn)
    17.3" and 17.7" (440 / 450 mm)
    Drain (as drawn)
    Centered, 31.5" / 15.7" (800 / 400 mm) from end / side
    Faucet Mounting
    No tap holes; floor-standing or wall-mounted filler

    The 1600 mm length falls between the common 1500 and 1700 mm sizes, which helps in rooms where 1700 mm is too long. Because the walls are upright, clearance measured at the floor is about the same as at the rim.

    Set the D-8178 floor waste from the approved drawing.

    Construction & Finish

    White acrylic with chrome overflow

    The D-8178 shell is white acrylic made from pure acrylic sheet, with a chrome overflow cover at mid-length.

    SANIKB D-8178 - white double-ended freestanding tub with vertical walls, molded backrests and chrome overflow

    White

    Chrome overflow cover

    The overflow cover is chrome against the white shell. The surface sheen of the shell is confirmed on the approval sample.

    The flat base goes straight onto the floor. With vertical walls, any gap between the tub and an uneven floor shows along the full length, so level the floor first.

    Store the approved D-8178 sample as the reference for the order.

    Compliance

    D-8178 compliance

    D-8178 on every record

    Documents for D-8178 are issued under its one SKU.

    D-8178 is cUPC certified. Ask SANIKB for the current certificate number and validity to place in the submittal.

    Tell us the project's market and required documents with the enquiry, and the D-8178 answer comes back within 12 business hours.

    Procurement

    Ordering D-8178

    D-8178 is made in one 1600 mm size, with a production window of 30-45 days after sample approval.

    Size SKU
    D-8178
    Standard Lead Time
    30-45 days after sample approval

    D-8178 can be quoted on its own or combined with other SANIKB models in the same shipment; give the quantity of each in the enquiry.

    Include these details with the RFQ

    • D-8178 quantity
    • Destination market and port
    • Filler: floor-standing or wall-mounted
    • Confirm chrome overflow cover
    • Shipping window
    Request D-8178 Quote View OEM & ODM Program

    Each D-8178 quotation states the confirmed lead time.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    How much floor does D-8178 cover?

    D-8178 is made in one size, D-8178, at 1600 × 800 × 580 mm (63 × 31.5 × 22.8 in). With vertical walls, the footprint is close to the rim outline.

    Does D-8178 have a backrest at each end?

    Yes. Contoured backrests are molded into both ends on the inside, while the outer walls and ends stay vertical.

    What inner depth and drain position are drawn for D-8178?

    Inner depth is drawn at 440 and 450 mm (17.3 and 17.7 in), and the drain sits at the center of the plan, 800 mm (31.5 in) from the end and 400 mm (15.7 in) from the side.

    Where does the chrome overflow sit on D-8178?

    A chrome overflow sits at mid-length, where the thin rim dips on the long side.

    Can D-8178 take a floor filler or a wall spout?

    Either works. The rim has no tap holes, so D-8178 takes a floor-standing or wall-mounted filler; plan its position with the centered drain in mind.

    How is D-8178 finished and ordered?

    D-8178 is white acrylic with a chrome overflow and holds cUPC certification. An enquiry with the quantity and port is quoted within 12 business hours, and the vertical-wall tub is made 30-45 days after sample approval.
