Boat-Style Double-Ended Freestanding Soaking Tub, 59 & 67 in

SKU D-8336-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 25.6" (1500 × 800 × 650 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8336-150

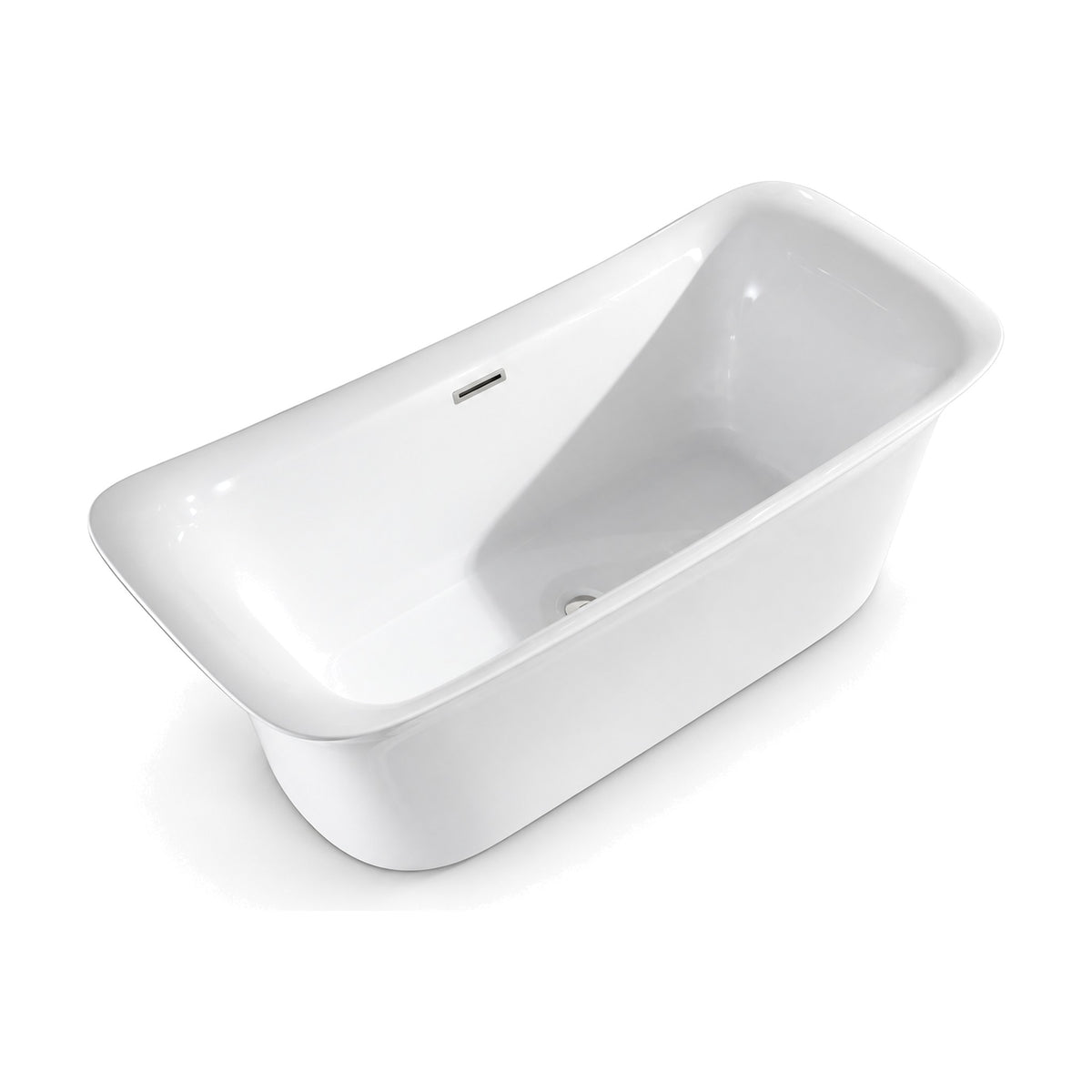

SANIKB D-8336 is a boat-style acrylic freestanding soaking tub with a rim that sweeps up at both ends and flares out past a narrower body. The tub is double ended, with a center drain and the overflow at the middle of one long side.

D-8336-150 measures 1500 x 800 x 650 mm (59 x 31.5 x 25.6 in) and D-8336-170 measures 1700 x 800 x 650 mm (67 x 31.5 x 25.6 in), with height taken at the raised ends. It is made in glossy white and is cUPC certified. The rim has no tap holes; it takes a floor-standing or wall-mounted filler. More are in the freestanding bathtubs collection.

Product PDF D-8336-150

More in Soaking Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 34

Tub sheet

Size and installation of D-8336

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

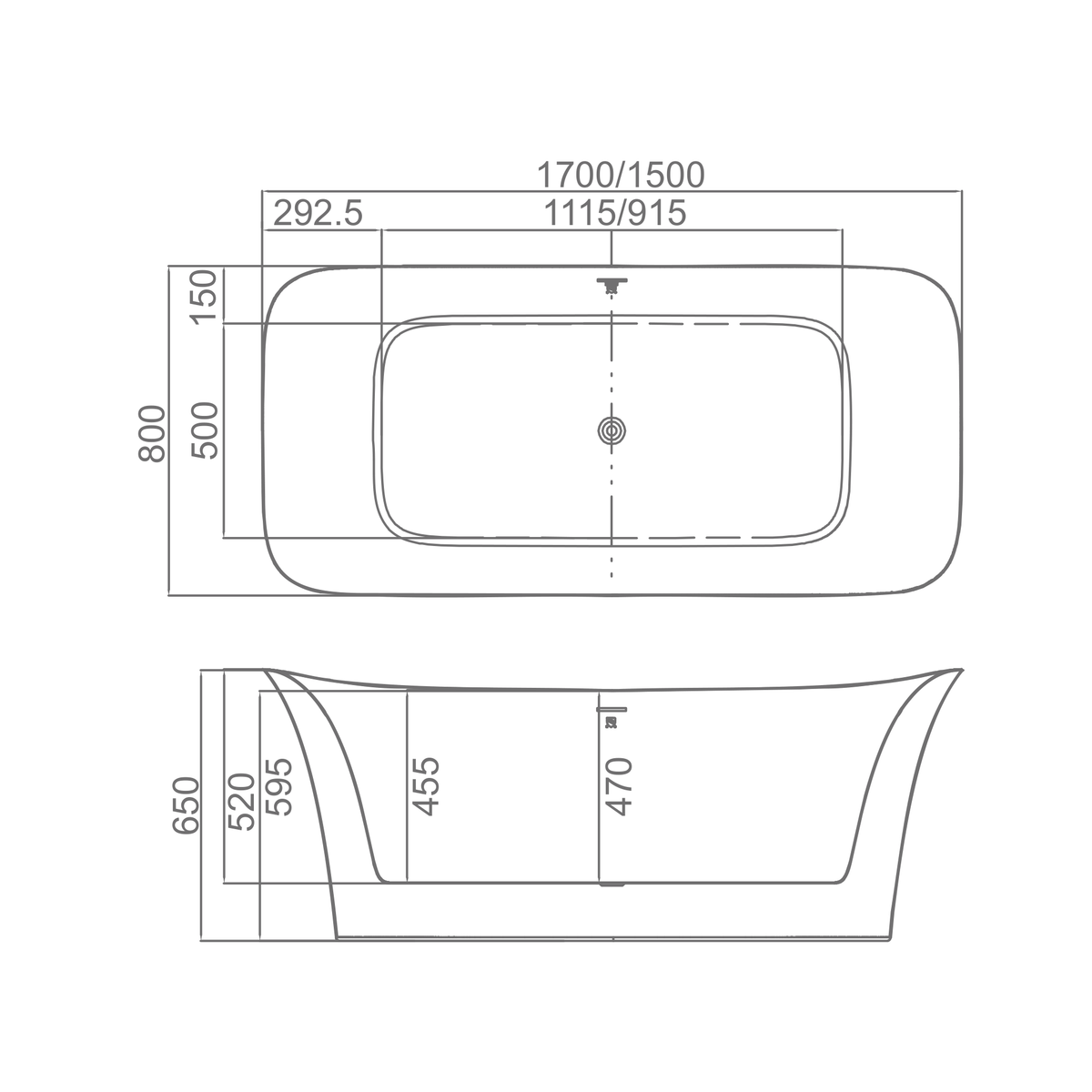

SANIKB D-8336 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 25.6" (1500 / 1700 × 800 × 650 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8336-15059" x 31"
D-8336-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8336-15067" x 31"D-8336-170
Overall L×W×D
59″ × 31.5″ × 25.6″
1500 × 800 × 650 mm
67″ × 31.5″ × 25.6″
1700 × 800 × 650 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Boat-Style Double-Ended Freestanding Soaking Tub, 59 & 67 in SKU D-8336-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Backrest

    Swept-up ends and a flared rim

    D-8336 is a rounded rectangle in plan with a symmetric outline. In elevation both ends rise and flare outward, giving the tub its boat profile.

    01 / ENDS

    Raised at both ends

    The rim stands 650 mm (25.6 in) high at each end and drops to 595 mm (23.4 in) at the center. Either end can serve as the backrest.

    02 / DRAIN

    Center drain, side overflow

    The drain is in the center of the floor and the overflow is at the middle of a long side, so neither end holds the drain or overflow.

    D-8336 also sits with other deep tubs in the soaking tubs collection.

    Fit & Footprint

    800 mm wide at the rim, 500 mm across the interior

    D-8336-150 is 59 x 31.5 x 25.6 inches (1500 x 800 x 650 mm) and D-8336-170 is 67 x 31.5 x 25.6 inches (1700 x 800 x 650 mm). Heights are measured at the raised ends.

    D-8336-150
    59" x 31.5" x 25.6" (1500 x 800 x 650 mm)
    D-8336-170
    67" x 31.5" x 25.6" (1700 x 800 x 650 mm)
    Interior (as drawn)
    915 / 1115 mm (36 / 44 in) long; 500 mm (19.7 in) wide
    Drain & Overflow
    Center drain; overflow on a long side

    The flared rim reaches 150 mm beyond the interior on each side, so the 800 mm overall width is taken at the rim rather than the body. Inner depth is drawn between 455 mm and 520 mm, with 470 mm at the drain.

    Set the floor waste at the center of D-8336, confirmed on the approved drawing.

    Construction & Finish

    Glossy white acrylic, boat profile

    D-8336 is made from pure acrylic sheet and finished in glossy white.

    SANIKB D-8336 - glossy white boat-style freestanding tub with both ends swept up and a flared rim

    White

    Gloss on a flared rim

    The flared rim and raised ends put the glossy outer surface of D-8336 on show from every side of the room.

    Check the flared rim and raised ends for marks on arrival.

    Cover the flared rim and raised ends in any D-8336 damage report.

    Compliance

    cUPC for D-8336

    By model and size

    Documents for D-8336 are requested against D-8336-150 or D-8336-170.

    D-8336 is cUPC certified. For submittals, ask SANIKB for the current certificate number and the date it expires.

    Name the market and any required documents when you send the D-8336 inquiry; written responses are issued within 12 business hours.

    Procurement

    Quoting D-8336

    D-8336 is quoted per size SKU, with a lead time of 30-45 days after sample approval.

    Size SKUs
    D-8336-150, D-8336-170
    Standard Lead Time
    30-45 days after sample approval

    The raised, flared ends make D-8336 taller at the ends than at the center; ask for packed dimensions per size when you plan container loading.

    Include these details with the RFQ

    • Quantity of each D-8336 size
    • Destination market and port
    • Floor-standing or wall-mounted filler requirement
    • Brand marking on cartons
    • Shipping window for the D-8336 order
    Request D-8336 Quote View OEM & ODM Program

    D-8336 lead time is indicative until quoted.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the overall dimensions of D-8336?

    D-8336-150 is 1500 x 800 x 650 mm (59 x 31.5 x 25.6 in) and D-8336-170 is 1700 x 800 x 650 mm (67 x 31.5 x 25.6 in). The 650 mm height is at the raised ends; the rim is 595 mm (23.4 in) at the center.

    Can either end of D-8336 be the backrest?

    Yes. Both ends sweep up and flare, and either can be used as the backrest. The drain is central and the overflow sits mid-way along a long side.

    What are the interior dimensions of D-8336?

    The drawing gives inner depth from 455 to 520 mm (17.9 to 20.5 in), with 470 mm (18.5 in) at the drain. Interior length is 915 mm (36 in) on the 1500 mm size and 1115 mm (44 in) on the 1700 mm size, and interior width is 500 mm (19.7 in).

    What faucet suits D-8336?

    The D-8336 rim has no tap holes, so it takes a floor-standing or wall-mounted filler. Set out the filler position against the approved drawing so it clears the flared rim.

    How is D-8336 set in the room?

    D-8336 stands on the floor as a freestanding tub, and its drain is central. Fix the floor waste position from the approved drawing before the tub is placed.

    What is the D-8336 finish, and how do we order?

    D-8336 is glossy white acrylic and holds cUPC certification. Send a quantity for each size along with the destination; a written quote is returned within 12 business hours and lead time is 30-45 days after sample approval.
