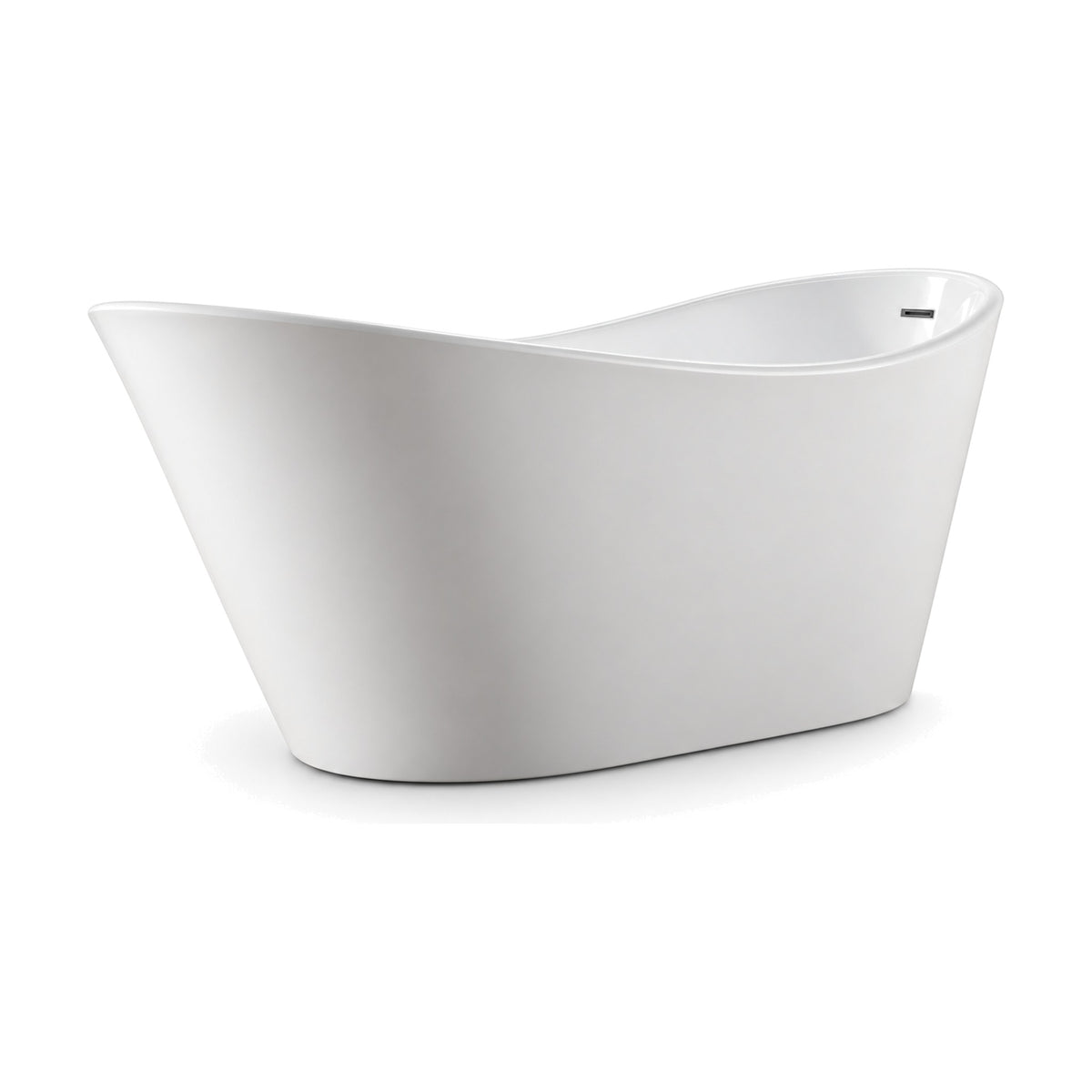

SANIKB D-8098 - white double slipper freestanding tub with one raked end, one upright end and a dipped rim

01 / 02

Asymmetric Double Slipper Freestanding Tub, Raked End, 67 & 71 in

SKU D-8098-170

Size

Certification

cUPC listed

Min. order

25 pcs (67 in) / 25 pcs (71 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 67" × 31.5" × 28.3" (1700 × 800 × 720 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8098-170

SANIKB D-8098 is a white acrylic freestanding bathtub with both ends raised, but not in the same way: one end is steeply raked outward like a slipper backrest, and the other is more upright and holds the overflow. The rim dips in the middle and the body tapers to a flat footprint. Sizes are D-8098-170, 1700 × 800 × 720 mm (67 × 31.5 × 28.3 in), and D-8098-180, 1800 × 800 × 720 mm (71 × 31.5 × 28.3 in). With no tap holes in the rim, it takes a floor-standing or wall-mounted filler.

D-8098 is cUPC certified, and a quote for either length follows within 12 business hours. Other raked-back profiles are in the slipper tub collection.

Product PDF D-8098-170

More in Slipper Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 33

Tub sheet

Size and installation of D-8098

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

Size range67" / 71" × 31.5" × 28.3" (1700 / 1800 × 800 × 720 mm)

Sizes67" x 31"71" x 31"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8098-170	67" x 31"
D-8098-180	71" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ25 pcs (67 in) / 25 pcs (71 in) · 1×40HQ

	67" x 31"D-8098-170	71" x 31"D-8098-180
Overall L×W×D	67″ × 31.5″ × 28.3″ 1700 × 800 × 720 mm	71″ × 31.5″ × 28.3″ 1800 × 800 × 720 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Asymmetric Double Slipper Freestanding Tub, Raked End, 67 & 71 in SKU D-8098-170

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Shape & Ends

One raked end, one upright end

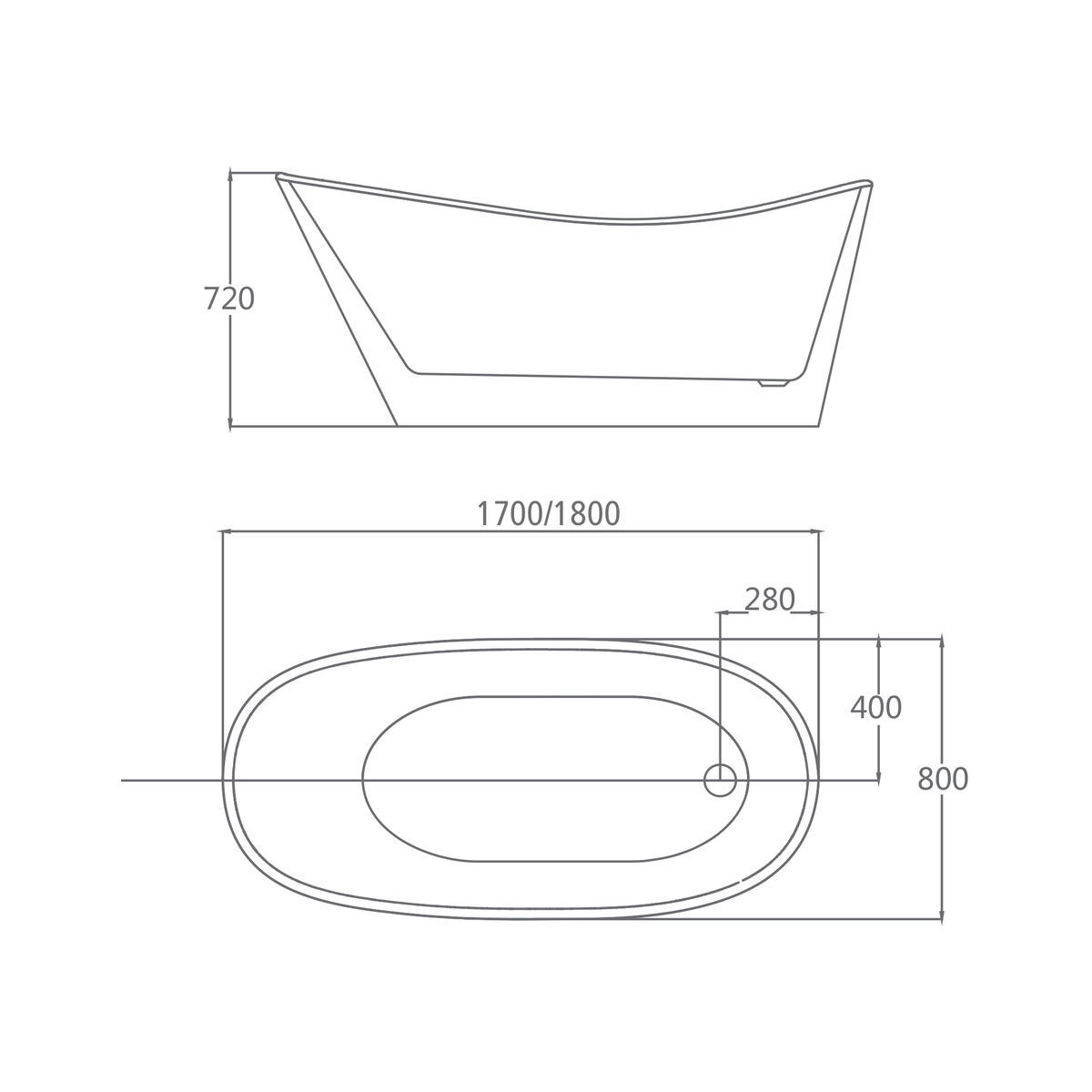

D-8098 is a double slipper with a directional profile. The raked end is the taller one on the drawing, at 720 mm (28.3 in), and the opposite end stands more upright.

01 / RAKED END

Slipper-style backrest

At the tall end the outer wall leans well outward, which sets a reclined back angle at that end.

02 / UPRIGHT END

Overflow and drain end

The more upright end carries the overflow, and the drawing puts the drain 280 mm (11.0 in) from that end.

Symmetric double slipper shapes sit in the freestanding bathtub collection.

Fit & Drain

800 mm wide in 1700 or 1800 mm lengths

D-8098-170 is 67 × 31.5 × 28.3 inches (1700 × 800 × 720 mm). D-8098-180 adds 100 mm of length at 71 × 31.5 × 28.3 inches (1800 × 800 × 720 mm).

D-8098-170: 67" × 31.5" × 28.3" (1700 × 800 × 720 mm)
D-8098-180: 71" × 31.5" × 28.3" (1800 × 800 × 720 mm)
Drain (as drawn): 11.0" (280 mm) from the upright end, 15.7" (400 mm) from the side
Faucet Mounting: No tap holes; floor-standing or wall-mounted filler

The drain is off center, close to the upright end, so the floor waste has to match the way the tub faces in the room. Request the inner depth on the approved drawing if the specification calls for it.

Fix the D-8098 orientation first, then set the floor waste to the approved drawing.

Construction & Finish

White acrylic body

D-8098 is made from pure acrylic sheet, in white.

White

Sheen agreed at sample stage

D-8098 is made in white, and the surface sheen is confirmed on the approval sample before production begins.

The tapered body sits flat on the floor. Because the raked end leans out past the base, allow for that overhang when the tub is set close to a wall.

Record the approved D-8098 sample as the reference for the shipment.

Compliance

cUPC for D-8098

Length-specific documents

Ask for D-8098 documents by SKU so the 1700 mm and 1800 mm lengths are each covered.

D-8098-170 and D-8098-180 are both cUPC certified. The current certificate number and validity are available from SANIKB for submittals.

Name the destination and required documents when you enquire, and expect a written response within 12 business hours.

Procurement

D-8098 quotation

Each D-8098 length is its own SKU, produced 30-45 days after sample approval.

Size SKUs: D-8098-170, D-8098-180
Standard Lead Time: 30-45 days after sample approval

Because the drain sits near one end, note on the order which way each tub will face, so the installer can prepare the waste positions in advance.

Include these details with the RFQ

D-8098-170 and D-8098-180 quantities
Destination market and port
Filler: floor-standing or wall-mounted
Carton marking
Shipping window

Request D-8098 Quote View OEM & ODM Program

D-8098 lead time is confirmed when the quotation is issued.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

Is D-8098 offered in more than one length?

Yes. Two lengths share the 800 mm width and 720 mm height: D-8098-170 at 1700 × 800 × 720 mm (67 × 31.5 × 28.3 in) and D-8098-180 at 1800 × 800 × 720 mm (71 × 31.5 × 28.3 in).

How do the two ends of D-8098 differ?

Both ends are raised and the rim dips between them. One end is taller, at 720 mm (28.3 in), with an outer wall raked steeply outward as a slipper backrest; the other end is more upright and holds the overflow.

Does the D-8098 drain sit near one end?

Yes. The drawing places it 280 mm (11.0 in) from the upright end and 400 mm (15.7 in) from the side.

Does D-8098 take a floor or a wall faucet?

The rim has no tap holes, so D-8098 takes a floor-standing or wall-mounted filler. Place it once the orientation is fixed, because the overflow and the drain are both at the upright end.

What needs planning before D-8098 is installed?

Decide which way the tub faces, set the floor waste from the approved drawing, and leave room for the raked end, which leans out beyond the flat base.

What is the finish of D-8098, and how is it quoted?

D-8098 is white acrylic from pure acrylic sheet and holds cUPC certification, with the sheen agreed on the sample. The D-8098 quote is issued within 12 business hours of the enquiry, and the tubs are made 30-45 days after sample approval.
