SANIKB D-8073 - white high-back slipper freestanding tub with a steeply raked backrest end and a narrow baseSANIKB D-8073 dimension drawing
01 / 02
01 / 02

Steeply Raked Slipper Freestanding Tub, Narrow Base, 33.1 in High Back, 67 in

SKU D-8073
Size
Certification
Certification mark
cUPC listed
Min. order
20 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 67" × 28.7" × 33.1" (1700 × 730 × 840 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8073

SANIKB D-8073 is a freestanding acrylic slipper bathtub in gloss white with a steeply raked high back, made in one size: D-8073 at 1700 × 730 × 840 mm (67 × 28.7 × 33.1 in). The backrest end rises to 840 mm, the rim dips through the middle, and the body tapers to a narrow flat base. The drawing places the drain near the low end. No tap holes are cut in the rim; D-8073 takes a floor-standing or wall-mounted filler.

D-8073 is cUPC certified, and quote requests receive an answer within 12 business hours. Other high-back designs are in the slipper bathtub range.

Product PDF D-8073

More in Slipper Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 33

Tub sheet

Size and installation of D-8073

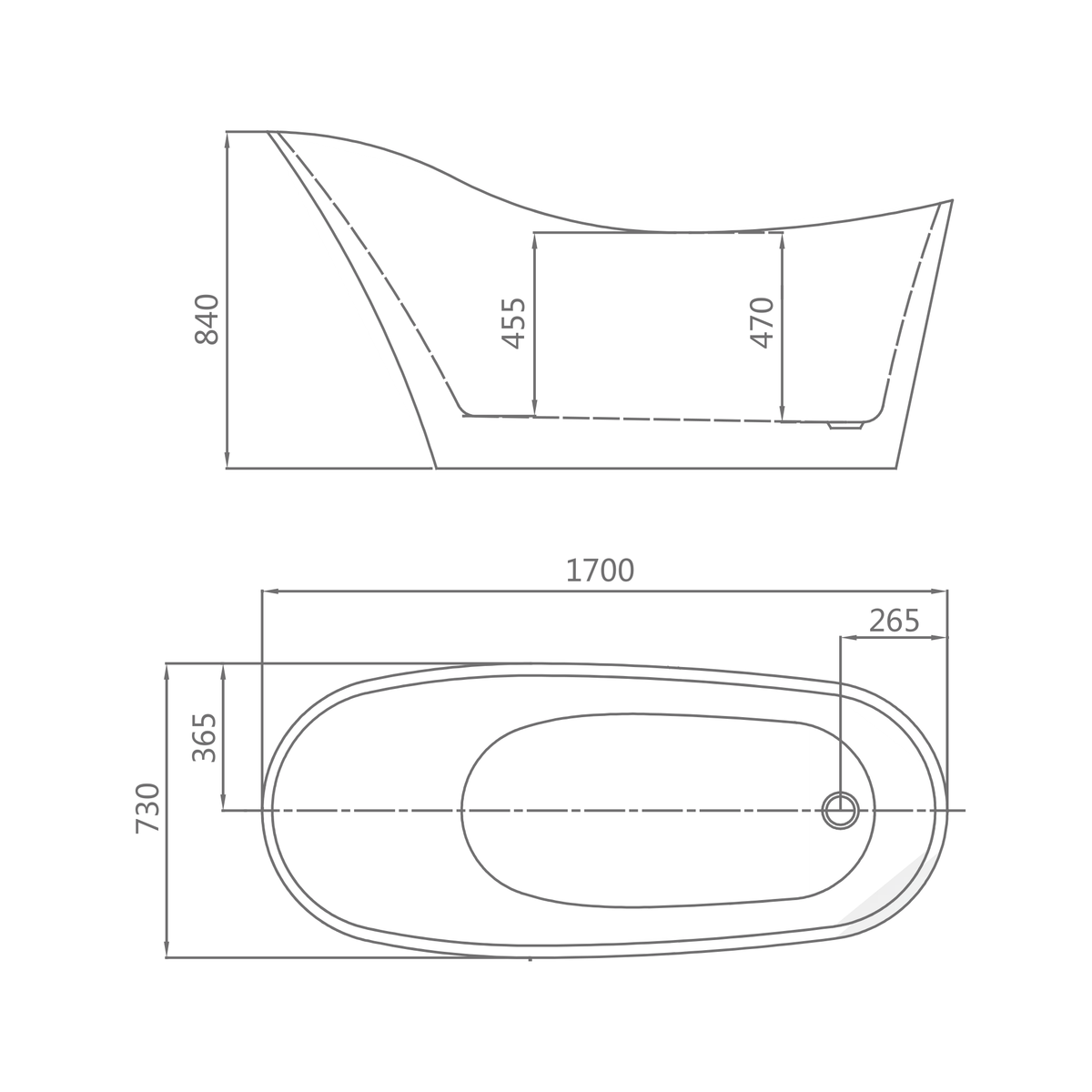

SANIKB D-8073 dimension drawing
Dimension drawing
Size range67" × 28.7" × 33.1" (1700 × 730 × 840 mm)
InstallationFreestanding
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Steeply Raked Slipper Freestanding Tub, Narrow Base, 33.1 in High Back, 67 in SKU D-8073
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Profile & Backrest

    840 mm raked backrest on an egg-shaped plan

    D-8073 has an egg-shaped oval plan. One end rises in a steep, sweeping curve to 840 mm (33.1 in), and the rim dips in the middle before the low end.

    01 / BACKREST

    Steeply raked high end

    The high end leans back at a steep angle, giving a reclining surface at the head end, while the rim drops away through the middle.

    02 / DRAIN

    Centered drain near the low end

    The drawing puts the drain 265 mm (10.4 in) from the low end and 365 mm (14.4 in) from the side, on the center line of the 730 mm width.

    More deep soaking shapes are in the soaking tub range.

    Fit & Drawing

    1700 × 730 mm footprint, 840 mm at the back

    D-8073 is made in one size, D-8073, at 67 by 28.7 by 33.1 inches (1700 by 730 by 840 mm).

    Overall Size
    67" × 28.7" × 33.1" (1700 × 730 × 840 mm)
    Installation
    Freestanding, flat to floor
    Drain Position
    265 mm from low end, centered on the width
    Inner Depth
    455 mm and 470 mm on drawing (17.9 / 18.5 in)

    The 730 mm (28.7 in) width helps where the room is tight across, while the 840 mm back needs checking against windows and wall features on the elevation.

    Locate the floor waste from the approved drawing, where the drain is dimensioned from the low end.

    Construction & Finish

    Pure acrylic in gloss white, narrow base

    Gloss white pure acrylic sheet forms D-8073, and the body narrows to a small flat base.

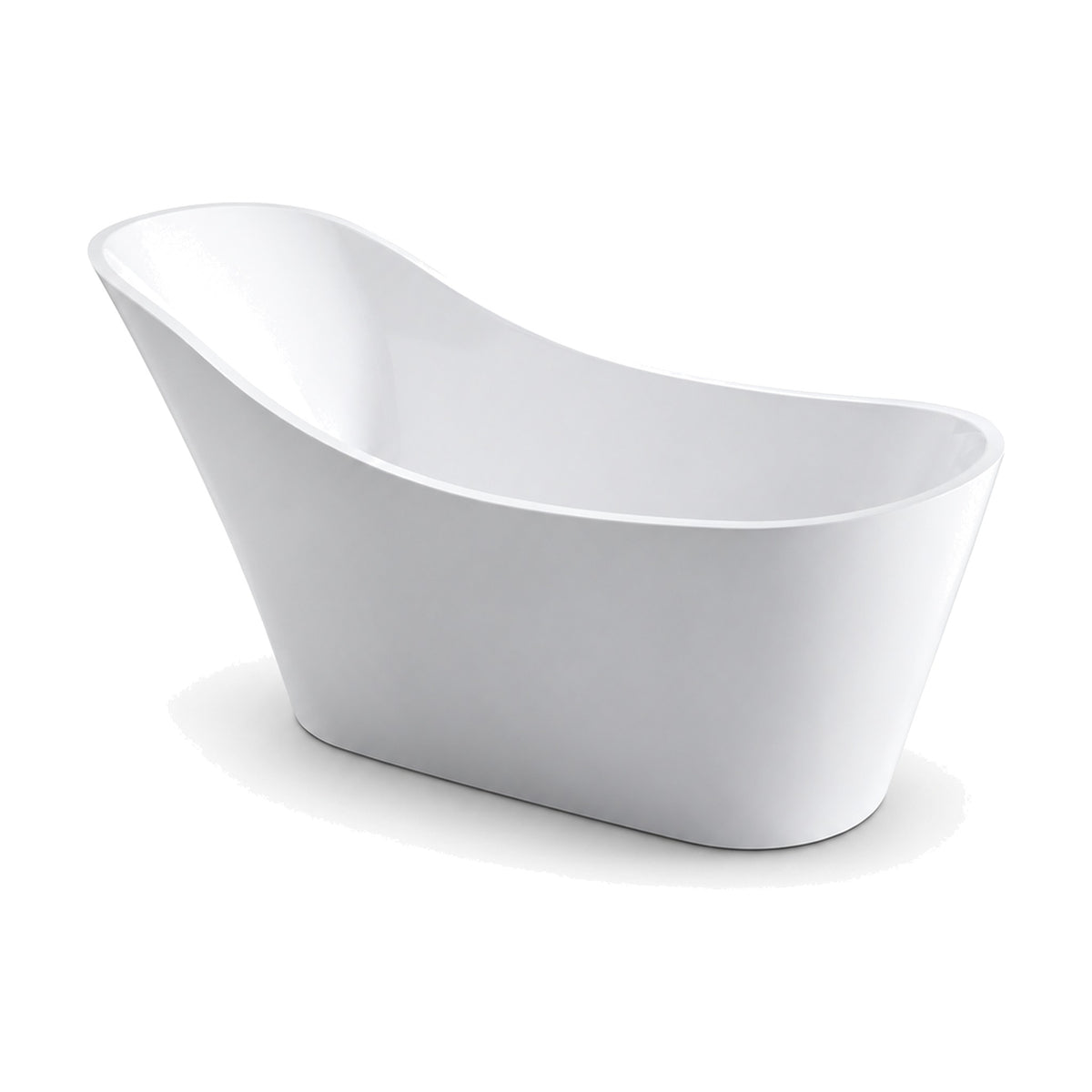

    SANIKB D-8073 - white high-back slipper freestanding tub with a steeply raked backrest end and a narrow base

    White

    One finish: gloss white

    The D-8073 finish is gloss white. On a tall raked back the surface is seen over a large area, so check it on the sample under the lighting planned for the room.

    The 840 mm backrest end is the tallest edge of the shell; ask how it is protected in the carton and during unloading.

    Settle in writing how damaged units will be recorded, reported and replaced.

    Open cartons at delivery and check the backrest edge first.

    Compliance

    cUPC certification for D-8073

    Single-SKU paperwork

    Every D-8073 document refers to one SKU, which keeps the submittal short.

    D-8073 is cUPC certified. For a submittal, the certificate reference and validity date are provided against the single SKU, D-8073.

    Include the destination market when you contact us, and expect an answer within 12 business hours.

    Procurement

    Ordering D-8073

    D-8073 is the only SKU to quote, and its raked-back shell is made on a lead time of 30-45 days after sample approval.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    within 12 business hours

    Approve the sample with the raked backrest in view of the room design, since that end sets the look of the installation.

    Include these details with the RFQ

    • Quantity of D-8073
    • Floor or wall faucet placement
    • Drain and overflow trim
    • Destination market and port
    • Private-label or carton marking
    • Preferred shipping month
    Request D-8073 Quote View OEM & ODM Program

    The issued quotation confirms the final figures.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are D-8073's overall dimensions?

    One size: D-8073 at 1700 × 730 × 840 mm (67 × 28.7 × 33.1 in).

    What does the D-8073 backrest look like?

    Only one end is raised. It climbs steeply to 840 mm (33.1 in) in a sweeping curve, and the rim dips in the middle before the low end.

    Where is the drain on D-8073, and how deep is it?

    The drawing puts the drain 265 mm (10.4 in) from the low end, centered 365 mm (14.4 in) from the side. Two inner depth readings are given: 455 mm (17.9 in) and 470 mm (18.5 in).

    What faucet suits D-8073?

    D-8073 has no tap holes, so use a floor-standing or wall-mounted filler, set toward the low end where the drain is and clear of the raked backrest.

    What does the narrow D-8073 base mean for installation?

    The body tapers to a narrow flat base that sits on the floor without feet, so check the floor is level where the base lands.

    Which facts does SANIKB need to quote D-8073?

    Name the quantity of D-8073 and the port it ships to. We send answers within 12 business hours; lead time for the tub is 30-45 days after sample approval.
