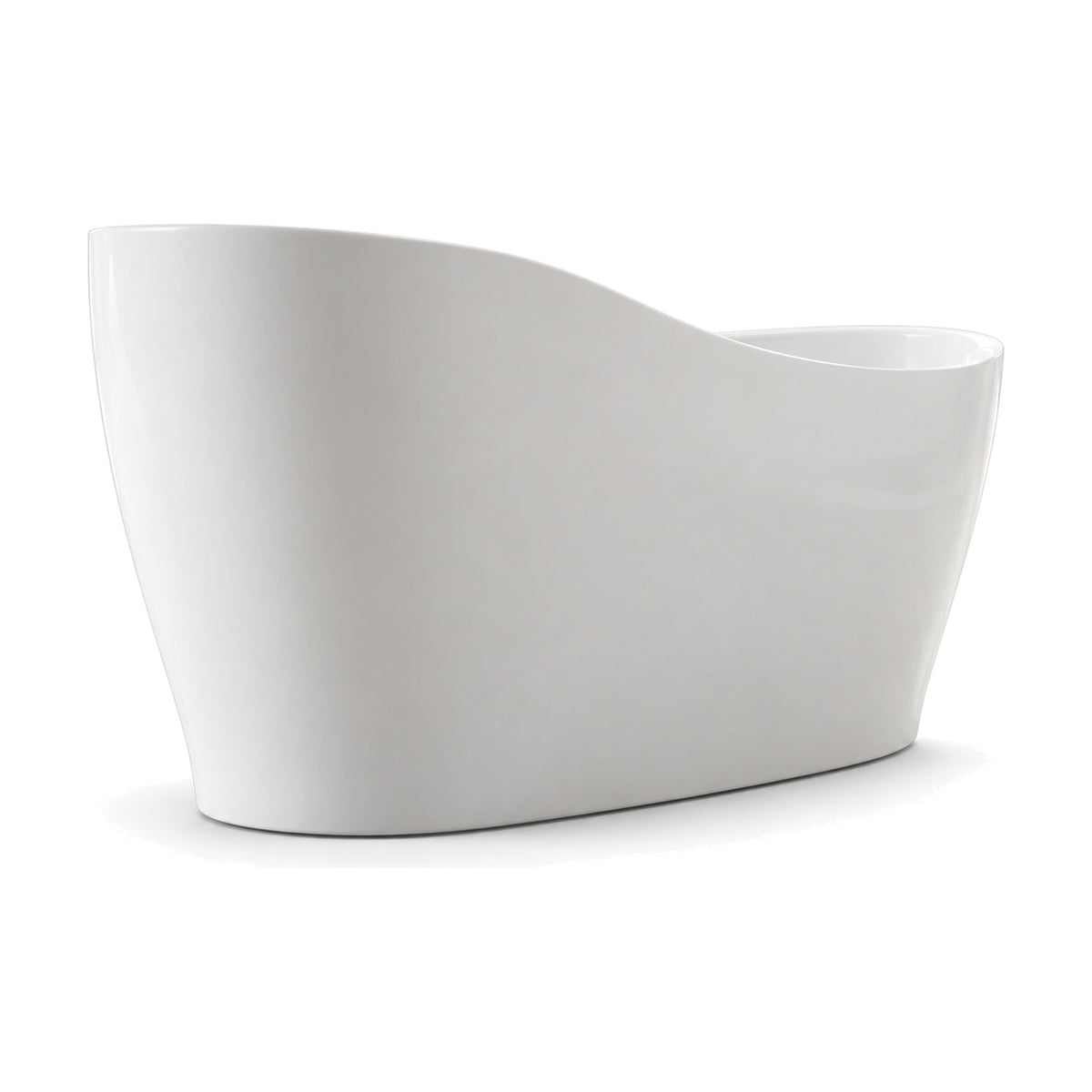

SANIKB D-8092 - white high-back single-slipper freestanding tub with a sweeping 800 mm backrest end

01 / 02

Sweeping High-Back Slipper Freestanding Tub, 31.5 in Tall, 67 & 71 in

SKU D-8092-170

Size

Certification

cUPC listed

Min. order

20 pcs (67 in) / 20 pcs (71 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 67" × 31.5" × 31.5" (1700 × 800 × 800 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8092-170

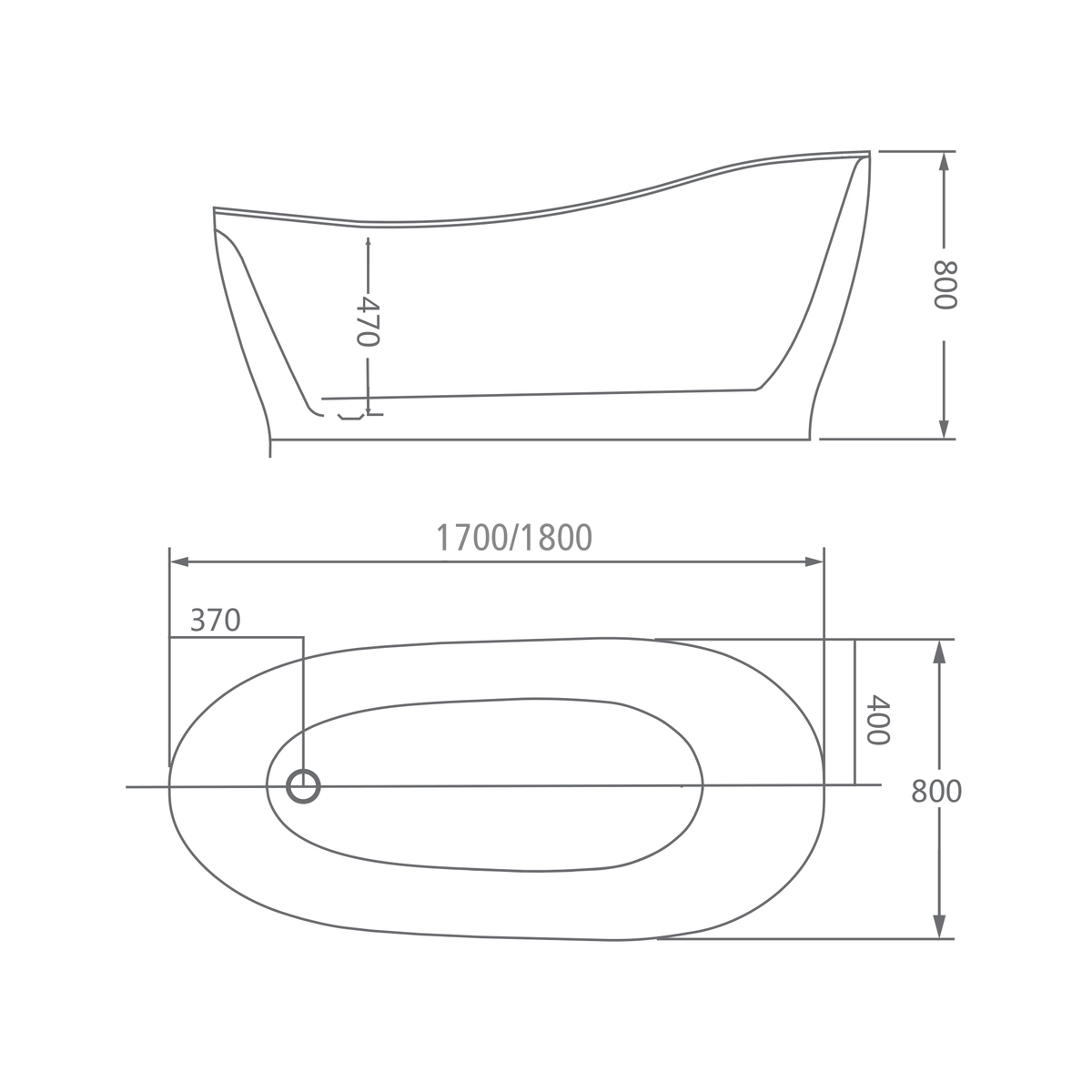

SANIKB D-8092 is a high-back, single-slipper acrylic freestanding bathtub in gloss white. One end rises to 800 mm (31.5 in) in a sweeping backrest, and the rim slopes down to a low foot end where the drain sits. It is made in D-8092-170 at 1700 × 800 × 800 mm (67 × 31.5 × 31.5 in) and D-8092-180 at 1800 × 800 × 800 mm (71 × 31.5 × 31.5 in), so the tub is as tall at the back as it is wide. The drawing shows a 470 mm (18.5 in) inner depth, and with no tap holes in the rim it takes a floor-standing or wall-mounted filler.

D-8092 is cUPC certified; inquiries get a written quote within 12 business hours. Compare profiles in the slipper tub collection.

Product PDF D-8092-170

More in Slipper Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 33

Tub sheet

Size and installation of D-8092

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

Size range67" / 71" × 31.5" × 31.5" (1700 / 1800 × 800 × 800 mm)

Sizes67" x 31"71" x 31"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8092-170	67" x 31"
D-8092-180	71" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ20 pcs (67 in) / 20 pcs (71 in) · 1×40HQ

	67" x 31"D-8092-170	71" x 31"D-8092-180
Overall L×W×D	67″ × 31.5″ × 31.5″ 1700 × 800 × 800 mm	71″ × 31.5″ × 31.5″ 1800 × 800 × 800 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Sweeping High-Back Slipper Freestanding Tub, 31.5 in Tall, 67 & 71 in SKU D-8092-170

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Profile & Backrest

800 mm backrest sweeping down to a low foot end

D-8092 is a single slipper with an asymmetric egg plan. The backrest end rises to 800 mm and the rim falls away toward the foot end.

01 / BACKREST

Tall sweep at one end

The raised end lifts the backrest to 800 mm (31.5 in), which gives a reclining bather a tall surface to lean against.

02 / DRAIN

Drain 370 mm from the foot end

The drawing places the drain 370 mm (14.6 in) in from the low end and 400 mm (15.7 in) from the side, which puts it on the center line of the 800 mm width.

Deep soaking tubs at other heights are grouped in the soaking tub collection.

Fit & Drawing

67 in or 71 in long, 800 mm wide and tall

Both sizes are 800 mm (31.5 in) wide and 800 mm high at the backrest. The lengths are 1700 mm and 1800 mm.

D-8092-170: 67" × 31.5" × 31.5" (1700 × 800 × 800 mm)
D-8092-180: 71" × 31.5" × 31.5" (1800 × 800 × 800 mm)
Installation: Freestanding, flat to floor
Drain Position: 370 mm from low end, 400 mm from side

Allow for the filler at the foot end when checking room length: the rim has no tap holes, so the filler is floor-standing or wall-mounted, and the drain sits 370 mm from that end.

Set the floor waste from the drain dimensions on the approved drawing.

Construction & Finish

Gloss white pure acrylic, tapered body

The D-8092 shell is gloss white pure acrylic sheet; the rim is slim and the body tapers to a flat footprint.

White

White across both lengths

D-8092 is made in gloss white for the 67 in and 71 in sizes alike.

At 800 mm, the backrest end stands above the rest of the rim. Confirm how the carton supports it and how many cartons may be stacked.

Settle the inspection and replacement terms for transit damage before the order ships.

Check the backrest edge and the gloss surface when cartons are opened.

Compliance

cUPC certification for D-8092

Keep the drawing on file

Store the approved D-8092 drawing with the certificate so installers can set the drain from it.

D-8092 is cUPC certified. The certificate number and its validity can be supplied for D-8092-170 and D-8092-180 on request.

Name the destination country when you inquire, and a written reply will reach you within 12 business hours.

Procurement

Ordering D-8092

The 1700 mm and 1800 mm sizes are quoted separately; the standard lead time for either is 30-45 days after sample approval.

Standard Lead Time: 30-45 days after sample approval
Quote Reply: within 12 business hours

An approved sample confirms the backrest height and drain position before production, which matters when the floor waste is set before the tubs arrive.

Include these details with the RFQ

Quantities for D-8092-170 and D-8092-180
Faucet type: floor-mounted or wall-mounted
Drain and overflow trim finish for D-8092
Destination market and port
Private-label marking
Requested shipping window

Request D-8092 Quote View OEM & ODM Program

Lead time counts from sample approval and stays indicative until the quote is issued.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

How long is D-8092?

Two lengths: D-8092-170 is 1700 × 800 × 800 mm (67 × 31.5 × 31.5 in) and D-8092-180 is 1800 × 800 × 800 mm (71 × 31.5 × 31.5 in).

How tall is the D-8092 backrest?

The raised end reaches 800 mm (31.5 in). The rim then slopes down to a low foot end, and an inner depth of 470 mm (18.5 in) is marked on the drawing.

How far is the D-8092 drain from the foot end?

370 mm (14.6 in), per the drawing. It sits 400 mm (15.7 in) from the side, on the center line of the width, at the low end.

Where should the D-8092 faucet go?

Beside the tub rather than on it: D-8092 has no tap holes, so it takes a floor-standing or wall-mounted filler. Placing it at the low foot end keeps it clear of the tall backrest.

What sits on the floor under D-8092?

A flat footprint: the body tapers down to it and rests directly on the floor, with no feet or plinth.

What is needed to quote D-8092?

How many of each SKU you need and the destination port. A written reply follows within 12 business hours, and both lengths are made on a lead time of 30-45 days after sample approval.
