SANIKB D-8089 - white single-slipper freestanding tub with a very tall swept backrest and a low level foot endSANIKB D-8089 dimension drawing
01 / 02
01 / 02

Extra-Tall Slipper Freestanding Tub, 35 in High Back, 67 & 71 in

SKU D-8089-170
Size
Certification
Certification mark
cUPC listed
Min. order
20 pcs (67 in) / 20 pcs (71 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 67" × 31.5" × 35.0" (1700 × 800 × 890 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8089-170

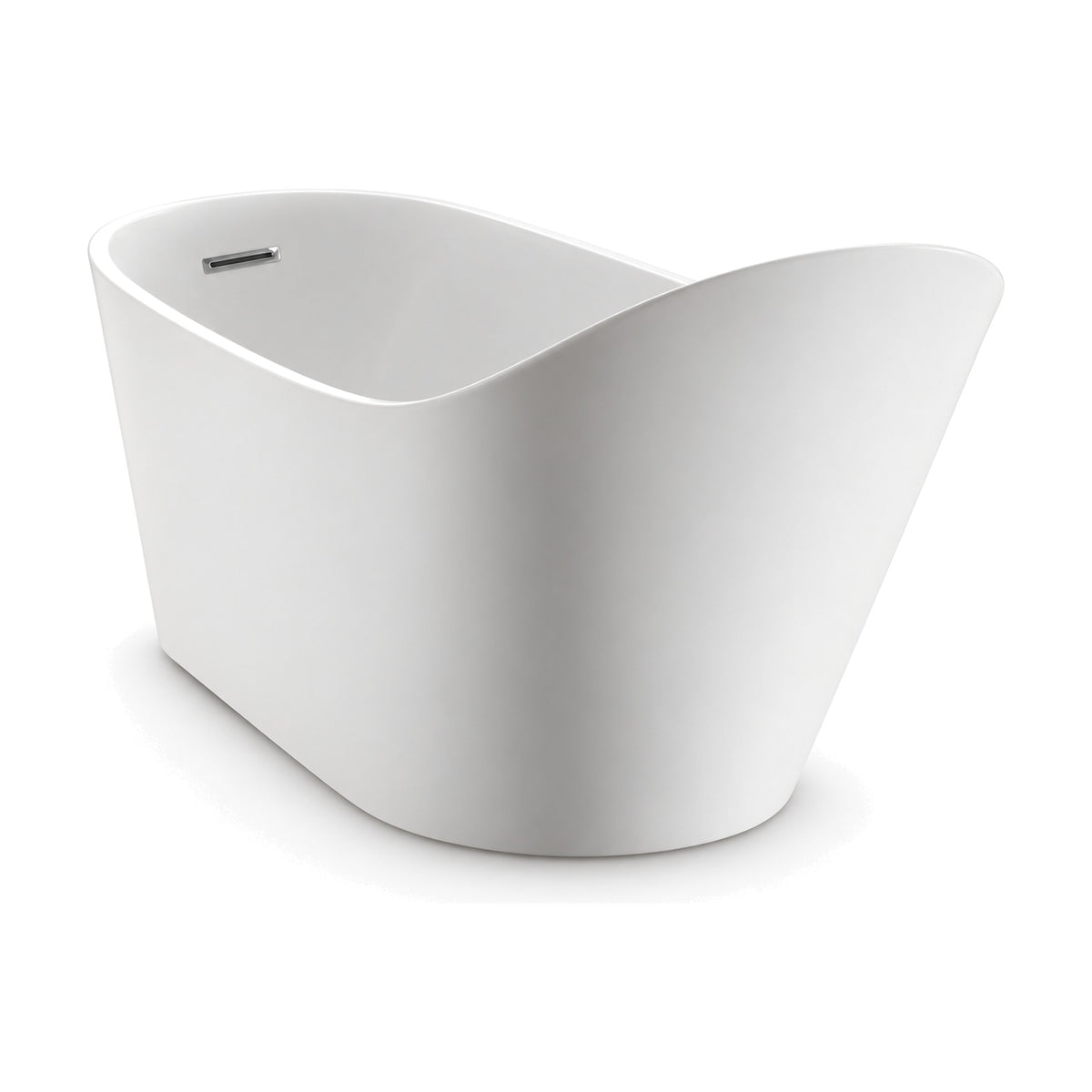

SANIKB D-8089 is a single-slipper acrylic freestanding bathtub in white with a very tall backrest end that sweeps up to 890 mm (35 in). The foot end stays low and level, holding the overflow slot and the drain. Two lengths are made: D-8089-170 at 1700 × 800 × 890 mm (67 × 31.5 × 35.0 in) and D-8089-180 at 1800 × 800 × 890 mm (71 × 31.5 × 35.0 in). Inner depth on the drawing is 470 mm (18.5 in). The rim carries no tap holes, so D-8089 is filled from a floor-standing or wall-mounted filler at the low end.

D-8089 is cUPC certified, and quotes come back within 12 business hours. Browse other profiles in the slipper tubs range.

Product PDF D-8089-170

More in Slipper Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 33

Tub sheet

Size and installation of D-8089

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

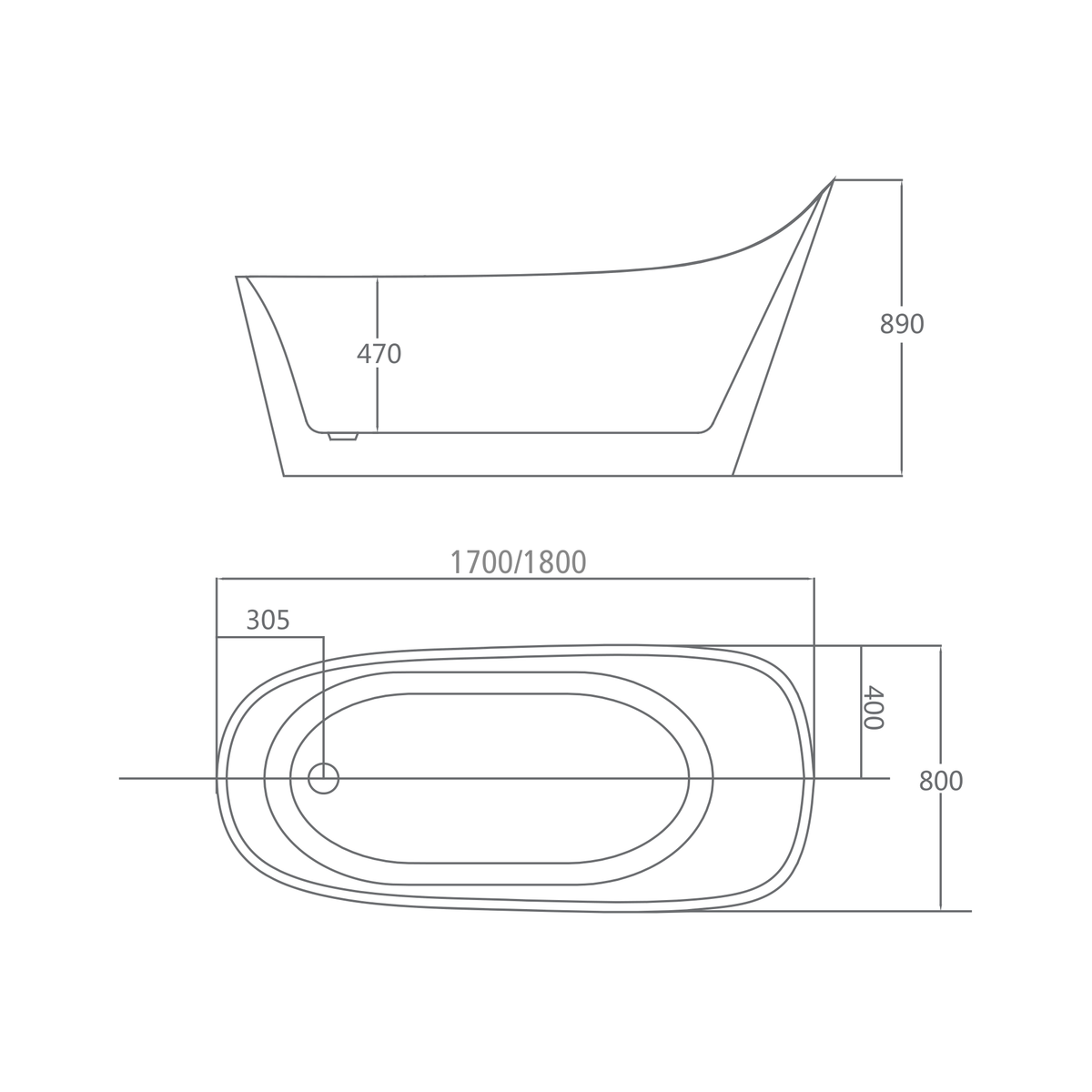

SANIKB D-8089 dimension drawing
Dimension drawing
Size range67" / 71" × 31.5" × 35.0" (1700 / 1800 × 800 × 890 mm)
Sizes67" x 31"71" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8089-17067" x 31"
D-8089-18071" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ20 pcs (67 in) / 20 pcs (71 in) · 1×40HQ
67" x 31"D-8089-17071" x 31"D-8089-180
Overall L×W×D
67″ × 31.5″ × 35.0″
1700 × 800 × 890 mm
71″ × 31.5″ × 35.0″
1800 × 800 × 890 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Extra-Tall Slipper Freestanding Tub, 35 in High Back, 67 & 71 in SKU D-8089-170
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Profile & Backrest

    890 mm swept backrest over a level foot end

    The backrest end of D-8089 rises to 890 mm (35.0 in), the tallest point of the shell. The opposite end is low and level and carries the overflow slot and drain.

    01 / BACKREST

    Very tall swept end

    The rim sweeps steeply up at one end, giving a high back to recline against and a pronounced side profile in the room.

    02 / FOOT END

    Level foot end with overflow

    The low end is level, with the overflow slot and drain grouped there. The drawing places the drain 305 mm (12.0 in) from that end and 400 mm (15.7 in) from the side.

    Lower slipper heights are available across the SANIKB soaking tub range.

    Fit & Drawing

    1700 or 1800 mm long, 890 mm at the back

    Both SKUs are 800 mm (31.5 in) wide and 890 mm (35.0 in) high at the backrest. The lengths are 67 in and 71 in.

    D-8089-170
    67" × 31.5" × 35.0" (1700 × 800 × 890 mm)
    D-8089-180
    71" × 31.5" × 35.0" (1800 × 800 × 890 mm)
    Installation
    Freestanding, flat to floor
    Drain Position
    305 mm from low end, 400 mm from side

    Check the elevation as well as the floor plan: an 890 mm back can rise past a low windowsill or into a wall niche.

    Locate the 305 mm drain offset from the approved drawing before the floor waste is set.

    Construction & Finish

    White acrylic shell with a tall back

    White pure acrylic sheet forms D-8089, with a slim rim over a body that tapers to the floor.

    SANIKB D-8089 - white single-slipper freestanding tub with a very tall swept backrest and a low level foot end

    White

    Finish fixed at sample approval

    D-8089 is made in white. Agree the surface sheen on the sample, since the tall back shows the finish over a large area.

    The 890 mm backrest is the part of the shell most likely to be knocked during unloading. Ask for the carton design and the handling marks to reflect that.

    Agree before shipment how a damaged backrest or rim would be documented and replaced.

    Inspect the backrest edge on every unit before signing for delivery.

    Compliance

    cUPC certification for D-8089

    Model and SKU on every page

    Request that each D-8089 document names the model and the SKU, so either length can be checked against it.

    D-8089 is cUPC certified. Request the certificate details, number and validity, with both SKUs named: D-8089-170 and D-8089-180.

    Say which market the tubs are for and the file will be prepared to match. We respond within 12 business hours.

    Procurement

    Ordering D-8089

    Plan D-8089 deliveries around a lead time of 30-45 days after sample approval; each length has its own quotation line.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    within 12 business hours

    Review the sample against the room elevation, because the 890 mm back is the dimension that interacts with windows and wall features.

    Include these details with the RFQ

    • Quantities for D-8089-170 and D-8089-180
    • Floor or wall faucet at the low end
    • Overflow and drain trim finish
    • Destination market and port
    • Carton marking
    • Shipping window requested
    Request D-8089 Quote View OEM & ODM Program

    Confirm the final dates on the written quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the dimensions of the D-8089 sizes?

    D-8089-170 at 1700 × 800 × 890 mm (67 × 31.5 × 35.0 in) and D-8089-180 at 1800 × 800 × 890 mm (71 × 31.5 × 35.0 in).

    How high is the D-8089 backrest end?

    It rises to 890 mm (35.0 in). The foot end is low and level, and the drawing gives an inner depth of 470 mm (18.5 in).

    Which end of D-8089 holds the drain and overflow?

    The low foot end. The drawing places the drain 305 mm (12.0 in) from that end and 400 mm (15.7 in) from the side.

    Where does the D-8089 spout go?

    Over the low end, beside the drain and overflow. The rim has no tap holes, so the spout comes from a floor-standing or wall-mounted filler rather than from the tub.

    What should be checked before placing D-8089?

    The room elevation, because the 890 mm back can meet a window or niche. D-8089 stands free with its tapered body resting flat on the floor, with no feet.

    How do buyers order D-8089?

    Let us know the quantity per length and the destination port. You will hear back within 12 business hours, and D-8089 lead time is 30-45 days after sample approval.
