Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8055
SANIKB D-8055 - gloss white slipper tub on plinth base with thin rim stepping down in an S-curve at mid-lengthSANIKB D-8055 dimension drawing
01 / 02
01 / 02

S-Curve Rim Slipper Tub on Plinth Base, Waisted Oval, 65 in

SKU D-8055
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 65" × 28.7" × 23.6" (1650 × 730 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8055

SANIKB D-8055 is a gloss white acrylic slipper tub on a plinth base, with a thin rim that is raised over one end and steps down in an S-curve near mid-length to a lower line. The flared body pinches in to a narrow vertical band at the floor, and the plan is waisted, with rounded ends and inward-curving long sides. It is made as D-8055 at 1650 × 730 × 600 mm (65 × 28.7 × 23.6 in), with a center drain. The rim has no tap holes; D-8055 takes a floor-standing or wall-mounted filler. D-8055 is cUPC certified; SANIKB quotes within 12 business hours.

Compare it with other raised-end models in the slipper tub collection.

Product PDF D-8055

More in Slipper Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 33

Tub sheet

Size and installation of D-8055

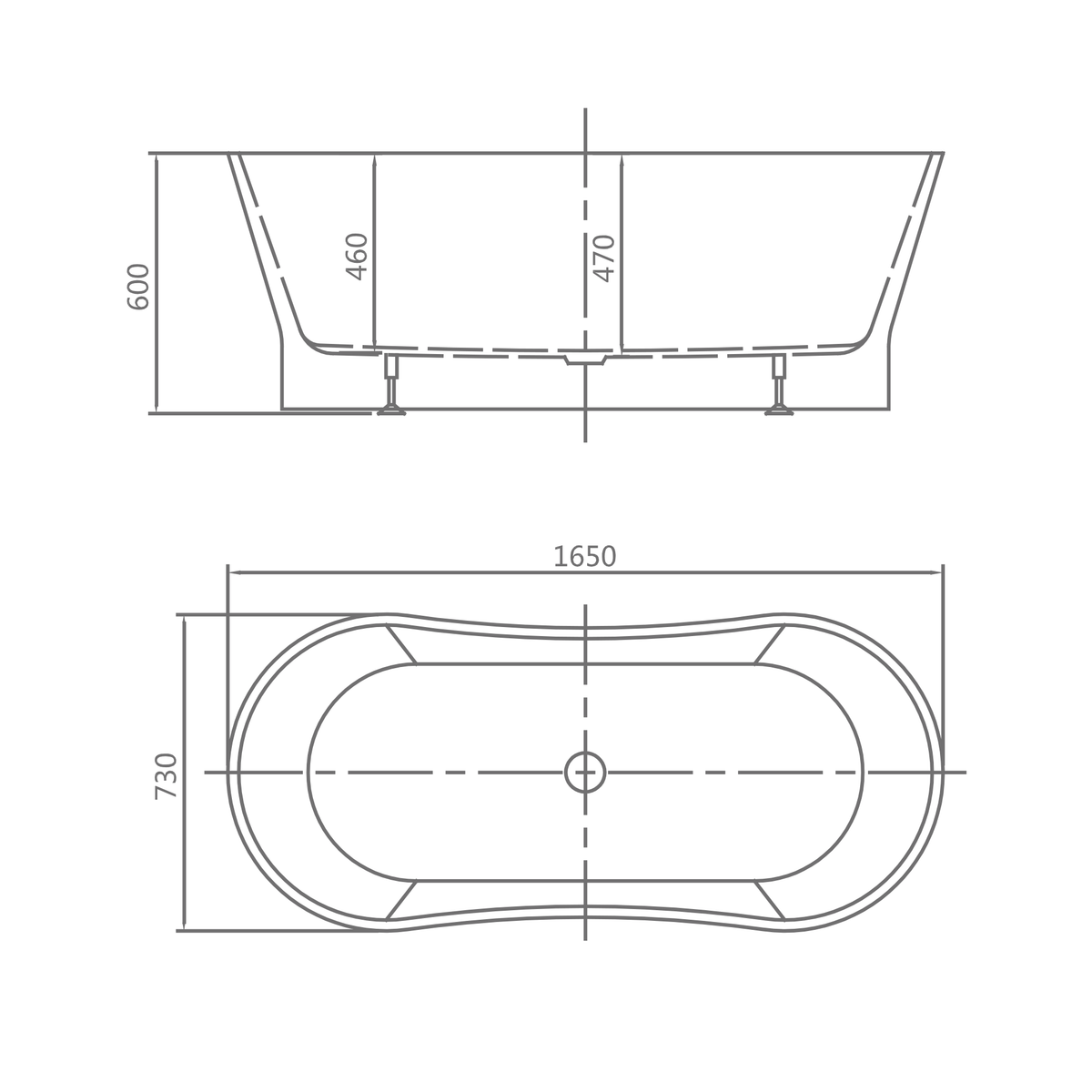

SANIKB D-8055 dimension drawing
Dimension drawing
Size range65" × 28.7" × 23.6" (1650 × 730 × 600 mm)
InstallationFreestanding
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about S-Curve Rim Slipper Tub on Plinth Base, Waisted Oval, 65 in SKU D-8055
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Rim & Base

    An S-curve step in the rim

    The rim of D-8055 runs high over one end, drops in an S-curve near mid-length and continues at a lower level to the other end.

    01 / S-CURVE

    Two rim levels joined by one curve

    The raised half forms the backrest and the lower half runs to the far end. The step between them is a single S-shaped curve rather than a straight slope.

    02 / PLINTH

    Flared body on a narrow band

    The body flares out toward the rim and pinches in to a vertical band at the floor, a plinth base that stands on a smaller footprint than the rim outline.

    Freestanding plans from oval to rectangular are compared in the freestanding bathtub range.

    Size & Drain

    1650 × 730 mm with a center drain

    D-8055 measures 65 by 28.7 by 23.6 inches (1650 by 730 by 600 mm), with the 600 mm taken at the raised half of the rim.

    D-8055
    65" × 28.7" × 23.6" (1650 × 730 × 600 mm)
    Drain
    Center
    Inner Depth
    460 and 470 mm (18.1 and 18.5 in)
    Base
    Plinth band

    The drain is central on the drawing, so the waste sits at the middle of the footprint whichever way the raised end faces. The plan is waisted, but the rim still needs its full 730 mm (28.7 in) in the layout.

    Mark the center waste on site from the approved D-8055 drawing.

    Material & Finish

    Gloss white acrylic over a plinth band

    D-8055 is made from pure acrylic sheet in gloss white and finished with a thin rim.

    SANIKB D-8055 - gloss white slipper tub on plinth base with thin rim stepping down in an S-curve at mid-length

    White

    Gloss along the step

    The gloss finish follows the rim as it steps from the high end to the low end. Use the approved sample as the finish reference for the whole order.

    The thin rim at the step and the narrow plinth band are the exposed points in handling. Ask how both are supported in the carton.

    Check the rim step and the plinth band for damage on arrival.

    Compliance

    cUPC certification for D-8055

    Single SKU on file

    D-8055 documents are issued against D-8055, the one size made.

    D-8055 is cUPC certified. Ask for the current certificate details against D-8055 for a submittal.

    Say where the tubs are going when you enquire, and you will get an answer within 12 business hours.

    Procurement

    Ordering D-8055

    One 1650 mm size of D-8055 is produced; allow 30-45 days after sample approval.

    SKU
    D-8055
    Standard Lead Time
    30-45 days after sample approval

    Send the room plan with the enquiry if the raised half of the rim should face a particular wall, so the orientation can be agreed before the sample.

    Include these details with the RFQ

    • Quantity of D-8055
    • Floor or wall filler choice
    • Center waste fitting
    • Destination market and port
    • Private-label marking
    • Delivery window
    Request D-8055 Quote View OEM & ODM Program

    Note on the enquiry which wall the raised half should face.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the overall measurements of D-8055?

    It is made as D-8055 at 1650 × 730 × 600 mm (65 × 28.7 × 23.6 in), with the height at the raised end.

    How is the D-8055 rim shaped?

    It is thin and sits high over one end, then steps down in an S-curve near the middle of the tub and runs at a lower level to the other end. The raised half is the backrest.

    What kind of base does D-8055 have?

    A plinth base. The flared body narrows to a vertical band at floor level instead of standing on feet.

    Is the D-8055 drain centered?

    Yes. The drawing places it in the center and marks inner depths of 460 and 470 mm (18.1 and 18.5 in).

    What faucet does D-8055 need?

    There are no tap holes in the thin rim, so D-8055 needs a floor-standing filler or a wall-mounted spout. Place it along the lower half of the rim, away from the raised backrest.

    How do we get a D-8055 quotation?

    Send the quantity of D-8055 and the destination port. D-8055 is cUPC certified; a reply follows within 12 business hours, and the lead time is 30-45 days after sample approval.
