Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8075-170

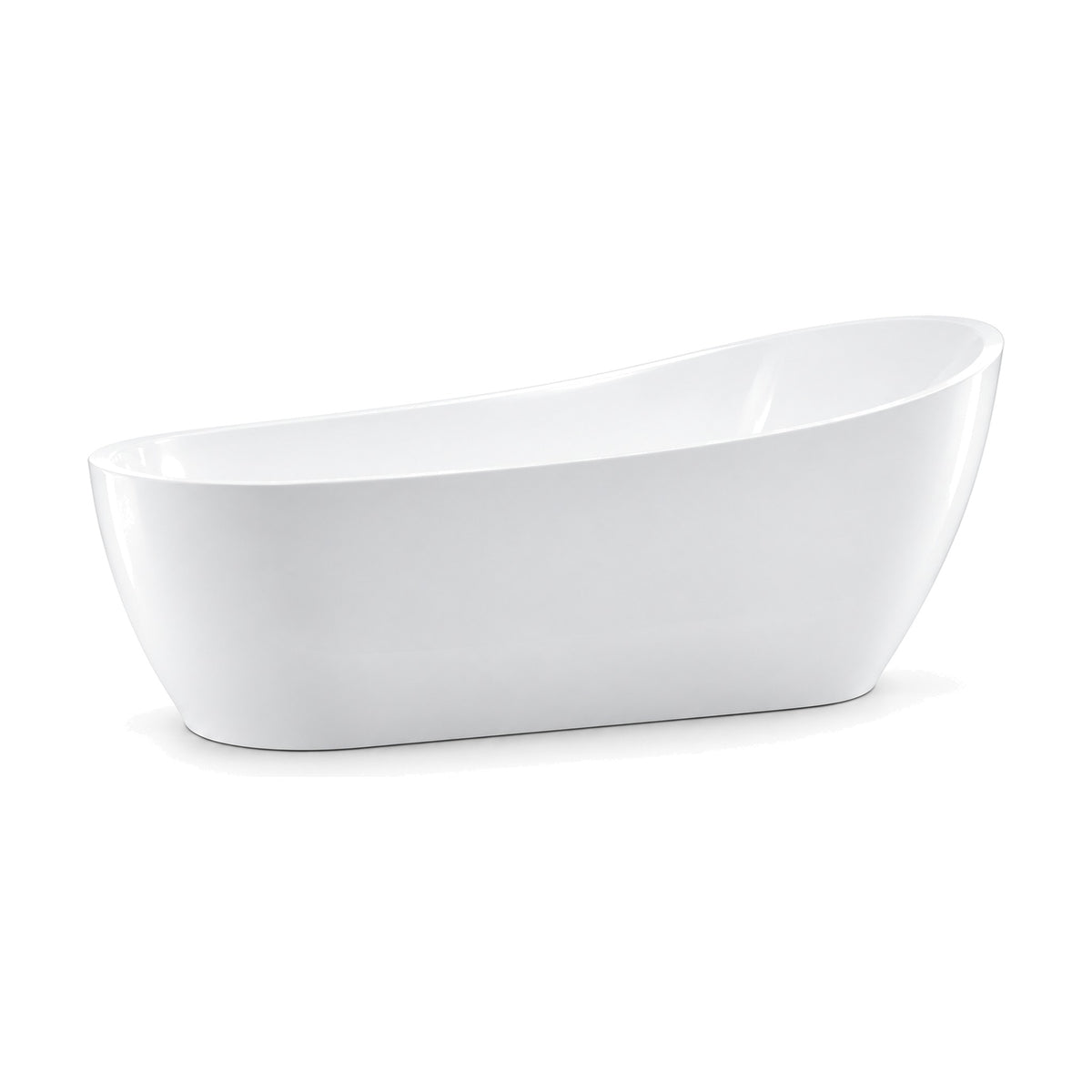

SANIKB D-8075 - white acrylic single slipper freestanding soaking tub with slim rim rising to one raised backrest endSANIKB D-8075 dimension drawing
01 / 02
01 / 02

Tapered Oval Slipper Soaking Tub, White Acrylic, 67 in

SKU D-8075-170
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 67" × 31.5" × 26.8" (1700 × 800 × 680 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8075-170

SANIKB D-8075 is a single slipper soaking tub in white acrylic, freestanding, with a slim rim that climbs from the foot end to one raised backrest. In plan the oval tapers: it is wider at the backrest end and narrower where the drain sits. It is made in one size, D-8075-170, at 1700 × 800 × 680 mm (67 × 31.5 × 26.8 in), and the drawing marks inner depths of 475 and 490 mm. The rim has no tap holes; D-8075 is fed by a floor-standing or wall-mounted filler. D-8075 is cUPC certified, and quotes are returned within 12 business hours.

Compare other raised-back profiles in the SANIKB slipper tub collection.

Product PDF D-8075-170

More in Slipper Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 33

Tub sheet

Size and installation of D-8075

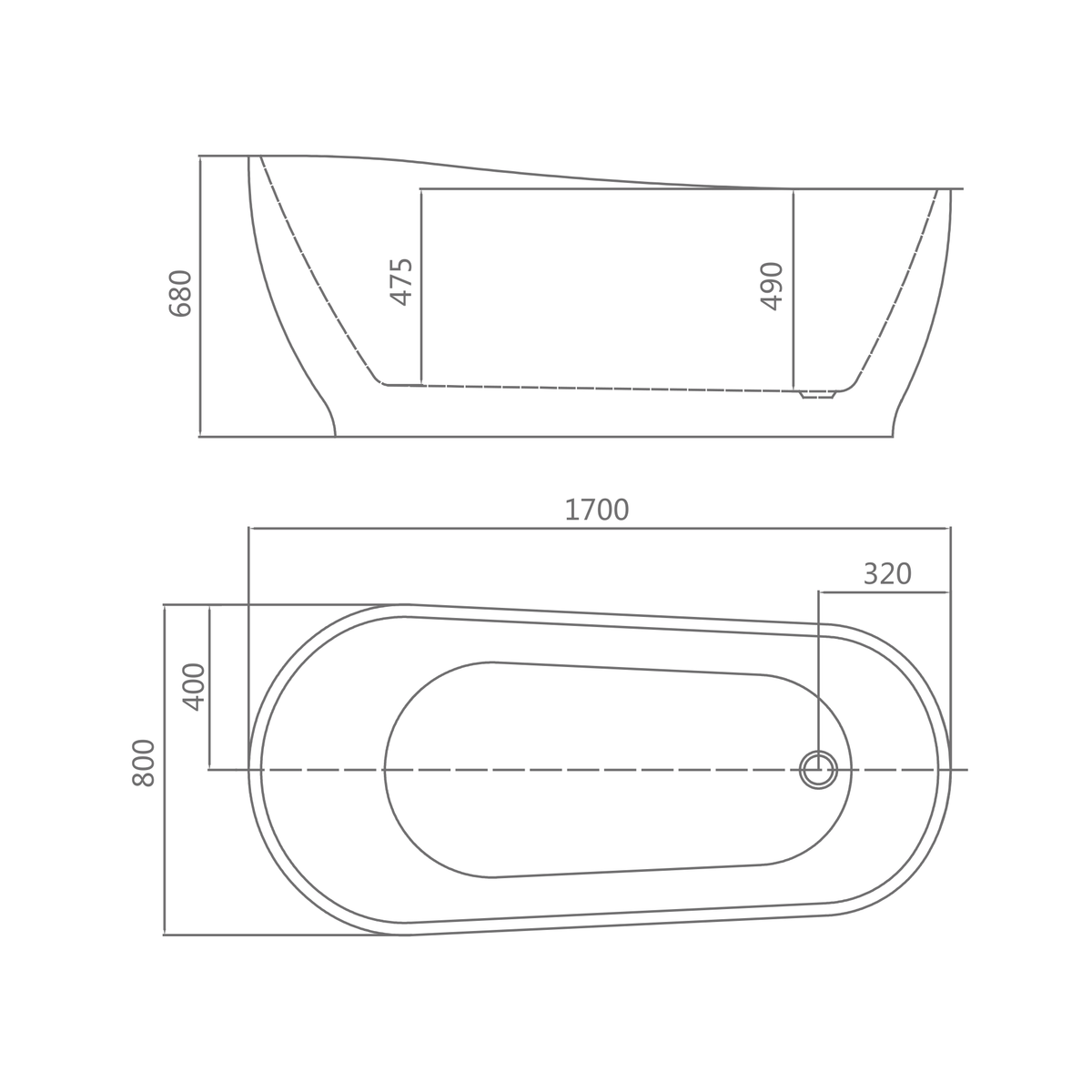

SANIKB D-8075 dimension drawing
Dimension drawing
Size range67" × 31.5" × 26.8" (1700 × 800 × 680 mm)
InstallationFreestanding
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Tapered Oval Slipper Soaking Tub, White Acrylic, 67 in SKU D-8075-170
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Profile & Plan

    One raised backrest over a tapered oval

    D-8075 rises to 680 mm (26.8 in) at the backrest end, and the slim rim slopes down from there to the foot end. The drawing shows a plan that tapers along its length and has rounded ends.

    01 / BACKREST

    Full height at the head end

    The 680 mm figure is taken at the raised end. Because the rim drops toward the opposite end, the foot end of D-8075 stands lower than the 680 mm overall height.

    02 / PLAN

    Broad at the shoulders, narrow at the feet

    The outline of D-8075 is broad under the backrest and narrows toward the drain end, which finishes in a tighter rounded curve.

    Single- and double-ended tubs in other plans sit in the freestanding bathtub range.

    Fit & Drain

    Drain 320 mm from the low end

    D-8075 is built only as D-8075-170: 1700 mm (67 in) long, 800 mm (31.5 in) wide and 680 mm (26.8 in) high at the backrest.

    D-8075-170
    67" × 31.5" × 26.8" (1700 × 800 × 680 mm)
    Drain Position
    320 mm (12.6 in) from low end, 400 mm (15.7 in) from side
    Inner Depth
    475 and 490 mm (18.7 and 19.3 in) on drawing
    Faucet Mount
    Floor or wall

    At 400 mm from the side, the drain falls on the center line of the 800 mm width, so the floor waste is set 320 mm in from the foot end on that line. A floor filler placed at the foot end keeps the spout away from the reclining position.

    Set out the waste from the approved D-8075 drawing before the floor is finished.

    Material & Color

    Pure acrylic in white, one slim rim line

    The shell is formed from pure acrylic sheet in white and finished at the top with a slim rim.

    SANIKB D-8075 - white acrylic single slipper freestanding soaking tub with slim rim rising to one raised backrest end

    White

    One color on one SKU

    D-8075 is made in white only, so a multi-room order carries one color across every unit. The surface finish is confirmed on the approval sample.

    The raised end is the tallest part of the shell and meets any impact first when a carton is tipped. Ask how that end is braced in the packing.

    Check the raised end for marks, and note any damage before the delivery note is signed.

    Compliance

    cUPC certification for D-8075

    Documents by SKU

    Quote D-8075-170 on every document request so the paperwork and the order line refer to the same tub.

    D-8075 is cUPC certified. Request the certificate reference and its validity date against D-8075-170 when the tub is written into a submittal.

    State the destination market in the first enquiry so the documents match it; expect the reply within 12 business hours.

    Procurement

    Ordering D-8075-170

    SANIKB manufactures D-8075 in one size, so the quotation carries a single tub line.

    SKU
    D-8075-170
    Standard Lead Time
    30-45 days after sample approval

    Production is scheduled at 30-45 days after sample approval. Name the port of discharge and any carton marking in the enquiry so the cartons are marked and routed to suit.

    Include these details with the RFQ

    • Quantity of D-8075-170
    • Floor-standing filler or wall spout
    • Waste fitting finish
    • Destination market and port
    • Carton marking or private label
    • Requested shipping month
    Request D-8075 Quote View OEM & ODM Program

    Production dates are counted from sample approval, not from the order date.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What size is D-8075?

    D-8075 is made in one size, D-8075-170: 1700 × 800 × 680 mm (67 × 31.5 × 26.8 in). The 680 mm height is measured at the raised backrest end.

    How is the D-8075 backrest shaped?

    It is a single slipper. The slim rim rises to one raised end for reclining and slopes down to the foot end, and the oval plan is wider at the backrest than at the drain end.

    Where is the drain on D-8075?

    On the drawing it is 320 mm (12.6 in) from the low end and 400 mm (15.7 in) from the side, which puts it on the center line of the width. Inner depths of 475 and 490 mm (18.7 and 19.3 in) are marked.

    Can a faucet be mounted on the D-8075 rim?

    No. The rim has no tap holes. Plan a floor-standing filler at the foot end, clear of the backrest, or a wall spout long enough to reach over the rim.

    What material and color is D-8075?

    Pure acrylic sheet in white. D-8075 is made in white only, and the surface is signed off on the approval sample.

    What does a D-8075 quotation need?

    The quantity of D-8075-170, the destination port and the faucet arrangement. A written reply follows within 12 business hours, the tub is cUPC certified, and production takes 30-45 days after sample approval.
