SANIKB D-8065 - white acrylic freestanding slipper tub with steeply raked backrest end and near-vertical foot endSANIKB D-8065 dimension drawing
01 / 02
01 / 02

Wedge Profile Slipper Soaking Tub with Raked Backrest, 67 in

SKU D-8065
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 67" × 31.5" × 26.0" (1700 × 800 × 660 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8065

SANIKB D-8065 is a freestanding slipper soaking tub in white acrylic with a wedge profile: one end wall rakes steeply outward as the backrest, while the opposite end stands almost vertical. The plan is a rounded rectangle that narrows from the backrest end toward the drain end, and the base sits flat on the floor. D-8065 is the one size, 1700 × 800 × 660 mm (67 × 31.5 × 26.0 in). The rim has no tap holes, so the tub takes a floor-standing or wall-mounted filler. D-8065 is cUPC certified; enquiries are answered within 12 business hours.

Find other single-ended shapes in the slipper tub range.

Product PDF D-8065

More in Slipper Tubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 33

Tub sheet

Size and installation of D-8065

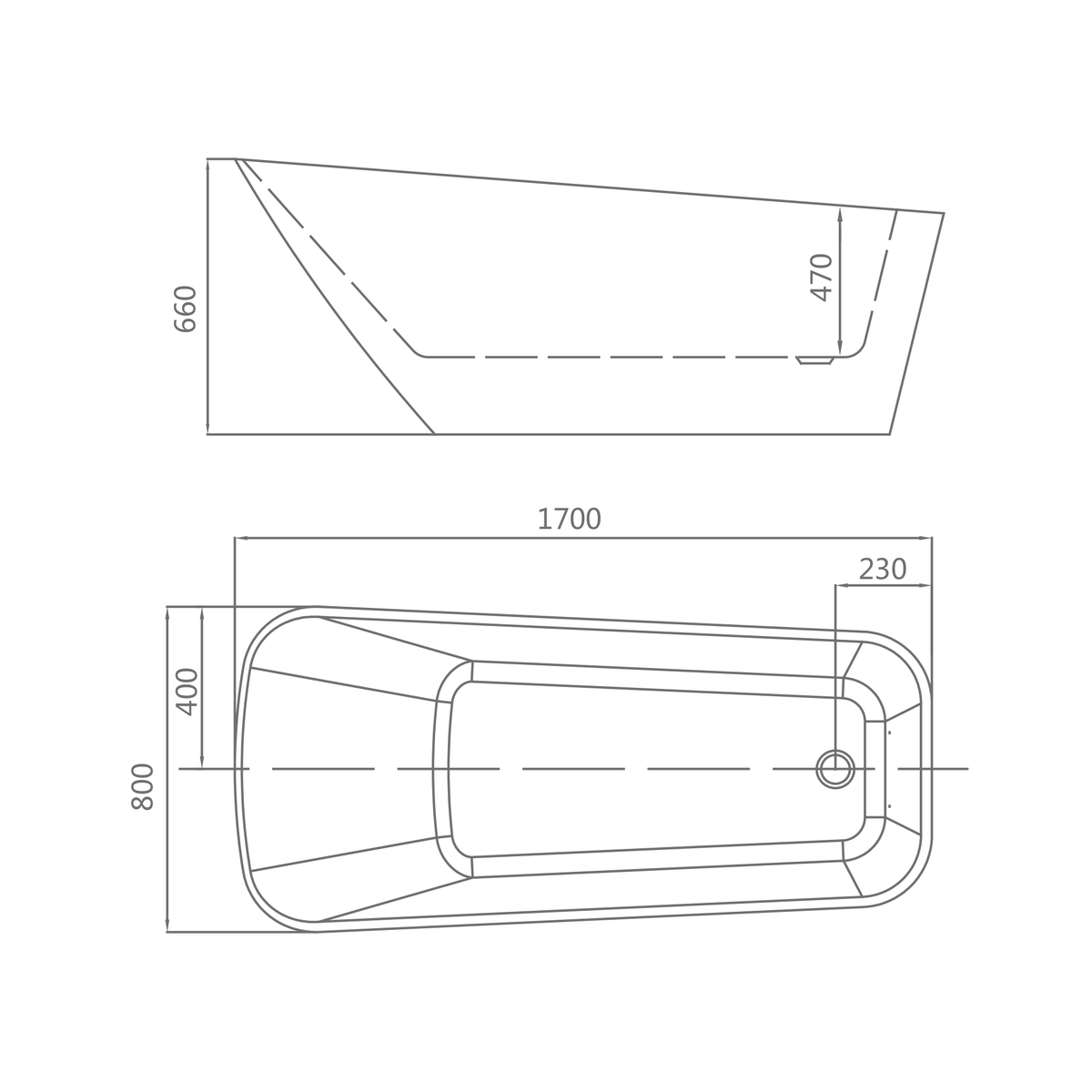

SANIKB D-8065 dimension drawing
Dimension drawing
Size range67" × 31.5" × 26.0" (1700 × 800 × 660 mm)
InstallationFreestanding
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Wedge Profile Slipper Soaking Tub with Raked Backrest, 67 in SKU D-8065
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Wedge Profile

    Raked backrest, upright foot end

    The two ends of D-8065 are drawn differently. The backrest end leans outward at a steep rake and carries the rim up to 660 mm (26.0 in); the foot end is close to vertical.

    01 / RAKE

    Steep outward lean at the head

    The raked end wall is the reclining surface. Because it leans out, the rim at that end projects past the base, so allow for it when the tub is set near a wall.

    02 / TAPER

    Plan narrows toward the drain

    Seen from above, D-8065 is a rounded rectangle with an asymmetric outline, wider at the backrest end and narrower at the drain end.

    Deep single-ended tubs also appear in the soaking tub collection.

    Fit & Waste

    Drain 230 mm in from the narrow end

    D-8065 is 1700 mm (67 in) long, 800 mm (31.5 in) wide at the backrest end and 660 mm (26.0 in) high there.

    D-8065
    67" × 31.5" × 26.0" (1700 × 800 × 660 mm)
    Drain Position
    230 mm (9.1 in) from narrow end, 400 mm (15.7 in) from side
    Inner Depth
    470 mm (18.5 in) at drain end
    Base
    Flat to floor

    The waste sits close to the upright end, only 230 mm (9.1 in) in, so the floor outlet is roughed in near that end of the layout. A floor filler at the same end stays clear of the raked backrest.

    Take the waste setting-out from the approved D-8065 drawing.

    Material & Color

    Raked end formed in white acrylic

    D-8065 is made from pure acrylic sheet in white, with a slim rim and a base that rests directly on the floor.

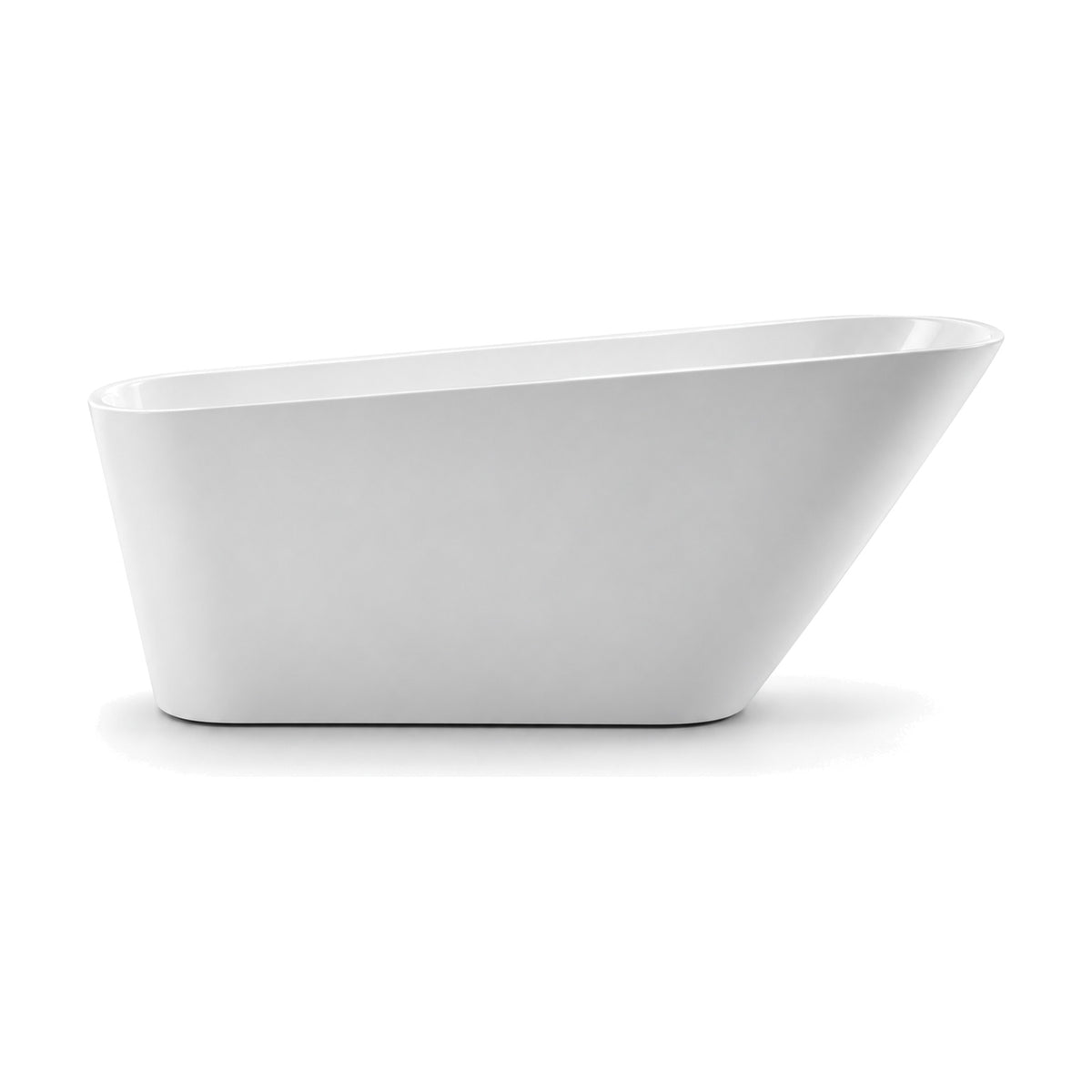

    SANIKB D-8065 - white acrylic freestanding slipper tub with steeply raked backrest end and near-vertical foot end

    White

    Rake and shell in white

    The outward rake of the backrest is formed in the same white shell as the rest of the tub. Hold the approved sample as the reference for shape and surface.

    The outward-leaning end overhangs the base and is the first point to take a knock in a carton. Ask how that end is supported and padded for transit.

    Inspect the raked end and the rim before signing for delivery.

    Compliance

    cUPC certification for D-8065

    One tub, one reference

    Document requests for D-8065 need only the single SKU, D-8065.

    D-8065 is cUPC certified. Ask for the certificate details against D-8065 before the tub goes into a submittal.

    Tell us the destination market in the first message; a written answer follows within 12 business hours.

    Procurement

    Ordering D-8065

    There is one size of D-8065 to quote, made on a standard lead time of 30-45 days after sample approval.

    SKU
    D-8065
    Standard Lead Time
    30-45 days after sample approval

    Where the room plan puts the backrest against a wall, send the layout with the enquiry so the projection of the raked end can be checked against the drawing.

    Include these details with the RFQ

    • Quantity of D-8065
    • Floor filler or wall-mounted spout
    • Waste fitting and finish
    • Destination market and port
    • Carton or private-label marking
    • Shipping window
    Request D-8065 Quote View OEM & ODM Program

    Mark on the layout which wall the raked end will face.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the dimensions of D-8065?

    D-8065 measures 1700 × 800 × 660 mm (67 × 31.5 × 26.0 in). The 660 mm height is at the raised backrest end.

    Why is D-8065 described as a wedge profile?

    The rim slopes down from the backrest end, which rakes steeply outward, to a foot end that is almost vertical. The plan also narrows toward the drain end, so the tub tapers in both views.

    Where does the D-8065 drain sit?

    According to the drawing it is 230 mm (9.1 in) from the narrow foot end and 400 mm (15.7 in) from the side. Inner depth at the drain end is 470 mm (18.5 in).

    Does D-8065 stand on feet?

    No. The base sits flat on the floor, so the floor needs to be level under the whole footprint.

    What faucet does D-8065 take?

    There are no tap holes in the rim, so use a floor-standing filler or a wall-mounted spout. Set it at the upright foot end, clear of the raked backrest.

    What should we send for a D-8065 quote?

    The quantity of D-8065, the faucet arrangement and the destination port. You will have a reply within 12 business hours; production runs to 30-45 days after sample approval, and the tub is cUPC certified.
