Boat-Style Double-Ended Freestanding Tub with Raised Ends, 67 in

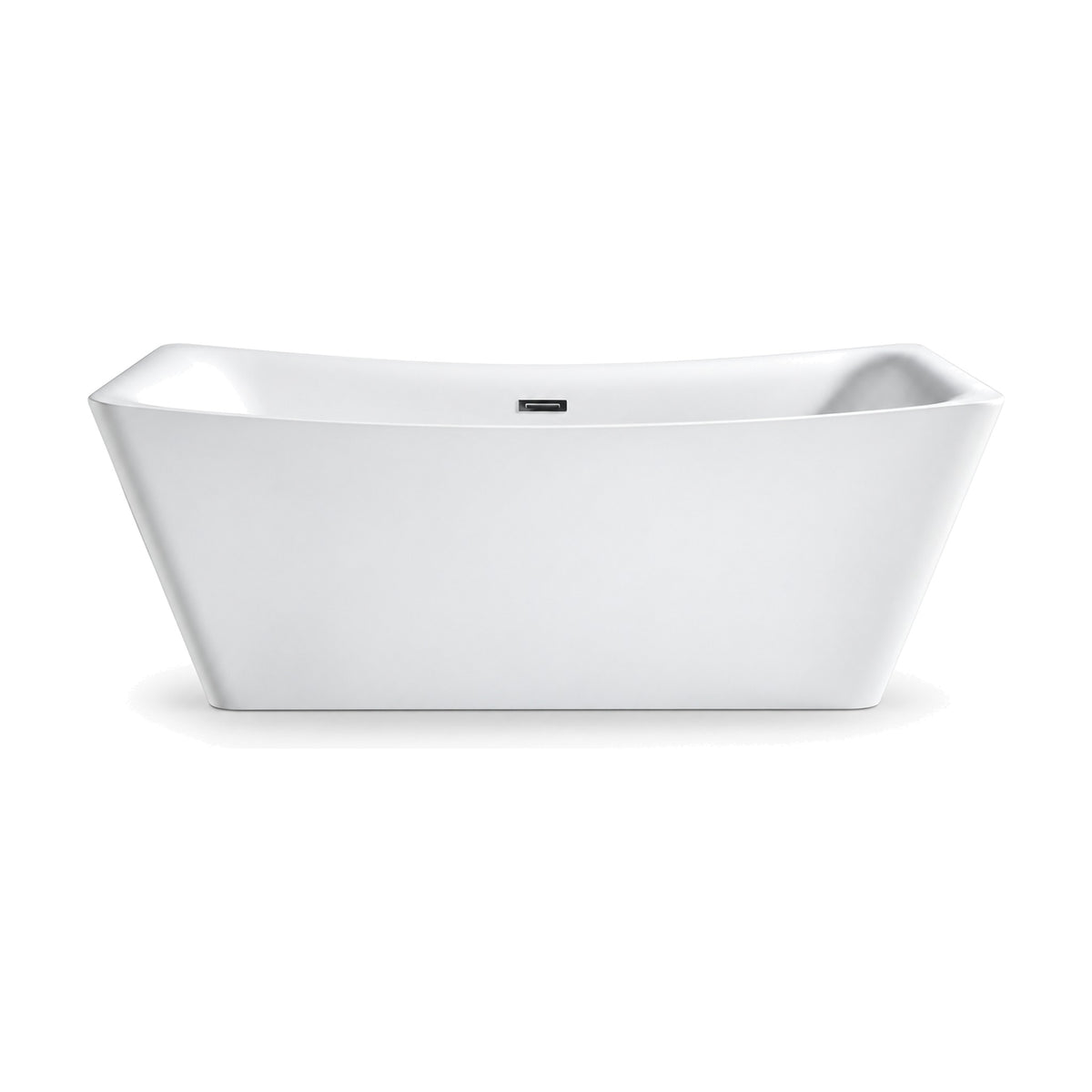

Seen from the side, the FT053 rim is lower at mid-length and climbs toward each end. In plan it is a rectangle with softened corners, and the walls flare outward as they rise.

Other freeform and oval designs are grouped in the freestanding bathtub collection.

FT053 comes in a single SKU, FT053, at 67 × 31.5 × 24.8 inches. The 630 mm figure is the overall height.

FT053

67" × 31.5" × 24.8" (1700 × 800 × 630 mm)

Installation

Freestanding, double-ended

Faucet Mount

No tap holes; floor-standing or wall-mounted

Because the walls flare outward, the tub is smaller at floor level than its 1700 × 800 mm top outline. Plan clearances to the rim, and read the rim height at mid-length from the approved drawing, as it sits below the 630 mm overall height.

Request the approved drawing to fix the drain position before the floor waste is set out.

The shell is formed from pure acrylic sheet and made in white, with a slim rim edge that follows the boat curve.

White

Made in white

FT053 is made in white. If a project needs a different color, raise it in the inquiry so it can be answered at quotation.

Flared walls make the upper edge the widest point of the tub, so ask how the rim is protected in the carton.

Approve the surface sheen on the sample before bulk production starts.

Agree how transit damage is recorded and reported before the shipment leaves.

FT053 carries cUPC certification. When the tub goes into a submittal, ask for the current certificate under model FT053 so the file matches the destination market.

Name the documents you need in the first inquiry; written replies come back within 12 business hours.

There is one SKU to quote, with a lead time of 30-45 days after sample approval.

Standard Lead Time

30-45 days after sample approval

SKU

FT053

The lead time starts when the sample is approved, so schedule the sample review early in the project program.

The lead time is indicative until the quotation is issued.
