SANIKB D-8317 - white egg-shaped acrylic freestanding bathtub, wider at the backrest end, with a slim level rimSANIKB D-8317 dimension drawing
01 / 02
01 / 02

Egg-Shaped Freestanding Bathtub, Single-Ended, 59 & 67 in

SKU D-8317-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 30.7" × 23.6" (1500 × 780 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8317-150

SANIKB D-8317 is an egg-shaped acrylic freestanding bathtub: broad and rounded at the backrest end, then narrowing toward the opposite end, where the drain and overflow sit. The slim rim stays level along its length instead of rising like a slipper tub. D-8317 is made in white in two sizes: D-8317-150 at 1500 × 780 × 600 mm (59 × 30.7 × 23.6 in) and D-8317-170 at 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in).

The rim has no tap holes; D-8317 takes a floor-standing or wall-mounted filler. It is cUPC certified and made by SANIKB for distributors, contractors and hotel projects; see the SANIKB freestanding bathtub range.

Product PDF D-8317-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8317

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

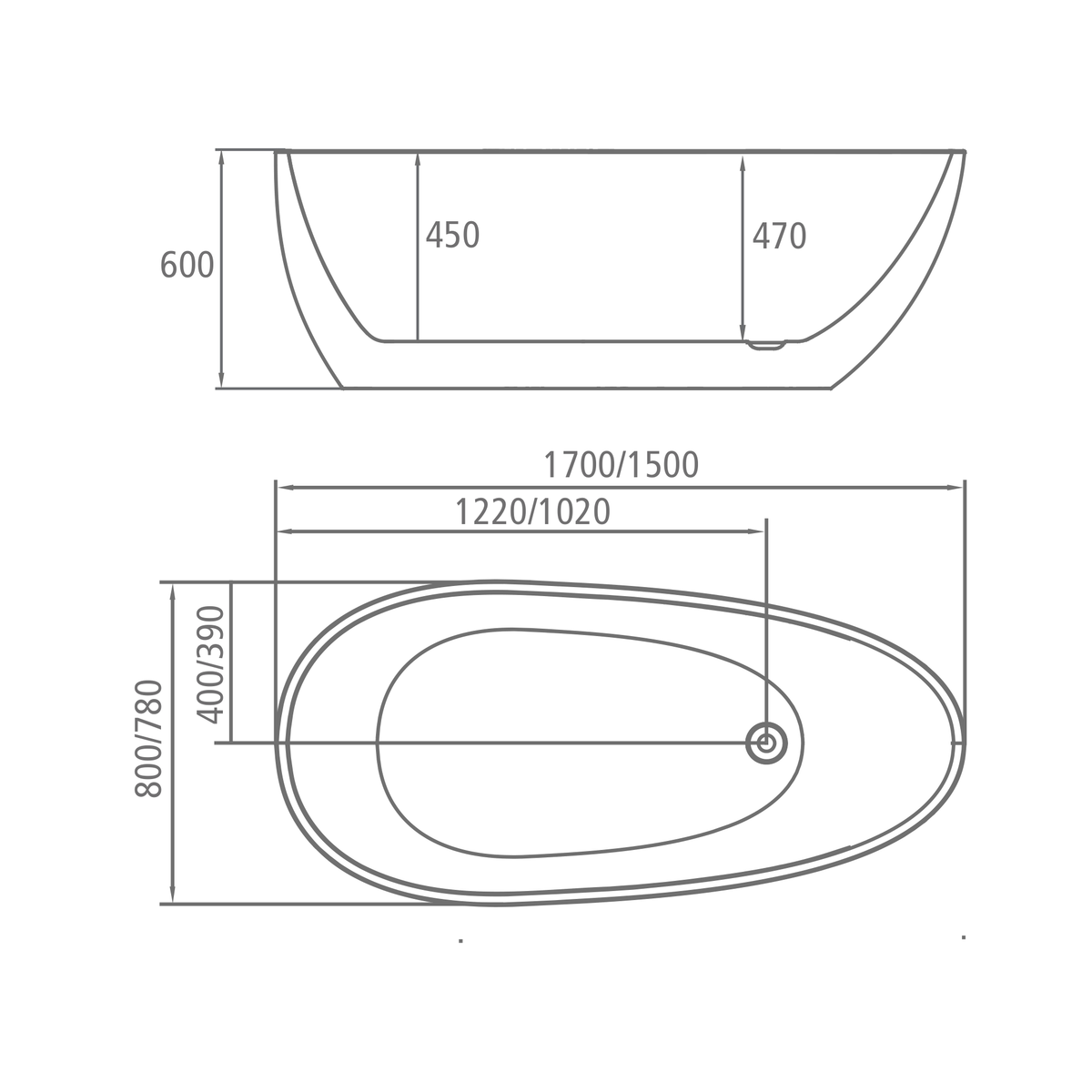

SANIKB D-8317 dimension drawing
Dimension drawing
Size range59" / 67" × 30.7" / 31.5" × 23.6" (1500 / 1700 × 780 / 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8317-15059" x 31"
D-8317-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8317-15067" x 31"D-8317-170
Overall L×W×D
59″ × 30.7″ × 23.6″
1500 × 780 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Egg-Shaped Freestanding Bathtub, Single-Ended, 59 & 67 in SKU D-8317-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Layout

    Egg-shaped plan with the backrest at the wide end

    D-8317 has an asymmetric egg plan: a broad round end that tapers to a narrower opposite end. Unlike a slipper tub, the rim does not climb at the backrest; it stays level all the way round.

    01 / BACKREST

    Single-ended, sloped wall at the broad end

    The wall at the broad end is drawn with more slope than the opposite end, which makes it the backrest. The bather faces the narrow end.

    02 / DRAIN POSITION

    Drain centered on the width, toward the narrow end

    On the drawing the drain sits 1220 mm from the wide end on the 1700 mm size and 1020 mm on the 1500 mm size. Across the width it is centered, 400 mm and 390 mm from the side.

    Buyers comparing freeform shapes usually shortlist on plan outline and backrest position first. The rest of the line is in the freestanding bathtub range.

    Fit & Footprint

    Two lengths, 1500 and 1700 mm, both 600 mm high

    D-8317 is made in two sizes. The 1500 mm version is 780 mm (30.7 in) wide and the 1700 mm version is 800 mm (31.5 in) wide; both stand 600 mm (23.6 in) tall.

    D-8317-150
    59" × 30.7" × 23.6" (1500 × 780 × 600 mm)
    D-8317-170
    67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
    Installation
    Freestanding; no tap holes, floor or wall filler
    Inner Depth (drawing)
    450 mm at the wide end, 470 mm at the drain

    Because the plan narrows toward the drain, the tub looks different from each side of the room. Decide whether the filler sits by the broad backrest end or the narrow drain end before the floor layout is fixed.

    Drain setting-out figures come from the drawing. Confirm them on the approved drawing for your order before the floor waste is cut in.

    Material & Finish

    Acrylic shell in white

    D-8317 is formed from pure acrylic sheet and made in white. The rim is slim and level.

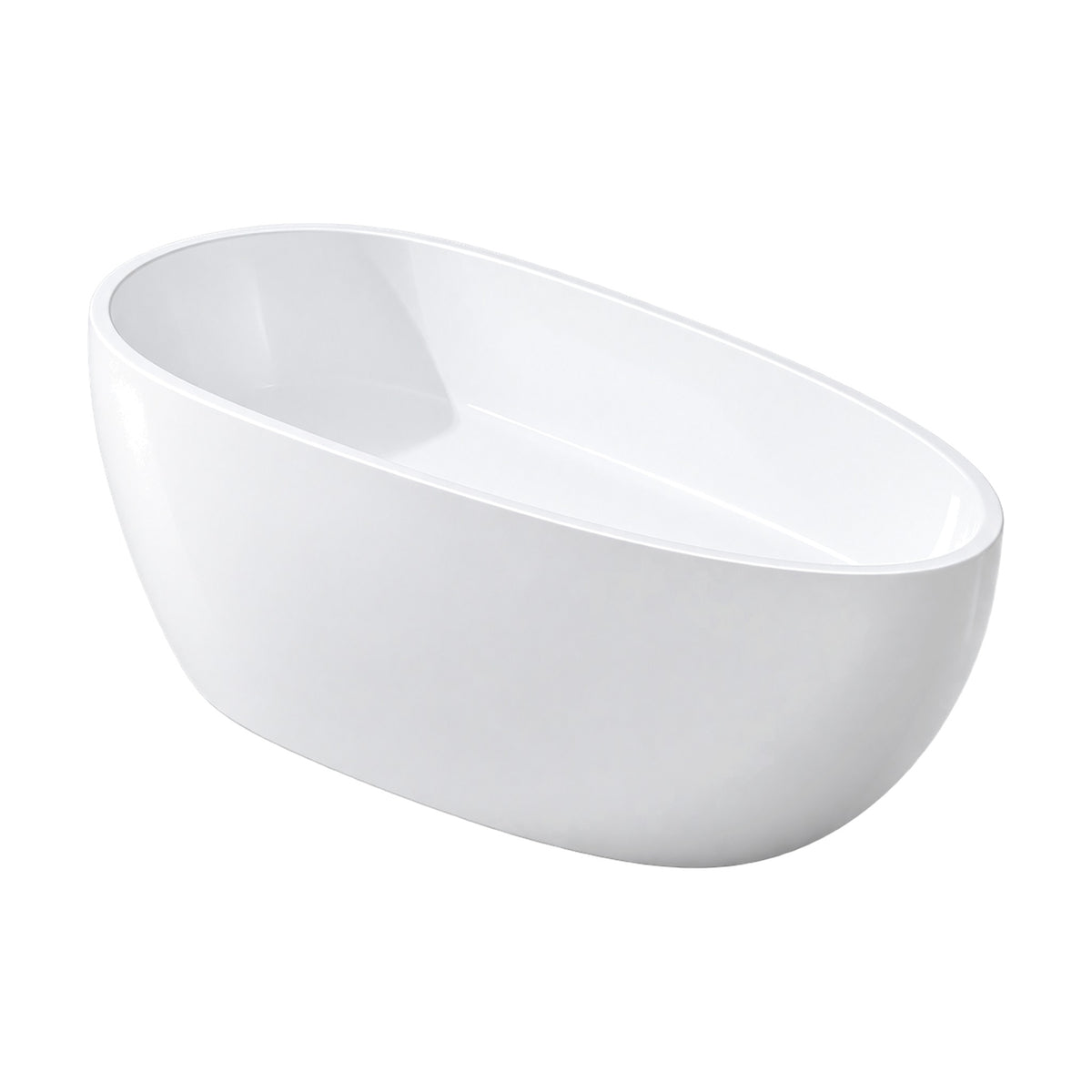

    SANIKB D-8317 - white egg-shaped acrylic freestanding bathtub, wider at the backrest end, with a slim level rim

    White

    One color, two lengths

    Both D-8317 sizes are made in white. Where one project takes both lengths, ask for them in the same production run.

    Acrylic surfaces mark if cartons are dragged or stacked on edge. Agree the packing method, and how transit damage is recorded and reported, before the goods ship.

    The surface sheen is confirmed on the approval sample before bulk production.

    Compliance

    cUPC certification for D-8317

    Documents by SKU

    Ask for documents against D-8317-150 or D-8317-170 by name so each size in the order is covered.

    D-8317 is cUPC certified. When you prepare a submittal, request the current certificate against the model number so the paperwork matches the destination market.

    State the market and the documents you need in the inquiry. Written replies are issued within 12 business hours.

    Procurement

    Ordering D-8317 in one or both lengths

    D-8317 is quoted by SKU. Lead time runs 30-45 days after sample approval.

    Standard Lead Time
    30-45 days after sample approval
    SKUs
    D-8317-150, D-8317-170

    Lead time is counted from sample approval, so build the sample stage into the project schedule. Other models for the same project can be chosen from the SANIKB bathtub range.

    Include these details with the RFQ

    • Quantity per SKU (D-8317-150, D-8317-170)
    • Destination market and port
    • Faucet arrangement: floor-standing or wall-mounted
    • Documents required for the submittal
    • Brand marking on carton
    • Requested shipping window
    Request D-8317 Quote View OEM & ODM Program

    Treat the lead time as indicative until the quotation is issued.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What sizes is D-8317 available in?

    Two sizes are made. D-8317-150 measures 1500 x 780 x 600 mm (59 x 30.7 x 23.6 in) and D-8317-170 measures 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). Both share the same egg-shaped plan and 600 mm height.

    Which end of D-8317 is the backrest?

    D-8317 is single-ended. The broad, rounded end carries the sloped backrest, and the plan narrows toward the opposite end, where the drain and overflow are placed. Inside depth on the drawing is 450 mm at the wide end and 470 mm at the drain.

    What faucet does D-8317 take?

    The rim has no tap holes, so D-8317 takes a floor-standing or wall-mounted filler. Position the outlet so it reaches over the rim, at the broad backrest end or the narrow drain end, whichever suits the plumbing.

    Where does the drain need to be set out?

    On the drawing the drain is centered across the width, 400 mm from the side on the 1700 mm size and 390 mm on the 1500 mm size. Measured from the wide end it sits at 1220 mm and 1020 mm respectively. Confirm these points on the approved drawing before the floor waste is installed.

    What is D-8317 made of and what color is it?

    The tub is made from pure acrylic sheet in white, with a slim rim that stays level rather than rising at one end. The surface sheen is confirmed on the approval sample before bulk production.

    How do we order D-8317 and what is the lead time?

    Send the quantity per SKU, destination market and required documents. Quotations are issued within 12 business hours, and lead time is 30-45 days after sample approval. D-8317 is cUPC certified.
