Round Freestanding Tub with Deck-Mount Faucet Ledge, 54 in Diameter

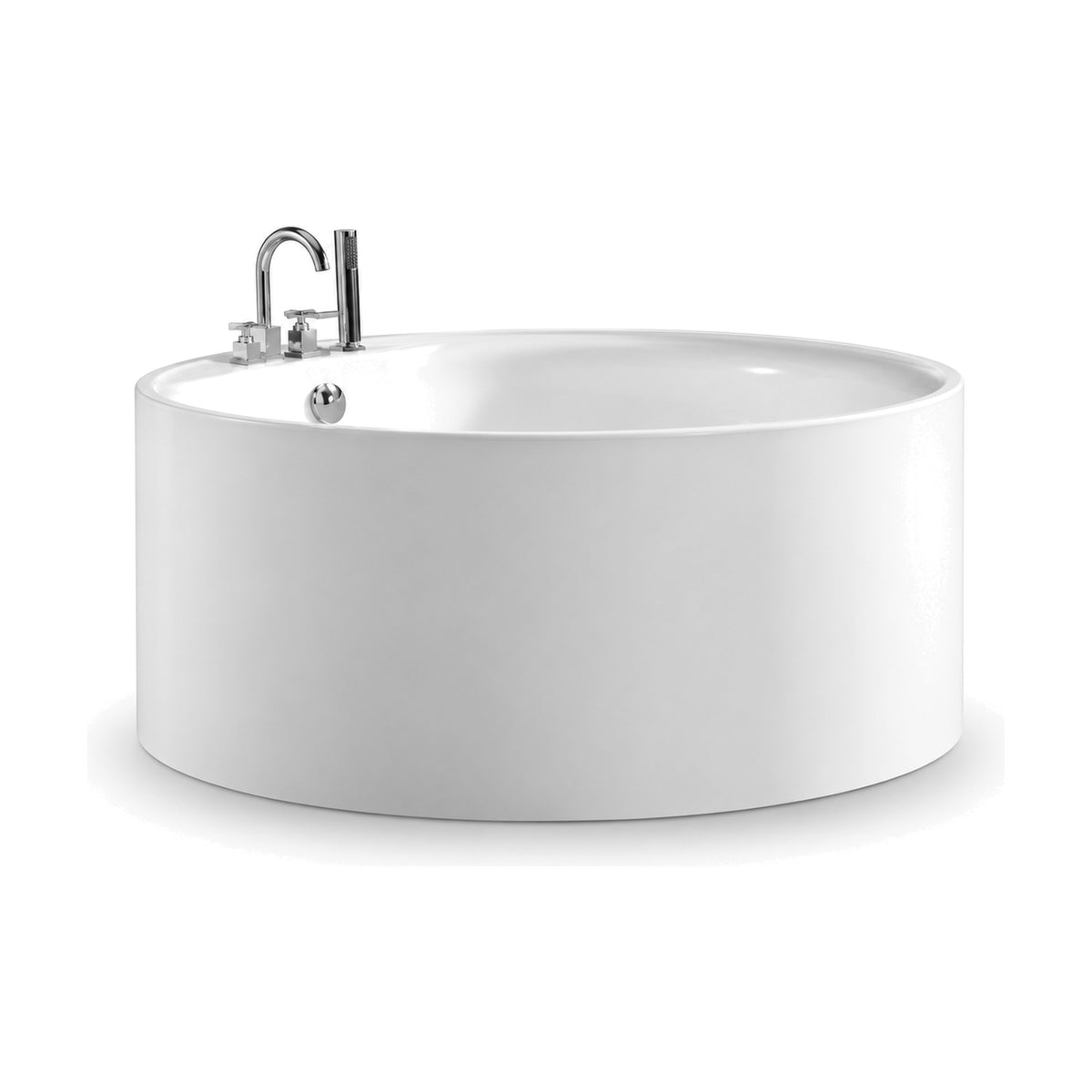

SANIKB D-8138 is a round freestanding bathtub in white acrylic with vertical cylindrical walls and a slim flat rim. At one side the rim widens into a ledge that holds a deck-mounted faucet set, so no floor-standing filler is needed. It is made in one size, SKU D-8138, at 1380 × 1380 × 580 mm (54 × 54.3 × 22.8 in), with the drain at the center of the basin.
Inside, the basin walls taper in straight lines toward the drain. Whether the faucet set is supplied with the tub is agreed at quotation, and the hole count is confirmed on the approved drawing. D-8138 is cUPC certified, and SANIKB answers an enquiry within 12 business hours. See other short-footprint tubs in the small bathtubs collection.
More in Small Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
-
D-8332Compact Freestanding Soaking Tub with Built-In Seat, 51 & 55 in51" / 55" × 31.5" × 27.6"Freestanding
-
D-8028Round Cylinder Freestanding Tub on Recessed Plinth, 55 in Diameter55" × 55.1" × 23.6"Freestanding
-
FT060–FT065Hammock-Style Slipper Freestanding Tub, Six Sizes, 51-70 in51" / 55" / 59" / 62" / 67" / 70" × 29.9" / 31.5" / 33.5" × 25.2" / 26.8" / 27.6" / 30.3"Freestanding
-
D-8331Compact Slipper Soaking Tub, Freestanding, 29.5 in Tall, 51 & 55 in51" / 55" × 31.5" × 29.5"Freestanding
-
FT013/FT014/FT023/FT024Black Rectangular Freestanding Tub, White Interior, 55-71 in55" / 59" / 67" / 71" × 29.5" / 31.5" × 23.2"Freestanding
-
D-8330Compact Rounded-Rectangle Deep Soaking Tub, 27.6 in High, 51 & 55 in51" / 55" × 31.5" × 27.6"Freestanding
-
D-8202Compact Deep Soaking Freestanding Tub on Plinth Base, 47 & 51 in47" / 51" × 29.5" × 27.6"Freestanding
-
D-8028QCompact Round Drop-In Bathtub, 55 in Diameter55" × 55.1" × 19.3"Drop-in (deck or platform)
Tub sheet
Size and installation of D-8138
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Rim & Faucet Ledge
A round tub with its own faucet ledge
D-8138 carries its faucet on the tub. The slim flat rim runs round the circle and broadens at one side to take a deck-mounted faucet set.
Widened rim at one side
The broader section of rim is where the faucet set is fitted. Its position fixes the side the supplies must reach, so decide how the tub is turned in the room first.
Vertical outside, tapered inside
The outer wall is a straight vertical cylinder, while the basin walls taper in straight lines, so the inside narrows toward the drain.
Round and oval models filled from the floor or wall are in the freestanding bathtub range.
Fit & Depth
1380 mm round, 580 mm high

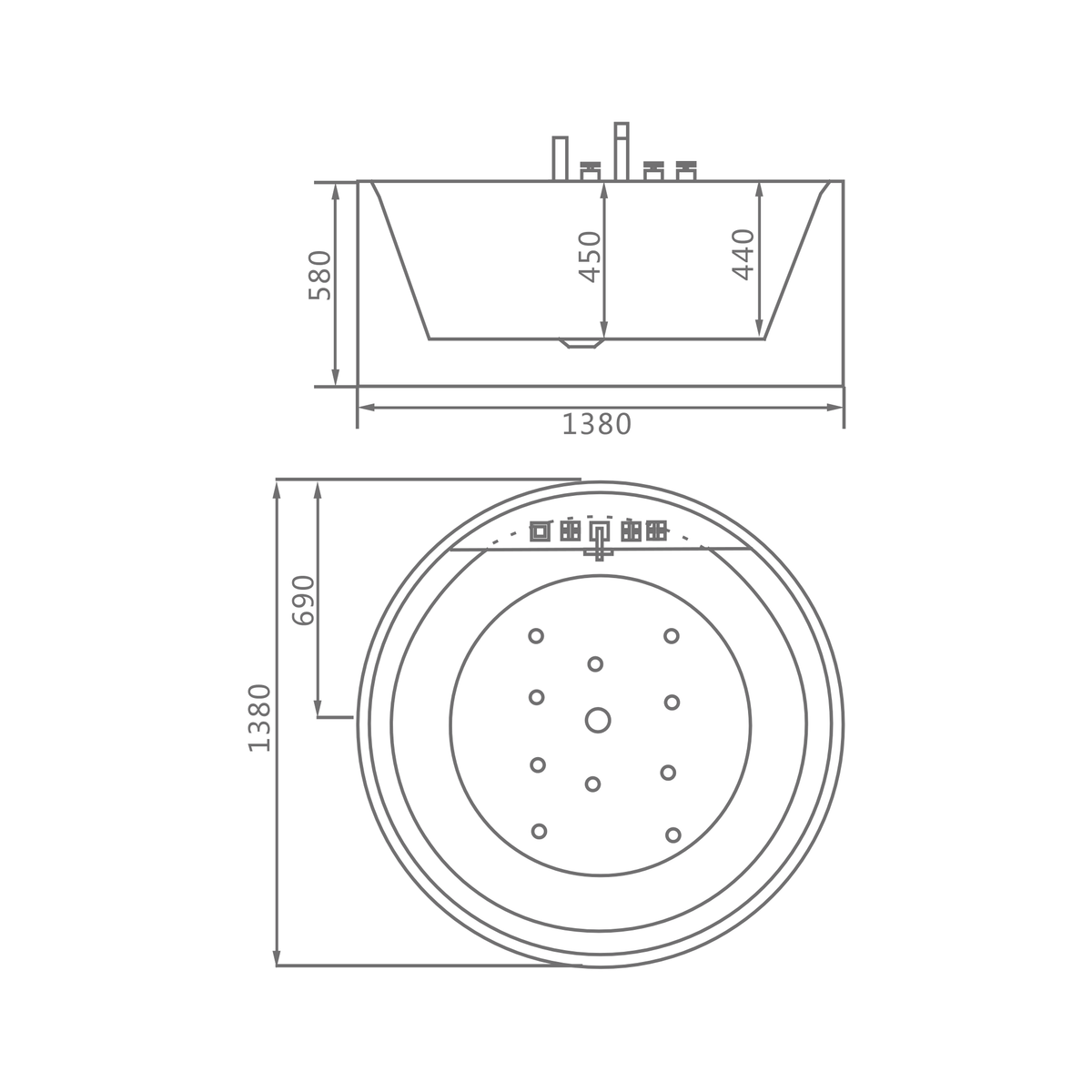

D-8138 is 1380 mm (54 in) across and 580 mm (22.8 in) high, with inner depths of 450 mm (17.7 in) and 440 mm (17.3 in) on the dimension drawing.
- D-8138
- 54" × 54.3" × 22.8" (1380 × 1380 × 580 mm)
- Faucet Mounting
- Deck-mounted on the widened rim
- Drain
- Center, 690 mm from the outer edge
The drain sits at the center of the circle, 690 mm from the edge. With the faucet on the rim, the supply pipes need a route up to that side of the tub, and that route is fixed before the floor is finished.
Take the faucet hole positions and the drain point from the approved drawing.
Material & Finish
White acrylic with a flat faucet ledge
D-8138 is made from pure acrylic sheet in white, with the faucet ledge as part of the rim.
White
Ledge and walls in one shell
The widened ledge belongs to the same white shell as the walls. Check its flat surface and the hole positions on the approval sample.
Whether the faucet set is supplied with the tub is agreed at quotation. The number of faucet holes is fixed on the approved drawing before the ledge is drilled.
Record the surface sheen on the approval sample as the production reference.
Compliance
cUPC certification for D-8138
One size means one reference on the certificate; give that SKU on every purchase order line.
D-8138 is cUPC certified. Request the current certificate number against D-8138 before a submittal is compiled.
Faucet documents, where the set is bought with the tub, are issued as a separate item. Document questions on D-8138 get a written reply within 12 business hours.
Procurement
Ordering D-8138
D-8138 is built to a lead time of 30-45 days after sample approval.
- Standard Lead Time
- 30-45 days after sample approval
- Faucet Mounting
- Deck-mounted on rim
The approval sample fixes the faucet hole count and spacing, so send the chosen faucet set details with the enquiry.
Include these details with the RFQ
- Quantity of D-8138
- Faucet set supplied or holes only
- Number of faucet holes
- Destination market and port
- Documents required
- Shipping window
The quotation for D-8138 states the final lead time.
