Compact Deep Soaking Freestanding Tub on Plinth Base, 47 & 51 in
Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.
SANIKB D-8202 is a compact, deep freestanding soaking tub for short bathroom layouts. It is made in two sizes: D-8202-120 at 1200 x 750 x 700 mm (47 x 29.5 x 27.6 in) and D-8202-130 at 1300 x 750 x 700 mm (51 x 29.5 x 27.6 in). The gloss white acrylic shell has straight upright walls, a thick rolled lip that overhangs the sides, and a recessed plinth base.
D-8202 is single-ended. The rolled lip has no tap holes, so the tub takes a floor-standing or wall-mounted filler. More short models are grouped under small bathtubs.
More in Small Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
Tub sheet

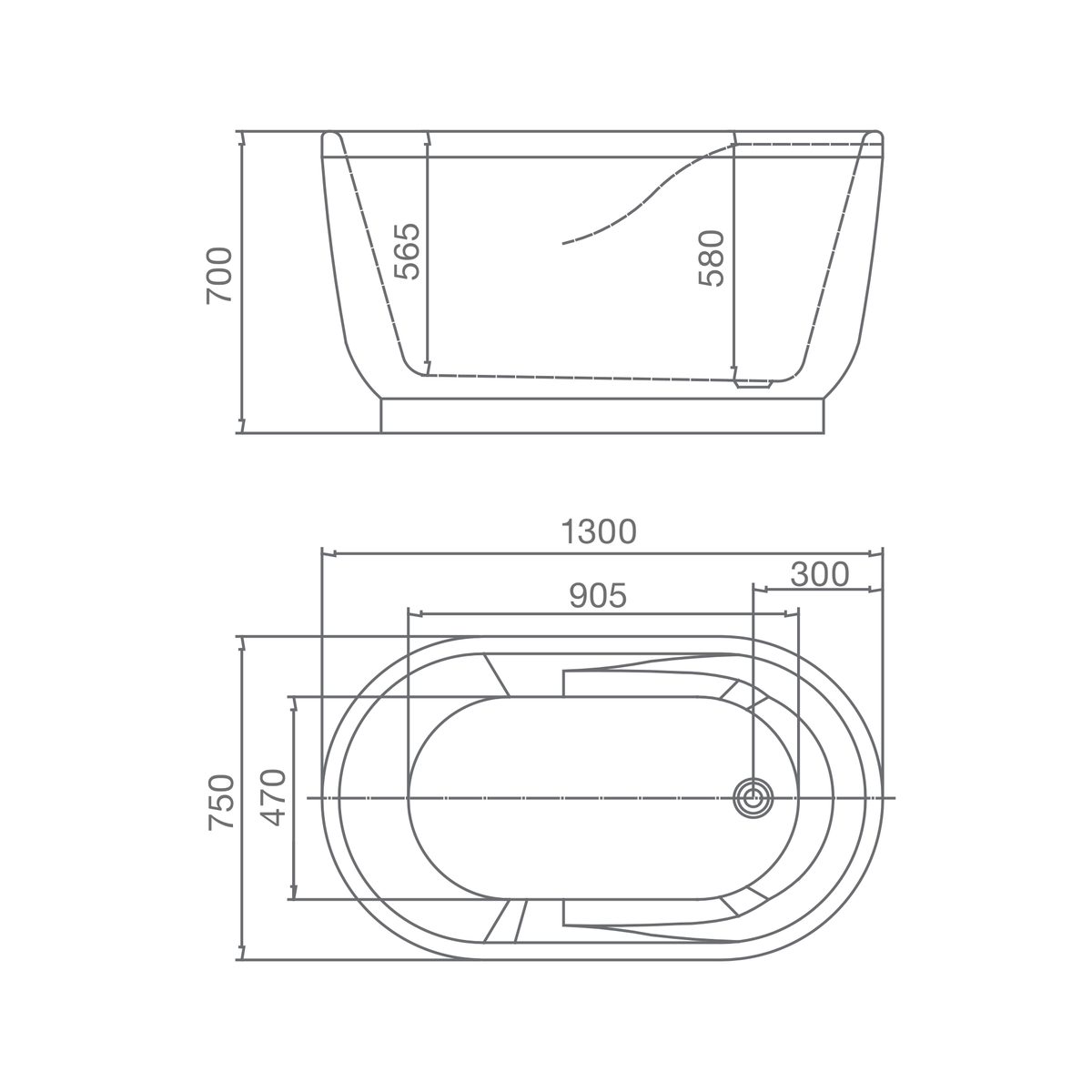

Size and installation of D-8202
Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size |
|---|---|
| D-8202-120 | 47" x 30" |
| D-8202-130 | 51" x 30" |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Compare · 2 sizes
Size & spec comparison
| 47" x 30"D-8202-120 | 51" x 30"D-8202-130 | |
|---|---|---|
| Overall L×W×D | 47″ × 29.5″ × 27.6″ 1200 × 750 × 700 mm | 51″ × 29.5″ × 27.6″ 1300 × 750 × 700 mm |
Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
Form

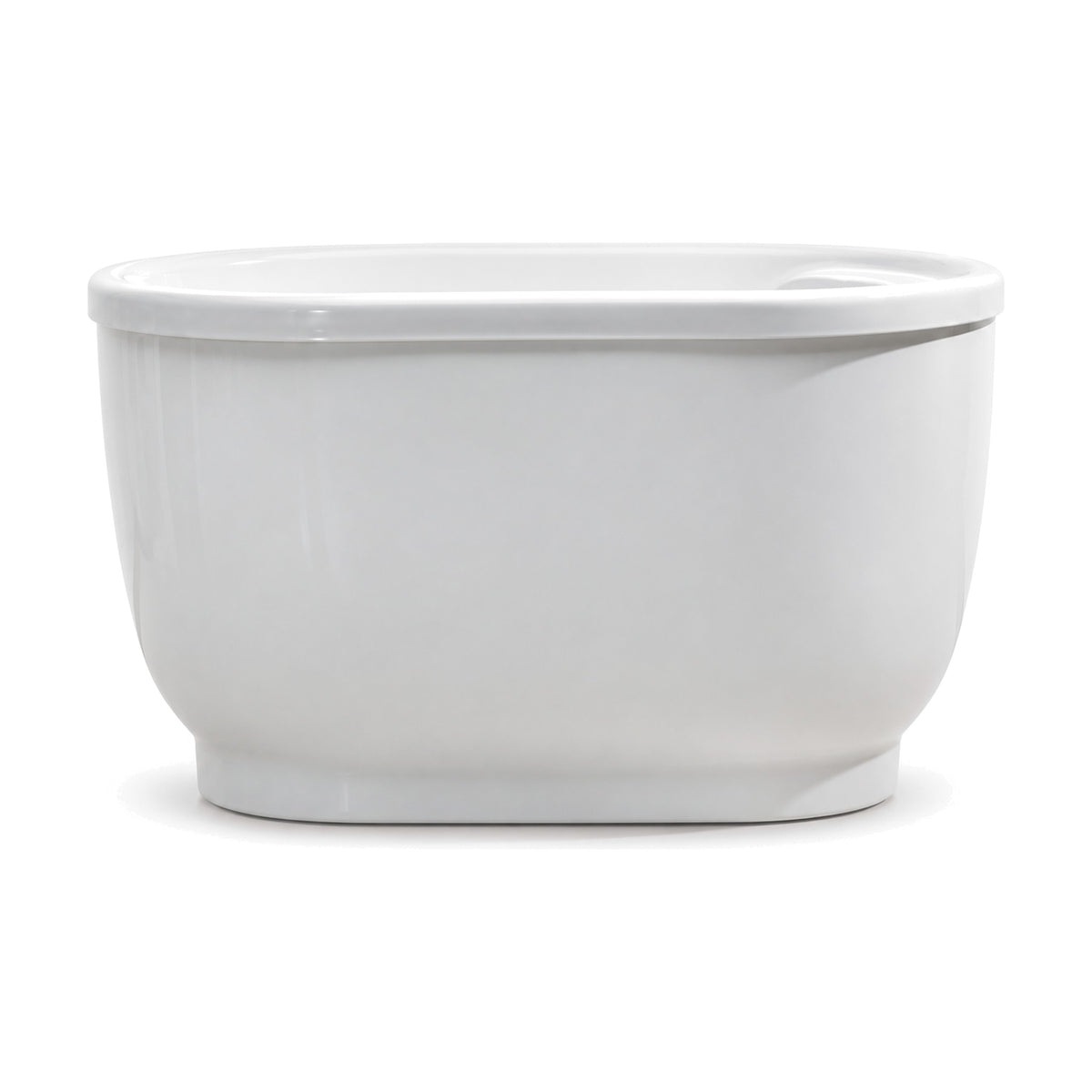

Small freestanding tub with deep walls and a rolled lip
D-8202 keeps the footprint short and the walls high. Overall height is 700 mm (27.6 in) on both sizes, against lengths of 1200 mm and 1300 mm.
Thick overhanging rolled lip
The top edge is a thick rolled lip that projects past the straight, upright walls below it, so the rim outline is wider than the body.
Recessed plinth base
The shell stands on a plinth set back from the line of the walls. Take the plinth footprint from the approved drawing when setting out the floor waste.
For more deep-walled models, see the soaking tub collection.
Compact Sizes
1200 or 1300 mm long, 700 mm high
Both D-8202 sizes are under 55 inches long. Width is 750 mm (29.5 in) and height is 700 mm (27.6 in) on each.
- D-8202-120
- 1200 x 750 x 700 mm (47 x 29.5 x 27.6 in)
- D-8202-130
- 1300 x 750 x 700 mm (51 x 29.5 x 27.6 in)
- Backrest
- Single-ended
- Faucet Mount
- Floor-standing or wall-mounted filler
The drain position and inner depth are confirmed on the approved drawing. A 700 mm (27.6 in) rim height means a tall step over the side; check that it suits the intended users before the model is specified.
Confirm where the drain sits relative to the backrest end before the floor outlet is fixed.
Material & Finish
Gloss white acrylic on a plinth base
D-8202 is formed from pure acrylic sheet in white with a gloss surface.
White
Made in gloss white
D-8202 is made in white with a gloss finish. Write it against each SKU on the order so the 47 inch and 51 inch units match in a mixed delivery.
The overhanging lip is the edge that takes knocks first in transit. Ask for the packing method used to protect the full rim, and agree how damage is recorded and reported on arrival.
Keep the approval sample as the gloss and color reference.
Compliance
Compliance paperwork for the compact D-8202
Request documents for D-8202-120 and D-8202-130 separately when both sizes appear on one order.
Compliance documents for D-8202 are matched to your destination market. For a submittal, request the current certificate and its validity date against the SKU being specified, D-8202-120 or D-8202-130.
If D-8202 is one line in a wider bathroom package, name the destination market once for the whole package. The document set is confirmed with the quotation, returned within 12 business hours.
Procurement
Ordering the compact D-8202
D-8202 is made by SANIKB and quoted per SKU, with quantities and packing written into the quotation.
- Standard Lead Time
- 30-45 days after sample approval
- Quote Reply
- Written quote within 12 business hours
If the tubs are for a defined set of short bathrooms in a hotel or apartment block, give the room count per size in the inquiry so the quotation follows the schedule.
Include these details with the RFQ
- Room count and units for D-8202-120 and D-8202-130
- Destination market and port
- Filler: floor-standing unit or wall spout
- Drain and overflow fittings to be included
- Carton marking and labels
- Shipping window
Use the lead time for planning only until the quotation fixes it.
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
