SANIKB D-8083 - white square freestanding bathtub with a round basin set into a flat square deckSANIKB D-8083 dimension drawing
01 / 02

Square Freestanding Tub with Round Basin, 59 in

SKU D-8083
Size
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material Acrylic
Type Freestanding bathtub
Size 59" × 59.1" × 23.6" (1500 × 1500 × 600 mm) Custom sizes
Mount Freestanding
Finish
White

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

SANIKB D-8083 is a square acrylic freestanding bathtub with a round basin set into a flat square deck. The four outer sides are vertical with square corners, and the drain sits at the center of the round basin. It is made in one size, D-8083, measuring 1500 × 1500 × 600 mm (59 × 59.1 × 23.6 in). The body rests flat on the floor, and the deck has no tap holes, so a floor-standing or wall-mounted filler runs water in over the deck.

A quote for the D-8083 square tub comes back within 12 business hours. Rectangular and oval models are in the freestanding bathtub collection.

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

    Tub sheet

    Size and installation of D-8083

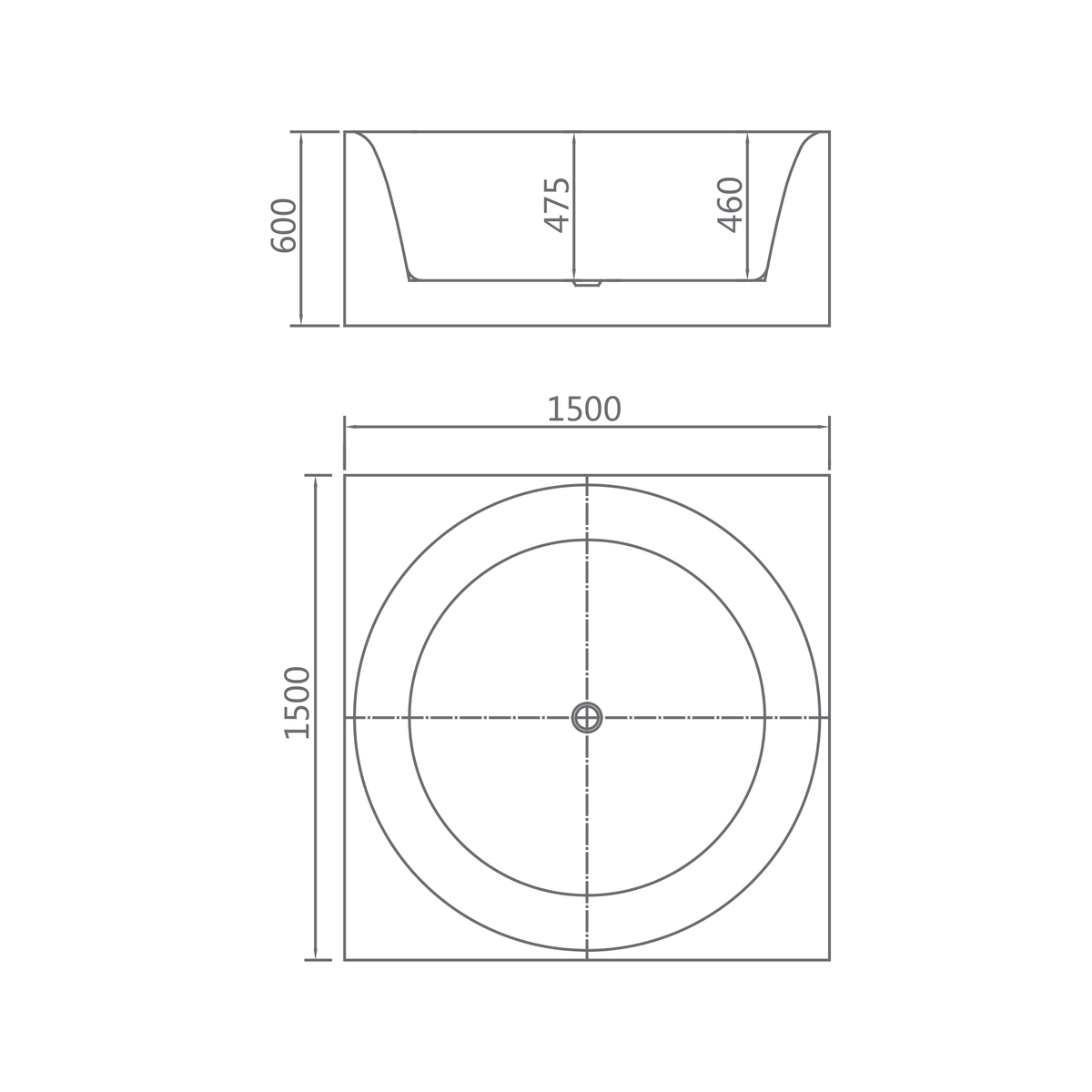

    SANIKB D-8083 dimension drawing
    Dimension drawing
    Size range59" × 59.1" × 23.6" (1500 × 1500 × 600 mm)
    InstallationFreestanding
    Finish White
    MaterialAcrylic

    Send a spec. Get a real quote in 1 business day.

    Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

    We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

    One itemised quote — not five
    Feasibility & certification checked per market
    Have a spec file? Attach it to your inquiry below.
    — Project brief B2B only
    Enquiry about Square Freestanding Tub with Round Basin, 59 in SKU D-8083
    Please enter your first name.
    Please enter your company name.
    Please enter a valid email.
    Please enter your phone number.

    Wholesale · 20 ft / 40 ft · Mix available

    Drag & drop or browse PDF / IMG / XLS · 4MB ×3
      Engineer reply within 1 business day

      12 editions of the International Builders' Show (IBS).

      — Most recent
      Feb 2026 KBIS · Orlando, USA
      Mar 2026 Expo Revestir · São Paulo, Brazil
      6 international shows annually
      2026 Expo Revestir

      2026Expo Revestir

      São Paulo, Brazil
      2026 KBIS

      2026KBIS

      Orlando, Florida
      2025 KBIS

      2025KBIS

      Las Vegas, USA
      2025 The Big 5

      2025The Big 5

      Dubai, UAE
      2024 IBS

      2024IBS

      Las Vegas, Nevada, USA
      2024 Expo Guadalajara

      2024Expo Guadalajara

      Guadalajara, Mexico
      2023 Canton Fair

      2023Canton Fair

      Guangzhou, China
      2019 Cersaie

      2019Cersaie

      Bologna, Italy
      2019 ISH

      2019ISH

      Frankfurt, Germany
      2017 The Big 5

      2017The Big 5

      Dubai, UAE
      2014 KBIS

      2014KBIS

      Las Vegas — US debut
      2013 BAU

      2013BAU

      Munich, Germany

      Factory documentation

      Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

      IAPMO cUPC certificate
      ISO 9001 quality management certificate
      WRAS approved product certificate
      IAPMO certificate of listing
      UDEM CE technical inspection certificate

      Shape & Basin

      Round basin in a square body

      D-8083 has a square outer body with four flat vertical sides. Inside, a round basin is set into the flat deck.

      01 / SQUARE BODY

      Four vertical sides, square corners

      The outer walls rise straight from the floor to the deck, so D-8083 reads as a square block in the room.

      02 / ROUND BASIN

      Center drain in a round bowl

      The basin is round and centered, with the drain at its middle. The deck corners outside the circle leave flat space around the bowl.

      Tubs with a conventional long plan are in the freestanding bathtub collection.

      Fit & Footprint

      1500 × 1500 mm, 600 mm high

      Each side of D-8083 is 1500 mm (59 in), and the body stands 600 mm (23.6 in) high.

      Overall Size
      59" × 59.1" × 23.6" (1500 × 1500 × 600 mm)
      Basin
      Round, center drain
      Faucet Mounting
      No tap holes; floor-standing or wall-mounted filler
      Base
      Flat to floor, vertical sides

      Two inner depths appear on the drawing: 475 mm and 460 mm (18.7 and 18.1 in). A 1500 mm square body needs clearance on every side you walk around, and a delivery route wide enough for the carton.

      Set the floor waste at the center of the square, as the approved drawing shows.

      Construction & Finish

      White acrylic with a square deck

      D-8083 is formed from pure acrylic sheet in white, with a flat square deck around the round basin.

      SANIKB D-8083 - white square freestanding bathtub with a round basin set into a flat square deck

      White

      Large flat deck on show

      The deck corners outside the round basin are broad flat surfaces, so their finish is part of what the sample approval covers.

      Surface sheen for D-8083 is set on the approval sample.

      The square outer corners need corner protection in the carton, particularly on a unit 1500 mm across.

      Inspect the corners and deck on arrival and report marks within the agreed window.

      Compliance

      Compliance documents for D-8083

      Square format on the drawing

      Include the approved drawing in the file so reviewers can check the 1500 mm square footprint and center drain.

      Ask for the certificate number and validity date for SKU D-8083 before it goes into a submittal.

      Say where the tubs will be installed, and SANIKB will respond within 12 business hours.

      Procurement

      Ordering D-8083

      The square D-8083 is made on a lead time of 30-45 days after sample approval.

      Standard Lead Time
      30-45 days after sample approval
      Quote Reply
      within 12 business hours

      A 1500 mm square carton uses container space differently from a long tub; ask for a loading plan with the quotation if D-8083 ships with other models.

      Include these details with the RFQ

      • Quantity of D-8083
      • Floor-standing or wall faucet
      • Drain trim finish
      • Destination market and port
      • Carton marking
      • Requested shipping window

      The quotation fixes the lead time for the square tub.

      How we work

      From enquiry to shipment

      A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

      1. 01

        Send the enquiry

        Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

        Replied within 1 business day
      2. 02

        Our sales team contacts you

        A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

        Email or WhatsApp
      3. 03

        Quotation

        You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

        FOB or CIF
      4. 04

        Sample approval

        We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

        Before mass production
      5. 05

        Production and shipment

        Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

        30–45 days after approval
      50+ New models developed every year, tracking current North American and European trends
      1 business day Maximum first response to an enquiry
      Since 2000 Foshan factory, B2B trade only

      OEM and ODM to your specification

      We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

      • Your logo on product, carton and documentation
      • Private-label packaging and manuals
      • Custom finish matched to your standard
      • Custom dimensions and tooling where volume supports it
      • Product development from your reference or price target
      • Destination-market documentation prepared on request

      FAQs

      What size is D-8083?

      It is 1500 × 1500 × 600 mm (59 × 59.1 × 23.6 in) with a square outline, under SKU D-8083.

      What shape is the D-8083 basin?

      Round. It is set into a flat square deck, with the drain at the center.

      How deep is D-8083?

      The D-8083 drawing marks inner depths of 475 mm and 460 mm (18.7 and 18.1 in), inside a body 600 mm (23.6 in) high.

      How is D-8083 installed?

      It is freestanding, with vertical outer sides that sit flat on the floor. Connect the floor waste to the center drain.

      Which faucet suits D-8083?

      The deck has no tap holes, so use a floor-standing filler or a wall-mounted faucet, placed so the spout reaches over the deck into the round basin.

      How do I place an order for the square D-8083?

      Send the quantity, faucet type and destination. A quote for D-8083 is returned within 12 business hours, and the square tub ships on a lead time of 30-45 days after sample approval.
