Tapered Freestanding Bathtub with Angled Side, 59 & 67 in

SKU D-8366-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8366-150

SANIKB D-8366 is a single-ended acrylic freestanding bathtub built on a tapered plan: one long side is angled, so the drain end is about 100 mm narrower than the backrest end. The walls rise almost straight to a thin, level rim, and the overflow and drain are grouped at the narrow end.

D-8366-150 measures 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) and D-8366-170 measures 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The shell is matte white and cUPC certified. Its rim has no tap holes, so it takes a floor-standing or wall-mounted filler. See more in the freestanding bathtub collection.

Product PDF D-8366-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8366

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

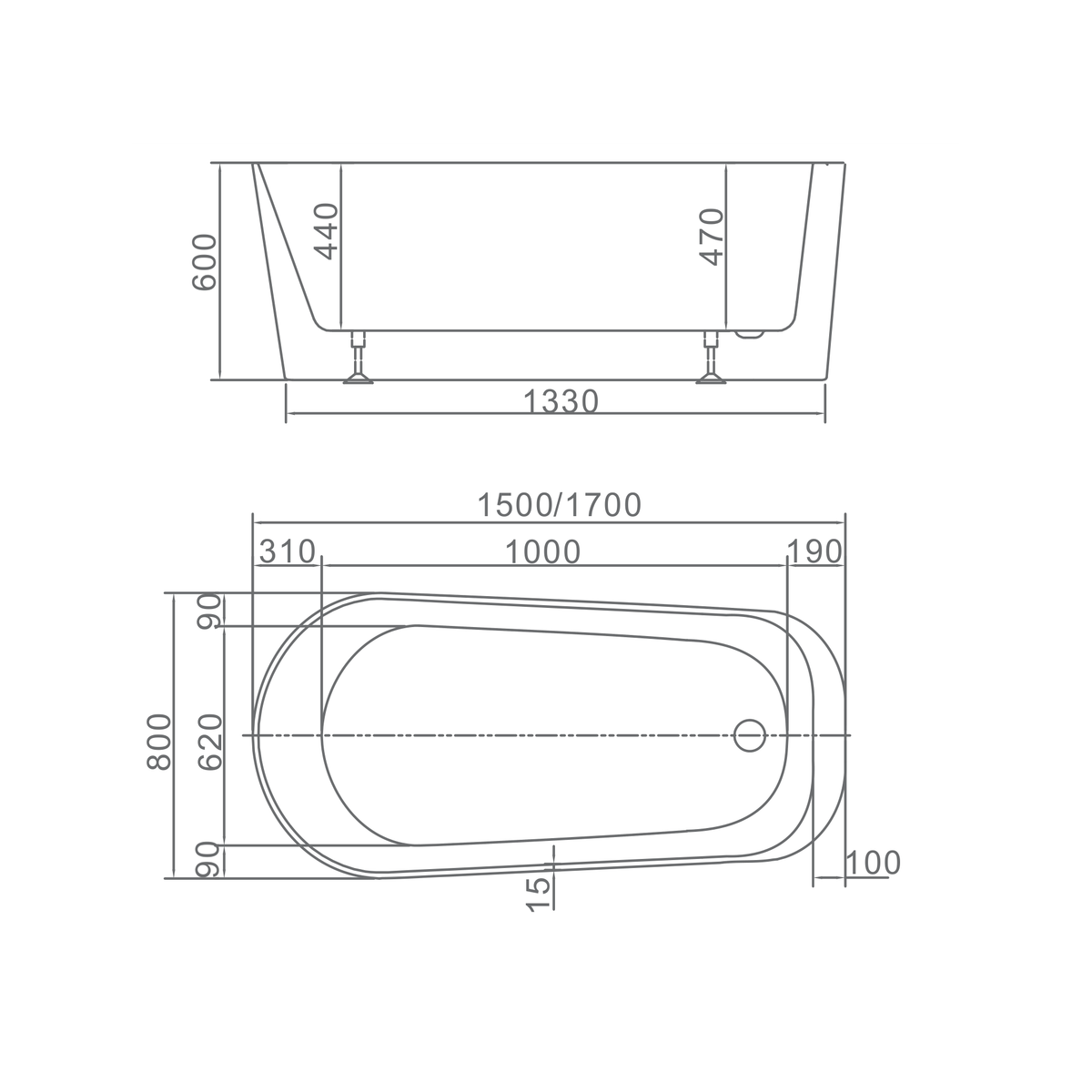

SANIKB D-8366 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8366-15059" x 31"
D-8366-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8366-15067" x 31"D-8366-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Tapered Freestanding Bathtub with Angled Side, 59 & 67 in SKU D-8366-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Backrest

    Tapered plan with an angled long side

    D-8366 narrows from the backrest end to the drain end because one long side is set at an angle. The drawing shows a wide round end at the backrest and a rounded end cap at the drain end, with no flat side.

    01 / BACKREST

    Sloped wall at the wide end

    The backrest is the sloped wall at the wider, rounded end. The opposite end is narrower and holds the drain and overflow, so the bather faces the drain end.

    02 / WALLS

    Near-vertical sides, thin level rim

    Apart from the backrest, the walls rise close to vertical and finish in a thin rim that stays level all round. The drawing gives the rim lip as 15 mm (0.6 in).

    Other single-ended freestanding shapes are in the freestanding range.

    Fit & Footprint

    800 mm at the wide end, about 100 mm less at the drain

    D-8366-150 is 59 x 31.5 x 23.6 inches (1500 x 800 x 600 mm) and D-8366-170 is 67 x 31.5 x 23.6 inches (1700 x 800 x 600 mm). The 800 mm width is taken at the backrest end.

    D-8366-150
    59" x 31.5" x 23.6" (1500 x 800 x 600 mm)
    D-8366-170
    67" x 31.5" x 23.6" (1700 x 800 x 600 mm)
    Interior (as drawn)
    24.4" (620 mm) wide; 17.3" and 18.5" (440 and 470 mm) deep
    Faucet Mounting
    Floor-standing or wall-mounted filler; no tap holes

    The drawing splits the 800 mm width into a 620 mm interior with 90 mm of rim and wall on each side, and gives inner depth at 440 mm and 470 mm. The drain sits at the narrow end, so place the floor waste there when setting out the room.

    Confirm the drain position and outlet size for D-8366 on the approved drawing before the floor waste is set.

    Construction & Finish

    Matte white acrylic

    D-8366 is made from pure acrylic sheet with a matte white surface.

    SANIKB D-8366 - matte white single-ended freestanding bathtub with a tapered plan and thin level rim

    White

    Low-sheen surface

    D-8366 is made in matte white rather than gloss. Approve the surface on a sample if the project pairs it with glossy fixtures.

    The base of D-8366 sits flat on the floor. Check that the floor under the tub is level and finished before it is placed.

    Record the approved D-8366 sample as the finish reference.

    Compliance

    D-8366 cUPC certification

    Size-specific records

    Quote D-8366-150 or D-8366-170 on each document request.

    D-8366-150 and D-8366-170 are cUPC certified. A submittal should carry the current certificate number and its validity, which SANIKB supplies on request.

    Name the destination market and any further documents in the inquiry; the written reply comes within 12 business hours.

    Procurement

    Ordering D-8366

    D-8366 is quoted per size, and lead time is 30-45 days after sample approval.

    Size SKUs
    D-8366-150, D-8366-170
    Standard Lead Time
    30-45 days after sample approval

    Every outer surface of a freestanding tub stays on view after installation, so agree carton and corner protection for D-8366 in the quotation.

    Include these details with the RFQ

    • D-8366-150 and D-8366-170 quantities
    • Destination market and port
    • Floor-standing or wall-mounted filler, if required
    • Carton marking and private label
    • Requested shipping window for D-8366
    Request D-8366 Quote View OEM & ODM Program

    D-8366 lead time is confirmed on the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the D-8366 dimensions?

    D-8366-150 is 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) and D-8366-170 is 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The drain end is about 100 mm narrower than the backrest end.

    Where does the bather recline in D-8366?

    The wide, rounded end is sloped as the backrest. The narrow end holds the drain and overflow. D-8366 is not made in left- and right-hand versions.

    What faucet can be used with D-8366?

    The rim has no tap holes, so D-8366 takes a floor-standing filler or a wall-mounted spout. Set its position against the approved drawing.

    How deep is the D-8366 interior?

    The drawing gives inner depth at 440 mm and 470 mm (17.3 and 18.5 in), with a 620 mm (24.4 in) interior width.

    What does D-8366 need for installation?

    D-8366 is freestanding and its base sits flat on the floor. Set the floor waste at the narrow end to the approved drawing and level the floor before placing the tub.

    What finish does D-8366 have, and how is it ordered?

    Matte white acrylic, made from pure acrylic sheet, and cUPC certified. Quantities per size go into the inquiry; quotes follow within 12 business hours and lead time is 30-45 days after sample approval.
