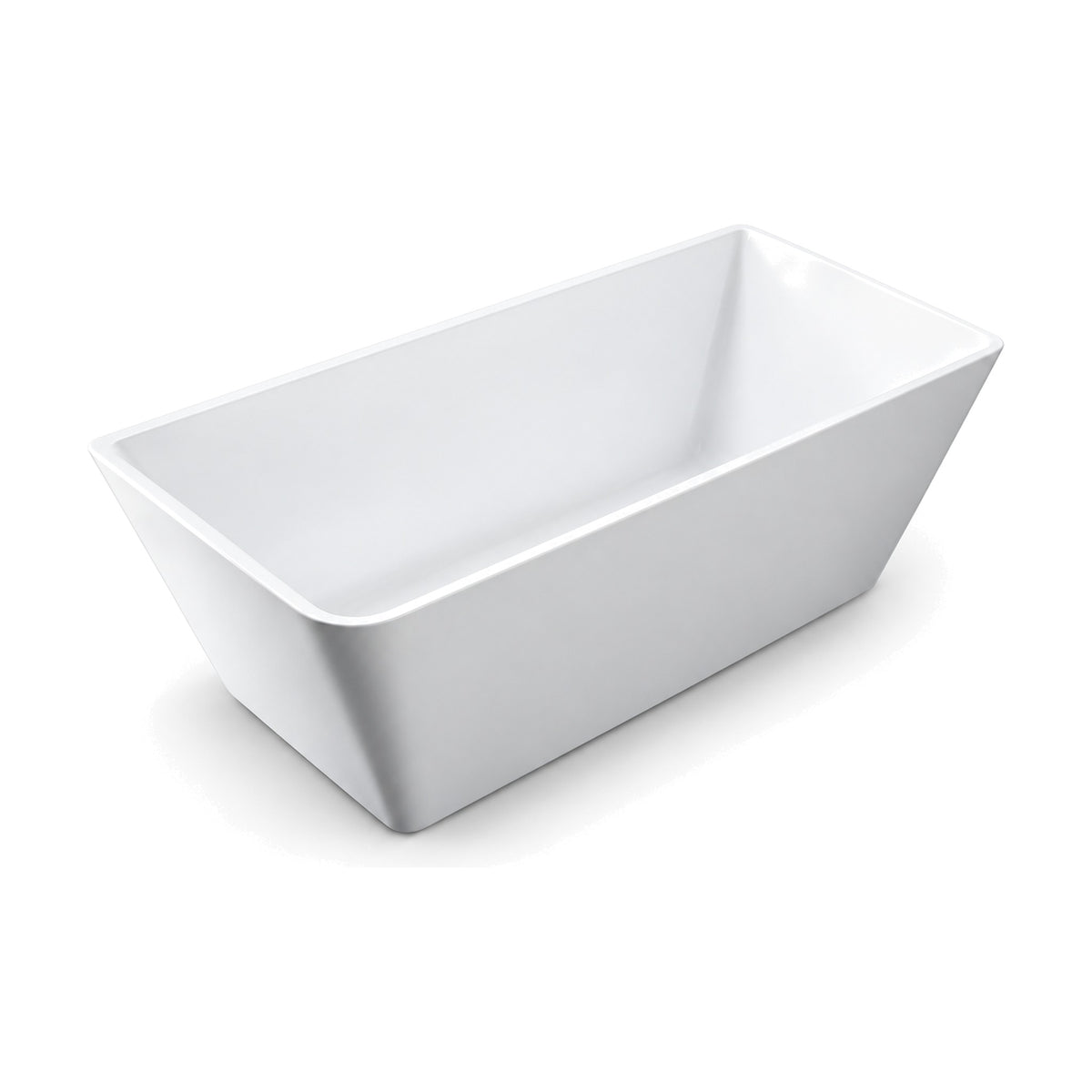

SANIKB D-8019 - white freestanding bathtub with a straight back edge, square back corners and rounded front corners

01 / 02

Rounded-Front Freestanding Tub with Square Back Corners, 59 & 67 in

SKU D-8019-150

Size

Certification

cUPC listed

Min. order

40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 59" × 29.5" × 23.6" (1500 × 750 × 600 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8019-150

SANIKB D-8019 is a double-ended white acrylic freestanding bathtub that mixes two corner types: the back edge runs straight between two square corners, and the two front corners are rounded on a large radius. That straight back lets the tub stand close to a wall, while the walls flare out from a smaller flat base to a thin rim. It is made in two sizes: D-8019-150 at 1500 × 750 × 600 mm (59 × 29.5 × 23.6 in) and D-8019-170 at 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in). The rim has no tap holes; fill it from a floor-standing or wall-mounted filler.

D-8019 is cUPC certified, and SANIKB answers enquiries within 12 business hours. Fully rounded models sit alongside it in the freestanding bathtub collection.

Product PDF D-8019-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8019

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

Size range59" / 67" × 29.5" / 31.5" × 23.6" (1500 / 1700 × 750 / 800 × 600 mm)

Sizes59" x 30"67" x 31"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8019-150	59" x 30"
D-8019-170	67" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

	59" x 30"D-8019-150	67" x 31"D-8019-170
Overall L×W×D	59″ × 29.5″ × 23.6″ 1500 × 750 × 600 mm	67″ × 31.5″ × 23.6″ 1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Rounded-Front Freestanding Tub with Square Back Corners, 59 & 67 in SKU D-8019-150

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Plan & Profile

Square back corners, rounded front corners

D-8019 combines two corner types in one plan. The back edge runs straight between square corners, and the front corners are drawn on a large radius.

01 / BACK EDGE

A straight edge for wall placement

Set the straight edge toward the wall and there is no curved gap to bridge behind the rim. The square back corners meet the wall line instead of curving away from it.

02 / DRAIN

Drain centered on both axes

The drain is drawn 850 mm from the end on the 1700 mm size and 750 mm on the 1500 mm size, at mid-width from the back edge. Both ends stay free for reclining.

Tubs rounded on all four corners are in the freestanding bathtub collection for comparison.

Fit & Wall Placement

Two sizes, both 600 mm high

D-8019 is made at 1500 by 750 mm and at 1700 by 800 mm, each 600 mm (23.6 in) high. The larger size is 50 mm wider as well as 200 mm longer.

59 in Size: 59" × 29.5" × 23.6" (1500 × 750 × 600 mm), D-8019-150
67 in Size: 67" × 31.5" × 23.6" (1700 × 800 × 600 mm), D-8019-170
Drain Position: Centered: 750 / 850 mm from the end, 375 / 400 mm from the back edge
Faucet Mounting: No tap holes; floor-standing or wall-mounted filler

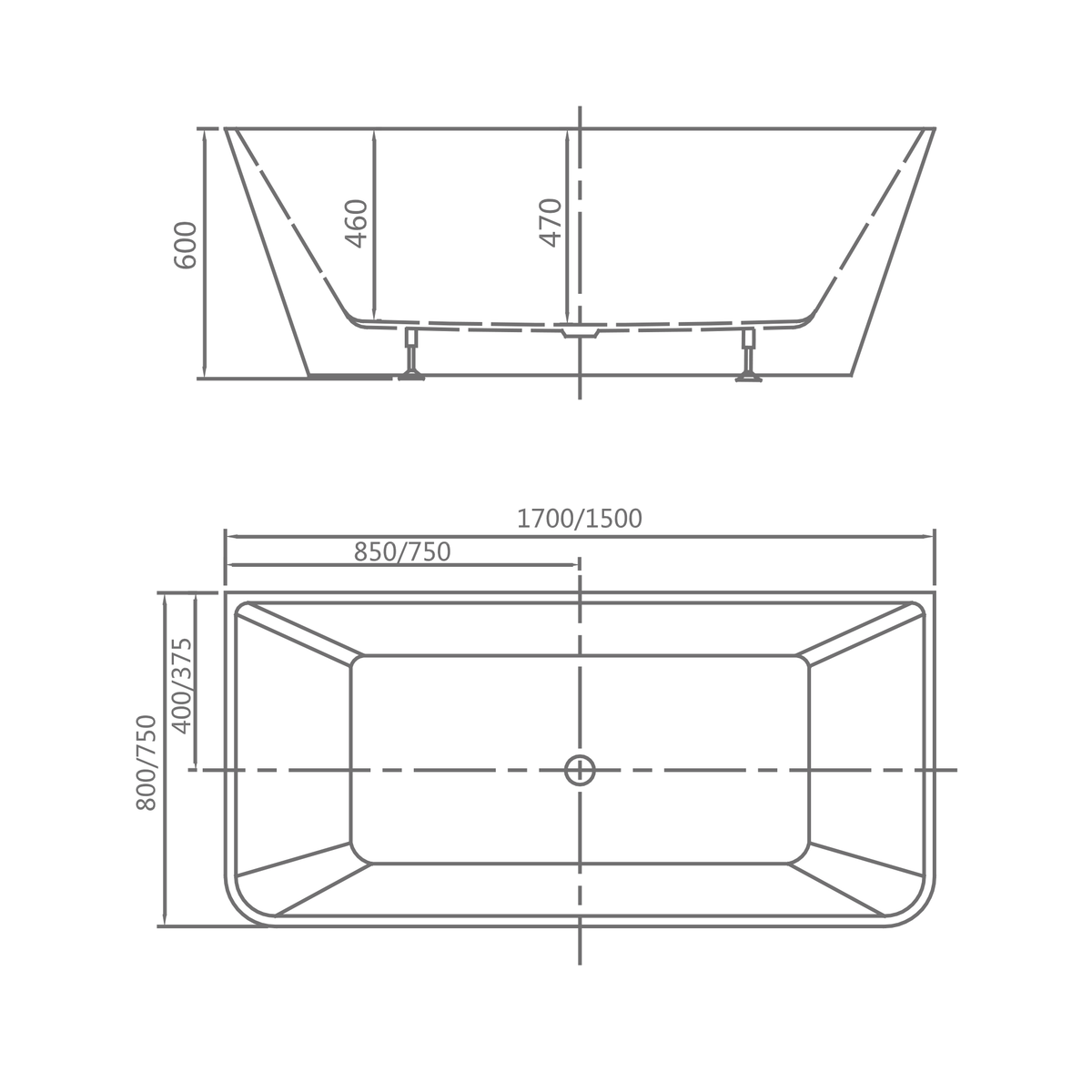

Inner depths of 460 mm and 470 mm (18.1 and 18.5 in) are marked on the D-8019 drawing. With the straight back edge close to a wall, that wall can carry a wall-mounted spout above the rim.

Choose the wall side before rough-in, because only the back edge of D-8019 has square corners.

Construction & Finish

White acrylic with a thin rim

D-8019 is formed from pure acrylic sheet in white, and the rim is kept thin above the flared walls.

White

Rounded corners face the room

The large-radius front corners are the part of D-8019 that faces into the room, so check their shape and surface on the approved sample.

Confirm the surface sheen at quotation and hold every unit to the approved sample.

The square back corners are exposed to knocks in handling. Agree corner protection inside the carton before the first shipment leaves.

Write the corner protection method into the packing specification.

Compliance

cUPC certification for D-8019

Paperwork by SKU

The two D-8019 sizes differ in width as well as length, so keep the SKU on every document and carton label.

D-8019 is cUPC certified. Request the certificate number and validity date covering D-8019-150 and D-8019-170 before the tub goes into a submittal.

Name the destination market in your enquiry so the matching documents are prepared, and expect a reply within 12 business hours.

Procurement

Ordering D-8019

Both D-8019 sizes run on a lead time of 30-45 days after sample approval.

Standard Lead Time: 30-45 days after sample approval
Quote Reply: within 12 business hours

If both sizes go into one building, write the quantity of each SKU into the quotation so the floor wastes on site match the delivered tubs.

Include these details with the RFQ

Quantity of D-8019-150
Quantity of D-8019-170
Faucet type: floor or wall
Drain trim finish
Destination market and port
Requested shipping window

Request D-8019 Quote View OEM & ODM Program

The quoted lead time replaces the figure on this page.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

How big are the two D-8019 sizes?

D-8019-150 is 1500 × 750 × 600 mm (59 × 29.5 × 23.6 in) and D-8019-170 is 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in).

Can D-8019 stand with its back against a wall?

Yes. The back edge is straight with square corners, so the tub can be pushed close to a wall. Only the two front corners are rounded.

Where is the drain on the square-back D-8019?

At the center: 750 mm from the end on the 1500 mm size and 850 mm on the 1700 mm size, and at mid-width from the back edge.

Is D-8019 single- or double-ended?

Double-ended. With the drain in the middle, a bather can recline against either end.

Which faucets pair with the flat-back D-8019?

D-8019 has no tap holes in the rim. Use a floor-standing filler, or fix a wall-mounted faucet to the wall behind the straight back edge.

Which details should a quote request for D-8019 carry?

Send the quantity per SKU, faucet type and destination. A reply comes within 12 business hours, and production takes 30-45 days after sample approval.
