Pebble-Shaped Oval Freestanding Tub, Double-Ended, 72 in

SKU D-8009
Size
Certification
Certification mark
cUPC listed
Min. order
30 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 72" × 34.3" × 22.8" (1830 × 870 × 580 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8009

SANIKB D-8009 is a double-ended oval freestanding bathtub in white acrylic, made in one size: D-8009 at 1830 x 870 x 580 mm (72 x 34.3 x 22.8 in). Its bulging, pebble-like body curves back in toward the floor and is finished with a flat rim band. The drain is centered in the floor of the tub and the overflow sits midway along one long side, so neither end carries a fitting.

D-8009 is cUPC certified. Its rim carries no tap holes, so it pairs with a floor-standing or wall-mounted filler. For shorter lengths and other shapes, see the SANIKB freestanding bathtub range.

Product PDF D-8009

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8009

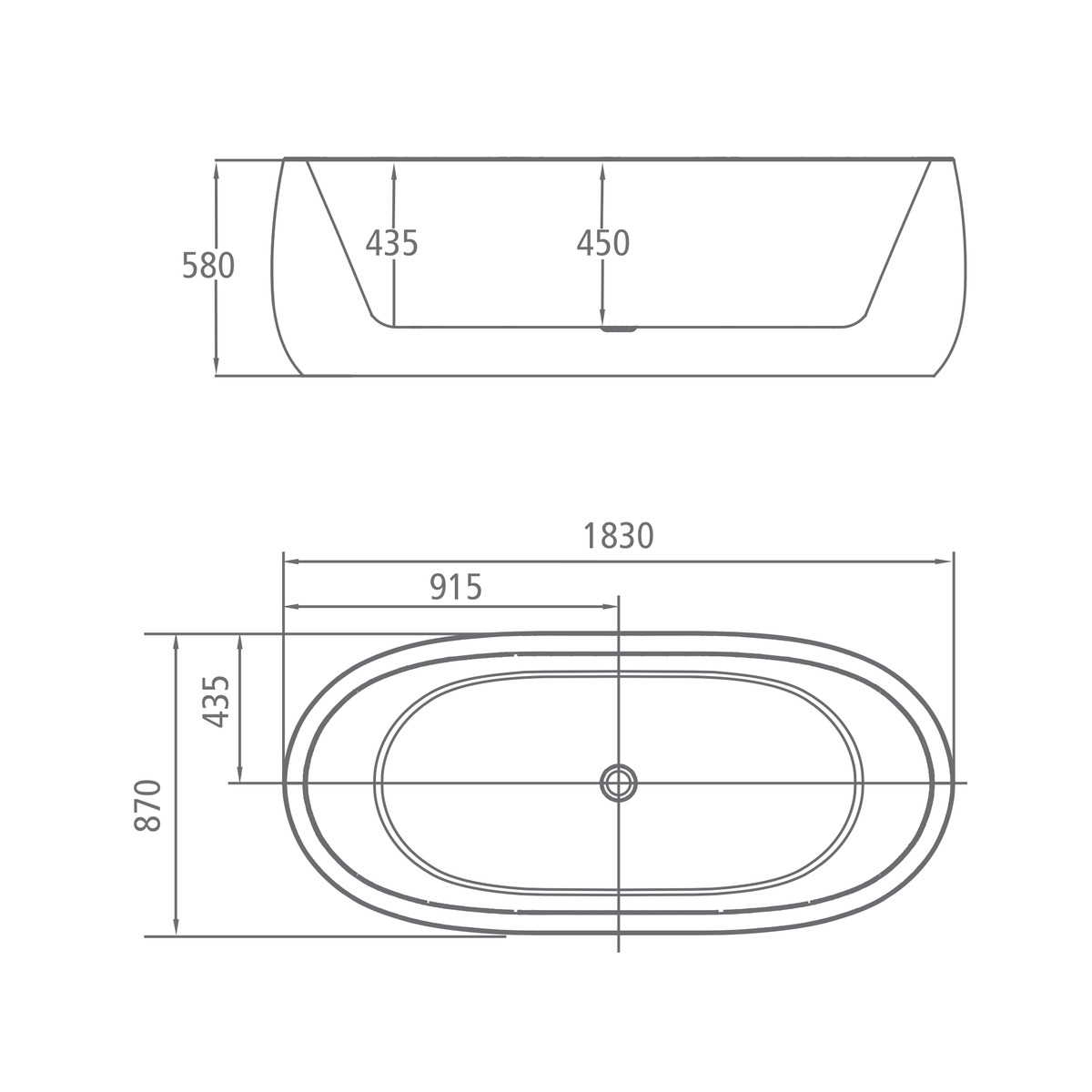

SANIKB D-8009 dimension drawing
Dimension drawing
Size range72" × 34.3" × 22.8" (1830 × 870 × 580 mm)
InstallationFreestanding
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Pebble-Shaped Oval Freestanding Tub, Double-Ended, 72 in SKU D-8009
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Layout

    72 inch freestanding tub with a pebble-shaped oval body

    D-8009 is drawn as a symmetric oval in plan. The outer walls bulge outward and then curve back in to meet the floor, which gives the body its pebble-like profile. Both ends are shaped alike, so the tub is double-ended.

    01 / PROFILE

    Convex walls on a flat-to-floor body

    The elevation drawing shows the outer walls bulging outward in a convex curve. The tub rests directly on the floor with no feet or plinth, and a flat rim band runs around the top edge.

    02 / DRAIN & OVERFLOW

    Center drain, overflow on the long side

    The drain is drawn 915 mm (36 in) from the end and 435 mm (17.1 in) from the side, the exact center of the tub. The overflow is placed in the middle of one long side instead of at an end.

    At 1830 mm long, D-8009 calls for a generous room. Oval and stadium models in other lengths are grouped in the freestanding bathtub range.

    Fit & Clearances

    1830 mm long, 870 mm wide, 580 mm high

    D-8009 is supplied in a single size, SKU D-8009, measuring 72 by 34.3 by 22.8 inches (1830 by 870 by 580 mm). It falls in the 68 inch and up length band.

    Overall Size
    1830 x 870 x 580 mm (72 x 34.3 x 22.8 in)
    Installation
    Freestanding, flat to floor
    Drain
    Center drain, 915 mm from the end, 435 mm from the side
    Faucet Mount
    Floor-standing or wall-mounted filler

    Inner depth is drawn as 435 mm (17.1 in) and 450 mm (17.7 in) at the two measuring points. Because the walls bulge outward, set wall and vanity clearances from the 870 mm overall width on the approved drawing.

    Floor waste positions vary between projects. Confirm the center drain location against the approved drawing before the floor is finished.

    Material & Finish

    White acrylic body formed from pure acrylic sheet

    D-8009 is made in acrylic, formed from pure acrylic sheet. It is made in white.

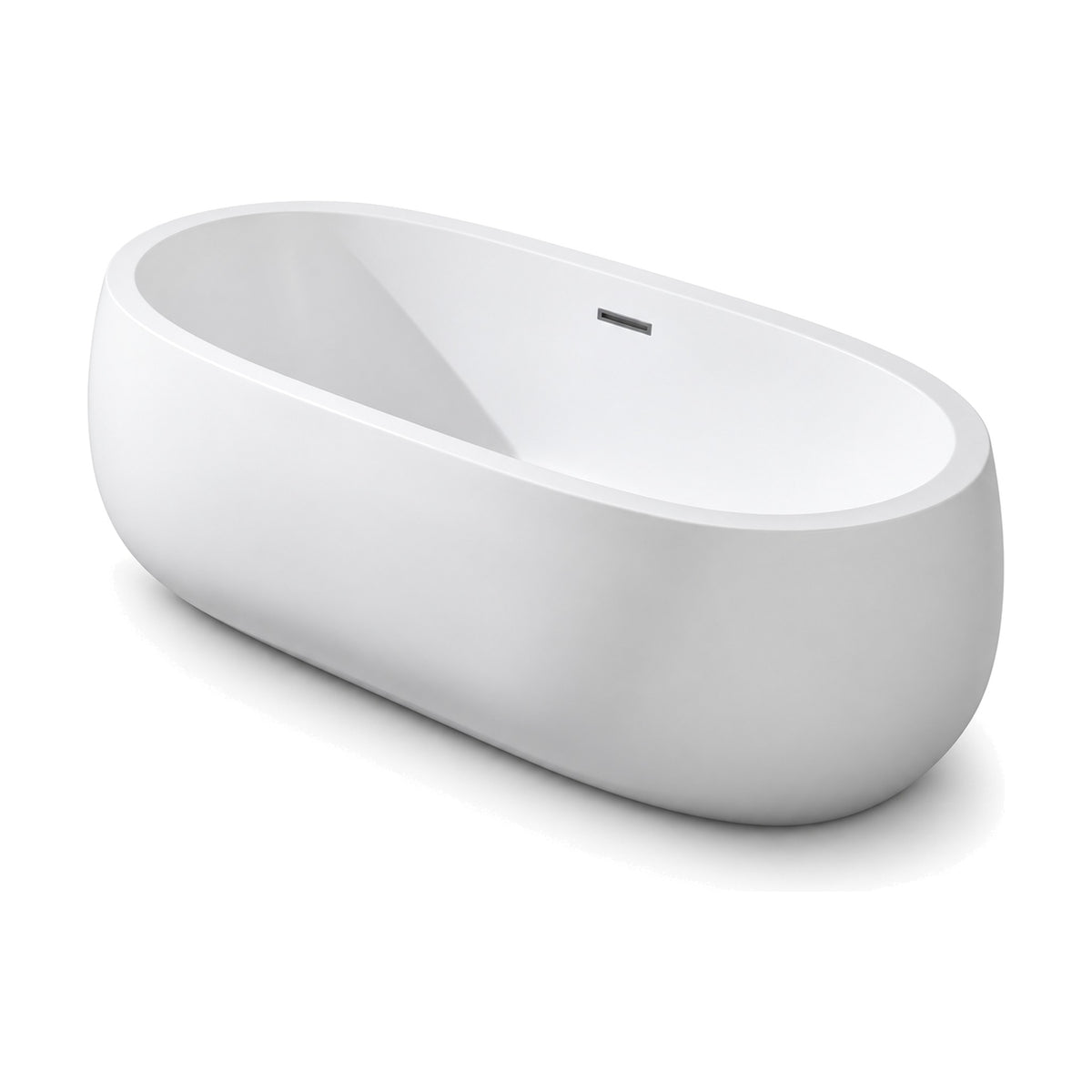

    SANIKB D-8009 - white pebble-shaped oval freestanding bathtub with a flat rim band and center drain

    White

    Surface agreed on the sample

    D-8009 is made in white. The surface finish is confirmed on the approval sample, and the production run is matched to it.

    Ask how the curved shell is braced inside the carton, and agree how transit damage is recorded and reported before the first shipment leaves.

    Record color and surface against the approved sample so repeat orders match.

    Compliance

    cUPC certified oval tub: D-8009 documents

    Documents under D-8009

    Ask for certificates and the approved drawing against SKU D-8009 by name, so the file matches the unit on the delivery note.

    D-8009 is cUPC certified. Before the tub is entered into a submittal, request the current certificate number and its validity date so the paperwork matches your destination market.

    Put the destination market and the documents you need into the inquiry. The document list is settled at quotation stage, and replies are issued within 12 business hours.

    Procurement

    Ordering D-8009 for a project or distribution

    D-8009 is supplied direct from SANIKB as the manufacturer. Quantities, packing and shipping terms are set out in the quotation.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Written quote within 12 business hours

    Lead time runs from sample approval, so plan a sample of D-8009 early if the tub is going into a hotel or residential scheme with a fixed handover date. Private label marking is agreed at the same stage.

    Include these details with the RFQ

    • Quantity of D-8009
    • Destination market and port
    • Filler position: floor-standing or wall-mounted
    • Drain and overflow fitting scope
    • Brand marking on carton and label
    • Requested shipping window
    Request D-8009 Quote View OEM & ODM Program

    Lead time for D-8009 is fixed in the written quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the dimensions of the 72 inch D-8009?

    D-8009 is offered in one size, SKU D-8009, measuring 1830 x 870 x 580 mm (72 x 34.3 x 22.8 in). It sits in the 68 inch and up length band. Drawn inner depths are 435 mm (17.1 in) and 450 mm (17.7 in).

    Can a bather recline at either end of D-8009?

    It is double-ended. Both ends are shaped alike and the drain is centered, 915 mm from the end and 435 mm from the side, so a bather can recline at either end. The overflow is in the middle of one long side.

    Which faucet mounting works with D-8009?

    The rim has no tap holes, so D-8009 takes a floor-standing filler beside the tub or a wall-mounted spout. Fix the filler position together with the center drain on the approved drawing before floor and wall finishes go on.

    How does D-8009 sit on the floor?

    It is a freestanding tub that sits flat on the finished floor, with no feet or plinth. The waste connects at the center drain, so set out the floor outlet from the approved drawing and leave access to it before the tub is placed.

    What color and material is D-8009?

    It is white acrylic, formed from pure acrylic sheet, with a pebble-like bulging body and a flat rim band. Its surface finish is confirmed on the approval sample.

    What is the lead time, and how do we get a quote?

    D-8009 is produced on a standard lead time of 30-45 days after sample approval. The model is cUPC certified. Send the quantity of D-8009, the destination port and the filler arrangement, and a written quote is returned within 12 business hours.
