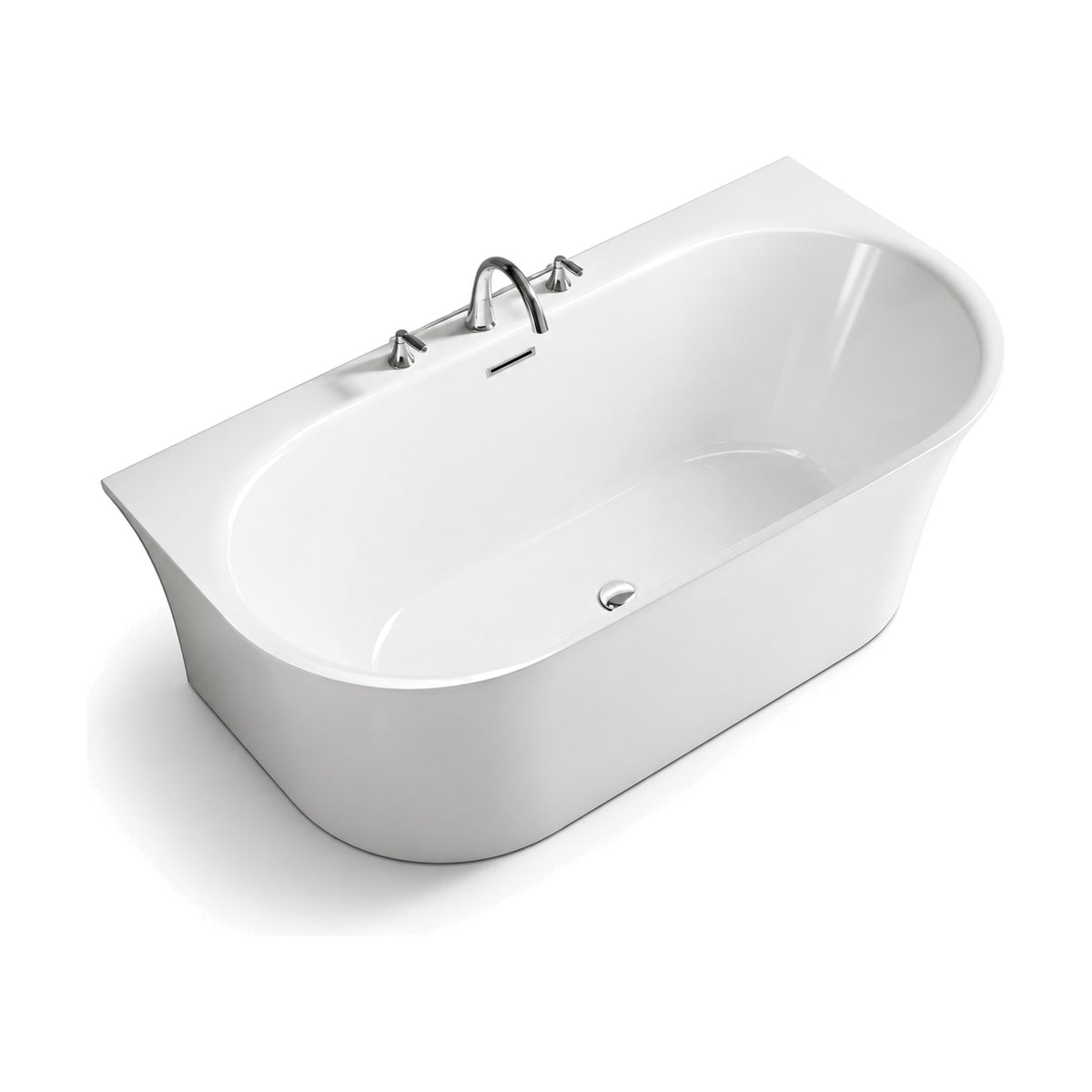

SANIKB D-8360 - glossy white D-shaped back-to-wall bathtub with flared body and square-cornered back deck with 3-hole faucet

01 / 02

Flared D-Shape Back-to-Wall Bathtub with 3-Hole Deck, 59 & 67 in

SKU D-8360-150

Size

Certification

cUPC listed

Min. order

40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Back-to-wall freestanding bathtub

Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes

Mount Back-to-wall (one long side to the wall)

Finish

White

Product PDF D-8360-150

SANIKB D-8360 is a D-shaped acrylic back-to-wall bathtub whose body flares out from the base to the rim. The wall side is a flat rectangular deck with squared back corners and three holes for a deck-mounted faucet; whether the faucet is supplied is agreed at quotation. D-8360 is made as D-8360-150 at 1500 × 800 × 600 mm (59 × 31.5 × 23.6 in) and D-8360-170 at 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in). It is double-ended, with a center overflow and drain.

The straight end segments run 400 mm (15.7 in) from the wall before the front corners round off. D-8360 is glossy white and cUPC certified, and quotes come within 12 business hours. See SANIKB freestanding bathtubs.

Product PDF D-8360-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8360

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)

Sizes59" x 31"67" x 31"

InstallationBack-to-wall (one long side to the wall)

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8360-150	59" x 31"
D-8360-170	67" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic

TypeBack-to-wall freestanding bathtub

MountingBack-to-wall (one long side to the wall)

MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

	59" x 31"D-8360-150	67" x 31"D-8360-170
Overall L×W×D	59″ × 31.5″ × 23.6″ 1500 × 800 × 600 mm	67″ × 31.5″ × 23.6″ 1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Flared D-Shape Back-to-Wall Bathtub with 3-Hole Deck, 59 & 67 in SKU D-8360-150

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Shape & Deck

Flared body under a square-cornered back deck

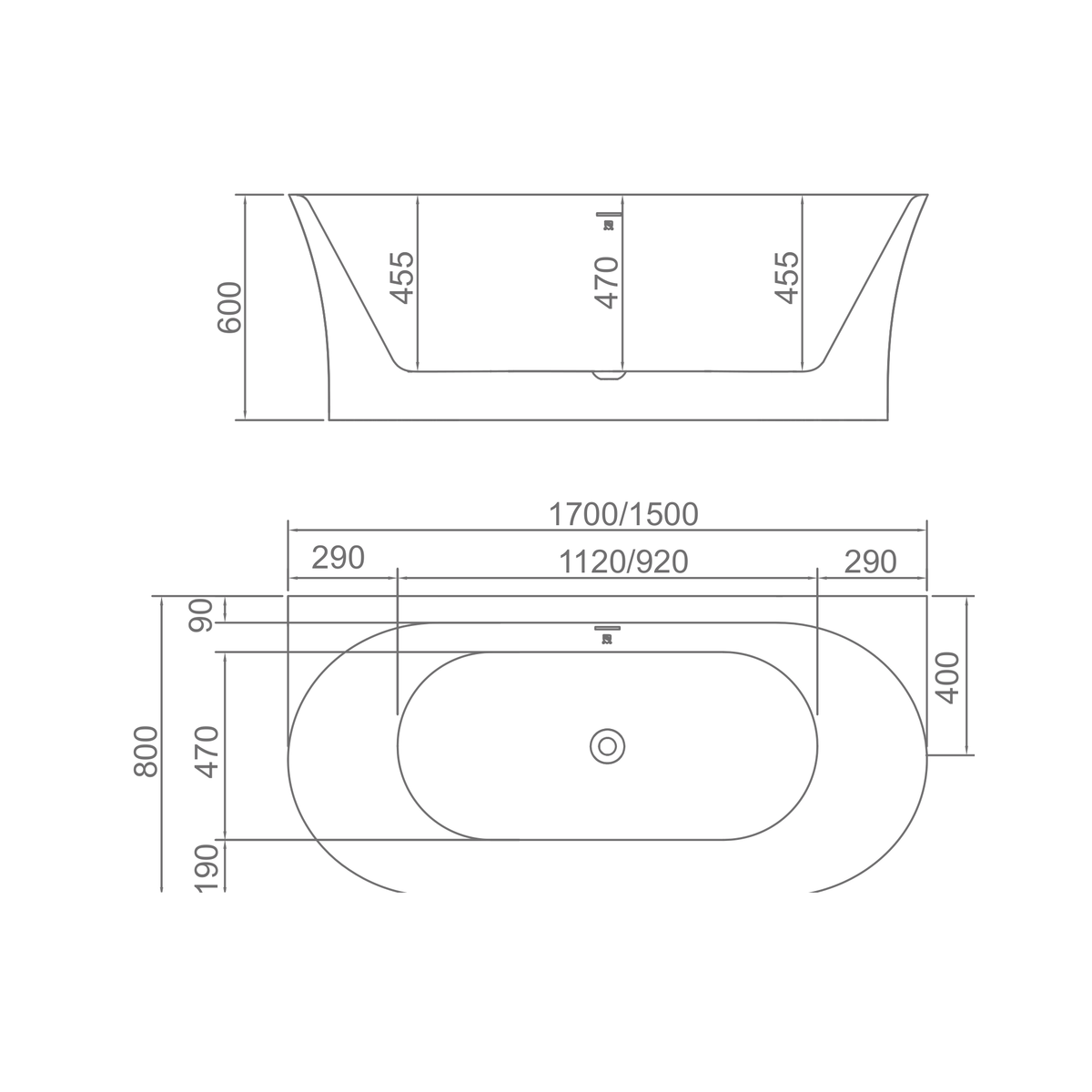

D-8360 widens from the base to the rim. The back is a flat rectangular deck with squared corners, and straight end segments run 400 mm (15.7 in) from the back edge before the front corners round off.

01 / BACK DECK

3-hole faucet on a rectangular deck

The wall-side deck has three holes for a deck-mounted faucet. Whether taps are included, and where the holes sit, are agreed when you request the quotation.

02 / BASIN

Double-ended, center outlet

Both ends are backrests. The overflow and drain are at the center, and inner depth runs 455, 470 and 455 mm (17.9, 18.5 and 17.9 in) along the length.

More deck-mounted and slim-rim models sit in the SANIKB bathtub range.

Fit & Footprint

800 mm wide, 1500 or 1700 mm long

Both sizes share an 800 mm (31.5 in) width and a 600 mm (23.6 in) height. Inner length is 1120 mm (44 in) on the 1700 mm size and 920 mm (36 in) on the 1500 mm size.

D-8360-150: 59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
D-8360-170: 67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
Installation: Back-to-wall, flat to floor
Faucet Mount: Deck-mounted on the back deck

Across the width, the back edge sits 90 mm (3.5 in) from the bowl rim, and the inner width is 470 mm (18.5 in). Because the body flares out, the base footprint is smaller than the rim outline.

The front profile and base footprint are confirmed on the approved drawing before the layout is fixed.

Construction & Finish

Glossy white acrylic

D-8360 is made from pure acrylic sheet with a glossy white surface.

White

Consistent across sizes

Both SKUs are made in white with a gloss surface, so a mixed order of 1500 mm and 1700 mm tubs matches on site.

The squared back corners give a straight edge along the wall; seal that joint to the wall finish during installation.

Agree carton protection for the flared rim and the damage-reporting process before shipment.

Check the rim and deck edges for transit damage on arrival and note any faults on the delivery receipt.

Compliance

cUPC certification for D-8360

Per-SKU documents

Keep drawings for the two D-8360 lengths separate, as their inner lengths differ: 920 mm and 1120 mm.

D-8360 holds cUPC certification. Ask for the certificate number and its validity covering D-8360-150 and D-8360-170 before submittal.

State the market and paperwork you need when you send the inquiry; SANIKB answers in writing within 12 business hours.

Procurement

Ordering D-8360

D-8360 is made as D-8360-150 and D-8360-170. Quantities per size and faucet scope go into the quotation.

Standard Lead Time: 30-45 days after sample approval
Quote Reply: Sent within 12 business hours

Standard lead time is 30-45 days after sample approval; the sample is also where the gloss finish is checked. Brand-specific packaging and marking are arranged through the SANIKB OEM and ODM program.

Include these details with the RFQ

Quantity per size
Destination market and arrival port
Faucet scope for the back deck
Brand marking on carton
Planned shipping date

Request D-8360 Quote View OEM & ODM Program

Take the lead time as indicative until the quotation is issued for D-8360.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

Which lengths is D-8360 made in?

Two lengths: 1500 × 800 × 600 mm (59 × 31.5 × 23.6 in) as D-8360-150, and 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in) as D-8360-170. Inner lengths are 920 mm (36 in) and 1120 mm (44 in).

How is the back deck of D-8360 laid out?

The wall side is a flat rectangular deck with squared back corners, 90 mm (3.5 in) from the back edge to the bowl rim, with three holes for a deck-mounted faucet. Faucet scope is agreed at quotation.

What does the flared shape of D-8360 mean for installation?

The body flares out from the base to the rim, so the footprint on the floor is smaller than the rim outline. Straight end segments run 400 mm (15.7 in) from the back edge before the front corners curve.

Where do the overflow and drain sit on D-8360?

Both sit at the center of the tub, and each end is shaped as a backrest.

What is the D-8360 shell made of?

The shell is pure acrylic sheet with a glossy white surface, and the tub rests flat on the floor.

How do we order D-8360?

Send quantities for D-8360-150 and D-8360-170, market, port and faucet scope. Expect a written answer within 12 business hours; D-8360 runs on a standard lead time of 30-45 days after sample approval and is cUPC certified.
