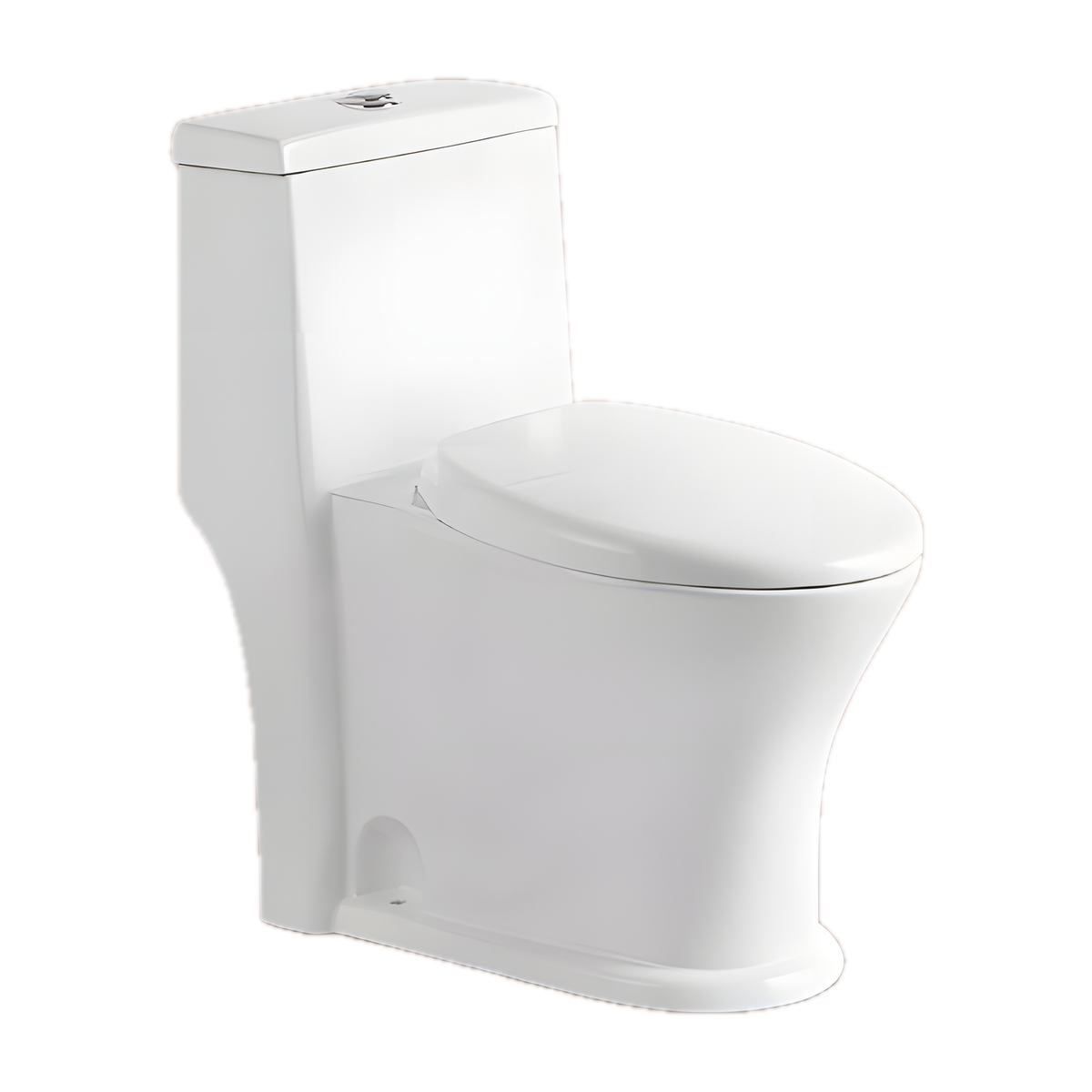

675 mm One-Piece Toilet, 10 Inch Rough-In

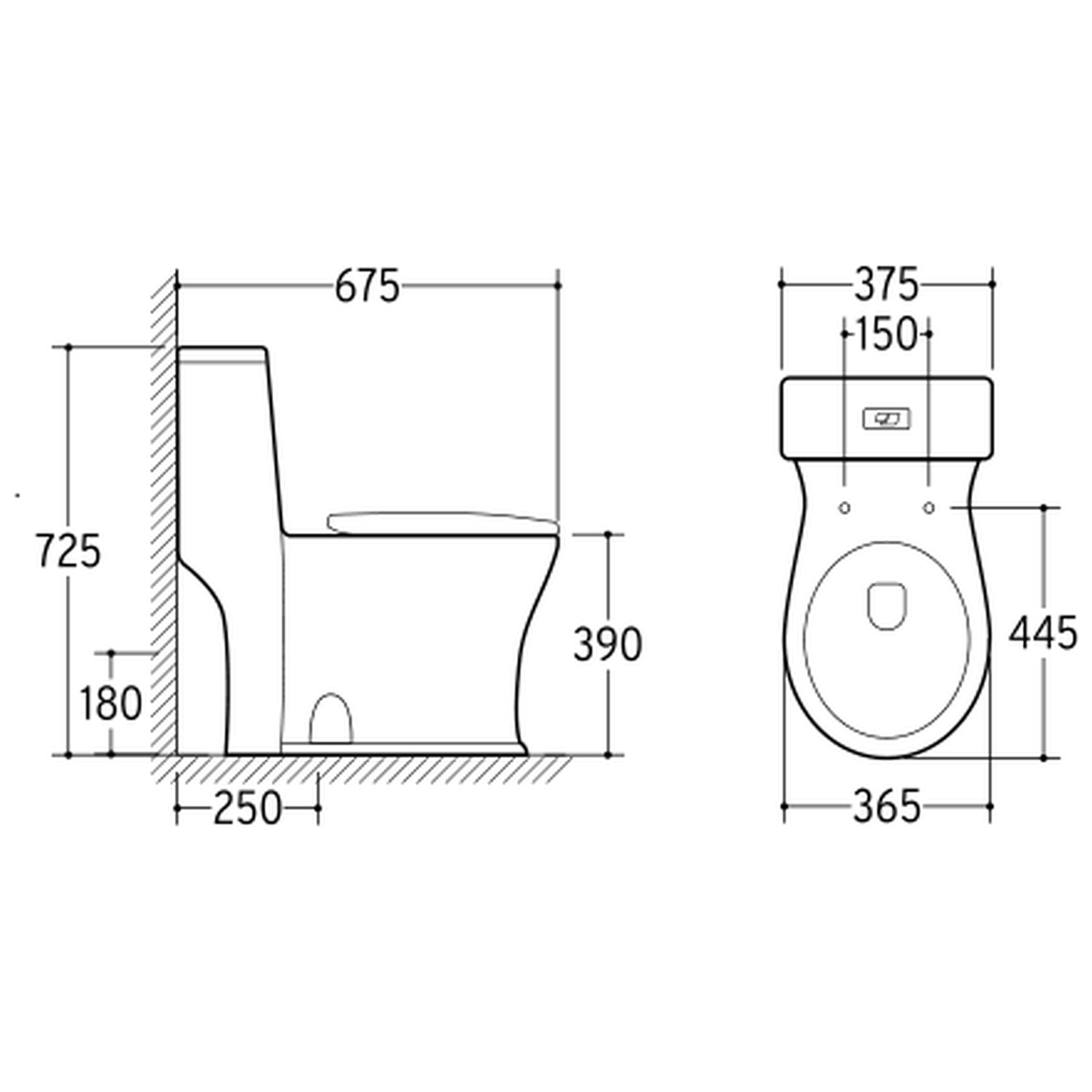

In its P-trap form the floor mount wall outlet toilet NBK-3062 pairs a 180 mm P-trap height with a printed footprint of 675 × 375 mm (26.6 × 14.8 in). Overall height is 725 mm (28.5 in). Those 3 dimensions form the only size printed for the code. NBK-3062 prints a 675 mm length; TC-58182H prints 700 mm. NBK-3062 prints a 725 mm height; TC-58182H prints 730 mm. The body is White ceramic, set on the floor.

The S-trap version of NBK-3062 takes a 250 mm (10 in) rough-in. Rough-in is read from the finished wall to the outlet center. Match the model's listed rough-in to the measured drain, then confirm against the model spec sheet. Buyers comparing other 10 in toilets can use the 10 inch rough-in toilet collection. Choose the version before ordering, as the SKU covers both outlets. The P-trap alternative, at a 180 mm outlet height, needs no rough-in figure at all.

NBK-3062 is a single SKU in White ceramic with a printed size of 675 × 375 × 725 mm. The catalog lists it as a floor-mounted one-piece toilet with a 250 mm (10 in) S-trap rough-in or a 180 mm P-trap outlet height. Each outlet entry belongs to the same NBK-3062 code. TC-58182H is listed under a separate code. Certification documents for the model are matched to the destination market at quotation.
