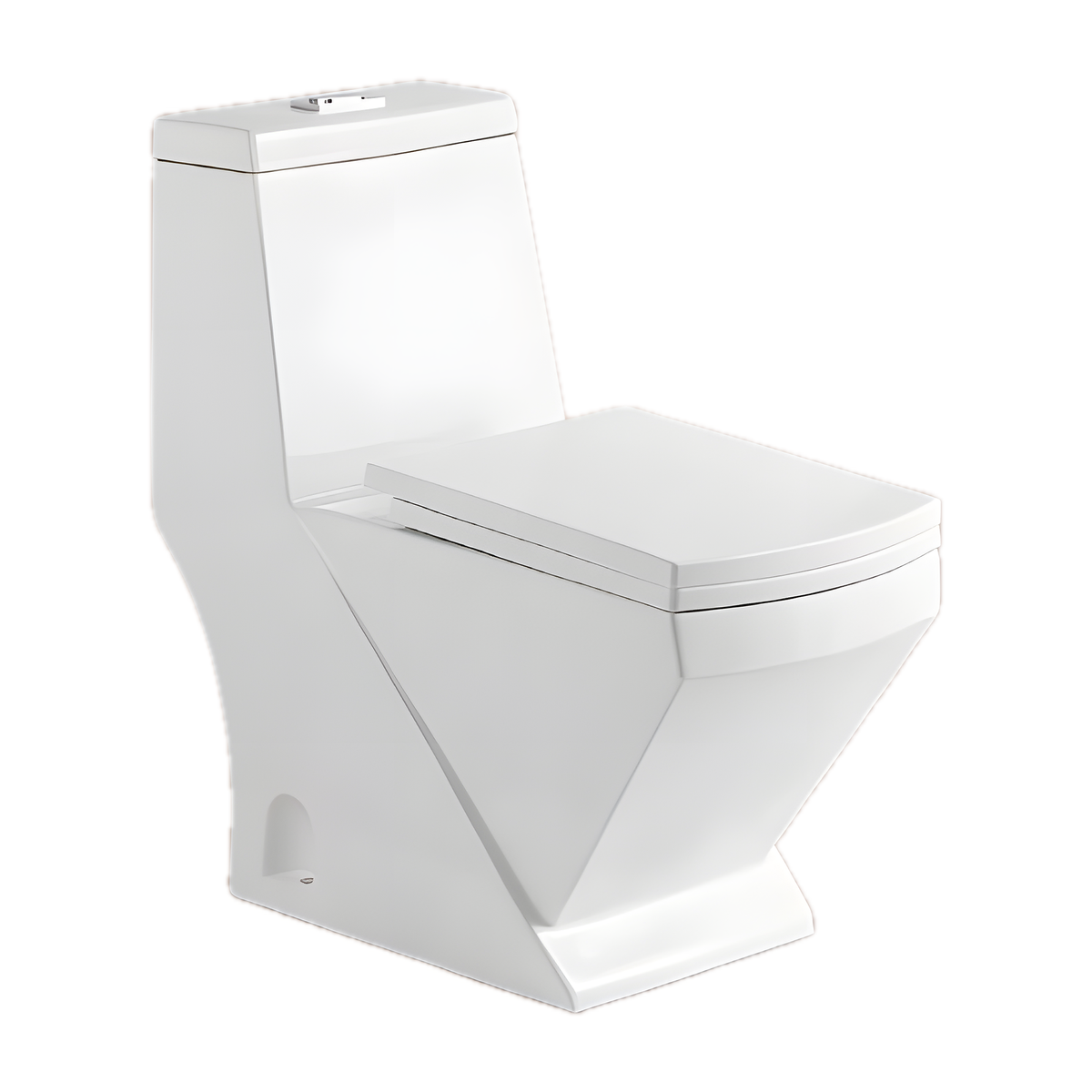

One-Piece Toilet, 10 Inch Rough-In, 730 × 375 × 750 mm
NBK-3099 has a printed height of 750 mm (29.5 in), with a 730 mm (28.7 in) length and a 375 mm (14.8 in) width. The toilet is a ceramic one-piece in White, listed for floor mounting. Outlet versions are the S-trap, whose rough-in is 250 mm (10 in), and the P-trap, whose outlet is at 180 mm. Each distributor or project quotation records the version ordered.
Check the one-piece toilet range.
More in 10 Inch Rough-In Toilets
Mix any models in one 20ft container · no per-model minimum
-
TC-7311Swirl Flush Two-Piece Toilet, 10 Inch Rough-In, 2 Finishes26.4" × 14.6" × 31.1"Floor-mounted
-
TC-7310Swirl Flush Two-Piece Toilet, 10 Inch Rough-In25.2" × 14.6" × 30.7"Floor-mounted
-
TC-7309Swirl Flush Two-Piece Toilet TC-7309, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7308Swirl Flush Two-Piece Toilet TC-7308, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7305Swirl Flush Two-Piece Toilet TC-7305, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7304Swirl Flush Two-Piece Toilet TC-7304, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7117Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 670 × 370 × 790 mm26.4" × 14.6" × 31.1"Floor-mounted
-
TC-7116Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 640 × 370 × 780 mm25.2" × 14.6" × 30.7"Floor-mounted
-
TC-7114Swirl Flush One-Piece Toilet TC-7114, 10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7115Swirl Flush One-Piece Toilet TC-7115, 10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7111Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 670 × 360 × 800 mm26.4" × 14.2" × 31.5"Floor-mounted
-
TC-7113690 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In27.2" × 15.0" × 29.9"Floor-mounted
-
TC-7112650 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In25.6" × 14.4" × 31.1"Floor-mounted
-
TC-7102Rimless Swirl Flush Two-Piece Toilet TC-7102, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-7002Rimless Swirl Flush Two-Piece Toilet TC-7002, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-5826H700 mm Washdown One-Piece Toilet, 10 Inch Rough-In27.6" × 15.0" × 31.1"Floor-mounted
-
TC-58184HRimless One-Piece Toilet, 10 Inch Rough-In, 710 × 400 × 765 mm28.0" × 15.7" × 30.1"Floor-mounted
-
TC-58175H650 mm Rimless One-Piece Toilet, 10 Inch Rough-In25.6" × 14.4" × 31.1"Floor-mounted
-
TC-58182H700 mm Rimless One-Piece Toilet, 10 Inch Rough-In27.6" × 15.0" × 28.7"Floor-mounted
-
TC-58138H720 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In28.3" × 15.4" × 27.6"Floor-mounted
-
TC-58157HSwirl Flush One-Piece Toilet, 10 Inch Rough-In, 700 × 385 × 745 mm27.6" × 15.2" × 29.3"Floor-mounted
-
TC-58109H710 mm Washdown One-Piece Toilet, 10 Inch Rough-In28.0" × 15.4" × 28.0"Floor-mounted
-
TC-58107HRimless One-Piece Toilet, 10 Inch Rough-In, 710 × 390 × 730 mm28.0" × 15.4" × 28.7"Floor-mounted
-
SL-8048H660 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In26.0" × 15.0" × 30.3"Floor-mounted
-
SL-8848Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 700 × 400 × 780 mm27.6" × 15.7" × 30.7"Floor-mounted
-
NBK-3093720 mm One-Piece Toilet, 10 Inch Rough-In28.3" × 15.0" × 29.9"Floor-mounted
-
NBK-3077One-Piece Toilet, 10 Inch Rough-In, 700 × 370 × 810 mm27.6" × 14.6" × 31.9"Floor-mounted
-
NBK-3075695 mm One-Piece Toilet, 10 Inch Rough-In27.4" × 14.0" × 30.5"Floor-mounted
-
NBK-3074One-Piece Toilet, 10 Inch Rough-In, 690 × 360 × 810 mm27.2" × 14.2" × 31.9"Floor-mounted
-
NBK-3073One-Piece Toilet, 10 Inch Rough-In, 700 × 370 × 810 mm27.6" × 14.6" × 31.9"Floor-mounted
-
NBK-3071One-Piece Toilet, 10 Inch Rough-In, 700 × 370 × 795 mm27.6" × 14.6" × 31.3"Floor-mounted
-
NBK-3072710 mm One-Piece Toilet, 10 Inch Rough-In28.0" × 15.7" × 28.5"Floor-mounted
-
NBK-3053One-Piece Toilet, 10 Inch Rough-In, 730 × 370 × 770 mm28.7" × 14.6" × 30.3"Floor-mounted
-
NBK-3062675 mm One-Piece Toilet, 10 Inch Rough-In26.6" × 14.8" × 28.5"Floor-mounted
-
NBK-3070One-Piece Toilet, 10 Inch Rough-In, 690 × 390 × 775 mm27.2" × 15.4" × 30.5"Floor-mounted
-
NBK-3048One-Piece Toilet, 10 Inch Rough-In, 690 × 370 × 770 mm27.2" × 14.6" × 30.3"Floor-mounted
-
NBK-3005735 mm One-Piece Toilet, 10 Inch Rough-In28.9" × 14.8" × 31.5"Floor-mounted
-
945Foot-Sensing Flush Smart Bidet Toilet with UV Sterilisation and Heated Seat26.8" × 16.1" × 18.3"Floor-mounted, S-trap
-
HSJ-3048Rimless Washdown Two-Piece Toilet HSJ-3048, 10 Inch Rough-In25.6" × 13.4" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-3047Rimless Washdown Two-Piece Toilet HSJ-3047, 10 Inch Rough-In25.6" × 13.4" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-304626 Inch Washdown Two-Piece Toilet, 10 Inch Rough-In25.6" × 14.4" × 30.9"Floor-mounted, S-trap or P-trap
-
HSJ-300728 Inch Washdown Two-Piece Toilet, 10/12 Inch Rough-In27.6" × 15.0" × 31.1"Floor-mounted, S-trap or P-trap
-
HSJ-300827 Inch Washdown Two-Piece Toilet, 10 Inch Rough-In26.8" × 14.2" × 33.9"Floor-mounted, S-trap or P-trap
-
HSJ-2558Washdown One-Piece Toilet, 10 Inch Rough-In, 700 × 380 × 805 mm27.6" × 15.0" × 31.7"Floor-mounted, S-trap or P-trap
-
HSJ-300426 Inch Washdown Two-Piece Toilet, 10/12 Inch Rough-In26.0" × 14.8" × 31.1"Floor-mounted, S-trap or P-trap
-
HSJ-2557Rimless Washdown One-Piece Toilet, 8/10 Inch Rough-In26.4" × 15.7" × 28.7"Floor-mounted, S-trap or P-trap
-
HSJ-2550Rimless Washdown One-Piece Toilet, 6/10 Inch Rough-In26.6" × 14.6" × 29.5"Floor-mounted, S-trap or P-trap
-
HSJ-2548Rimless Siphonic One-Piece Toilet, 10 Inch Rough-In28.1" × 15.0" × 29.9"Floor-mounted, S-trap or P-trap
-
HSJ-2501Washdown One-Piece Toilet, 10 Inch Rough-In, 700 × 350 × 765 mm27.6" × 13.8" × 30.1"Floor-mounted, S-trap or P-trap
Fit data
Rough-in, flush and size of NBK-3099
Send a spec. Get a real quote in 12 business hours.
Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.
12 consecutive years at KBIS and IBS.
29-Inch Footprint
NBK-3099, a 29 Inch One Piece Toilet With a 10 Inch Rough-In
White
White Ceramic
NBK-3099 is a one-piece, floor-mounted toilet offered in White.
NBK-3099 prints a 730 mm length (28.7 in) and a 250 mm (10 in) S-trap rough-in.
NBK-3099 vs NBK-3053
NBK-3099 and NBK-3053 by the Numbers
- NBK-3099
- 730 × 375 × 750 mm
- NBK-3053
- 730 × 370 × 770 mm
- Outlets on Both
- 250 mm S-trap or 180 mm P-trap

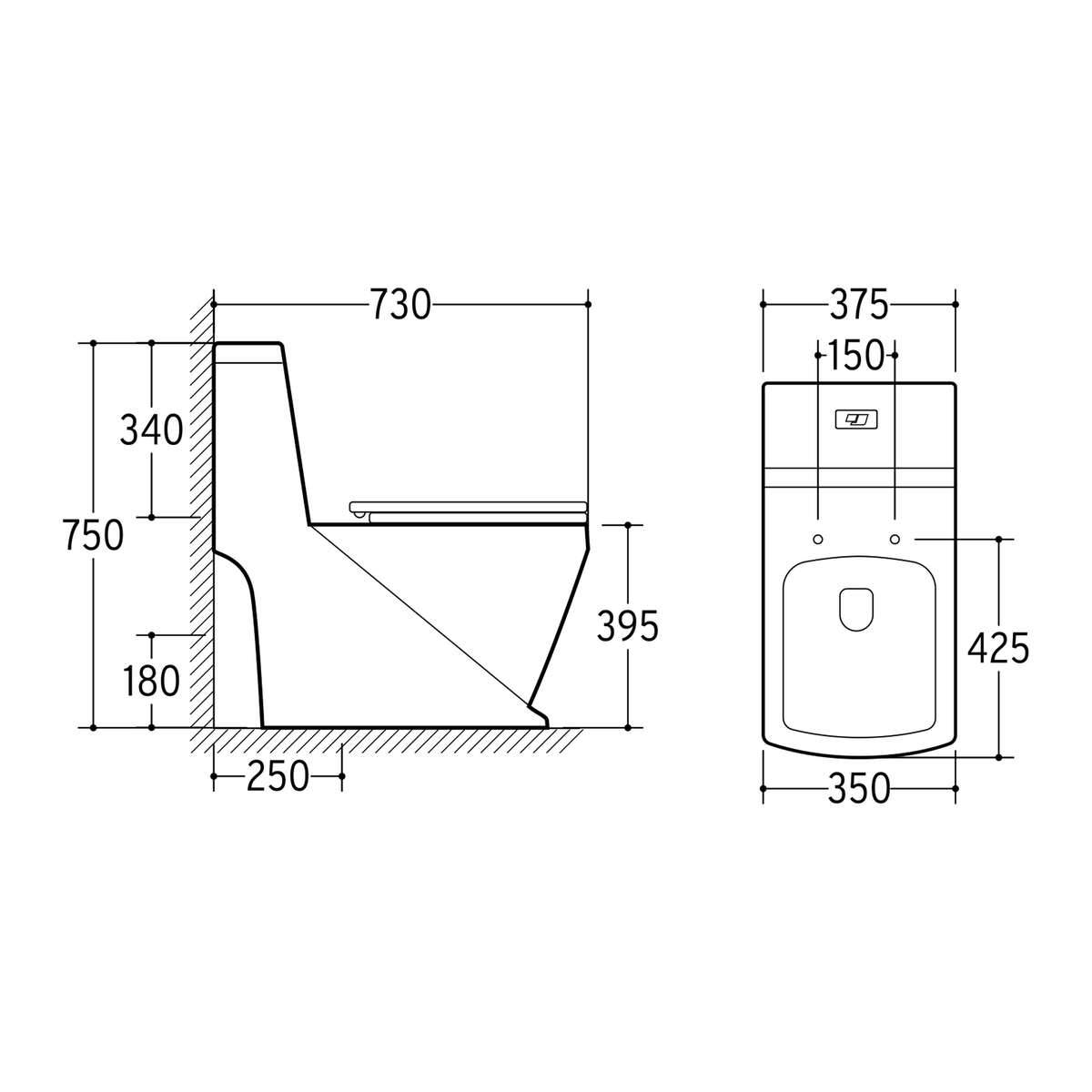

Size in Inches
28.7 × 14.8 × 29.5 in
- Length · 28.7 in
- 730 mm
- Width · 14.8 in
- 375 mm
- Height · 29.5 in
- 750 mm
P-Trap Measure
NBK-3099 P-Trap Version at 180 mm
Certification documents for NBK-3099 are matched to the destination market at quotation.
The P-trap version is described by a 180 mm outlet height rather than a rough-in distance.
NBK-3099 RFQ
Placing an NBK-3099 Inquiry
Put a quantity against each outlet version.
NBK-3099 RFQ fields to fill in
- Model: NBK-3099
- Outlet: S-trap rough-in (250 mm / 10 in) or 180 mm P-trap
- Quantity per version
- Finish: White
- Destination market
- Carton marking
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
Is the NBK-3099 a 29 inch one piece toilet with a 10 inch rough in?+
How does the NBK-3099 compare with the NBK-3053?+
What does the NBK-3099 P-trap version measure?+
NBK-3099 reads as a 29 inch one piece toilet, 10 inch rough in on its S-trap: the length is 730 mm (28.7 in) and the rough-in 250 mm. Width is 375 mm (14.8 in). Height is printed at 750 mm (29.5 in). Against NBK-3053, the height reads 750 mm on NBK-3099 and 770 mm on NBK-3053, while each code prints a 730 mm length. The model is white ceramic and floor-mounted, and the P-trap version prints a 180 mm outlet height.
Ordered with a P-trap, NBK-3099 is a floor mounted back outlet toilet whose outlet is printed 180 mm high. That value is not a rough-in, so it should not be set against the 250 mm S-trap figure. Choose the P-trap when the existing pipe leaves at the rear and the S-trap when it comes through the floor. On a replacing job, read the old outlet position before ordering, because the SKU covers both versions. Verify against the official technical drawing before fabrication.
NBK-3099 is supplied under 1 SKU in White ceramic, listed as a floor-mounted one-piece toilet. The catalog prints 730 × 375 × 750 mm for the model. Outlet options are the 250 mm (10 in) S-trap and the 180 mm P-trap. NBK-3053 is a separate catalog code at 730 × 370 × 770 mm. White is the only finish printed for NBK-3099, and ceramic the only material. Certification documents for NBK-3099 are matched to the destination market at quotation.
