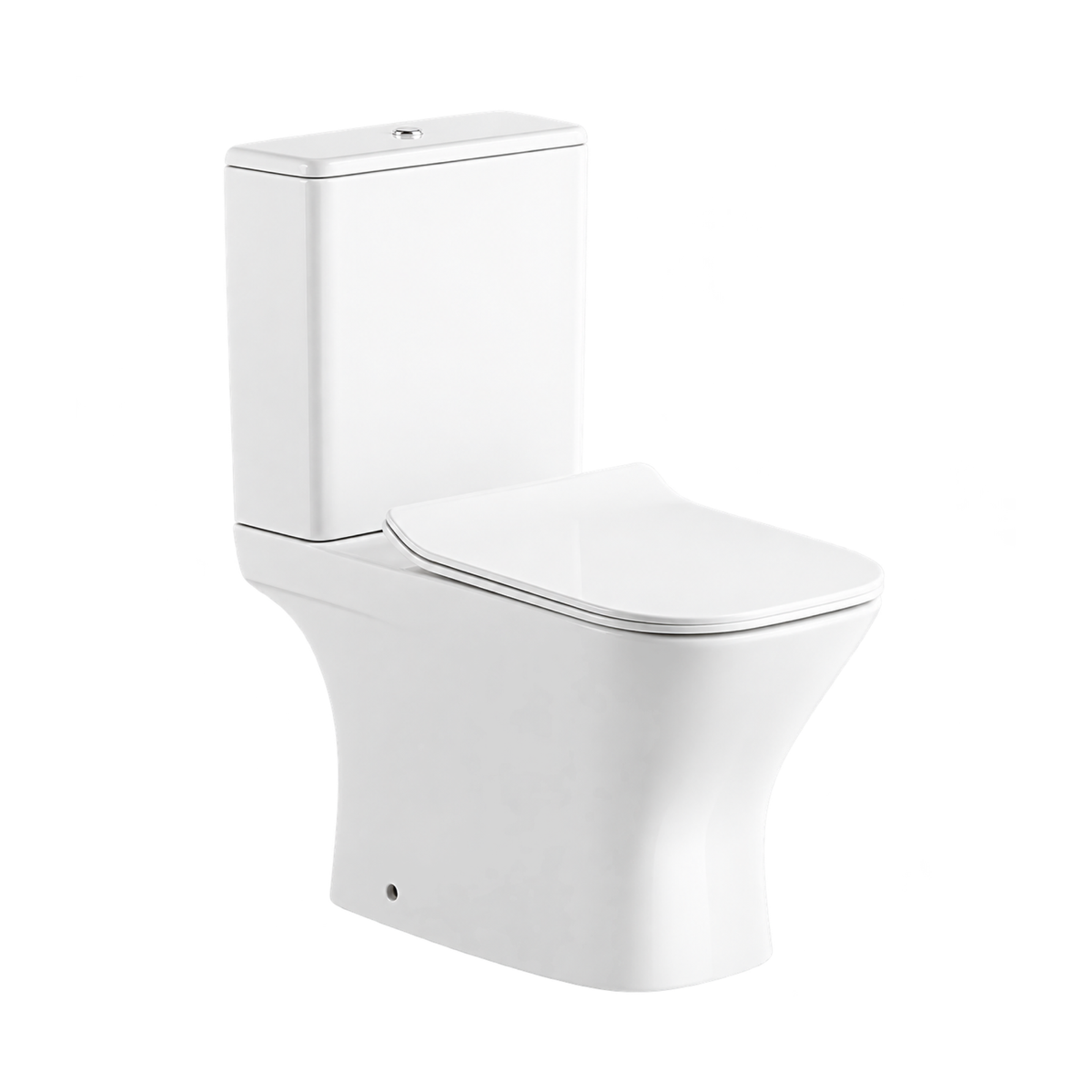

Swirl Flush Two-Piece Toilet TC-7305, 8/10 Inch Rough-In

As a swirl flush two-piece toilet with an 8/10 inch rough-in, TC-7305 lists its S-trap at 200 to 250mm. Planning starts on site: the distance from the finished wall to the drain center decides whether the S-trap version fits. Readings of 200 mm (8 in) and 250 mm (10 in) both fall within the printed span. Where the soil connection is in the wall, the 180 mm P-trap version applies, turning the model into a floor mount rear outlet toilet.

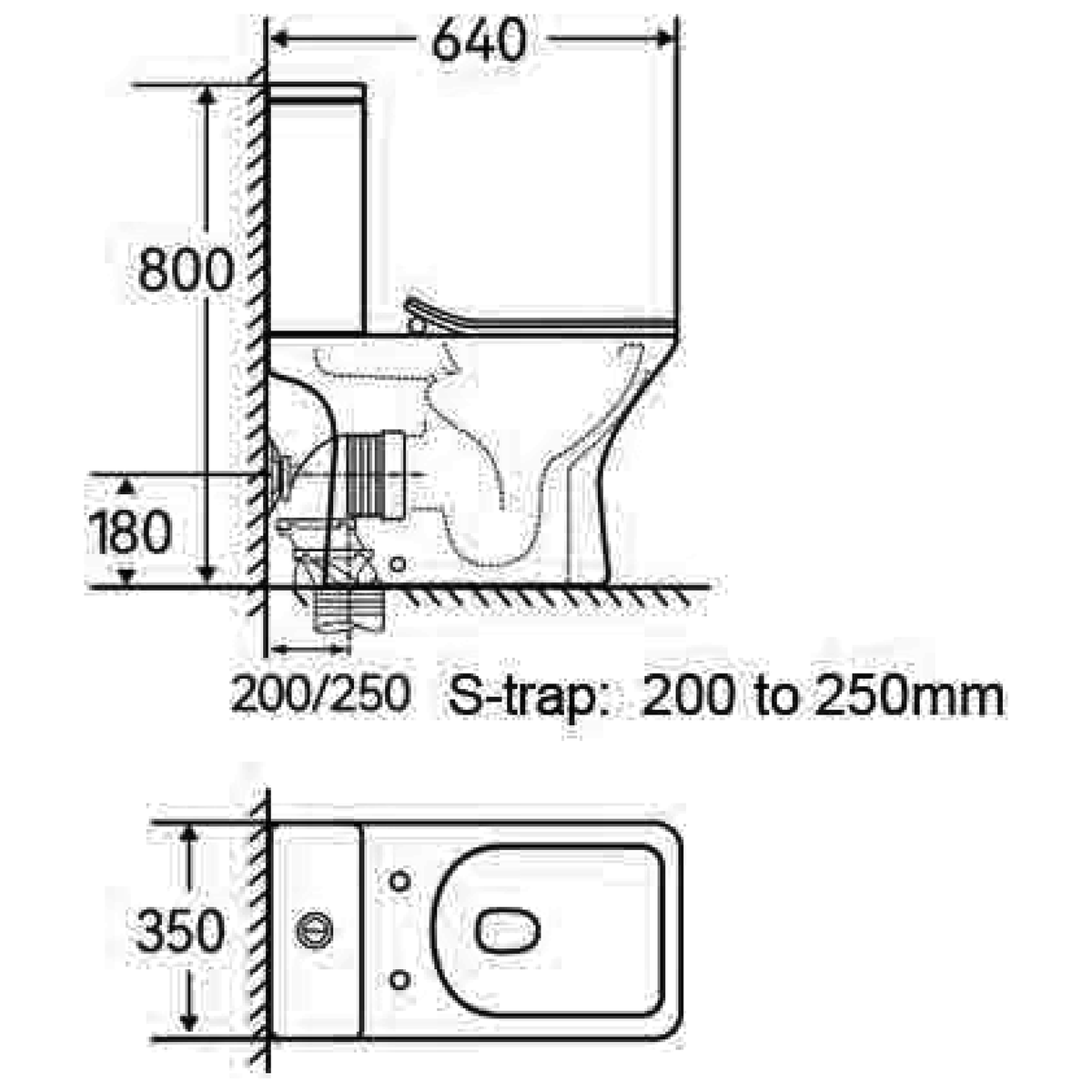

Swirl flush on TC-7305 is printed as super-swirling and is the only flush listed for the code. Beside it, the catalog prints "Water Saving design to reach 3/4 Liters Per Flushing", quoted here exactly as printed. The two-piece ceramic body is White, with a printed size of 640 × 350 × 800 mm. Buyers who rank coupled toilet options by flush first can place TC-7305 in the swirl group. The 640 mm length converts to 25.2 in.

The factory catalog prints the CE mark against TC-7305; request the current CE declaration. Supply under the code covers a White close coupled toilet with swirl flush and 2 outlet versions, an S-trap printed at 200 to 250mm and a P-trap printed at 180 mm. Verify against the official technical drawing before fabrication. For mixed 8 and 10 inch drains on one project, the printed S-trap span is the deciding fact.
