Compact Reduced-Depth Elongated Two-Piece Toilet for Small Bathrooms
Model ST-3430R is the compact, reduced-depth version of the ST-3430 — 26.2 × 17.7 × 33.5 in (665 × 450 × 850 mm), floor-mounted glossy-white vitreous china, for small bathrooms and tight rough-ins. cUPC-ready, factory-direct OEM/ODM and private label. Browse all two-piece toilets or request a quote.
Send a spec. Get a real quote in 12h.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Reduced-Depth Model
26.2 inches of depth for tight bathroom layouts
ST-3430R is a floor-mounted two-piece toilet with an elongated bowl on a shortened body. Published depth is 26.2 inches, or 665 mm.
60 mm shorter than the standard body
Against the 725 mm ST-3430, the R body returns 60 mm of floor depth and keeps the same 450 mm width. In a powder room that margin often decides whether a door swing clears the bowl.
Same width, height and finish
Width stays at 17.7 inches and overall height at 33.5 inches, both in glossy white vitreous china. Only the depth changes, so the two models can share one display wall and one spec sheet layout.
Carry it as the small-bathroom option next to the full-depth body in the two-piece toilet collection.
Fit & Clearance
Where the shorter body earns its place

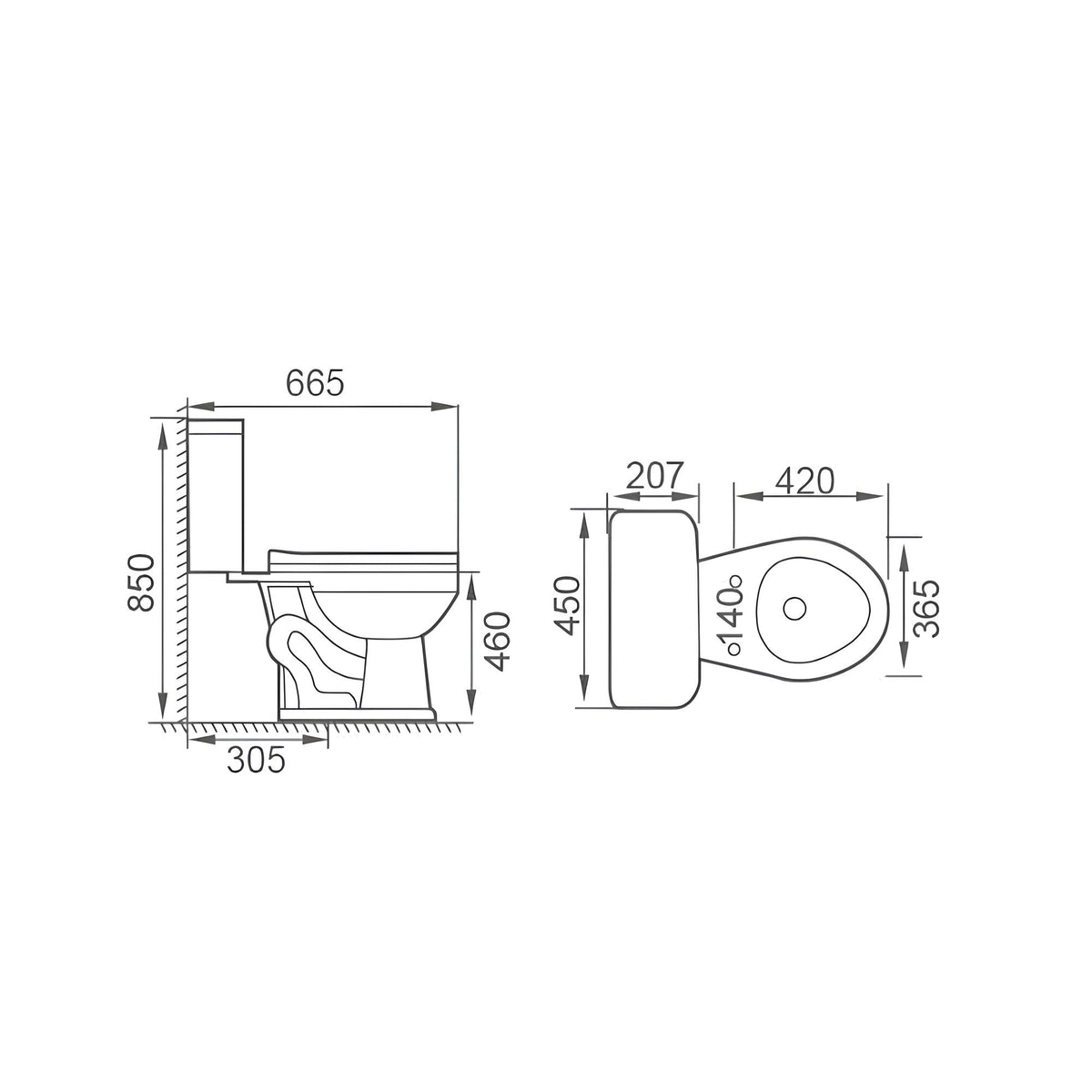

Published dimensions for ST-3430R, for the layout check.
Apartments, powder rooms, compact hotel bathrooms and renovation work are the usual cases. Wherever the fixture faces a door, a vanity or a bathtub within a metre, 665 mm is easier to plan around than 725 mm.
A shorter body does not move the wall connection. Rough-in is not published here, so send the drain position marked on your drawing and it can be checked against the factory dimension sheet before the order is placed.
Reduced depth is not the same as a reduced rough-in. Confirm both figures on the drawing.
Construction & Finish
The ceramic behind the compact footprint
Material is vitreous china ceramic, finished in glossy white.
Glazed surface on a compact body
The shorter body carries the same glazed vitreous china surface as the full-depth model. One finish is published for each, glossy white, with no alternative colourway listed.
The published figures are nominal dimensions for a fired ceramic body. Ask for the toleranced drawing when 665 × 450 × 850 mm has to drop into a tiled recess or a fitted joinery run.
Where ST-3430R and ST-3430 sit in one project, order both from a single production run so the white matches.
Compliance
What the ST-3430R specification does and does not cover
Tell us the country of import, the standard your buyer works to and what the importer of record needs on file. We answer with what exists for ST-3430R and what would have to be applied for.
Certification does not appear anywhere in the data published for ST-3430R. Read the page as dimensional and material information only, never as approval for a jurisdiction.
Sanitaryware is approved market by market. Name your destination in the RFQ so the required route, test reports and product marking can be confirmed before production starts.
Procurement
MOQ, loading and private label for ST-3430R
MOQ is 30 pieces, the same as the full-depth ST-3430.
Loading quantity is calculated from packed dimensions, which are not published on this page. Ask for the container loading plan alongside the quote when freight per unit is driving the decision.
Barcodes, label language and a retail-ready carton are quoted per customer, not assumed. Bring the artwork brief into the RFQ and it gets scoped through the SANIKB OEM and ODM program.
Include these details with the RFQ
- Country of import and the approval route your buyer works to
- Split between ST-3430R and the full-depth body on one order
- Drain position and rough-in shown on the project drawing
- Whether seat, tank fittings and floor bolts are in scope
- Barcode, label language and retail carton requirement
- Packed dimensions and the container loading plan
- Third-party inspection: which agency, and at what stage
- Payment terms, and the week the goods must leave port
Lead time is typical only. Confirm the shipping window in writing before you commit stock to a customer.
FAQs
What is the ST-3430R two-piece toilet and how is it built?+
What are the dimensions and rough-in for the ST-3430R?+
Why choose a two-piece toilet like the ST-3430R for projects?+
What flush configuration does the ST-3430R use?+
What are the MOQ, OEM/ODM and wholesale terms for the ST-3430R?+
Is the ST-3430R cUPC-ready and how is it packed for export?+
The ST-3430R is a reduced-depth two-piece toilet cast from vitreous china and high-fired so the glaze fuses to the body into a single non-porous surface. The glossy white finish resists staining, limescale and bacterial adhesion and cleans easily. Its defining feature is the compact 26.2" (665 mm) projection versus a standard bowl, achieved without changing the seat or fixture footprint, making it suited to small bathrooms, apartments and tight hospitality layouts. Compared with a one-piece toilet, the two-piece build ships in lighter cartons and allows independent tank or bowl replacement.
ST-3430R floor-mounts over a standard waste rough-in within a reduced 26.2" x 17.7" x 33.5" (665 x 450 x 850 mm) envelope, freeing circulation space in compact rooms while keeping a full-size seating area. The tank ships separately and bolts to the bowl on site, keeping carton weights manageable and letting installers replace either component independently to cut downtime. For projects that prefer a seamless one-piece silhouette where space allows, compare it against our one-piece toilets before specifying.
SANIKB produces the ST-3430R to order for distributors, builders and hospitality groups. We support custom flush mechanisms and trim, branded and private-label packaging, and project-specific palletization for export. With in-house tooling we can quote alternative trim packages and bowl configurations for qualifying volumes. Send your project drawings and target quantities for pricing and lead times.
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
