Rimless Washdown Two-Piece Toilet HSJ-3047, 10 Inch Rough-In

SKU HSJ-3047
Min. order
1 unit (with freight forwarder) or 1×20ft container
Lead time
30–45 days
Reply time
12 business hours
Material Ceramic
Type Two-piece toilet
Size 25.6" × 13.4" × 30.3" (650 × 340 × 770 mm) Custom sizes
Mount Floor-mounted, S-trap or P-trap
Finish
White
Rough-in S-trap 250 mm (10 in); P-trap 180 mm
Flush Washdown, rimless
Product PDF HSJ-3047

HSJ-3047 is a rimless two-piece toilet in white ceramic, with washdown listed as its single flush type. Floor drains use an S-trap at a 250 mm (10 in) rough-in, and wall drains use a 180 mm P-trap outlet. Printed size is 650 × 340 × 770 mm (25.6 × 13.4 × 30.3 in), length × width × height. Hotels and multi-unit projects can quote it in either printed outlet version: the 250 mm (10 in) S-trap or the 180 mm P-trap.

Compare two-piece bodies across the two-piece toilet range.

Product PDF HSJ-3047

More in Two Pieces Toilet

Mix any models in one 20ft container · no per-model minimum

View all 21

Fit data

Rough-in, flush and size of HSJ-3047

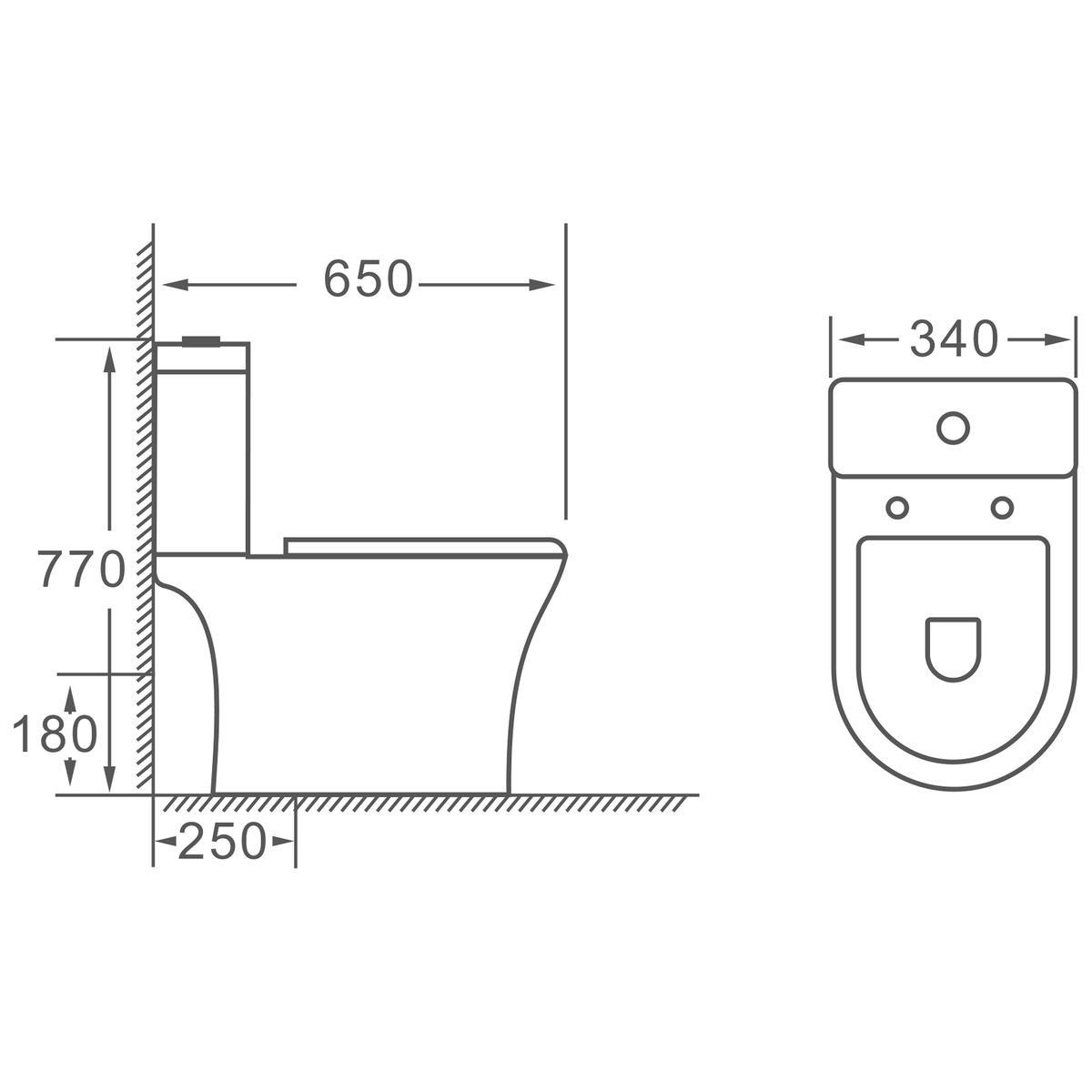

SANIKB HSJ-3047 two-piece toilet dimension drawing, 650 × 340 × 770 mm
Dimension drawing
Rough-inS-trap 250 mm (10 in); P-trap 180 mm
FlushWashdown, rimless
Overall size25.6" × 13.4" × 30.3" (650 × 340 × 770 mm)
Colour White

Send a spec. Get a real quote in 12 business hours.

Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about Rimless Washdown Two-Piece Toilet HSJ-3047, 10 Inch Rough-In SKU HSJ-3047
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Tank & Bowl

    26 Inch Rimless Washdown Two Piece Toilet, 10 Inch Rough-In: Tank and Bowl

    HSJ-3047 is a floor-mounted two-piece toilet in white ceramic, with tank and bowl as separate pieces.

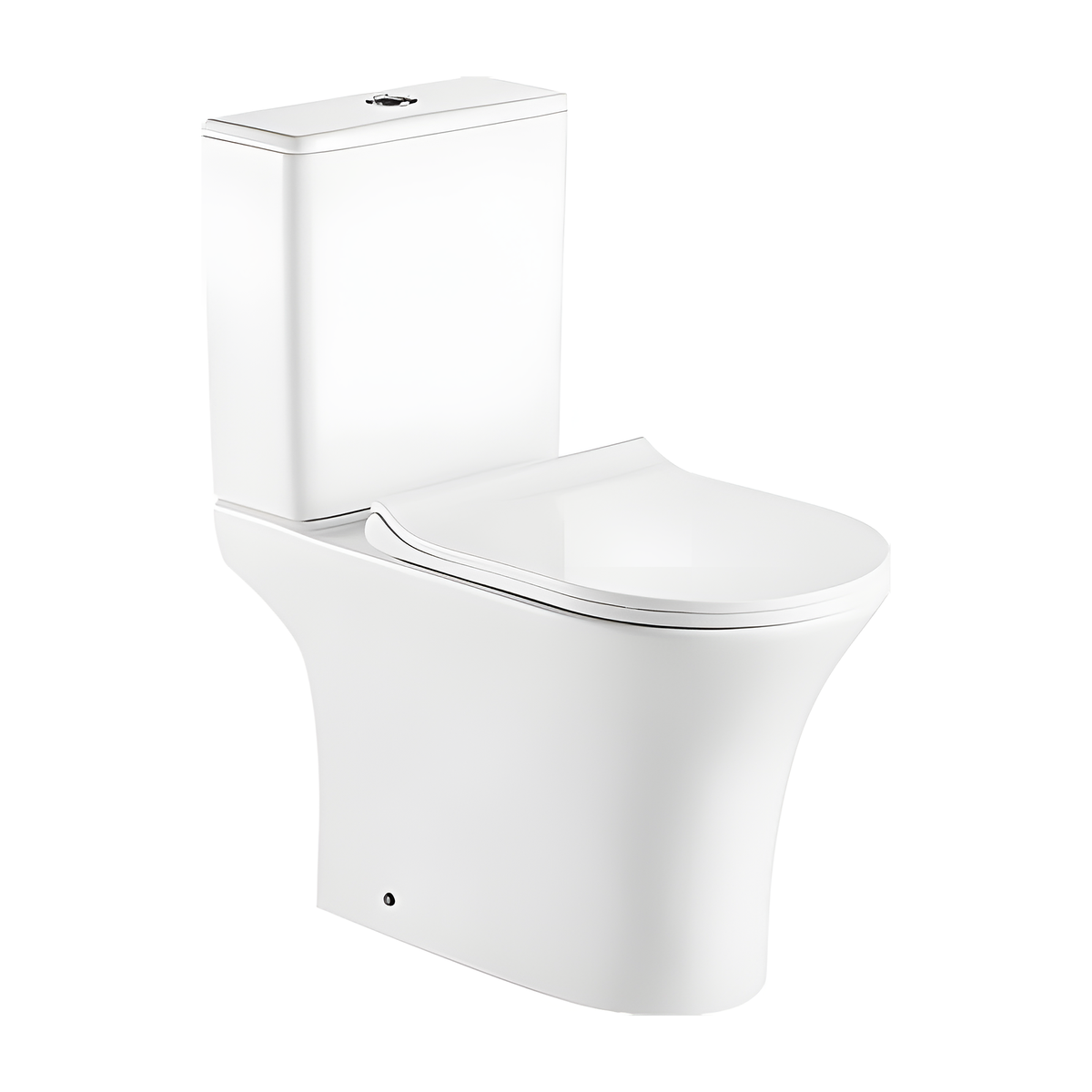

    SANIKB HSJ-3047 26 inch rimless washdown two piece toilet 10 inch rough in

    White

    Two-Piece in White

    Tank and bowl are separate pieces in a two-piece build. White is the single listed color.

    Mount: floor-mounted.

    Nearest Alternative

    How HSJ-3047 Differs From HSJ-3048

    HSJ-3047 size
    650 × 340 × 770 mm
    HSJ-3048 size
    650 × 340 × 770 mm
    HSJ-3047 flush
    Washdown
    HSJ-3048 flush
    Washdown
    HSJ-3047 S-trap
    250 mm
    HSJ-3048 S-trap
    250 mm
    Regional Documents at Quotation

    Certification documents for HSJ-3047 are matched to the destination market at quotation.

    Compare HSJ-3048 only on the figures each model prints.

    Quote Inputs

    Splitting HSJ-3047 Quantities by Rough-In

    Your HSJ-3047 RFQ in 5 lines

    • Model: HSJ-3047
    • Outlet: S-trap rough-in (250 mm) or 180 mm P-trap
    • Quantity split by outlet
    • Destination market
    • Project name and room count per phase
    Request HSJ-3047 Quote View OEM & ODM Program

    Flushing Method

    Washdown Is the Printed Flush for HSJ-3047

    Washdown is the one flush type printed for HSJ-3047, with a rimless bowl.

    Flush choice is settled by the model: every HSJ-3047 on the order is washdown.

    Outlet entry is the only version choice on the order.

    Drain Matching

    Drain Positions HSJ-3047 Covers

    HSJ-3047 is listed with one S-trap rough-in and a 180 mm P-trap outlet.

    S-trap rough-in
    250 mm (10 in)
    P-trap outlet height
    180 mm
    Outlet versions
    2

    The P-trap figure is the listed rear-outlet height, not a rough-in distance.

    Overall Size

    650 × 340 × 770 mm Printed Size

    Length, 650 mm
    25.6 in
    Width, 340 mm
    13.4 in
    Height, 770 mm
    30.3 in
    Outlet versions listed
    2

    Size is printed as length × width × height.

    FAQs

    What is a 26 inch rimless washdown two-piece toilet, 10 inch rough-in, in the HSJ-3047 listing?+
    HSJ-3047 is a two-piece toilet with separate tank and bowl, a bowl printed as rimless, and a washdown flush. Floor drains take the 250 mm (10 in) S-trap version, and wall wastes the 180 mm P-trap version. Its 650 mm (25.6 in) length rounds to the 26 inch name. More two-piece models sit in the two-piece toilet range.
    How narrow is HSJ-3047?+
    HSJ-3047 is 340 mm (13.4 in) wide within its printed 650 × 340 × 770 mm size. Length is 650 mm (25.6 in) and height is 770 mm (30.3 in). The catalog reads the size as length × width × height. Compare rimless models in the rimless toilet collection.
    How does HSJ-3047 compare with HSJ-3048?+
    HSJ-3047 prints 650 × 340 × 770 mm and a rimless washdown bowl. The HSJ-3048 two-piece toilet prints 650 × 340 × 770 mm and a rimless washdown bowl. HSJ-3047 prints a 250 mm S-trap and 180 mm P-trap; HSJ-3048 prints a 250 mm S-trap and 180 mm P-trap. The catalog does not state what separates the 2 codes. Request written confirmation from the factory before choosing one for a project.
