Home› Bath & Fixtures› Toilets› Two-Piece› TC-7002

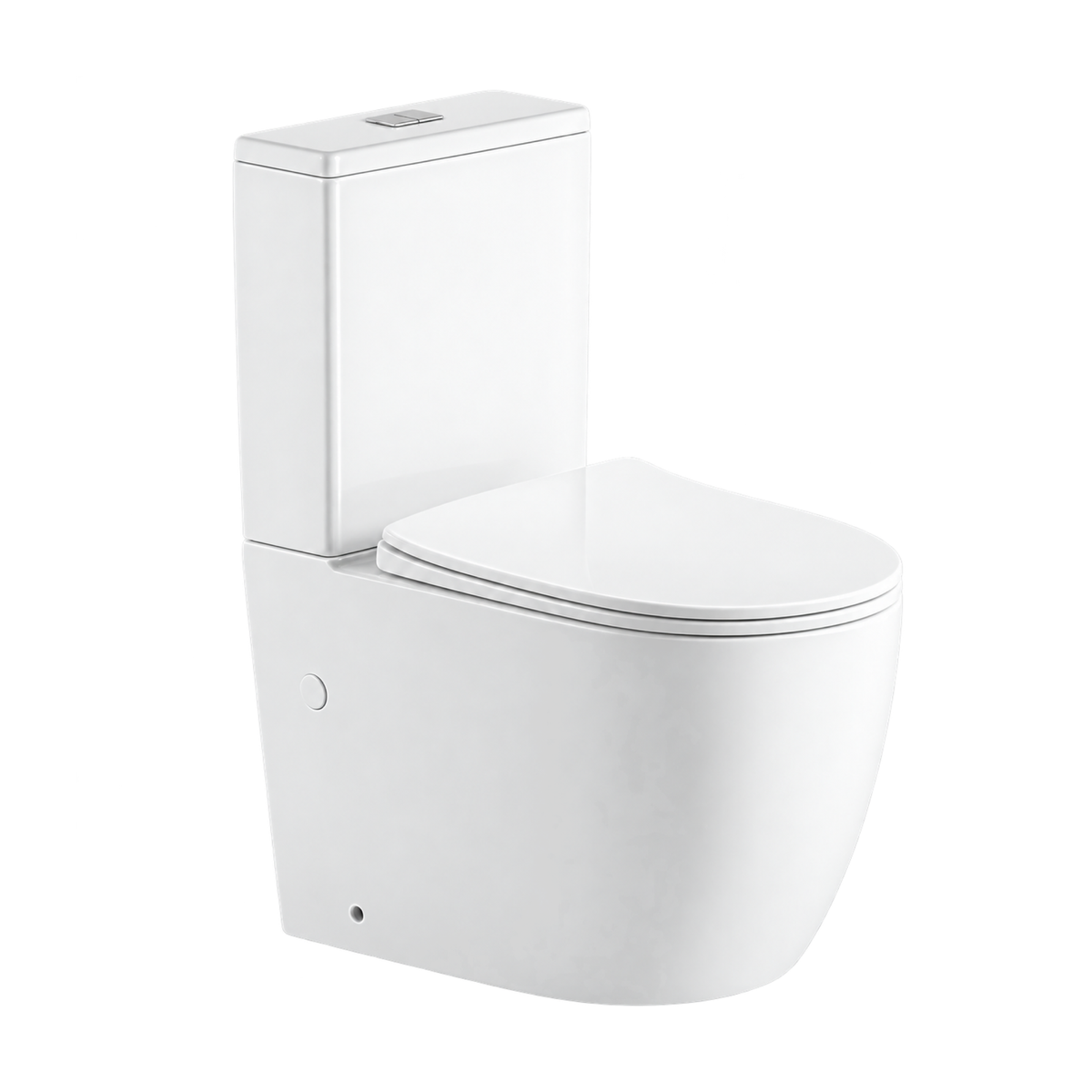

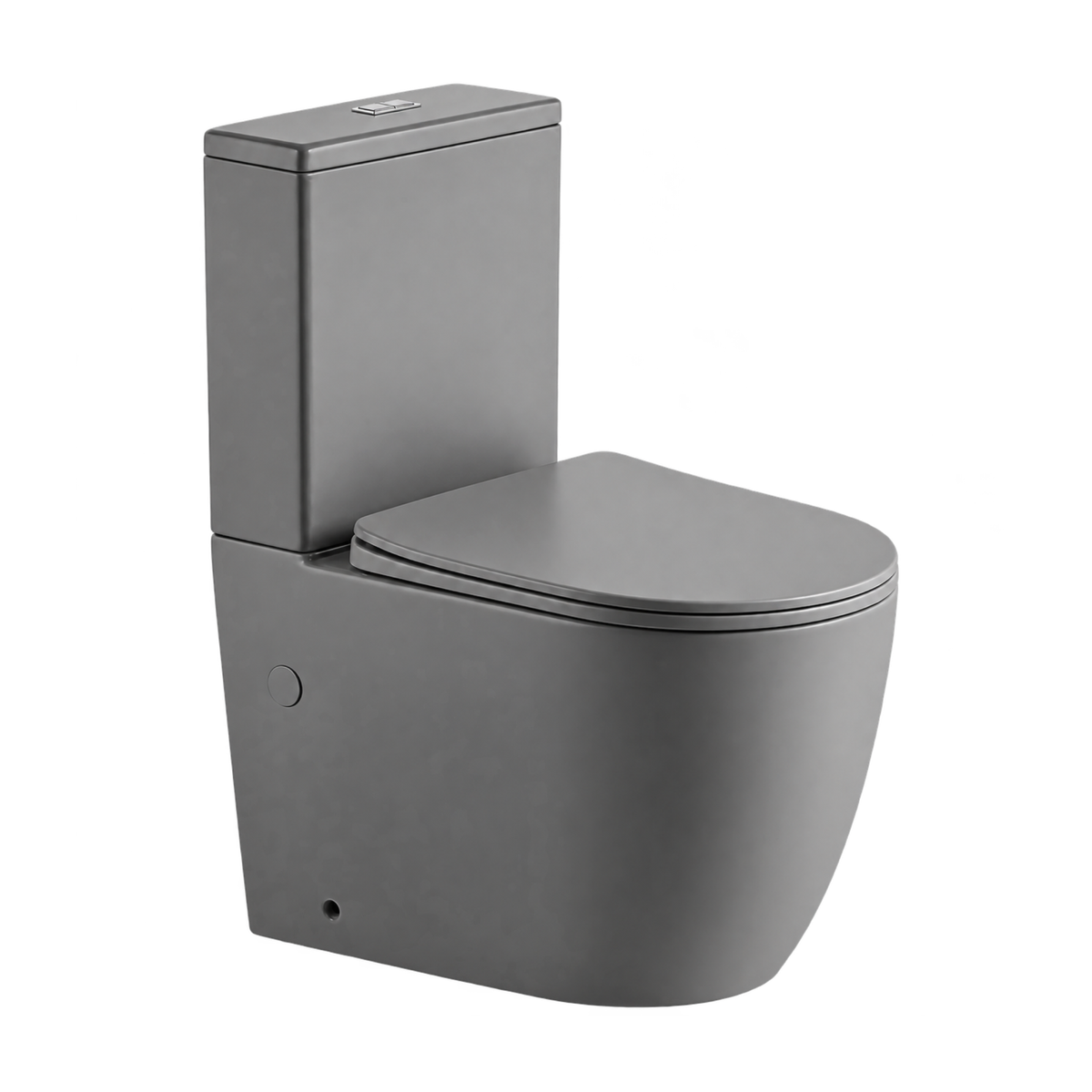

SANIKB TC-7002 two-piece toilet, GraySANIKB TC-7002 two-piece toilet, WhiteSANIKB TC-7002 two-piece toilet dimension drawing, 635 × 380 × 830 mm
01 / 03
01 / 03

Rimless Swirl Flush Two-Piece Toilet TC-7002, 8/10 Inch Rough-In, 2 Finishes

SKU TC-7002
Finish
Certification
CE certification mark
Min. order
1 unit (with freight forwarder) or 1×20ft container
Lead time
30–45 days
Reply time
12 business hours
Material Ceramic
Type Two-piece toilet
Size 25.0" × 15.0" × 32.7" (635 × 380 × 830 mm) Custom sizes
Mount Floor-mounted
Rough-in S-trap 200 / 250 mm (8 / 10 in); P-trap 180 mm
Flush Swirl, rimless
Product PDF TC-7002

TC-7002 is a rimless ceramic two-piece toilet with swirl flush, printed with the line No Edge. The S-trap rough-in is printed as a range of 200 to 250 mm (8 to 10 in), measured from finished wall to outlet center, and a 180 mm P-trap outlet is also listed. The catalog prints one size for the model: 635 × 380 × 830 mm (25.0 × 15.0 × 32.7 in). The model is offered as TC-7002 in White and TC-7002G in Gray. The factory catalog prints the CE mark against TC-7002; request the current CE declaration.

See the two-piece toilet range.

Product PDF TC-7002

More in Two Pieces Toilet

Mix any models in one 20ft container · no per-model minimum

View all 21

Fit data

Rough-in, flush and size of TC-7002

Every option below is a produced configuration with its own SKU. 2 finishes. Name the exact SKU on each purchase order line.

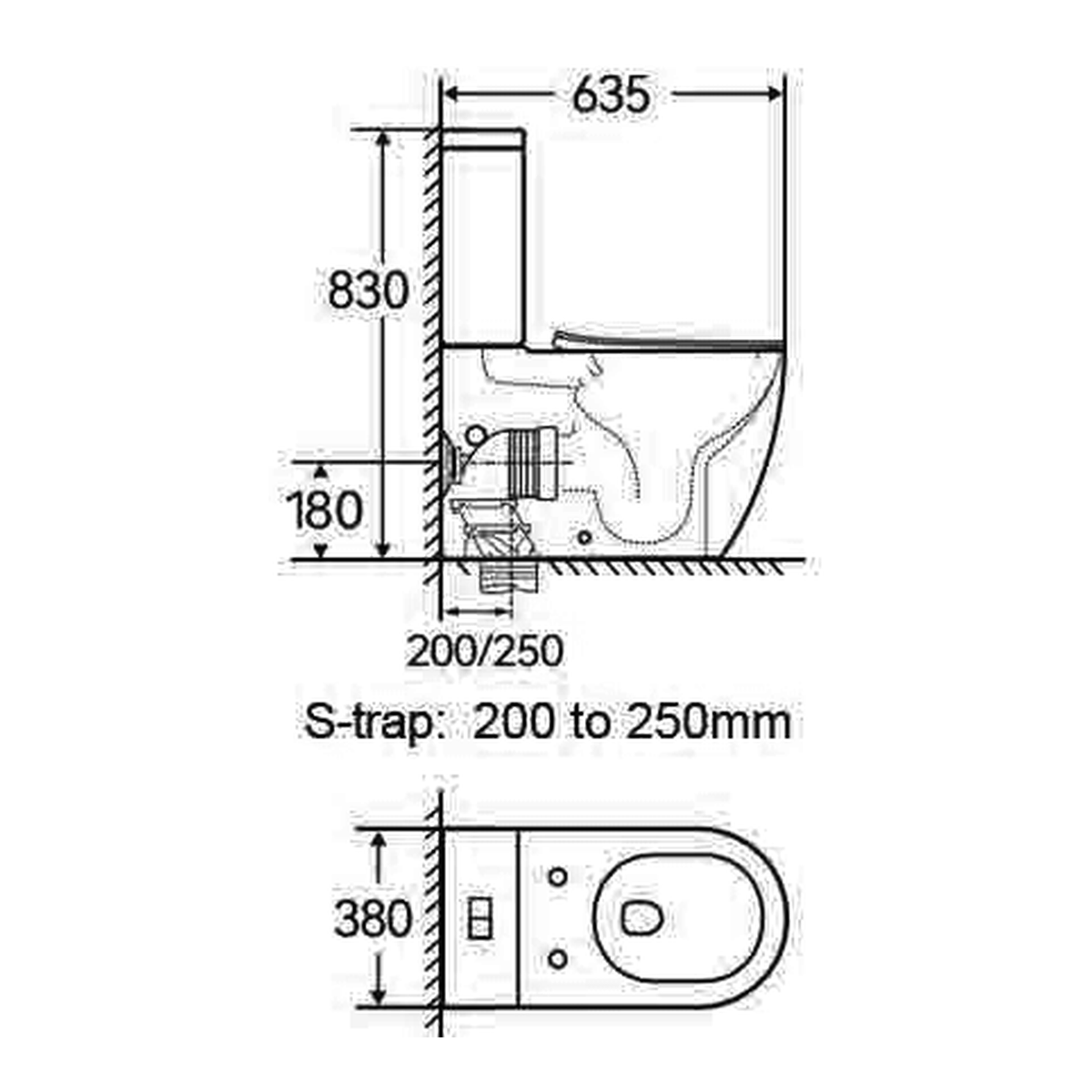

SANIKB TC-7002 two-piece toilet dimension drawing, 635 × 380 × 830 mm
Dimension drawing
Rough-inS-trap 200 / 250 mm (8 / 10 in); P-trap 180 mm
FlushSwirl, rimless
Overall size25.0" × 15.0" × 32.7" (635 × 380 × 830 mm)
Colour White / Gray

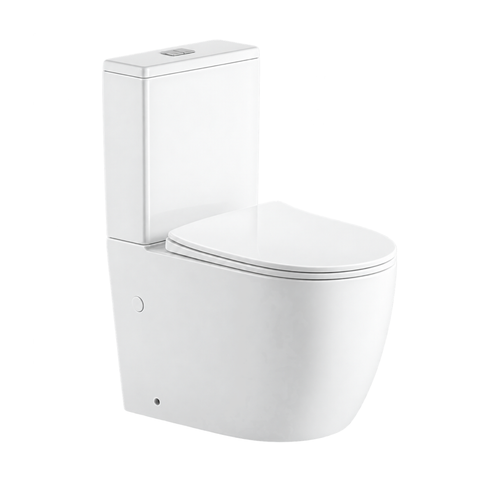

  • White NO. TC-7002 White
  • Gray NO. TC-7002G Gray

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about Rimless Swirl Flush Two-Piece Toilet TC-7002, 8/10 Inch Rough-In, 2 Finishes SKU TC-7002
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    No Edge Rimless Bowl

    Rimless Close Coupled Toilet, Printed No Edge

    TC-7002 is printed with the line No Edge, read here as a rimless bowl.

    Printed flushing line: Water Saving design to reach 4.5/5.2 Liters Per Flushing.

    Flush type: swirl (catalog: super-swirling).

    Rimless Pan Outlet Choices

    S-Trap at 200 to 250 mm or a 180 mm P-Trap

    01 / S-TRAP

    200 to 250 mm (8 to 10 in)

    Floor outlet, with the rough-in printed as one range.

    02 / P-TRAP

    180 mm

    Rear outlet height for a wall drain.

    White or Gray Codes

    TC-7002 in White, TC-7002G in Gray

    Finish · 2

    2 Finish Codes

    White is TC-7002; Gray is TC-7002G.

    • White White
    • Gray Gray

    Close Coupled Body Size

    Length, Width and Height of TC-7002

    Length
    635 mm (25.0 in)
    Width
    380 mm (15.0 in)
    Height
    830 mm (32.7 in)

    CE Declaration Request

    CE Mark Printed for TC-7002

    CE Declaration

    The factory catalog prints the CE mark against TC-7002; request the current CE declaration.

    Rimless Toilet Quote Fields

    TC-7002 and TC-7002G on One Request

    Rimless TC-7002 order details by code and outlet

    • Model: TC-7002 (White) or TC-7002G (Gray)
    • Outlet: S-trap rough-in (200 to 250 mm / 8 to 10 in) or 180 mm P-trap
    • Quantity per code and outlet
    • Destination market
    • Carton marking
    Request TC-7002 Quote View OEM & ODM Program

    FAQs

    What makes the TC-7002 a rimless close coupled toilet?+
    TC-7002 is printed with "No Edge", the catalog wording for a rimless bowl, on a two-piece body. That combination makes it a rimless close coupled toilet with swirl flush. Size is 635 × 380 × 830 mm (25.0 × 15.0 × 32.7 in). Other rim-free models sit in the rimless toilet collection.
    Which finishes and SKUs does the TC-7002 come in?+
    TC-7002 comes in White under code TC-7002 and in Gray under code TC-7002G. Each finish keeps swirl flush and the printed outlet versions. The full code, TC-7002 or TC-7002G, fixes the finish without a separate note. Compare finishes across the two-piece toilet range. Size is 635 × 380 × 830 mm for both codes.
    What outlet versions are printed for the TC-7002?+
    TC-7002 is printed with an S-trap rough-in of 200 to 250mm (8 to 10 in) and a 180 mm P-trap outlet. Choose the S-trap for a floor drain and the P-trap for a wall connection. Both outlet versions keep swirl flush and the "No Edge" bowl, and the size reads 635 × 380 × 830 mm.
    How does the TC-7002 compare with the TC-7102?+
    TC-7002 is offered in White and Gray (TC-7002G); the TC-7102 two-piece toilet is offered in White and Black (TC-7102B). TC-7002 prints swirl flush and a 180 mm P-trap; TC-7102 prints swirl flush and a 180 mm P-trap. Finish choice, Gray or Black, decides between the 2 codes. Each prints the CE mark and the "No Edge" bowl.
