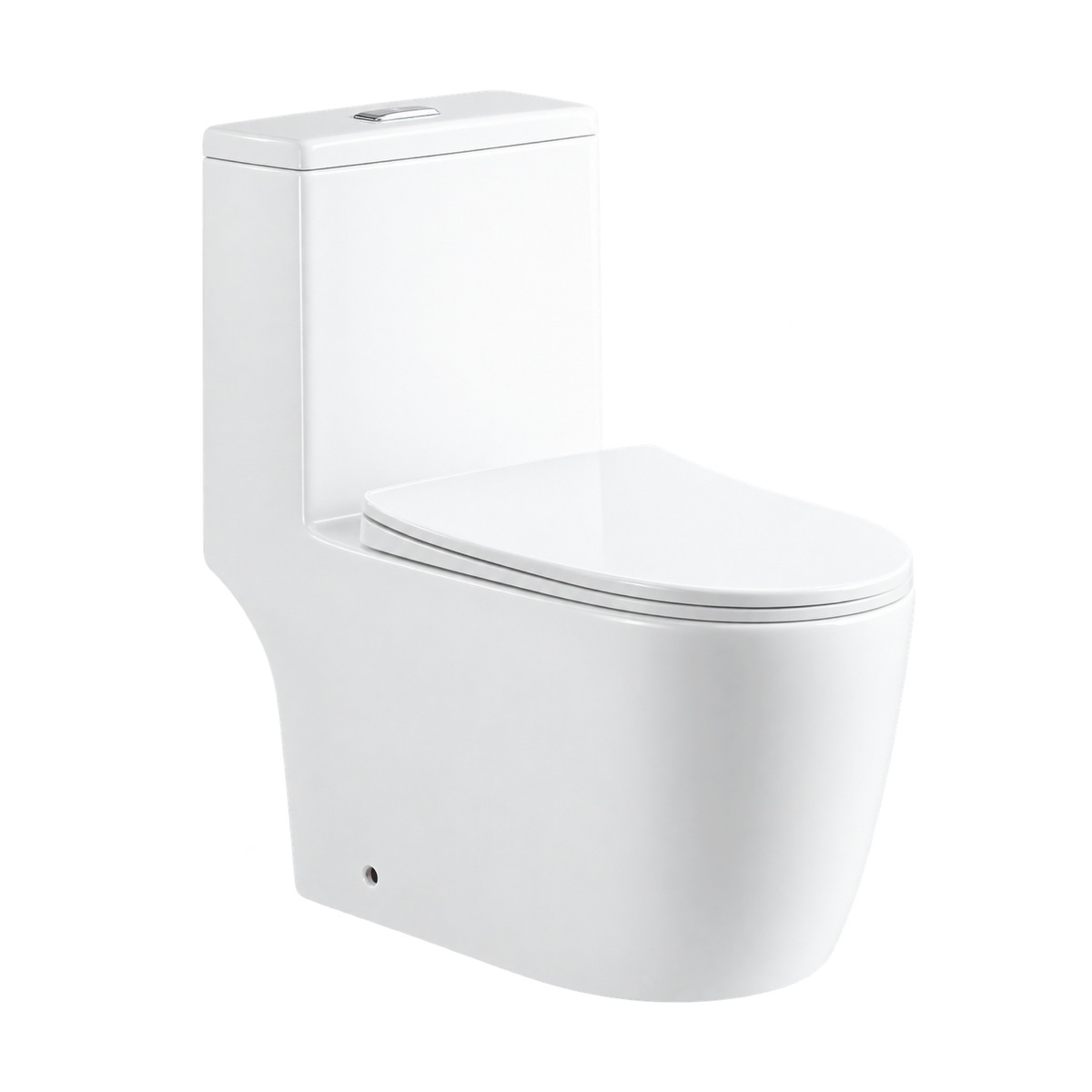

Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 700 × 385 × 745 mm
TC-58157H is a one-piece ceramic toilet that stands on the floor and uses a swirl flush, printed in the catalog as super-swirling. The catalog lists 2 outlet versions: an S-trap with a 250 mm (10 in) rough-in and a P-trap with a 180 mm outlet height. The catalog prints one size for the model: 700 × 385 × 745 mm (27.6 × 15.2 × 29.3 in). TC-58157H is offered in White for wholesale and distributor orders.
See the one-piece toilet range.
More in Tornado Flush Toilets
Mix any models in one 20ft container · no per-model minimum
-
TC-7402Marble Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.1" × 13.8" × 13.8"Wall-hung
-
TC-7311Swirl Flush Two-Piece Toilet, 10 Inch Rough-In, 2 Finishes26.4" × 14.6" × 31.1"Floor-mounted
-
TC-7310Swirl Flush Two-Piece Toilet, 10 Inch Rough-In25.2" × 14.6" × 30.7"Floor-mounted
-
TC-7309Swirl Flush Two-Piece Toilet TC-7309, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7308Swirl Flush Two-Piece Toilet TC-7308, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7305Swirl Flush Two-Piece Toilet TC-7305, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7304Swirl Flush Two-Piece Toilet TC-7304, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7117Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 670 × 370 × 790 mm26.4" × 14.6" × 31.1"Floor-mounted
-
TC-7116Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 640 × 370 × 780 mm25.2" × 14.6" × 30.7"Floor-mounted
-
TC-7115Swirl Flush One-Piece Toilet TC-7115, 10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7114Swirl Flush One-Piece Toilet TC-7114, 10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7113690 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In27.2" × 15.0" × 29.9"Floor-mounted
-
TC-7112650 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In25.6" × 14.4" × 31.1"Floor-mounted
-
TC-7111Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 670 × 360 × 800 mm26.4" × 14.2" × 31.5"Floor-mounted
-
TC-7102Rimless Swirl Flush Two-Piece Toilet TC-7102, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-7002Rimless Swirl Flush Two-Piece Toilet TC-7002, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-58138H720 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In28.3" × 15.4" × 27.6"Floor-mounted
-
SL-8848Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 700 × 400 × 780 mm27.6" × 15.7" × 30.7"Floor-mounted
-
SL-8048H660 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In26.0" × 15.0" × 30.3"Floor-mounted
-
SL-8016Swirl Flush Two-Piece Toilet SL-801627.6" × 15.7" × 30.7"Floor-mounted
-
SL-8015Swirl Flush Two-Piece Toilet SL-801527.6" × 15.7" × 30.7"Floor-mounted
-
H873Swirl Flush Smart Toilet, 700 × 390 × 440 mm27.6" × 15.4" × 17.3"Floor-mounted
-
H870Swirl Flush Smart Toilet, 700 × 410 × 440 mm27.6" × 16.1" × 17.3"Floor-mounted
-
H869715 mm Swirl Flush Smart Toilet28.1" × 16.7" × 18.5"Floor-mounted
-
H867685 mm Swirl Flush Smart Toilet27.0" × 15.4" × 18.9"Floor-mounted
-
H836Swirl Flush Smart Toilet H83626.8" × 16.1" × 18.7"Floor-mounted
-
H835Swirl Flush Smart Toilet H83526.8" × 16.1" × 18.7"Floor-mounted
-
H833670 mm Swirl Flush Smart Toilet26.4" × 15.4" × 18.1"Floor-mounted
-
H831Swirl Flush Smart Toilet, 680 × 425 × 480 mm26.8" × 16.7" × 18.9"Floor-mounted
-
H809Swirl Flush Smart Toilet, 680 × 410 × 450 mm26.8" × 16.1" × 17.7"Floor-mounted
-
FT-976Swirl Flush Wall-Hung Toilet FT-976, 180 mm P-Trap Outlet20.5" × 14.2" × 12.2"Wall-hung
-
FT-876Swirl Flush Wall-Hung Toilet FT-876, 180 mm P-Trap Outlet20.5" × 14.2" × 12.2"Wall-hung
-
FT-824BFSwirl Flush Wall-Hung Toilet FT-824BF, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-824Swirl Flush Wall-Hung Toilet FT-824, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-809Swirl Flush Wall-Hung ToiletWall-hung
-
FT-806CSwirl Flush Wall-Hung Toilet FT-806C, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-806Swirl Flush Wall-Hung Toilet FT-806, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-805CSwirl Flush Wall-Hung Toilet FT-805C, 180 mm P-Trap Outlet19.3" × 14.2" × 12.2"Wall-hung
-
FT-805Swirl Flush Wall-Hung Toilet FT-805, 180 mm P-Trap Outlet19.3" × 14.2" × 12.2"Wall-hung
-
FT-257480 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet18.9" × 13.8" × 11.8"Wall-hung
-
FT-251Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet, 8 Finishes20.5" × 14.2" × 12.2"Wall-hung
-
FT-249510 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.1" × 14.2" × 12.0"Wall-hung
-
FT-248Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet, 490 × 350 × 305 mm19.3" × 13.8" × 12.0"Wall-hung
-
FT-177530 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.9" × 14.2" × 12.2"Wall-hung
-
FT-150590 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet23.2" × 14.2" × 13.4"Wall-hung
-
HSJ-253123 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In23.2" × 14.4" × 28.0"Floor-mounted, S-trap
-
HSJ-252827 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In26.8" × 14.6" × 29.9"Floor-mounted, S-trap
-
HSJ-252724 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In24.4" × 14.6" × 29.1"Floor-mounted, S-trap
-
HSJ-249429 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In28.7" × 15.4" × 27.2"Floor-mounted, S-trap
Fit data
Rough-in, flush and size of TC-58157H
Send a spec. Get a real quote in 12 business hours.
Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.
12 consecutive years at KBIS and IBS.

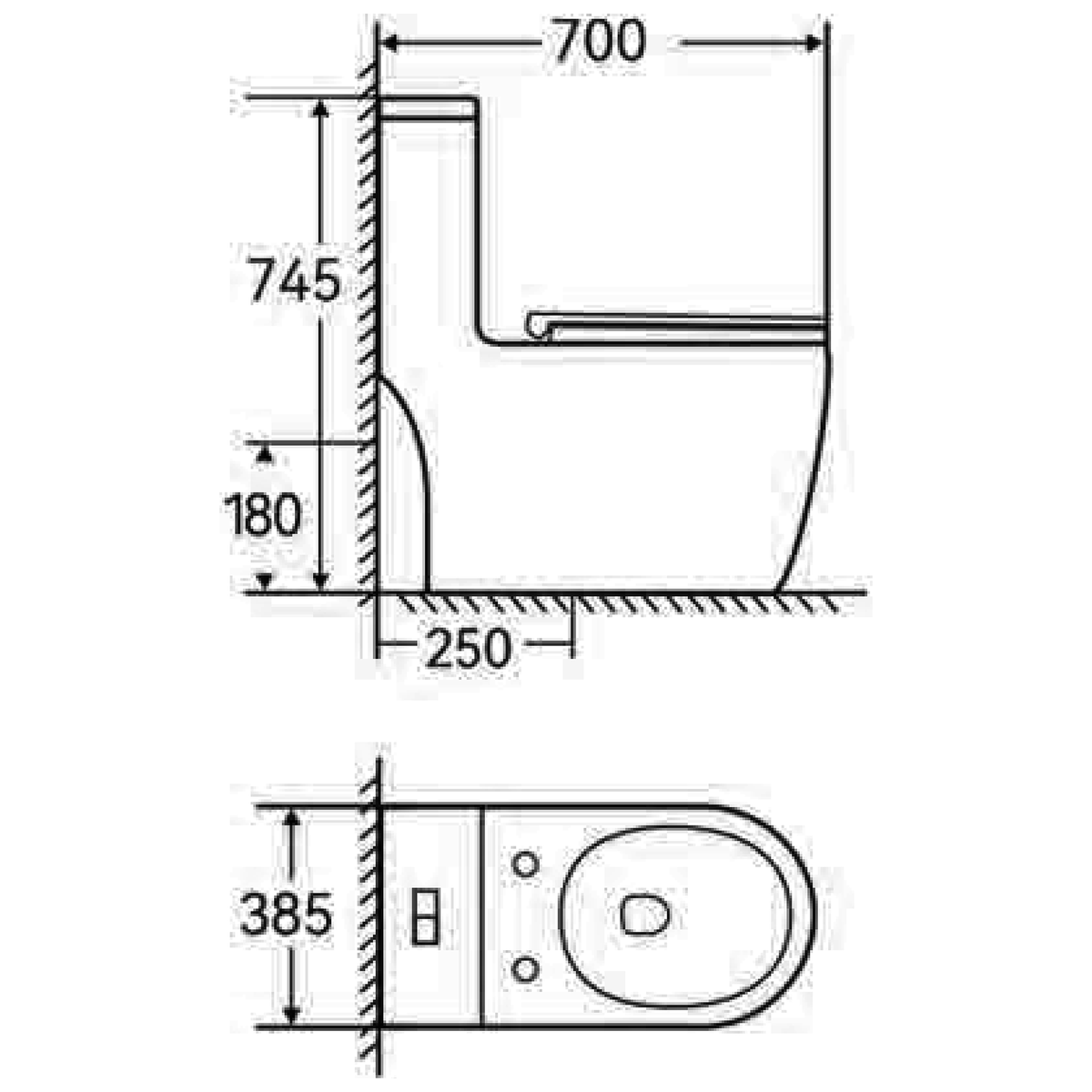

700 by 385 Footprint
28 Inch Swirl Flush One Piece Toilet on a 700 × 385 mm Footprint
- Length · 27.6 in
- 700 mm
- Width · 15.2 in
- 385 mm
- Height · 29.3 in
- 745 mm
TC-58157H prints 700 × 385 mm on the floor and a 745 mm height.
Swirl Flush Note
TC-58157H Swirl Flush
White
White Ceramic
TC-58157H is offered in White.
The catalog prints a swirl flush, listed as super-swirling, for TC-58157H.
Listed Outlets
TC-58157H S-Trap and P-Trap
- S-Trap Rough-In
- 250 mm (10 in)
- P-Trap Outlet Height
- 180 mm
- Mount
- Floor
Match the listed rough-in to the measured drain.
Versus TC-58182H
TC-58157H or TC-58182H
700 × 385 × 745 mm
Swirl flush.
700 × 380 × 730 mm
Rimless bowl.
Both codes list a 250 mm S-trap and a 180 mm P-trap.
TC-58157H Order
Requesting TC-58157H Pricing
Certification documents for TC-58157H are matched to the destination market at quotation.
TC-58157H inquiry list
- Model: TC-58157H
- Flush: swirl
- Outlet: S-trap rough-in (250 mm / 10 in) or 180 mm P-trap
- Quantity per version
- Destination market
- Carton marking
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
What footprint does the TC-58157H 28 inch swirl flush one piece toilet need?+
Which outlets are listed for the TC-58157H?+
How does the TC-58157H compare with the TC-58182H?+
TC-58157H is a 28 inch swirl flush one piece toilet with a printed footprint of 700 × 385 mm. That length converts to 27.6 in and the width to 15.2 in. Height rises to 745 mm (29.3 in). The finish is white ceramic, and the model is floor-mounted. Swirl flush, printed as super-swirling, is the only flush listed against the code.
Swirl is the only flush printed for TC-58157H, written in the catalog as super-swirling. The flush applies to both outlet versions. Height on TC-58157H is 745 mm, while TC-58182H is printed at 730 mm. Width on TC-58157H is 385 mm, while TC-58182H is printed at 380 mm. Length reads 700 mm on each of the 2 toilets, so height and width are the figures that guide the choice. TC-58182H, for its part, is printed with a rimless bowl.
TC-58157H is supplied as 1 SKU in White ceramic, listed as a floor-mounted one-piece toilet. The S-trap version takes a 250 mm (10 in) rough-in from the finished wall to the outlet center. The P-trap version, a floor mounted back outlet toilet, prints a 180 mm outlet height. Match the model's listed rough-in to the measured drain before ordering. Certification documents for TC-58157H are matched to the destination market at quotation.
