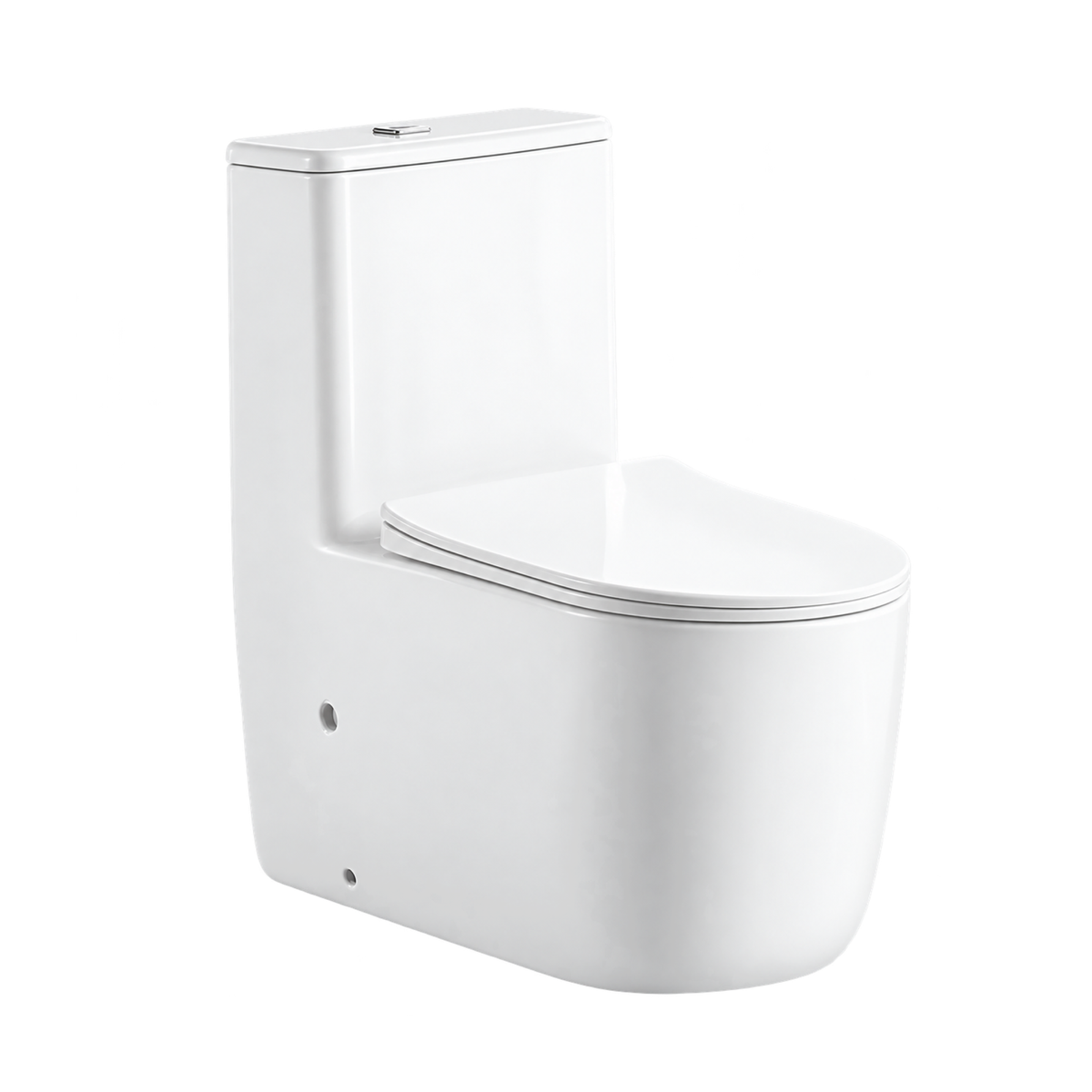

Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 640 × 370 × 780 mm
TC-7116 appears in the catalog under the one-piece category, with a swirl flush printed as super-swirling. Outlet versions are an S-trap at a 250 mm (10 in) rough-in and a P-trap whose outlet height reads 180 mm. Printed dimensions are 640 × 370 × 780 mm (25.2 × 14.6 × 30.7 in), given as length × width × height. Ceramic is the printed material, and White is the finish on offer.
Compare other models in the one-piece toilet range.
More in Tornado Flush Toilets
Mix any models in one 20ft container · no per-model minimum
-
TC-7402Marble Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.1" × 13.8" × 13.8"Wall-hung
-
TC-7311Swirl Flush Two-Piece Toilet, 10 Inch Rough-In, 2 Finishes26.4" × 14.6" × 31.1"Floor-mounted
-
TC-7310Swirl Flush Two-Piece Toilet, 10 Inch Rough-In25.2" × 14.6" × 30.7"Floor-mounted
-
TC-7309Swirl Flush Two-Piece Toilet TC-7309, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7308Swirl Flush Two-Piece Toilet TC-7308, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7305Swirl Flush Two-Piece Toilet TC-7305, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7304Swirl Flush Two-Piece Toilet TC-7304, 8/10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7117Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 670 × 370 × 790 mm26.4" × 14.6" × 31.1"Floor-mounted
-
TC-7115Swirl Flush One-Piece Toilet TC-7115, 10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7114Swirl Flush One-Piece Toilet TC-7114, 10 Inch Rough-In25.2" × 13.8" × 31.5"Floor-mounted
-
TC-7113690 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In27.2" × 15.0" × 29.9"Floor-mounted
-
TC-7112650 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In25.6" × 14.4" × 31.1"Floor-mounted
-
TC-7111Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 670 × 360 × 800 mm26.4" × 14.2" × 31.5"Floor-mounted
-
TC-7102Rimless Swirl Flush Two-Piece Toilet TC-7102, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-7002Rimless Swirl Flush Two-Piece Toilet TC-7002, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-58157HSwirl Flush One-Piece Toilet, 10 Inch Rough-In, 700 × 385 × 745 mm27.6" × 15.2" × 29.3"Floor-mounted
-
TC-58138H720 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In28.3" × 15.4" × 27.6"Floor-mounted
-
SL-8848Swirl Flush One-Piece Toilet, 10 Inch Rough-In, 700 × 400 × 780 mm27.6" × 15.7" × 30.7"Floor-mounted
-
SL-8048H660 mm Swirl Flush One-Piece Toilet, 10 Inch Rough-In26.0" × 15.0" × 30.3"Floor-mounted
-
SL-8016Swirl Flush Two-Piece Toilet SL-801627.6" × 15.7" × 30.7"Floor-mounted
-
SL-8015Swirl Flush Two-Piece Toilet SL-801527.6" × 15.7" × 30.7"Floor-mounted
-
H873Swirl Flush Smart Toilet, 700 × 390 × 440 mm27.6" × 15.4" × 17.3"Floor-mounted
-
H870Swirl Flush Smart Toilet, 700 × 410 × 440 mm27.6" × 16.1" × 17.3"Floor-mounted
-
H869715 mm Swirl Flush Smart Toilet28.1" × 16.7" × 18.5"Floor-mounted
-
H867685 mm Swirl Flush Smart Toilet27.0" × 15.4" × 18.9"Floor-mounted
-
H836Swirl Flush Smart Toilet H83626.8" × 16.1" × 18.7"Floor-mounted
-
H835Swirl Flush Smart Toilet H83526.8" × 16.1" × 18.7"Floor-mounted
-
H833670 mm Swirl Flush Smart Toilet26.4" × 15.4" × 18.1"Floor-mounted
-
H831Swirl Flush Smart Toilet, 680 × 425 × 480 mm26.8" × 16.7" × 18.9"Floor-mounted
-
H809Swirl Flush Smart Toilet, 680 × 410 × 450 mm26.8" × 16.1" × 17.7"Floor-mounted
-
FT-976Swirl Flush Wall-Hung Toilet FT-976, 180 mm P-Trap Outlet20.5" × 14.2" × 12.2"Wall-hung
-
FT-876Swirl Flush Wall-Hung Toilet FT-876, 180 mm P-Trap Outlet20.5" × 14.2" × 12.2"Wall-hung
-
FT-824BFSwirl Flush Wall-Hung Toilet FT-824BF, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-824Swirl Flush Wall-Hung Toilet FT-824, 180 mm P-Trap Outlet21.3" × 14.2" × 13.8"Wall-hung
-
FT-809Swirl Flush Wall-Hung ToiletWall-hung
-
FT-806CSwirl Flush Wall-Hung Toilet FT-806C, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-806Swirl Flush Wall-Hung Toilet FT-806, 180 mm P-Trap Outlet19.3" × 14.2" × 13.0"Wall-hung
-
FT-805CSwirl Flush Wall-Hung Toilet FT-805C, 180 mm P-Trap Outlet19.3" × 14.2" × 12.2"Wall-hung
-
FT-805Swirl Flush Wall-Hung Toilet FT-805, 180 mm P-Trap Outlet19.3" × 14.2" × 12.2"Wall-hung
-
FT-257480 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet18.9" × 13.8" × 11.8"Wall-hung
-
FT-251Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet, 8 Finishes20.5" × 14.2" × 12.2"Wall-hung
-
FT-249510 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.1" × 14.2" × 12.0"Wall-hung
-
FT-248Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet, 490 × 350 × 305 mm19.3" × 13.8" × 12.0"Wall-hung
-
FT-177530 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet20.9" × 14.2" × 12.2"Wall-hung
-
FT-150590 mm Swirl Flush Wall-Hung Toilet, 180 mm P-Trap Outlet23.2" × 14.2" × 13.4"Wall-hung
-
HSJ-253123 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In23.2" × 14.4" × 28.0"Floor-mounted, S-trap
-
HSJ-252827 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In26.8" × 14.6" × 29.9"Floor-mounted, S-trap
-
HSJ-252724 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In24.4" × 14.6" × 29.1"Floor-mounted, S-trap
-
HSJ-249429 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In28.7" × 15.4" × 27.2"Floor-mounted, S-trap
Fit data
Rough-in, flush and size of TC-7116
Send a spec. Get a real quote in 12 business hours.
Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.
12 consecutive years at KBIS and IBS.
Rear Outlet 180
25 Inch One Piece Toilet With a 180 mm P-Trap
TC-7116 prints a 180 mm P-trap outlet height and a 640 mm (25.2 in) length.
White
White Ceramic, Swirl Flush
TC-7116 is offered in White and listed in the catalog as a one-piece toilet.
TC-7116 Flush
Swirl Flush on the 640 mm Body
TC-7116 prints a swirl flush, listed in the catalog as super-swirling, for both outlet versions.

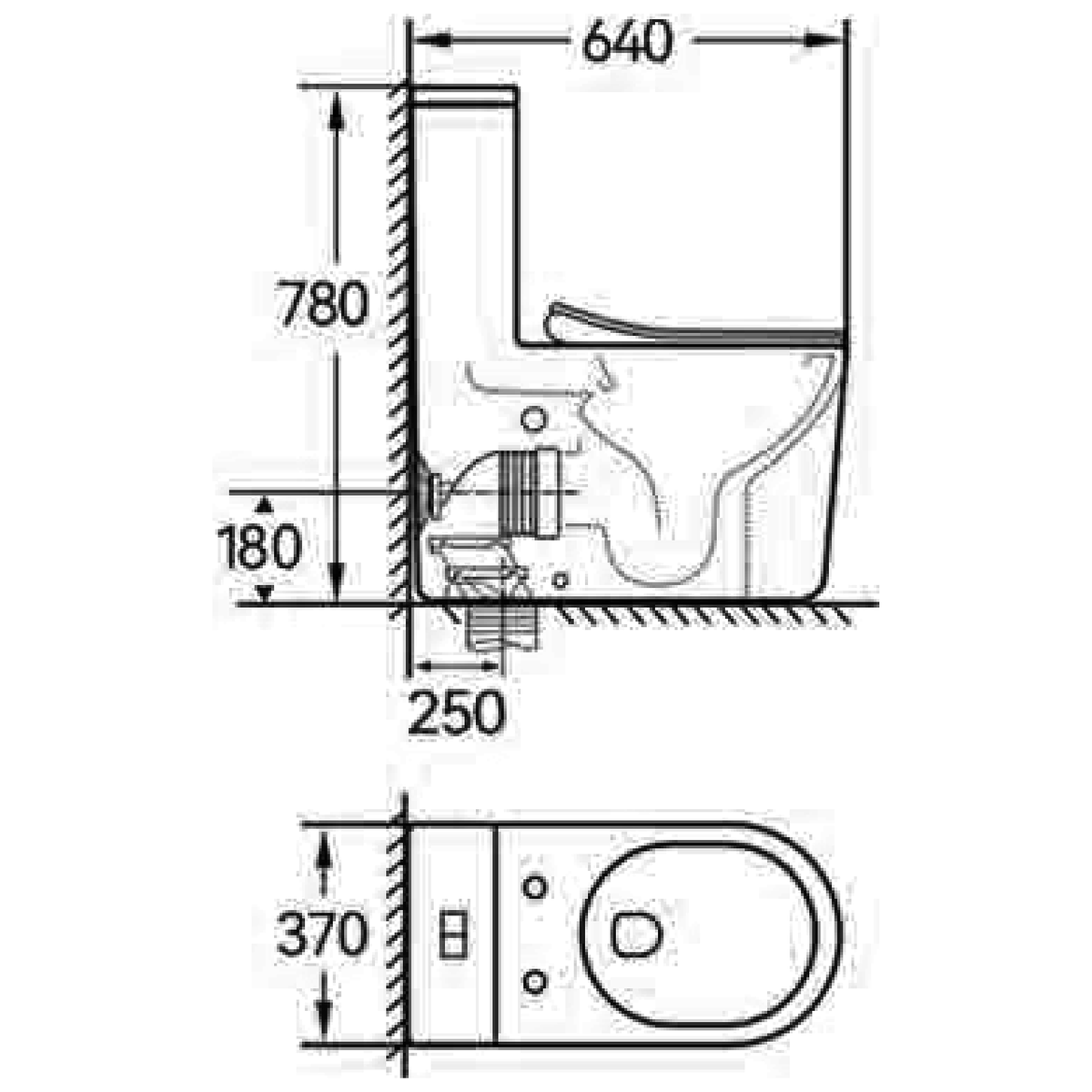

640 by 370
640 × 370 × 780 mm
- Length
- 640 mm (25.2 in)
- Width
- 370 mm (14.6 in)
- Height
- 780 mm (30.7 in)
Printed as length × width × height.
P-Trap or S-Trap Choice
TC-7116 Outlet Versions
180 mm
Outlet height for a wall drain.
250 mm (10 in)
Rough-in from the finished wall to the outlet center.
Against TC-7112
TC-7116 and TC-7112
Certification documents for TC-7116 are matched to the destination market at quotation.
- Length · TC-7116 / TC-7112
- 640 / 650 mm
- Width
- 370 / 365 mm
- Height
- 780 / 790 mm
TC-7116 Inquiry
Requesting a TC-7116 Price
TC-7116 inquiry checklist
- Model: TC-7116
- Outlet: 180 mm P-trap or S-trap rough-in (250 mm / 10 in)
- Flush: swirl
- Body type confirmation
- Quantity per version
- Destination market
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
Is the TC-7116 a 25 inch one piece toilet with a 180mm P-trap?+
What flush does the TC-7116 use?+
How does the TC-7116 compare with the TC-7112?+
As listed, TC-7116 is a 25 inch one piece toilet, 180mm P trap height on its rear-outlet version. The S-trap version instead takes a 250 mm (10 in) rough-in from the finished wall to the outlet center. A 640 mm length (25.2 in) gives the 25 inch figure, and the body is printed 370 mm wide and 780 mm high. White ceramic is the finish, and the model is floor-mounted.
Swirl, printed as super-swirling, is the flush listed for TC-7116 on a 640 mm (25.2 in) body. Width is 370 mm (14.6 in) and height 780 mm (30.7 in). In length, TC-7116 is printed at 640 mm and TC-7112 at 650 mm. In height, TC-7116 is printed at 780 mm and TC-7112 at 790 mm. Use those numbers when the space on site is tight in either direction. The finish is White, and the swirl flush applies to both outlet versions.
TC-7116 is supplied as 1 SKU in White ceramic with a swirl flush. Outlet options are a 250 mm (10 in) S-trap and a 180 mm P-trap. Measure the drain on site and confirm against the model spec sheet before choosing. TC-7112 has its own code in the catalog, printed at 650 × 365 × 790 mm. The printed size of TC-7116 is 640 × 370 × 780 mm. Certification documents for TC-7116 are matched to the destination market at quotation.
