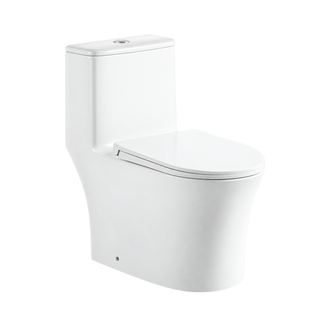

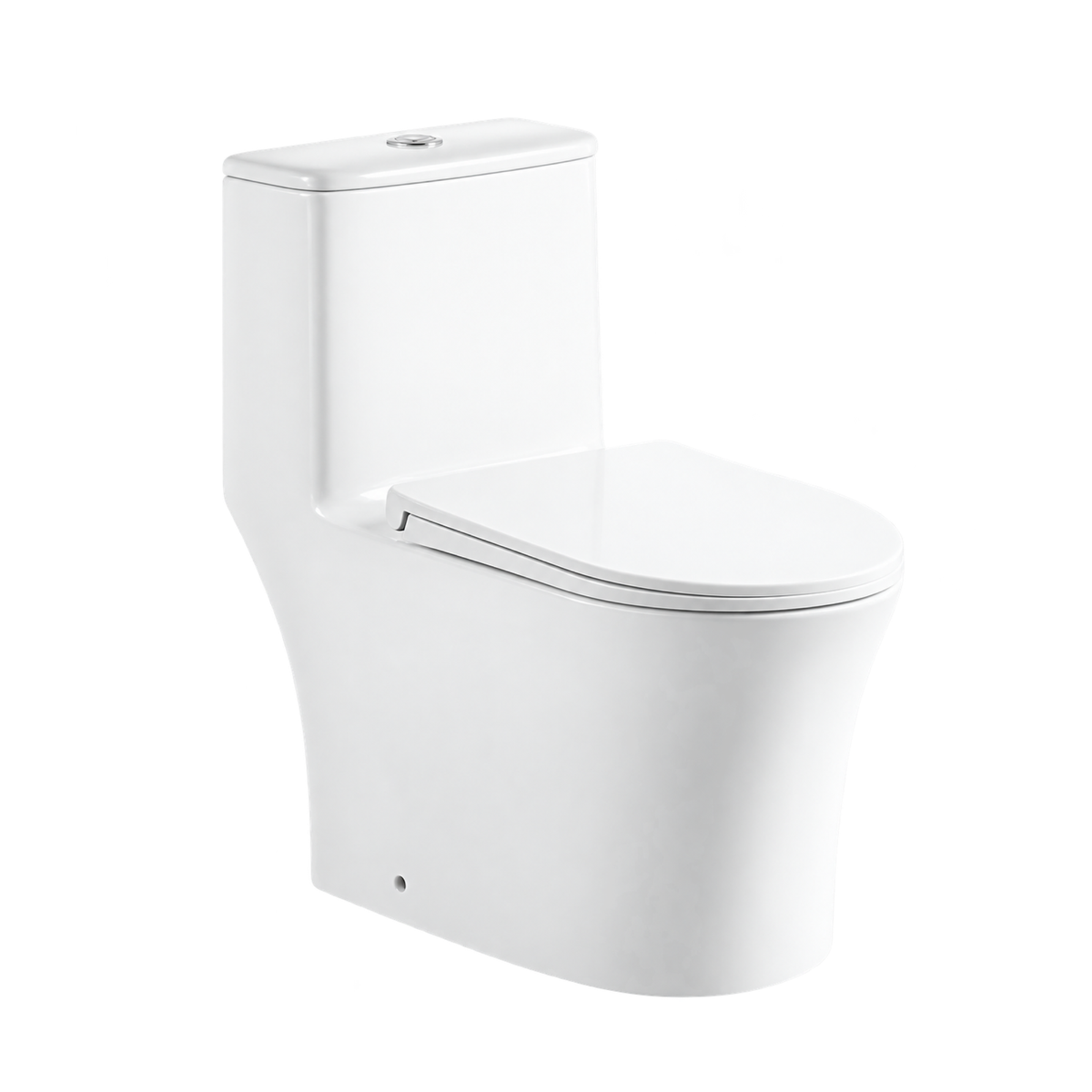

700 mm Rimless One-Piece Toilet, 10 Inch Rough-In
TC-58182H is a rimless ceramic toilet of one-piece construction, built to stand on the floor. Drain connection is by S-trap, with a 250 mm (10 in) rough-in, or by P-trap, where 180 mm is printed as the outlet height. Printed dimensions: 700 × 380 × 730 mm (27.6 × 15.0 × 28.7 in), read as length × width × height. White is the only listed finish. TC-58157H appears as a related code.
See the one-piece toilet range.
More in Rimless Toilets
Mix any models in one 20ft container · no per-model minimum
-
TC-7107BBlack Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet20.5" × 14.2" × 14.2"Wall-hung
-
TC-7102Rimless Swirl Flush Two-Piece Toilet TC-7102, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-7002Rimless Swirl Flush Two-Piece Toilet TC-7002, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-58184HRimless One-Piece Toilet, 10 Inch Rough-In, 710 × 400 × 765 mm28.0" × 15.7" × 30.1"Floor-mounted
-
TC-58175H650 mm Rimless One-Piece Toilet, 10 Inch Rough-In25.6" × 14.4" × 31.1"Floor-mounted
-
TC-58107HRimless One-Piece Toilet, 10 Inch Rough-In, 710 × 390 × 730 mm28.0" × 15.4" × 28.7"Floor-mounted
-
LJ-E10490 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.3" × 14.4" × 14.2"Wall-hung
-
LJ-E09SRimless Wall-Hung Toilet, 170 mm P-Trap Outlet19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E09Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 9 Finishes19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E07Rimless Wall-Hung Toilet, 150 mm P-Trap Outlet21.1" × 14.2" × 13.4"Wall-hung
-
LJ-E08505 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes19.9" × 14.2" × 14.0"Wall-hung
-
LJ-E06Rimless Wall-Hung Toilet, 185 mm P-Trap Outlet20.9" × 14.2" × 14.6"Wall-hung
-
LJ-E03Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 12 Finishes19.9" × 13.6" × 14.4"Wall-hung
-
LJ-A18500 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.7" × 14.8" × 14.4"Wall-hung
-
LJ-A15Rimless Wall-Hung Toilet, 175 mm P-Trap Outlet, 3 Finishes20.9" × 14.4" × 14.4"Wall-hung
-
LJ-A13Rimless Wall-Hung Toilet, 170 mm P-Trap Outlet, 3 Finishes20.3" × 14.2" × 14.6"Wall-hung
-
LJ-A12Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 3 Finishes20.9" × 14.6" × 14.4"Wall-hung
-
LJ-A09H550 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes21.7" × 14.0" × 14.4"Wall-hung
-
HSJ-3048Rimless Washdown Two-Piece Toilet HSJ-3048, 10 Inch Rough-In25.6" × 13.4" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-3047Rimless Washdown Two-Piece Toilet HSJ-3047, 10 Inch Rough-In25.6" × 13.4" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-2557Rimless Washdown One-Piece Toilet, 8/10 Inch Rough-In26.4" × 15.7" × 28.7"Floor-mounted, S-trap or P-trap
-
HSJ-2550Rimless Washdown One-Piece Toilet, 6/10 Inch Rough-In26.6" × 14.6" × 29.5"Floor-mounted, S-trap or P-trap
-
HSJ-2548Rimless Siphonic One-Piece Toilet, 10 Inch Rough-In28.1" × 15.0" × 29.9"Floor-mounted, S-trap or P-trap
-
HSJ-2441Rimless Siphonic One-Piece Toilet, 10/12/16 Inch Rough-In27.2" × 14.6" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-2401Rimless Washdown One-Piece Toilet, 10/12/16 Inch Rough-In25.6" × 14.2" × 29.3"Floor-mounted, S-trap or P-trap
Fit data
Rough-in, flush and size of TC-58182H
Send a spec. Get a real quote in 12 business hours.
Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.
12 consecutive years at KBIS and IBS.

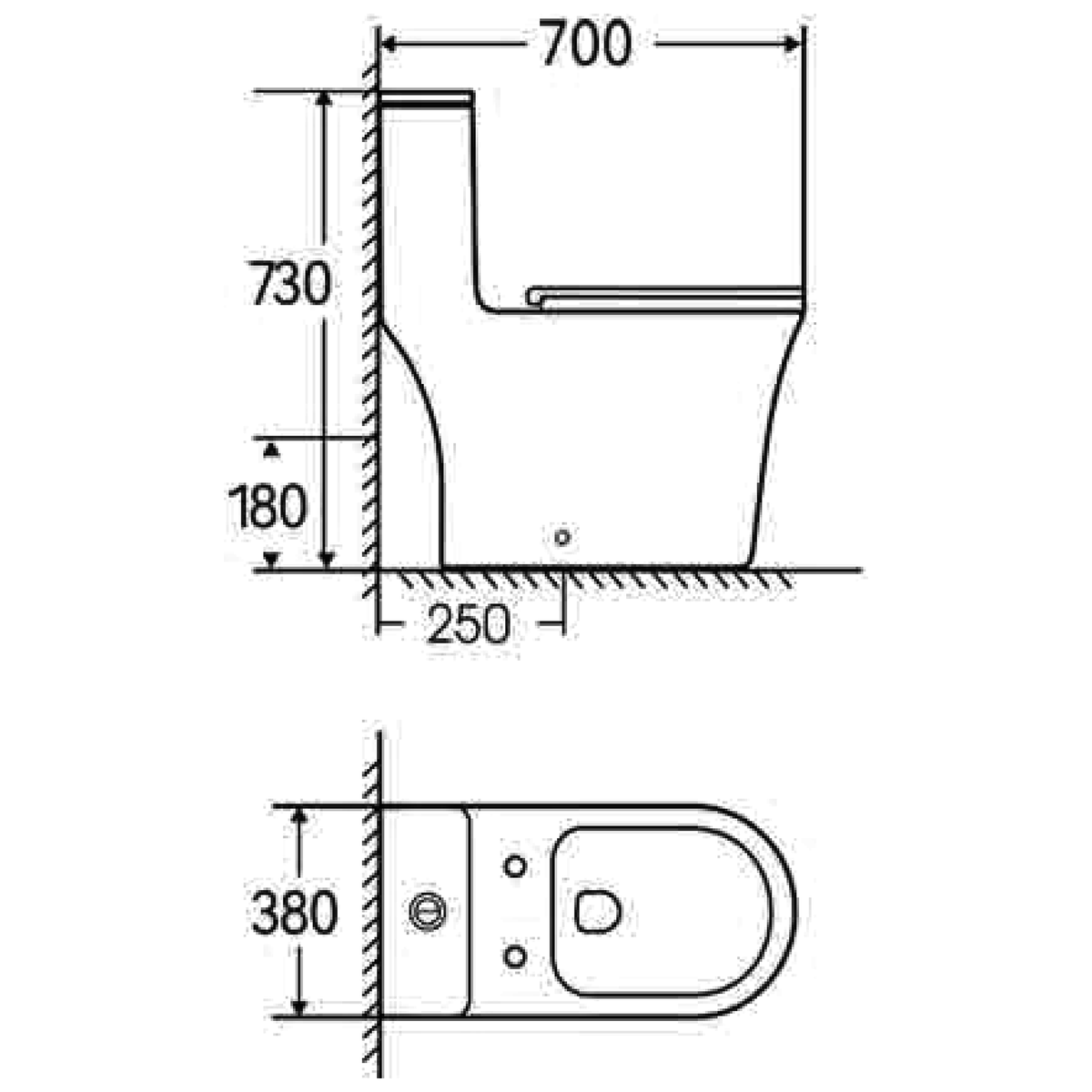

730 mm Overall
Rimless One Piece Toilet at 730 mm High
TC-58182H prints a 730 mm (28.7 in) overall height with a rimless bowl.
Check that figure against shelving or cabinets planned above the toilet.
Rimless 10 Inch
TC-58182H on a 10 Inch Rough-In
TC-58182H lists an S-trap and a P-trap version.
250 mm (10 in)
Rough-in from the finished wall to the outlet center.
180 mm
Rear outlet height.
Plan Size
700 × 380 mm on the Floor
- Length
- 700 mm (27.6 in)
- Width
- 380 mm (15.0 in)
- Height
- 730 mm (28.7 in)
Alongside TC-58157H
TC-58182H Next to TC-58157H
- Height · TC-58182H / TC-58157H
- 730 / 745 mm
- Width
- 380 / 385 mm
- Length
- 700 / 700 mm
TC-58157H prints a swirl flush.
Rimless in White
White Ceramic TC-58182H
White
White
TC-58182H is offered in White.
Certification documents for TC-58182H are matched to the destination market at quotation.
TC-58182H Request
Quoting TC-58182H in Bulk
Your TC-58182H RFQ, line by line
- Model: TC-58182H
- Outlet: S-trap rough-in (250 mm / 10 in) or 180 mm P-trap
- Bowl: rimless
- Quantity per outlet version
- Destination market
- Carton marking
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
How tall is the TC-58182H?+
Does the TC-58182H rimless one piece toilet fit a 10 inch rough in?+
How does the TC-58182H compare with the TC-58157H?+
TC-58182H is a rimless one piece toilet, 10 inch rough in on its 250 mm S-trap, with a printed height of 730 mm (28.7 in). Length is 700 mm (27.6 in) and width 380 mm (15.0 in). Height is the largest of the 3 printed figures on this code. Next to TC-58157H at 745 mm, the TC-58182H figure is 730 mm. The body is white ceramic.
TC-58182H is a toilet floor mount model: the catalog lists floor mounting for both outlet versions. The S-trap version takes the 250 mm (10 in) rough-in, and the P-trap version prints a 180 mm outlet height. Match the model's listed rough-in to the measured drain, then confirm against the model spec sheet. On a replacing job, read the old pipe position first, then choose. Both versions keep the rimless bowl printed for TC-58182H, and both are White.
TC-58182H is supplied under 1 SKU in White ceramic, with a rimless bowl and floor mounting printed. Its size is 700 × 380 × 730 mm (27.6 × 15.0 × 28.7 in). Outlet entries are the 250 mm (10 in) S-trap and the 180 mm P-trap. TC-58157H is a separate catalog item with a swirl flush, printed at 700 × 385 × 745 mm. Certification documents for TC-58182H are matched to the destination market at quotation.
