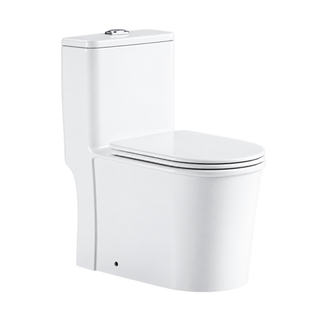

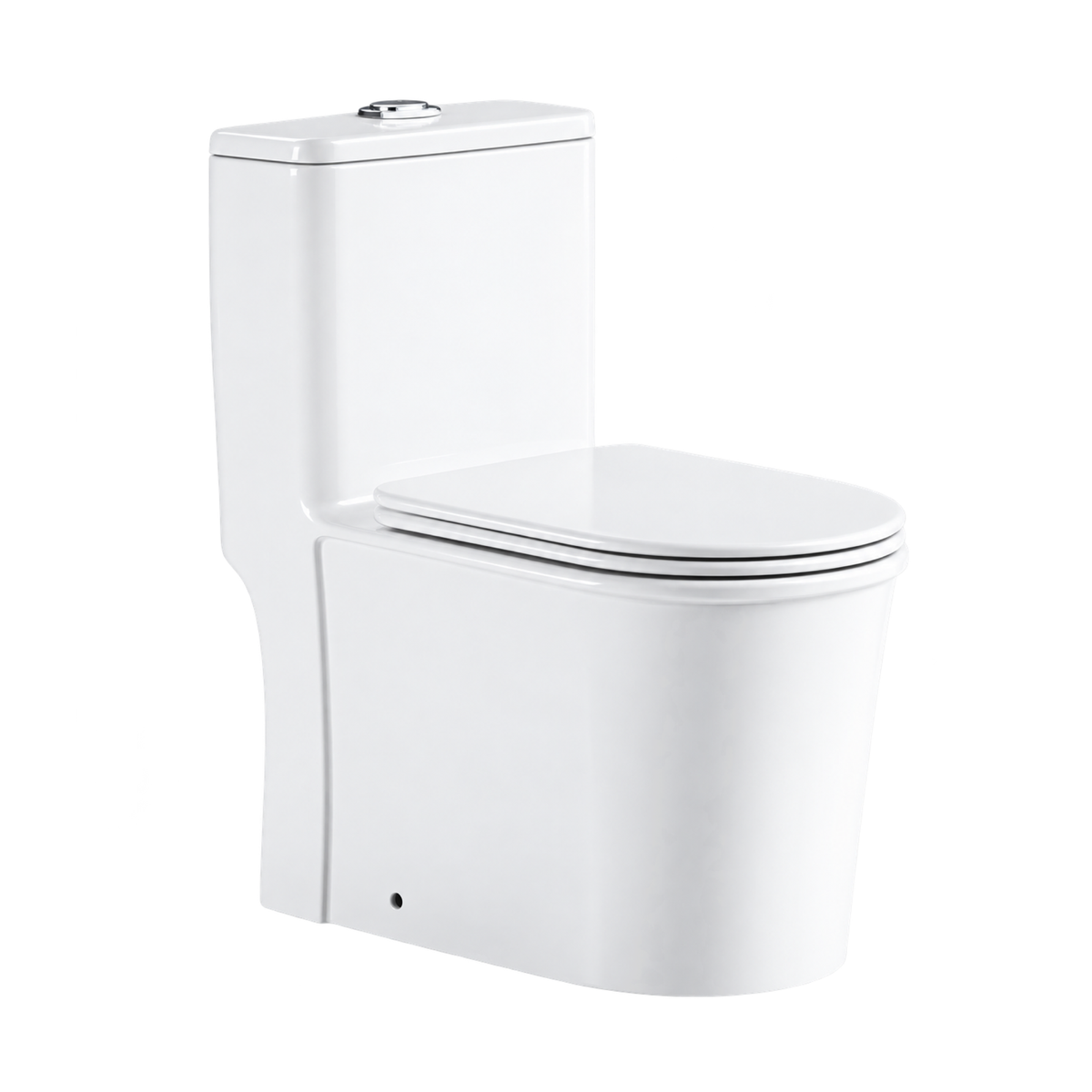

Rimless One-Piece Toilet, 10 Inch Rough-In, 710 × 400 × 765 mm
TC-58184H is a rimless one-piece toilet in ceramic, listed as floor-standing. 2 drain versions are printed: S-trap at a 250 mm (10 in) rough-in, and P-trap at a 180 mm outlet height. Printed dimensions are 710 × 400 × 765 mm (28.0 × 15.7 × 30.1 in), length × width × height. The listed finish is White, and NBK-3076 appears as a related code with a 180 mm P-trap.
See the one-piece toilet range.
More in Rimless Toilets
Mix any models in one 20ft container · no per-model minimum
-
TC-7107BBlack Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet20.5" × 14.2" × 14.2"Wall-hung
-
TC-7102Rimless Swirl Flush Two-Piece Toilet TC-7102, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-7002Rimless Swirl Flush Two-Piece Toilet TC-7002, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-58175H650 mm Rimless One-Piece Toilet, 10 Inch Rough-In25.6" × 14.4" × 31.1"Floor-mounted
-
TC-58182H700 mm Rimless One-Piece Toilet, 10 Inch Rough-In27.6" × 15.0" × 28.7"Floor-mounted
-
TC-58107HRimless One-Piece Toilet, 10 Inch Rough-In, 710 × 390 × 730 mm28.0" × 15.4" × 28.7"Floor-mounted
-
LJ-E10490 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.3" × 14.4" × 14.2"Wall-hung
-
LJ-E09SRimless Wall-Hung Toilet, 170 mm P-Trap Outlet19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E09Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 9 Finishes19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E07Rimless Wall-Hung Toilet, 150 mm P-Trap Outlet21.1" × 14.2" × 13.4"Wall-hung
-
LJ-E08505 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes19.9" × 14.2" × 14.0"Wall-hung
-
LJ-E06Rimless Wall-Hung Toilet, 185 mm P-Trap Outlet20.9" × 14.2" × 14.6"Wall-hung
-
LJ-E03Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 12 Finishes19.9" × 13.6" × 14.4"Wall-hung
-
LJ-A18500 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.7" × 14.8" × 14.4"Wall-hung
-
LJ-A15Rimless Wall-Hung Toilet, 175 mm P-Trap Outlet, 3 Finishes20.9" × 14.4" × 14.4"Wall-hung
-
LJ-A13Rimless Wall-Hung Toilet, 170 mm P-Trap Outlet, 3 Finishes20.3" × 14.2" × 14.6"Wall-hung
-
LJ-A12Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 3 Finishes20.9" × 14.6" × 14.4"Wall-hung
-
LJ-A09H550 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes21.7" × 14.0" × 14.4"Wall-hung
-
HSJ-3048Rimless Washdown Two-Piece Toilet HSJ-3048, 10 Inch Rough-In25.6" × 13.4" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-3047Rimless Washdown Two-Piece Toilet HSJ-3047, 10 Inch Rough-In25.6" × 13.4" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-2557Rimless Washdown One-Piece Toilet, 8/10 Inch Rough-In26.4" × 15.7" × 28.7"Floor-mounted, S-trap or P-trap
-
HSJ-2550Rimless Washdown One-Piece Toilet, 6/10 Inch Rough-In26.6" × 14.6" × 29.5"Floor-mounted, S-trap or P-trap
-
HSJ-2548Rimless Siphonic One-Piece Toilet, 10 Inch Rough-In28.1" × 15.0" × 29.9"Floor-mounted, S-trap or P-trap
-
HSJ-2441Rimless Siphonic One-Piece Toilet, 10/12/16 Inch Rough-In27.2" × 14.6" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-2401Rimless Washdown One-Piece Toilet, 10/12/16 Inch Rough-In25.6" × 14.2" × 29.3"Floor-mounted, S-trap or P-trap
Fit data
Rough-in, flush and size of TC-58184H
Send a spec. Get a real quote in 12 business hours.
Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.
12 consecutive years at KBIS and IBS.
TC-58184H Versus NBK-3076
TC-58184H and NBK-3076 Printed Side by Side
250 mm S-Trap
Rimless bowl; 180 mm P-trap also listed.
300–400 mm S-Trap
180 mm P-trap also listed.
TC-58184H prints 710 × 400 × 765 mm with a rimless bowl and a 250 mm (10 in) S-trap.
NBK-3076 prints 720 × 410 × 770 mm and a 300–400 mm S-trap range.
28 Inch Rimless
A 28 Inch Rimless One Piece Toilet
TC-58184H prints a 710 mm length, or 28.0 in.
White
White Ceramic
TC-58184H is a one-piece, floor-mounted toilet offered in White.

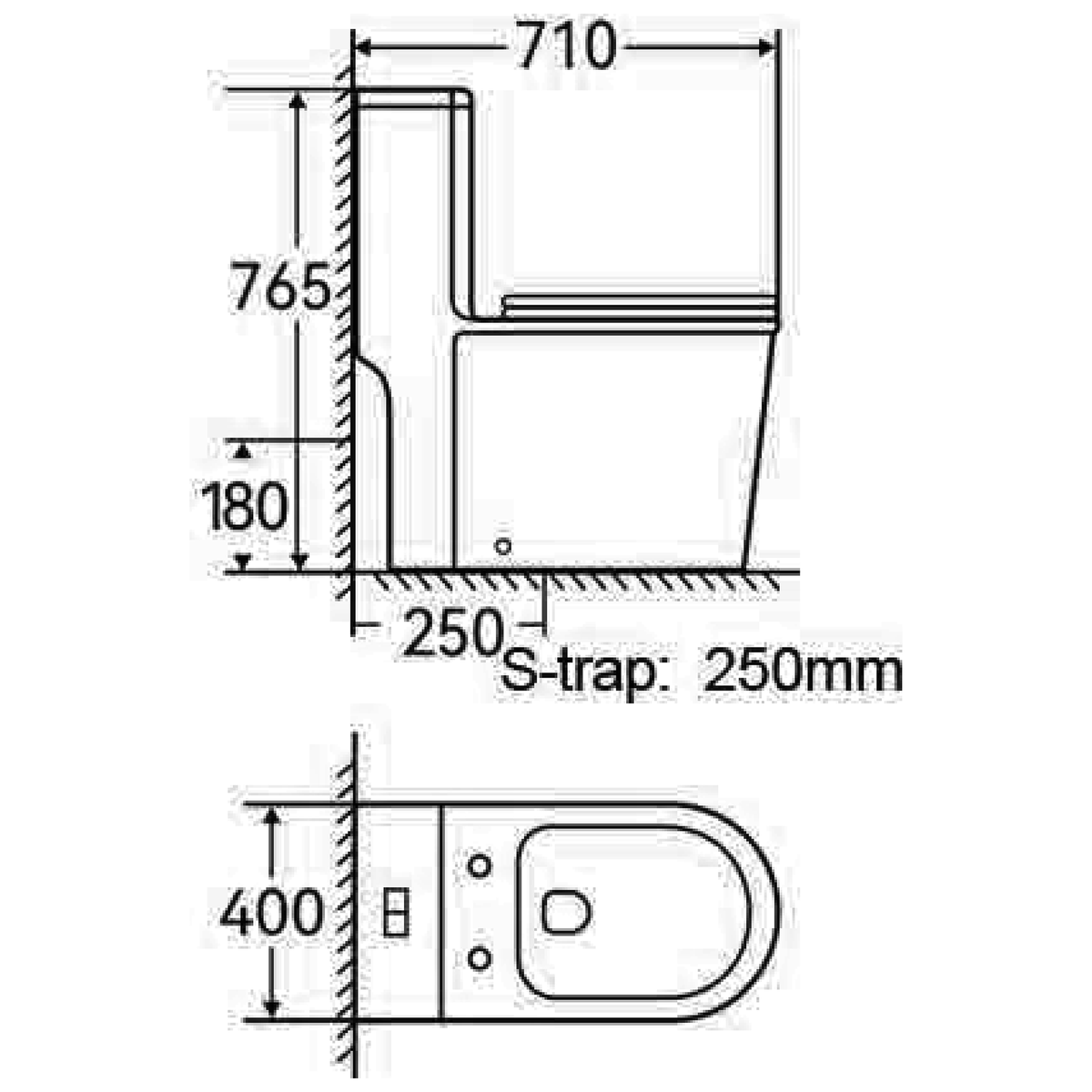

TC-58184H Footprint
710 × 400 × 765 mm
- Length · 28.0 in
- 710 mm
- Width · 15.7 in
- 400 mm
- Height · 30.1 in
- 765 mm
Rough-In at 250
TC-58184H Rough-In
- S-Trap Rough-In
- 250 mm (10 in)
- P-Trap Outlet Height
- 180 mm
Match the listed rough-in to the measured drain.
Rimless Line Items
TC-58184H Price Request
Certification documents for TC-58184H are matched to the destination market at quotation.
Points to cover in a TC-58184H inquiry
- Model: TC-58184H
- Outlet: S-trap rough-in (250 mm / 10 in) or 180 mm P-trap
- Bowl: rimless
- Quantity per version
- Destination market
- Carton marking
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
How does the TC-58184H compare with the NBK-3076?+
Is the TC-58184H a 28 inch rimless one piece toilet?+
What rough-in does the TC-58184H need?+
TC-58184H is a 28 inch rimless one piece toilet printed at 710 mm long (28.0 in). Width reads 400 mm (15.7 in) and height 765 mm (30.1 in), so the footprint is 710 × 400 mm. The bowl is printed as rimless, and the finish is white ceramic. Against NBK-3076, the length reads 710 mm on TC-58184H and 720 mm on NBK-3076, and the width 400 mm against 410 mm. Height is printed at 765 mm on TC-58184H and 770 mm on NBK-3076. Floor mounting is listed for TC-58184H.
TC-58184H uses a 250 mm (10 in) S-trap rough-in, a figure the catalog also prints as S-trap: 250mm. The P-trap alternative is printed at 180 mm and is the floor mount rear outlet toilet option. Match the model's listed rough-in to the measured drain before choosing. NBK-3076 prints its S-trap as a 300–400 mm range; TC-58184H prints 250 mm. White ceramic applies to both outlet versions of TC-58184H, and the rimless bowl is printed for each of them.
TC-58184H is supplied as 1 SKU in White ceramic, listed as a floor-mounted one-piece toilet with a rimless bowl. Its printed size is 710 × 400 × 765 mm (28.0 × 15.7 × 30.1 in). The 2 outlet entries are the 250 mm (10 in) S-trap and the 180 mm P-trap. NBK-3076 sits under its own code with a 300–400 mm S-trap range. Ceramic is the body material, and White the only finish. Certification documents for TC-58184H are matched to the destination market at quotation.
