One-Piece Toilet, 12/16 Inch Rough-In

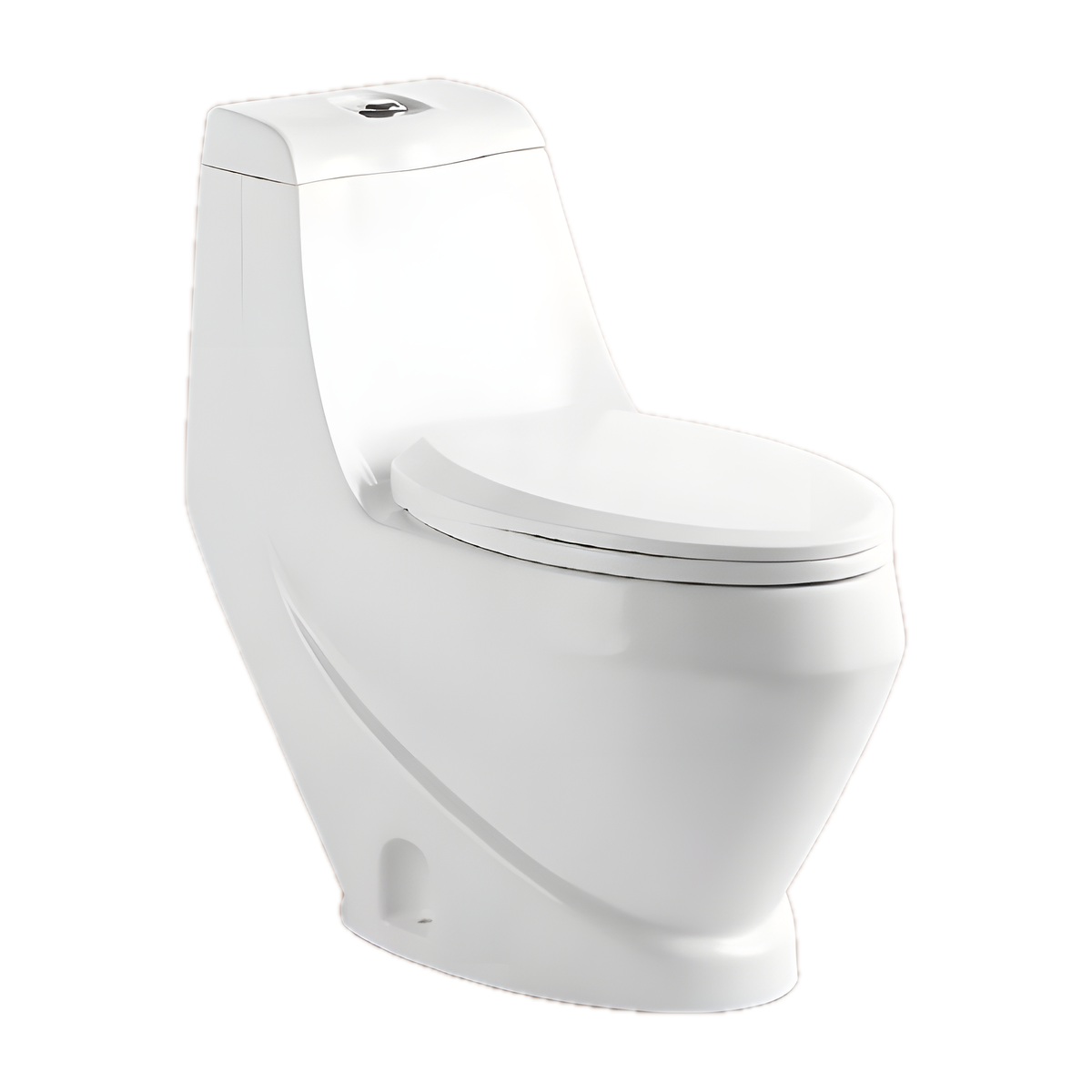

NBK-3076 is a White ceramic one-piece toilet for floor mounting. The S-trap rough-in is printed as a range of 300–400 mm (12–16 in), measured from the finished wall to the outlet center, and a 180 mm P-trap outlet is also listed. The catalog prints one size for the model: 720 × 410 × 770 mm (28.3 × 16.1 × 30.3 in). The outlet version is confirmed at quotation for distributor and project orders.
See the one-piece toilet range.
More in 12 Inch Rough-In Toilets
Mix any models in one 20ft container · no per-model minimum
-
SL-8042Siphonic Two-Piece Toilet, 12 Inch Rough-In27.2" × 14.4" × 31.5"Floor-mounted
-
HSJ-V8200 / HSJ-V870029 Inch Floor-Mounted Smart Toilet, 12/16 Inch Rough-In28.7" × 15.4" × 22.6"Floor-mounted, S-trap
-
HSJ-G1528 Inch Floor-Mounted Smart Toilet, 12/16 Inch Rough-In27.5" × 15.5" × 18.8"Floor-mounted, S-trap
-
HSJ-300728 Inch Washdown Two-Piece Toilet, 10/12 Inch Rough-In27.6" × 15.0" × 31.1"Floor-mounted, S-trap or P-trap
-
HSJ-300426 Inch Washdown Two-Piece Toilet, 10/12 Inch Rough-In26.0" × 14.8" × 31.1"Floor-mounted, S-trap or P-trap
-
HSJ-2555Washdown One-Piece Toilet, 12 Inch Rough-In29.9" × 14.2" × 31.7"Floor-mounted, S-trap
-
HSJ-253123 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In23.2" × 14.4" × 28.0"Floor-mounted, S-trap
-
HSJ-252827 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In26.8" × 14.6" × 29.9"Floor-mounted, S-trap
-
HSJ-252724 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In24.4" × 14.6" × 29.1"Floor-mounted, S-trap
-
HSJ-2499Washdown One-Piece Toilet, 10/12 Inch Rough-In, 750 × 400 × 660 mm29.5" × 15.7" × 26.0"Floor-mounted, S-trap
-
HSJ-2498Washdown One-Piece Toilet, 10/12 Inch Rough-In, 680 × 375 × 810 mm26.8" × 14.8" × 31.9"Floor-mounted, S-trap or P-trap
-
HSJ-2497Washdown One-Piece Toilet, 10/12 Inch Rough-In, 700 × 390 × 740 mm27.6" × 15.4" × 29.1"Floor-mounted, S-trap or P-trap
-
HSJ-2496Washdown One-Piece Toilet, 10/12 Inch Rough-In, 700 × 380 × 820 mm27.6" × 15.0" × 32.3"Floor-mounted, S-trap or P-trap
-
HSJ-249526 Inch Washdown One-Piece Toilet, 10/12 Inch Rough-In26.0" × 14.2" × 33.5"Floor-mounted, S-trap or P-trap
-
HSJ-249429 Inch Swirl Flush One-Piece Toilet, 12 Inch Rough-In28.7" × 15.4" × 27.2"Floor-mounted, S-trap
-
HSJ-2441Rimless Siphonic One-Piece Toilet, 10/12/16 Inch Rough-In27.2" × 14.6" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-2427Siphonic One-Piece Toilet, 10/12/16 Inch Rough-In, 700 × 390 × 750 mm27.6" × 15.4" × 29.5"Floor-mounted, S-trap or P-trap
-
HSJ-2425Siphonic One-Piece Toilet, 10/12 Inch Rough-In26.8" × 15.7" × 29.9"Floor-mounted, S-trap or P-trap
-
HSJ-242426 Inch Siphonic One-Piece Toilet, 10/12/16 Inch Rough-In26.4" × 14.0" × 30.9"Floor-mounted, S-trap or P-trap
-
HSJ-240327 Inch Siphonic One-Piece Toilet, 10/12/16 Inch Rough-In27.0" × 15.2" × 32.3"Floor-mounted, S-trap or P-trap
-
HSJ-2401Rimless Washdown One-Piece Toilet, 10/12/16 Inch Rough-In25.6" × 14.2" × 29.3"Floor-mounted, S-trap or P-trap
-
HSJ-2390Washdown One-Piece Toilet, 10/12/16 Inch Rough-In26.4" × 14.2" × 29.9"Floor-mounted, S-trap or P-trap
-
HSJ-2388Washdown One-Piece Toilet, 10/12 Inch Rough-In, 710 × 395 × 645 mm28.0" × 15.6" × 25.4"Floor-mounted, S-trap or P-trap
-
HSJ-2373MBlack Washdown One-Piece Toilet, 10/12/16 Inch Rough-In26.8" × 14.6" × 29.5"Floor-mounted, S-trap or P-trap
-
HSJ-236829 Inch Washdown One-Piece Toilet, 10/12 Inch Rough-In28.7" × 15.0" × 32.7"Floor-mounted, S-trap or P-trap
-
HSJ-2365Washdown One-Piece Toilet, 10/12 Inch Rough-In, 720 × 390 × 750 mm28.3" × 15.4" × 29.5"Floor-mounted, S-trap or P-trap
-
HSJ-2364Washdown One-Piece Toilet, 10/12 Inch Rough-In, 700 × 360 × 750 mm27.6" × 14.2" × 29.5"Floor-mounted, S-trap or P-trap
-
HSJ-2362Washdown One-Piece Toilet, 10/12 Inch Rough-In, 750 × 410 × 710 mm29.5" × 16.1" × 28.0"Floor-mounted, S-trap or P-trap
-
HSJ-2361Washdown One-Piece Toilet, 10/12 Inch Rough-In, 700 × 385 × 760 mm27.6" × 15.2" × 29.9"Floor-mounted, S-trap or P-trap
-
HSJ-2347Siphonic One-Piece Toilet, 8/10/12/16 Inch Rough-In, 700 × 380 × 700 mm27.6" × 15.0" × 27.6"Floor-mounted, S-trap or P-trap
-
HSJ-2343Siphonic One-Piece Toilet, 8/10/12/16 Inch Rough-In, 720 × 370 × 790 mm28.3" × 14.6" × 31.1"Floor-mounted, S-trap or P-trap
-
HSJ-2332Washdown One-Piece Toilet, 4/8/12/16 Inch Rough-In25.2" × 14.6" × 27.0"Floor-mounted, S-trap or P-trap
-
HSJ-2202Washdown One-Piece Toilet, 10/12 Inch Rough-In, 680 × 380 × 670 mm26.8" × 15.0" × 26.4"Floor-mounted, S-trap or P-trap
-
HSJ-2201Siphonic One-Piece Toilet, 10/12/16 Inch Rough-In, 700 × 370 × 810 mm27.6" × 14.6" × 31.9"Floor-mounted, S-trap or P-trap
-
HSJ-2480Siphonic One-Piece Toilet, 12 Inch Rough-In27.2" × 15.4" × 27.4"Floor-mounted, S-trap
-
Y2Y2 Smart Bidet Toilet with Dual-User Memory and UV Sterilisation28.3" × 17.9" × 20.1"Floor-mounted, S-trap
-
Y1Y1 UV-Sterilising Smart Toilet with Heated Bidet Seat and Foot-Touch Flush28.3" × 17.9" × 20.1"Floor-mounted, S-trap
-
E6E6 Radar-Sensor Smart Bidet Toilet with Foot-Sensing Lid and UV Sterilisation26.8" × 16.1" × 18.9"Floor-mounted, S-trap
-
E5E5 Foot-Touch Flush Smart Bidet Toilet with Heated Seat and UV Sterilisation26.8" × 15.6" × 19.1"Floor-mounted, S-trap
-
964Foot-Sensing Flush Smart Bidet Toilet with Dual-User Memory, UV Sterilisation28.1" × 18.9" × 21.3"Floor-mounted, S-trap
-
956Dual-User Memory Smart Bidet Toilet with UV Sterilisation and Child Seat26.8" × 16.1" × 18.3"Floor-mounted, S-trap
-
945Foot-Sensing Flush Smart Bidet Toilet with UV Sterilisation and Heated Seat26.8" × 16.1" × 18.3"Floor-mounted, S-trap
-
1991Siphonic One-Piece Toilet with Fully Glazed Trapway, 3-Inch Flush Valve27.8" × 15.4" × 27.6"Floor-mounted, S-trap
-
1981Tornado Flush One-Piece Toilet with 3-Inch Flush Valve and Soft-Close Seat28.0" × 15.2" × 29.1"Floor-mounted, S-trap
-
1978Siphon Jet One-Piece Toilet, 1.28 GPF, 12-Inch Rough-In, Fully Glazed Trapway27.2" × 14.6" × 27.6"Floor-mounted, S-trap
-
1939Siphon Jet One-Piece Toilet with 3-Inch Flush Valve, Fully Glazed Trapway27.6" × 15.6" × 28.3"Floor-mounted, S-trap
-
1938One-Piece Tornado Flush Toilet with 2-Inch Flush Valve, 1.28 GPF27.6" × 15.2" × 30.7"Floor-mounted, S-trap
-
1916Tornado Flush One-Piece Toilet, 3-Inch Flush Valve, Fully Glazed Trapway27.6" × 15.2" × 29.5"Floor-mounted, S-trap
-
1009Siphon Jet One-Piece Toilet with 3-Inch Flush Valve, 14.4-Inch Body Width27.0" × 14.4" × 28.5"Floor-mounted, S-trap
Fit data
Rough-in, flush and size of NBK-3076
Send a spec. Get a real quote in 12 business hours.
Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.
12 consecutive years at KBIS and IBS.
12 to 16 Inch Rough-In
28 Inch One Piece Toilet for 12/16 Inch Rough-In Drains
- S-trap rough-in · 12–16 in
- 300–400 mm
- P-trap outlet height
- 180 mm
NBK-3076 prints its S-trap rough-in as a 300–400 mm (12–16 in) range.
Match the listed rough-in to the measured drain, then confirm against the model spec sheet.
720 by 410

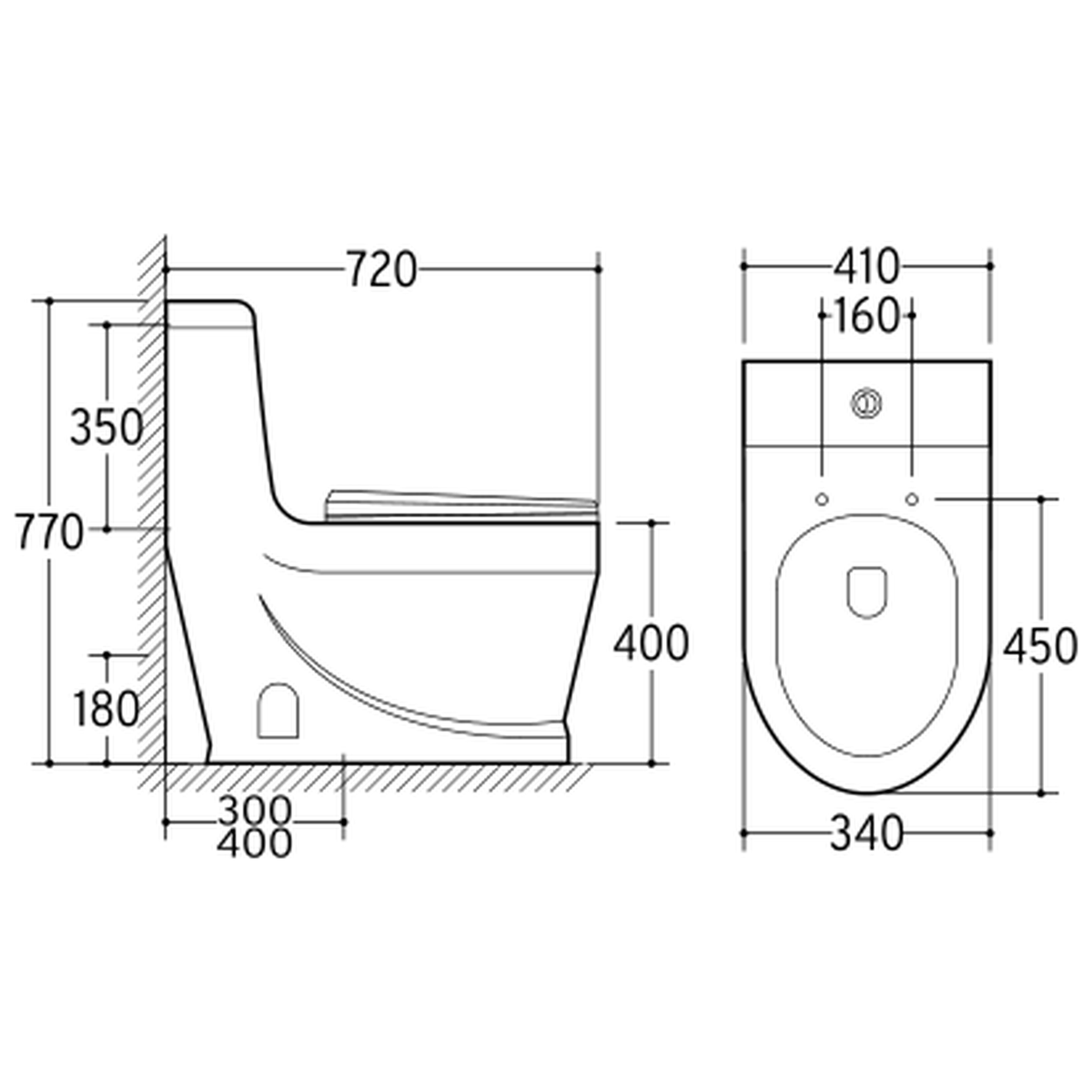

720 × 410 × 770 mm Body
- Length
- 720 mm (28.3 in)
- Width
- 410 mm (16.1 in)
- Height
- 770 mm (30.3 in)
- Body
- One-piece, floor-mounted
Ceramic Finish
NBK-3076 in White
White
White Ceramic
NBK-3076 is offered in White.
Against TC-58184H
NBK-3076 and TC-58184H
300–400 mm S-Trap Range
720 × 410 × 770 mm.
250 mm S-Trap, Rimless
710 × 400 × 765 mm.
Range Orders
Quoting NBK-3076 for Measured Drains
State the measured rough-in for each S-trap line.
Certification documents for NBK-3076 are matched to the destination market at quotation.
What an NBK-3076 RFQ should carry
- Model: NBK-3076
- Outlet: S-trap rough-in (measured, within 300–400 mm / 12–16 in) or 180 mm P-trap
- Quantity per outlet
- Finish: White
- Destination market
- Carton marking
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
Is the NBK-3076 a 28 inch one piece toilet with a 12/16 inch rough in?+
How do I match the NBK-3076 to a measured drain?+
How does the NBK-3076 compare with the TC-58184H?+
NBK-3076 is a 28 inch one piece toilet; 12/16 inch rough in describes its printed S-trap range of 300–400 mm. Length reads 720 mm, or 28.3 in, which gives the 28 inch figure. Width is 410 mm (16.1 in) and height 770 mm (30.3 in). The body is white ceramic, mounted on the floor. In width, NBK-3076 is printed at 410 mm, while TC-58184H is printed at 400 mm.
As an s trap toilet, NBK-3076 is printed for rough-ins from 300 mm to 400 mm, taken from the finished wall to the outlet center. As a floor mounted back outlet toilet, it uses the P-trap version with a 180 mm outlet height. Choose the version from the drain on site, then confirm against the model spec sheet. Both options sit under 1 SKU and keep the white ceramic finish.
NBK-3076 is supplied as a single SKU in White ceramic, printed at 720 × 410 × 770 mm (28.3 × 16.1 × 30.3 in). The catalog files it under floor-mounted one-piece toilets. Outlet entries are the 300–400 mm (12–16 in) S-trap range and the 180 mm P-trap. TC-58184H is listed separately with a 250 mm S-trap and a rimless bowl. Floor mounting is printed for NBK-3076 in both outlet versions. Certification documents for NBK-3076 are matched to the destination market at quotation.
