Washdown One-Piece Toilet, 10/12 Inch Rough-In, 680 × 380 × 670 mm

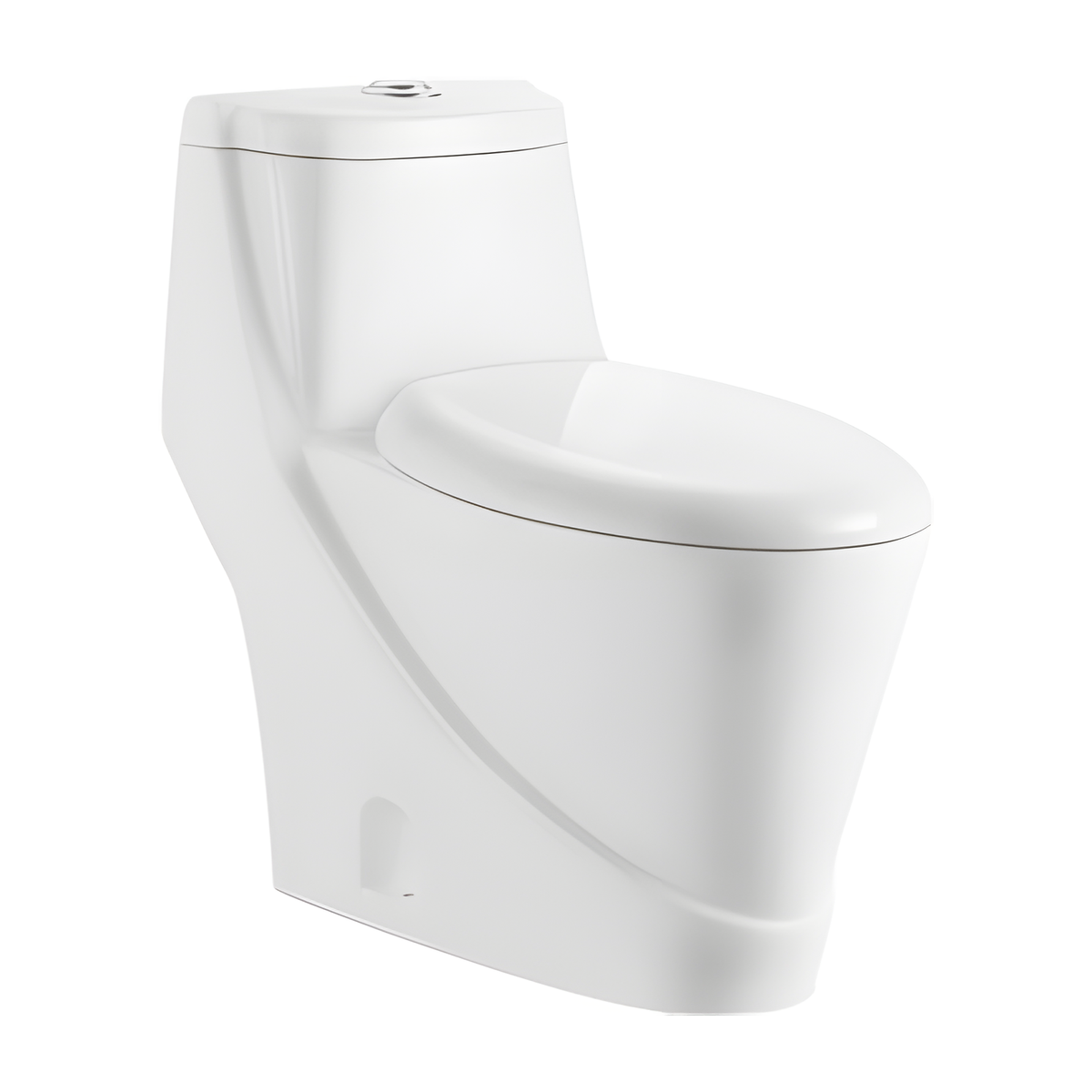

HSJ-2202 is a 27 inch washdown one piece toilet, 10/12 inch rough-in versions being printed at 250 mm and 300 mm. The task for the buyer is simple: measure each floor drain and match it to one of those two numbers. Readings that land elsewhere need another model. Group rooms by reading on the schedule so each rough-in line carries its own total. Washdown is the single printed flush type, which removes flush as a variable. White ceramic is the listed color for every line. Request written confirmation from the factory of the rough-in on each line before the order is placed.

Rooms with a wall waste take the HSJ-2202 P-trap version, listed with a 180 mm outlet. The P-trap line sits beside the two S-trap lines under the same model code. Where a site mixes floor and wall wastes, this third entry keeps a single model across the whole job. Record outlet type for each room before the quantities are totaled. The P-trap line uses the same 680 × 380 × 670 mm body as the floor-drain lines, since one size is printed for the model. Count wall-waste rooms separately on the survey so the third line is never left off the purchase order.

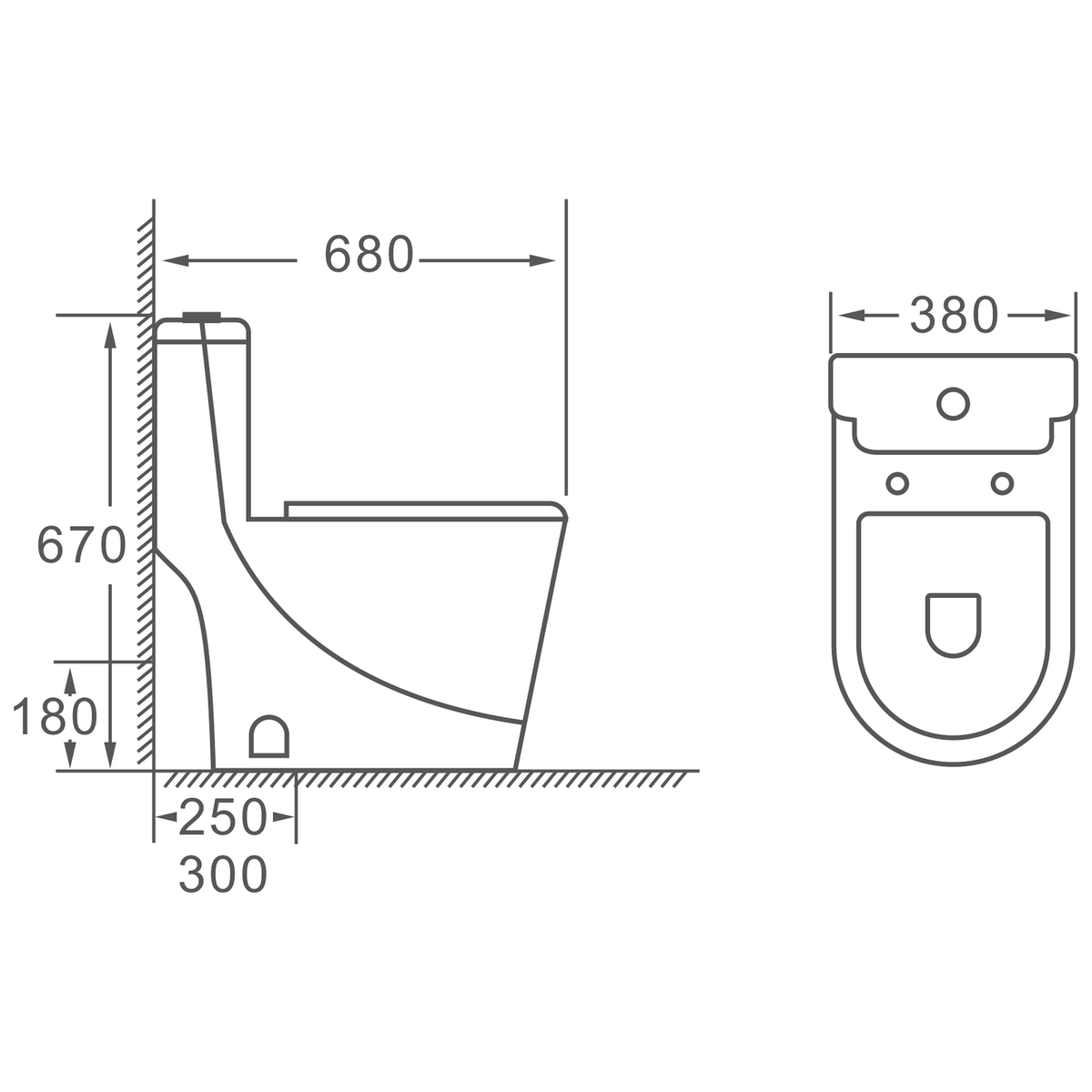

Height on HSJ-2202 is 670 mm (26.4 in), lower than its 680 mm (26.8 in) length. Width is 380 mm (15.0 in). Length is the largest of the printed figures, and width is the smallest. Verify against the official technical drawing before fabrication of surrounding finishes. The catalog lists length, width and height for this code and no other size figure. Record each printed value on the room data sheet for the fit-out team.
