SANIKB HSJ-2495 26 inch washdown one piece toilet 10/12 inch rough inSANIKB HSJ-2495 one-piece toilet dimension drawing, 660 × 360 × 850 mm
01 / 02
01 / 02

26 Inch Washdown One-Piece Toilet, 10/12 Inch Rough-In

SKU HSJ-2495
Min. order
1 unit (with freight forwarder) or 1×20ft container
Lead time
30–45 days
Reply time
12 business hours
Material Ceramic
Type One-piece toilet
Size 26.0" × 14.2" × 33.5" (660 × 360 × 850 mm) Custom sizes
Mount Floor-mounted, S-trap or P-trap
Finish
White
Rough-in S-trap 250 / 300 mm (10 / 12 in); P-trap 180 mm
Flush Washdown
Product PDF HSJ-2495

HSJ-2495 is a 26 inch washdown one-piece toilet in white ceramic. Floor drains connect through an S-trap at 250 mm (10 in) or 300 mm (12 in) rough-in, and wall drains through a 180 mm P-trap outlet. The catalog prints one size for the model: 660 × 360 × 850 mm (26.0 × 14.2 × 33.5 in). Length is 660 mm and overall height is 850 mm.

Find other lengths and heights in the one-piece toilet range.

Product PDF HSJ-2495

More in 12 Inch Rough-In Toilets

Mix any models in one 20ft container · no per-model minimum

View all 74

Fit data

Rough-in, flush and size of HSJ-2495

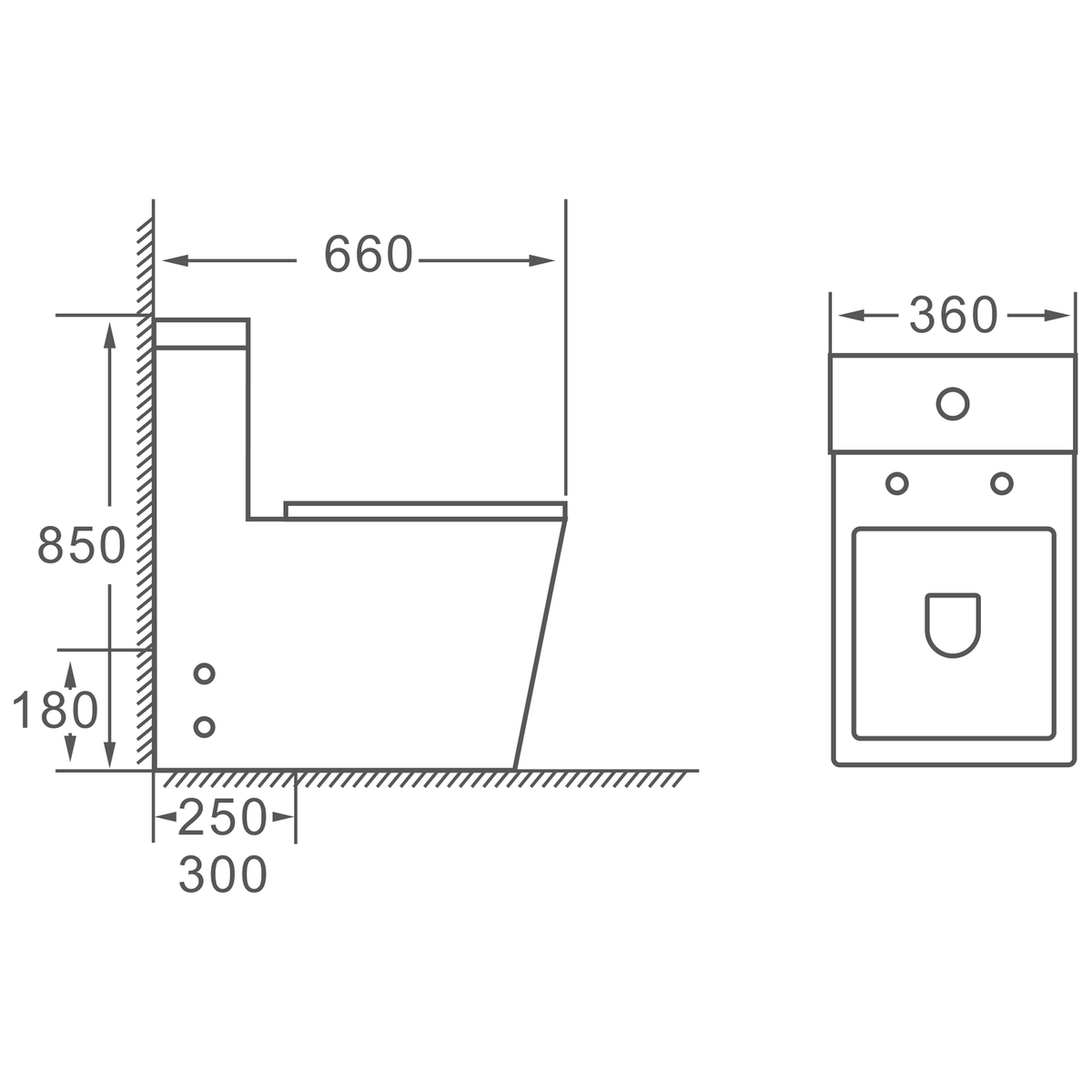

SANIKB HSJ-2495 one-piece toilet dimension drawing, 660 × 360 × 850 mm
Dimension drawing
Rough-inS-trap 250 / 300 mm (10 / 12 in); P-trap 180 mm
FlushWashdown
Overall size26.0" × 14.2" × 33.5" (660 × 360 × 850 mm)
Colour White

Send a spec. Get a real quote in 12 business hours.

Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about 26 Inch Washdown One-Piece Toilet, 10/12 Inch Rough-In SKU HSJ-2495
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Size Figures

    Printed Size of the 26 Inch Washdown One Piece Toilet, 10/12 Inch Rough-In

    HSJ-2495 is printed at 660 × 360 × 850 mm (26.0 × 14.2 × 33.5 in).

    Length, 660 mm
    26.0 in
    Width, 360 mm
    14.2 in
    Height, 850 mm
    33.5 in
    Outlet versions listed
    3

    Overall height is printed as 850 mm (33.5 in).

    Trade buyers can pass these figures to installers with the order.

    Verify against the official technical drawing before fabrication.

    Bowl & Flush

    Washdown Flush on the 660 × 360 mm Body

    Washdown is the one flush type printed for HSJ-2495.

    Flush system
    Washdown

    HSJ-2495 quote checklist

    • Model: HSJ-2495
    • Outlet: S-trap rough-in (250 or 300 mm) or 180 mm P-trap
    • Quantity split by outlet
    • Destination market
    • Carton marking
    Request HSJ-2495 Quote View OEM & ODM Program

    Ceramic Body

    White Ceramic One-Piece Body

    HSJ-2495 is a floor-mounted one-piece toilet in white ceramic.

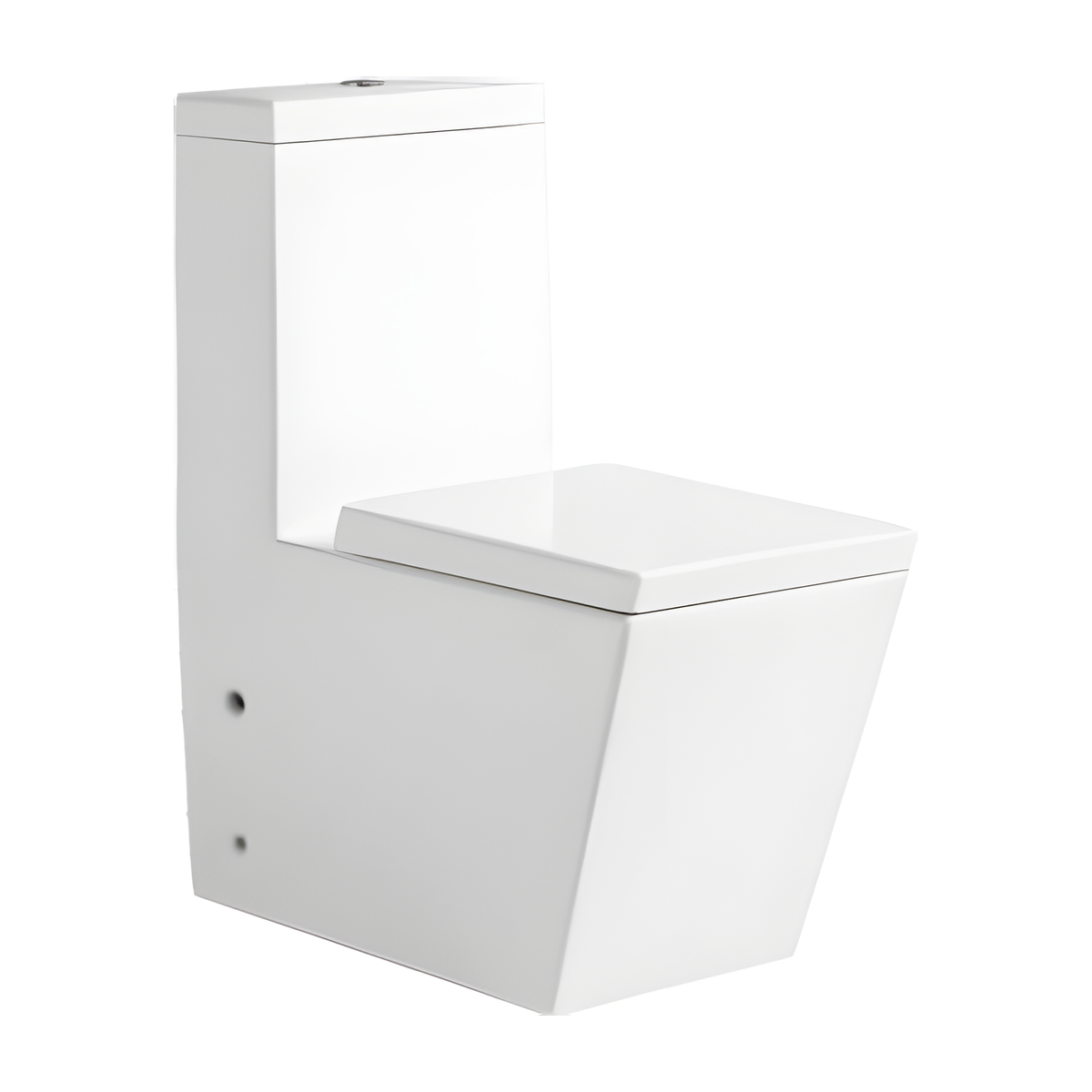

    SANIKB HSJ-2495 26 inch washdown one piece toilet 10/12 inch rough in

    White

    One-Piece in White

    Tank and bowl are joined in one-piece construction. White is the single listed color.

    Color is fixed at white, so the RFQ only varies outlet and quantity.

    Paperwork by Region

    Naming the Selling Region on the RFQ

    Market-Matched Documents

    Certification documents for HSJ-2495 are matched to the destination market at quotation.

    Projects selling into more than one region can list each region on the RFQ.

    Range Neighbor

    HSJ-1180 as the Alternative to HSJ-2495

    01 / HSJ-2495

    660 × 360 × 850 mm

    Washdown; S-trap 250 / 300 mm, P-trap 180 mm.

    02 / HSJ-1180

    670 × 360 × 800 mm

    Washdown; S-trap 250 mm, P-trap 180 mm.

    HSJ-2495 prints 660 × 360 × 850 mm; HSJ-1180 prints 670 × 360 × 800 mm.

    HSJ-2495 and HSJ-1180 both list washdown flush.

    Waste Outlet

    Drain Positions HSJ-2495 Covers

    HSJ-2495 is listed with 2 S-trap rough-ins and a 180 mm P-trap outlet.

    S-trap rough-in
    250 mm (10 in) / 300 mm (12 in)
    P-trap outlet height
    180 mm
    Outlet versions
    3

    The P-trap figure is the listed rear-outlet height, not a rough-in distance.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    How tall is the 26 inch washdown one-piece toilet, 10/12 inch rough-in, HSJ-2495?+
    HSJ-2495 is 850 mm (33.5 in) tall, the height in its printed 660 × 360 × 850 mm size. Length of 660 mm (26.0 in) gives the 26 inch name, and width is 360 mm (14.2 in). The washdown body prints the same height for both S-trap rough-ins. Other heights appear across the one-piece toilet range.
    How does HSJ-2495 compare with HSJ-1180?+
    HSJ-2495 prints 660 × 360 × 850 mm; the HSJ-1180 one-piece toilet prints 670 × 360 × 800 mm. Both print washdown flush and a 180 mm P-trap. HSJ-2495 prints S-trap at 250 and 300 mm; HSJ-1180 prints 250 mm. Of the two, only HSJ-2495 prints a 12 inch S-trap, and its 850 mm height is the taller printed figure.
    Which drains fit HSJ-2495?+
    HSJ-2495 fits floor drains at 250 mm (10 in) or 300 mm (12 in) S-trap rough-in, and wall wastes through a 180 mm P-trap version. Each entry is its own RFQ line. Projects with mostly 10 inch drains can also browse the 10 inch rough-in toilet collection for more options.
