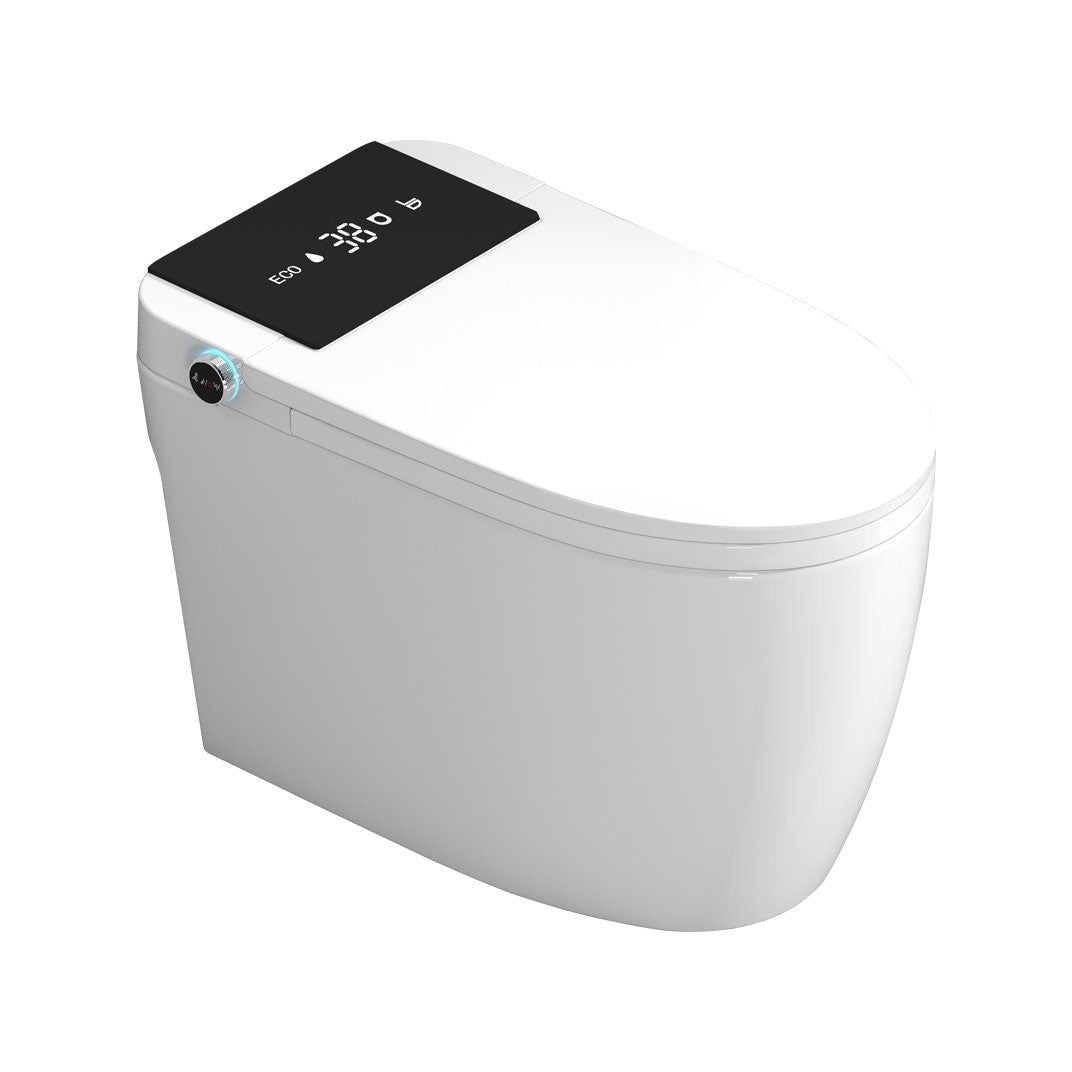

SANIKB 945 — Foot-Sensing Flush Smart Bidet Toilet with UV Sterilisation and Heated SeatSANIKB 945 dimension drawingSANIKB 945 — Foot-Sensing Flush Smart Bidet Toilet with UV Sterilisation and Heated Seat (feature 1)SANIKB 945 — Foot-Sensing Flush Smart Bidet Toilet with UV Sterilisation and Heated Seat (feature 2)SANIKB 945 — Foot-Sensing Flush Smart Bidet Toilet with UV Sterilisation and Heated Seat (feature 3)
01 / 05

Foot-Sensing Flush Smart Bidet Toilet with UV Sterilisation and Heated Seat

SKU 945
Certification
cUPC certification markETL Listed certification markWaterSense certification markADA certification markMaP certification markCE certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material Vitreous china ceramic
Type Intelligent (smart) toilet
Size 26.8" × 16.1" × 18.3" (680 × 410 × 465 mm) Custom sizes
Mount Floor-mounted, S-trap
Finish
White
Rough-in S-trap 200 / 250 / 300 mm · P-trap 180 mm
Flush Siphon
Water use 4.8 L / 1.28 gpf
Electrical AC 110 V, 60 Hz
Protection IPX4
Heating Instant heating
Configuration A: manual open · B: auto open · D: manual open + built-in tank · E: auto open + built-in tank. Optional: bubble; voice control.
Volume (CBM) 0.205275
Net weight 42 kg
Gross weight 45 kg
Product PDF 945

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

SANIKB 945 is a floor-mounted intelligent toilet measuring 680 × 410 × 465 mm, with an integrated bidet seat, instant-heating water, warm-air drying and a heated seat. It runs on AC 110 V / 60 Hz with IPX4 protection and a siphonic 1.28 gpf (4.8 L) flush. Supplied factory-direct to distributors, private-label brands, hotel and multi-unit residential projects; MOQ 20 pcs, mixed 1×20 ft container accepted, quotes returned within 12 business hours.

Compare footprints and control layouts across the SANIKB smart toilet range.

Product PDF 945

More in Smart Toilet Manufacturer

20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

View all 30

Fit data

Rough-in, flush and size of 945

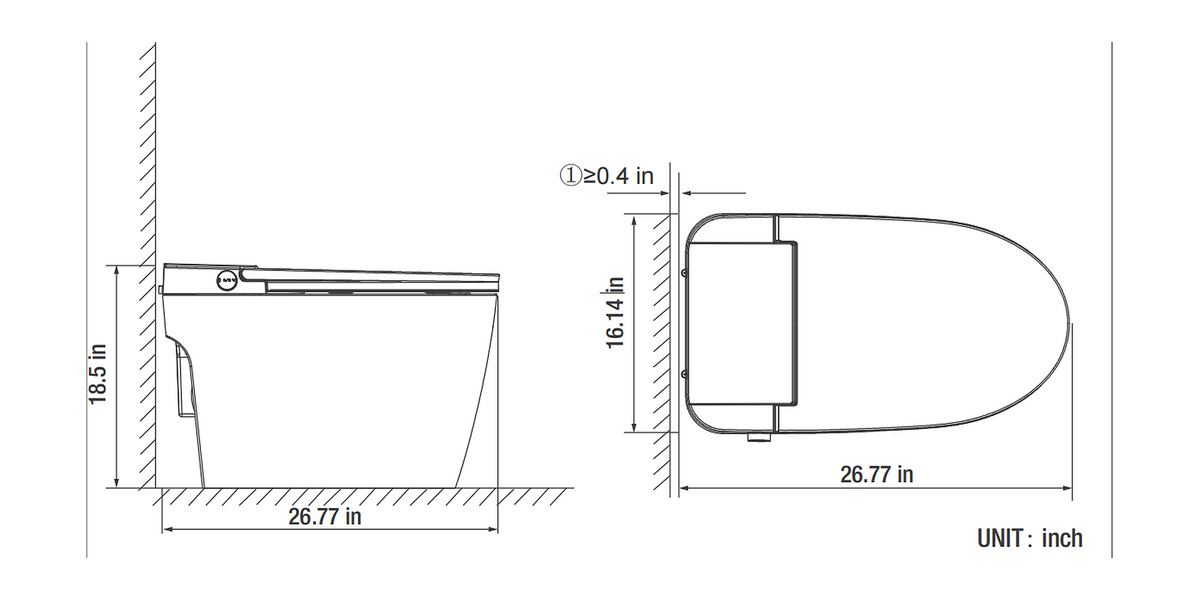

SANIKB 945 dimension drawing
Dimension drawing
Rough-inS-trap 200 / 250 / 300 mm · P-trap 180 mm
Water use4.8 L / 1.28 gpf
FlushSiphon
Overall size26.8" × 16.1" × 18.3" (680 × 410 × 465 mm)
PowerAC 110 V, 60 Hz
ProtectionIPX4
Colour White

Send a spec. Get a real quote in 1 business day.

Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about Foot-Sensing Flush Smart Bidet Toilet with UV Sterilisation and Heated Seat SKU 945
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.

Wholesale · 20 ft / 40 ft · Mix available

Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 1 business day

    12 editions of the International Builders' Show (IBS).

    — Most recent
    Feb 2026 KBIS · Orlando, USA
    Mar 2026 Expo Revestir · São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Project use

    A smart toilet for hotel, multifamily and showroom orders

    Hotel refurbishments, multifamily phases and showroom lines put the same question to any smart bidet toilet: how much has to be decided before the order goes in? On 945 the answer is four things, set at order and nothing else. They are lid type, tank option, trap position and optional extras. Everything below them is fixed by the specification, so a buyer can quote a room, a floor or a range from one sheet.

    01

    Hotel rooms

    Foot-sensing flush and off-seat auto flush give a hands free routine, and the LED night light covers overnight use.

    02

    Multifamily blocks

    A siphonic flush at 1.28 gallons per flush (4.8 L) gives the water-use line a schedule asks for.

    03

    Showroom lines

    UV sterilisation, a warm-air dryer, a heated seat and remote control give a display model plenty of smart features to demonstrate to trade visitors.

    Smart toilets are specified differently in each channel. A hotel group reads it as a room schedule line, a multifamily developer as a phased quantity, and a showroom chain as one entry in a mixed container. 945 serves all three because it ships from 20 pieces and loads with other SANIKB models. It is a complete smart toilet, not a bidet seat for an existing toilet, so the order carries one fixture per position.

    Compare other powered bodies in the smart toilet with bidet collection.

    Spec sheet

    Footprint, rough-in and power supply for 945

    945 occupies 680 mm by 410 mm on the floor and stands 465 mm high. Both units are shown below so a drawing set in inches or in millimetres can be checked directly.

    Overall size (inches)
    (26.8" × 16.1" × 18.3")
    Overall size (mm)
    680 × 410 × 465 mm
    Mount
    Floor-mounted, vitreous china
    Finish
    White
    Rough-in
    S-trap 305 mm (12 in) standard; S-trap 200 mm or 250 mm and P-trap 180 mm optional
    Flush
    Siphonic, 4.8 L (1.28 gallons per flush)
    Electrical
    AC 110 V / 60 Hz, IPX4, instant heating
    Net / gross weight
    42 kg / 45 kg
    Carton volume
    0.205275 CBM
    MOQ
    20 pcs

    Trap choice is the one decision that is hard to reverse on site. The four positions are S-trap at 305 mm, S-trap at 200 mm, S-trap at 250 mm and P-trap at 180 mm. Each puts the outlet somewhere different, so the trap belongs in the drawing set before the drain is cut.

    Power is the second item for the services schedule. 945 runs on AC 110 V / 60 Hz, so each position needs an electrical outlet next to the water inlet and the drain. IPX4 is the ingress protection rating on the specification.

    Weights and volume help the site team as well. Use the net and gross weights, 42 kg and 45 kg, to plan the delivery route and any floor-loading check, and the carton volume of 0.205275 CBM to plan pallet space on arrival.

    Check the destination supply against AC 110 V / 60 Hz before the order is fixed.

    Function list

    Twelve fitted functions, grouped the way a schedule reads

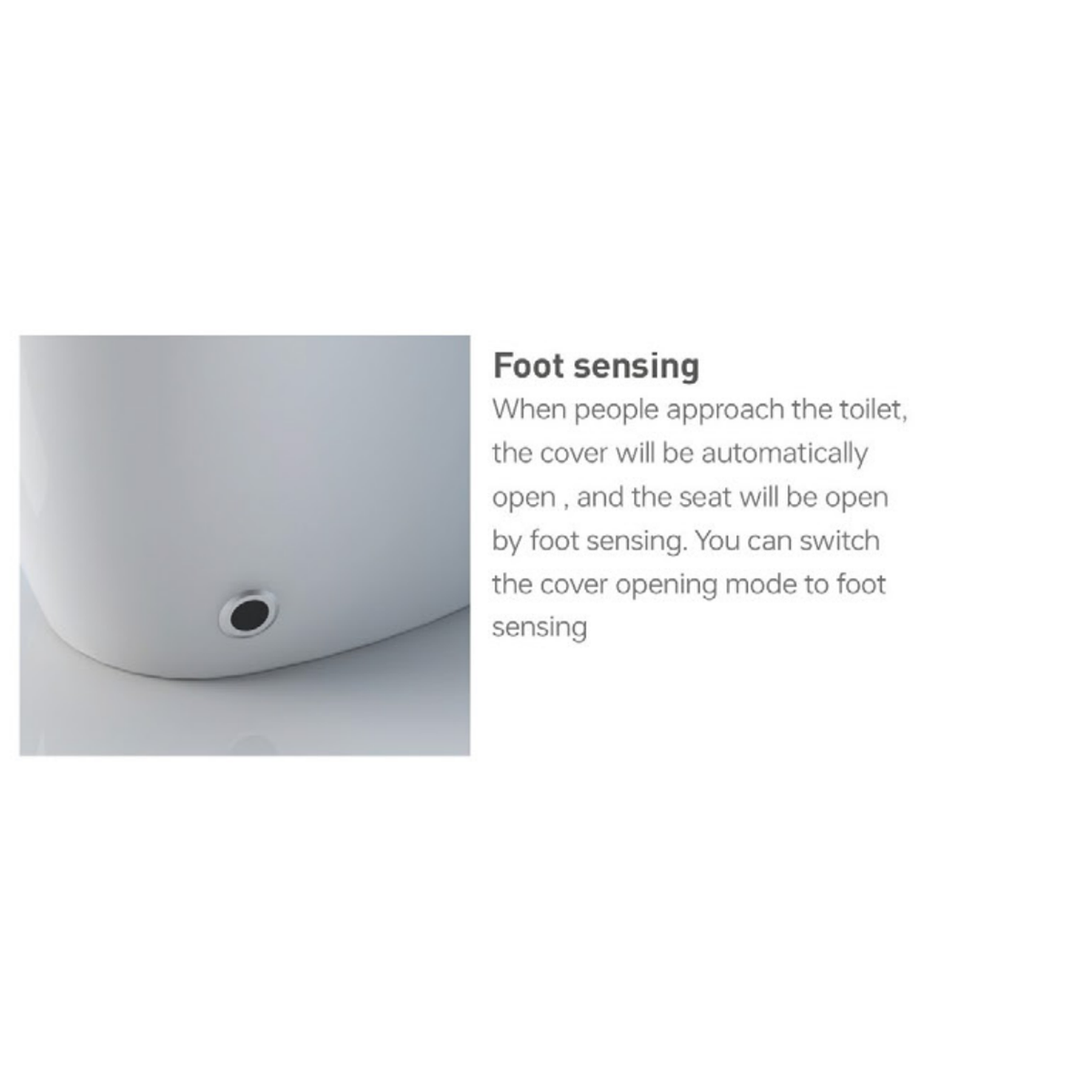

    Flushing comes first: foot-sensing flush, off-seat auto flush for automatic flushing, and a power-failure flush that still works when the supply drops. The bidet functions follow with rear and front wash, mobile and adjustable-nozzle wash, child wash and automatic temperature control, so the water temperature is managed without a manual mixer.

    Comfort and controls complete the list. A heated seat on the toilet seat, a warm-air dryer, a remote control, and an LED display with night light are fitted, together with UV sterilisation. Water heating is instant heating, and the whole body is a vitreous china toilet bowl with the bidet seat built in.

    That makes twelve functions, and all of them are fitted equipment, so a quotation can name each one against your room specification.

    Unlike a traditional toilet, a smart toilet like 945 carries equipment that someone has to specify. For a consultant, the useful step is to turn this list into a tick-box column on the room schedule. Anything left unticked is simply not part of the order, which keeps site handover short.

    Order codes

    Codes A, B, D and E: lid and tank choices

    Four configuration codes cover lid type and tank option on 945. Each order line names one code, so mixed rooms need mixed lines.

    A

    A: manual open

    Manual-open lid, no built-in tank. Quote it where the lid is lifted by hand.

    B

    B: auto open

    Auto-open lid and no built-in tank, for rooms where the lid should rise without a hand on it.

    D

    D: manual open with tank

    Manual-open lid with the built-in tank, for projects that want the tank option on the same body.

    E

    E: auto open with tank

    Auto-open lid with the built-in tank, combining both choices in a single code.

    If a project mixes manual and auto lids across floors, write each code as its own line so the packing list can follow the room schedule.

    Document pack

    Paperwork to request before a 945 submittal

    Product documents

    Request the compliance documents and validity date for 945 with the spec sheet.

    Three items make up the document request: the current compliance documents with their validity, the spec sheet for 945, and the electrical rating of AC 110 V / 60 Hz with IPX4. Consultants check these three against the destination market before they approve a fixture of this type.

    Name the reviewing body when you enquire. A building authority, a hotel brand standard and a distributor's compliance team may each ask for a different cut of the same pack, and it is faster to learn that at quotation than at delivery.

    Ordering

    MOQ, container loading and lead time for 945

    MOQ
    20 pcs
    Lead time
    20–45 days after deposit
    Container
    Mixed 1×20 ft accepted
    Net / gross weight
    42 kg / 45 kg

    945 starts at 20 pieces and can share a mixed 1×20 ft container with other SANIKB models, so a showroom range does not need a full container of one code. Lead time runs 20 to 45 days after deposit.

    Settle lid type, tank code, trap position and extras before the deposit is paid. Net weight is 42 kg, gross weight 45 kg and carton volume 0.205275 CBM, the three figures a forwarder asks for first.

    Private-label and tooling work goes through the SANIKB OEM and ODM program.

    Send with your RFQ

    • Code A, B, D or E, and the lid type
    • Trap position: S-trap 305, 200 or 250 mm, or P-trap 180 mm
    • Foam shield and voice control, if required
    • Destination market and site supply for the AC 110 V / 60 Hz check
    • Quantity, destination port and Incoterm

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 1 business day
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    1 business day Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request

    FAQs

    What rough-in does the 945 smart toilet need?+
    S-trap at 305 mm (12 in) is the standard rough-in for 945. Three alternatives can be selected at order: S-trap at 200 mm, S-trap at 250 mm and P-trap at 180 mm. Because the outlet lands in a different spot for each, lock the trap before the plumber receives the point schedule. If a drain already exists on site, send its distance from the wall and we confirm the right code. Related range: 12 inch rough-in toilets.
    How much water does one flush use, and is it siphonic?+
    Yes, the flush is siphonic and uses 1.28 gallons (4.8 L) per flush, a figure you can carry straight into a project water-use schedule for this smart toilet. A power-failure flush is also fitted, so the toilet can still be flushed if the supply drops. Foot-sensing flush and off-seat auto flush are the normal operating modes, and the power-failure flush is the fallback. The remote control covers the heated seat and the other bidet functions.
    What power supply does a smart bidet toilet like 945 need?+
    945 runs on AC 110 V / 60 Hz with IPX4 ingress protection, and water is heated instantly. Each toilet position therefore needs an electrical outlet beside the water inlet and the drain. Check the rating against the supply at the destination before the order is fixed, and tell us the destination market if the voltage differs so we can discuss options before production. Do not leave the supply question until installation, because it affects the electrical schedule, not just the plumbing.
    Which configurations of 945 can we order?+
    Four codes cover lid and tank: A is manual open, B is auto open, D is manual open with a built-in tank, and E is auto open with a built-in tank. A foam shield and voice control are optional extras. Name one code on each order line, and settle the choice before the deposit because it is selected at order. Every code includes the heated seat, the smart bidet functions and the UV sterilisation.
    What documents come with 945, and how fast do you reply?+
    For 945, ask for the current compliance documents, their validity date and the spec sheet when you assemble a submittal. Material, type, mount, finish, size and MOQ are all on that sheet. Quotations and document requests are answered within 12 business hours, and we can add OEM or private-label terms to the same quotation.
