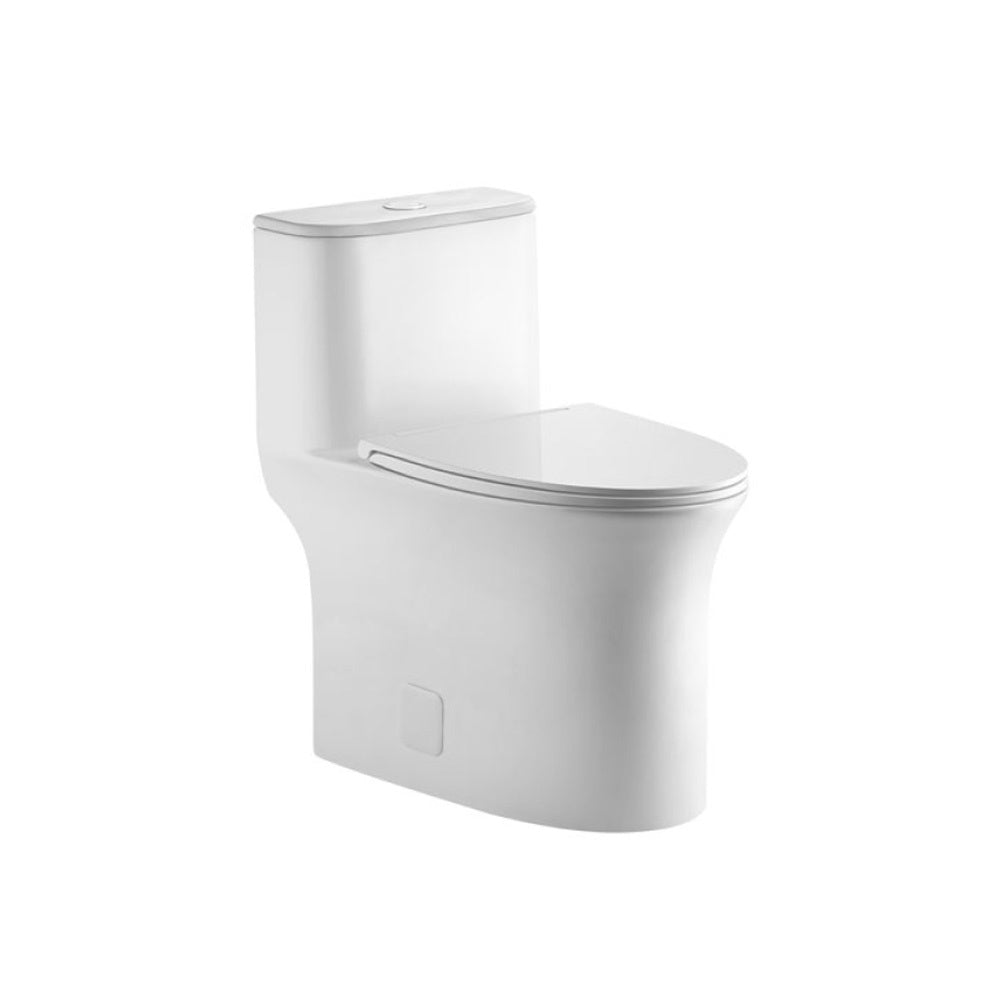

Siphon Jet One-Piece Toilet with 3-Inch Flush Valve, Fully Glazed Trapway

On 1939 the flush is published as siphonic with a jet flush port. Those two terms describe how the flush is built. They are not a rated performance figure, and they should not be entered on a submittal as one.

If your specification calls for a rated flush performance value, request it in writing for the exact build you are ordering. The single flush build is 1.28 gpf (4.8 L) and the dual flush build is 1.06 / 1.28 gpf, and the two are not interchangeable once the documentation is issued.

The published figures for this model, in the form used on the specification sheet.

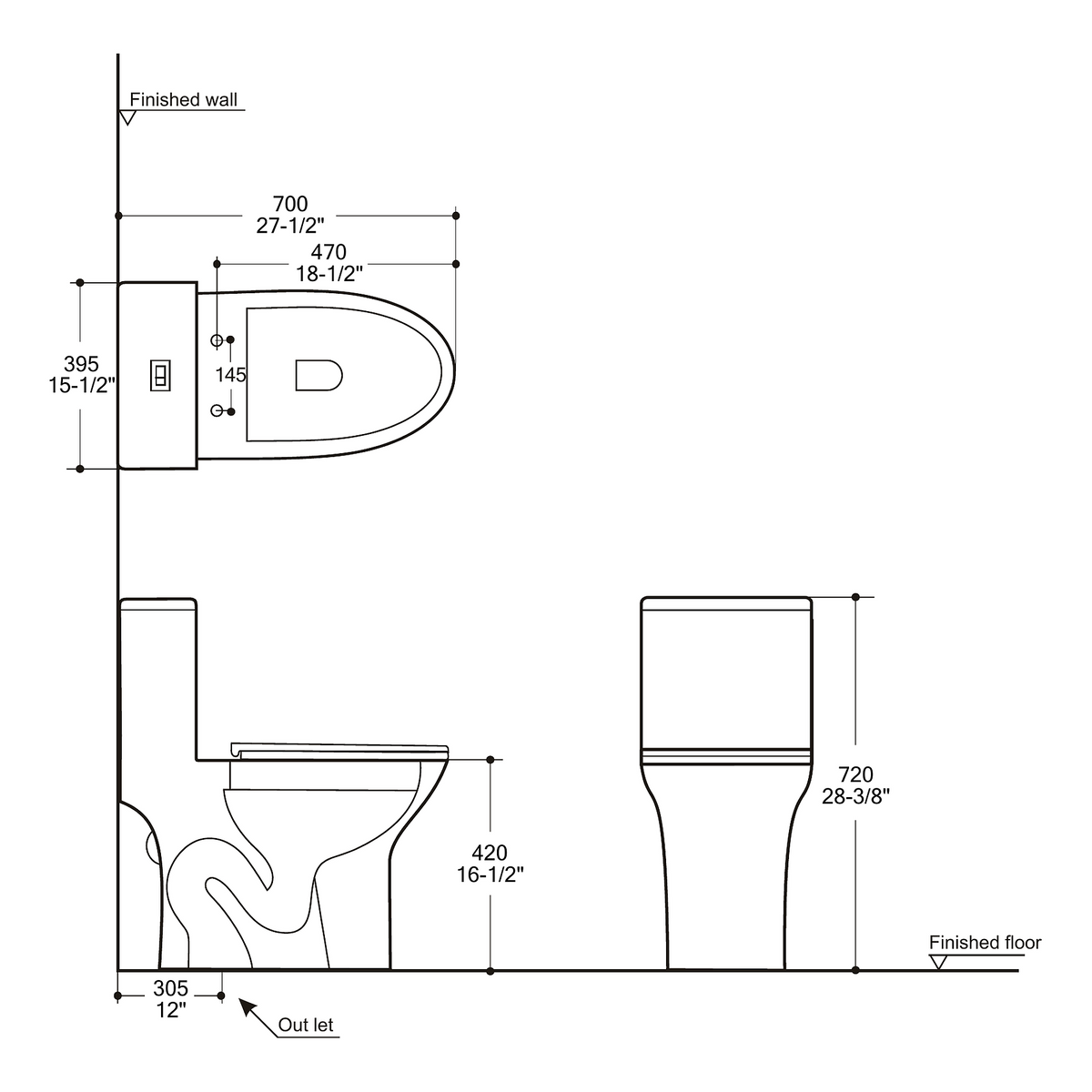

• Overall size 700 × 395 × 720 mm (27.6" × 15.6" × 28.3")
• , floor-mounted, S-trap
• Rough-in 305 mm (12 in) from finished wall to outlet centre
• Ceramic rim height 420 mm (16.5 in), measured to the china rim, seat not included
• Siphonic flush, jet flush port, 3 in flush valve, fully glazed trapway
• Single flush 1.28 gpf (4.8 L) standard; 1.06 / 1.28 gpf dual flush on request
• Glossy white; cUPC listed; MOQ 50 pcs, mixed 1×20 ft container accepted

The rough-in is the first figure to check. 305 mm (12 in) is measured from the finished wall to the outlet centre, and the outlet is an S-trap. A drain set at another distance will not take this body without rework.

The footprint is , and overall height is 28.3 inches. Ceramic rim height is 420 mm (16.5 in) to the china rim, seat not included; keep that distinction when the figure is copied into a schedule.

. . Those four are fixed on the standard build.

Dual flush is not one of them. The 1.06 / 1.28 gpf version is made to order on request, so it belongs in the quotation, not in a filter for stock attributes. Browse the rest of the <a href="/collections/one-piece-toilet">one-piece toilet</a> range on the same four attributes when you need a second model for the same drain set-out.

MOQ is 50 pieces for 1939 and lead time is 30 to 45 days after deposit. A mixed 1×20 ft container is accepted, so the 50 pieces can be loaded alongside other models rather than filling a container on their own.

Name the flush build before the deposit. The dual flush version is made to order, and changing it after the deposit changes both the schedule and the figures printed on the documentation.

1939 is cUPC listed. Request the current listing number and certificate validity before the model goes into a submittal, so the documentation matches your destination market at the time you file it.

The submittal pack is the drawing, the specification sheet and the cUPC listing details, issued against the flush build you name. Document and quotation requests are answered within 12 business hours.
