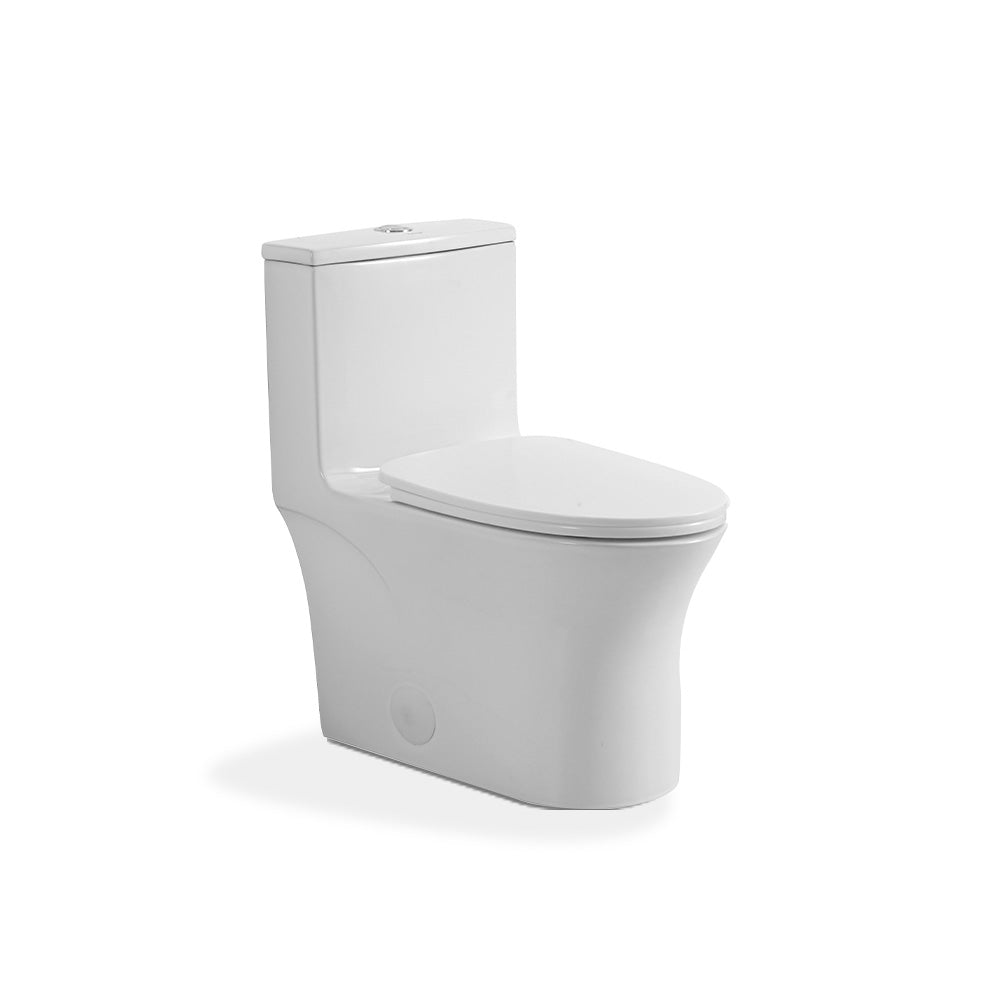

Skirted Elongated One-Piece Toilet, 400 mm Seat Concealed Trapway

Room planning starts with 700 mm of length, 400 mm of width and 770 mm of height. Those figures set the footprint of our skirted elongated one-piece toilet 400 mm seat model, from the wall behind the tank to the door swing in front.

Overall Size

27.6" × 15.7" × 30.3" (700 × 400 × 770 mm)

Length

700 mm

Width

400 mm

Height

770 mm

Seat

400 mm

Outlet

S trap, 12 inch rough-in

Flush

Dual flush, siphonic, top button

Mounting

Floor-mounted

Material

Vitreous china ceramic

Finish

Glossy white

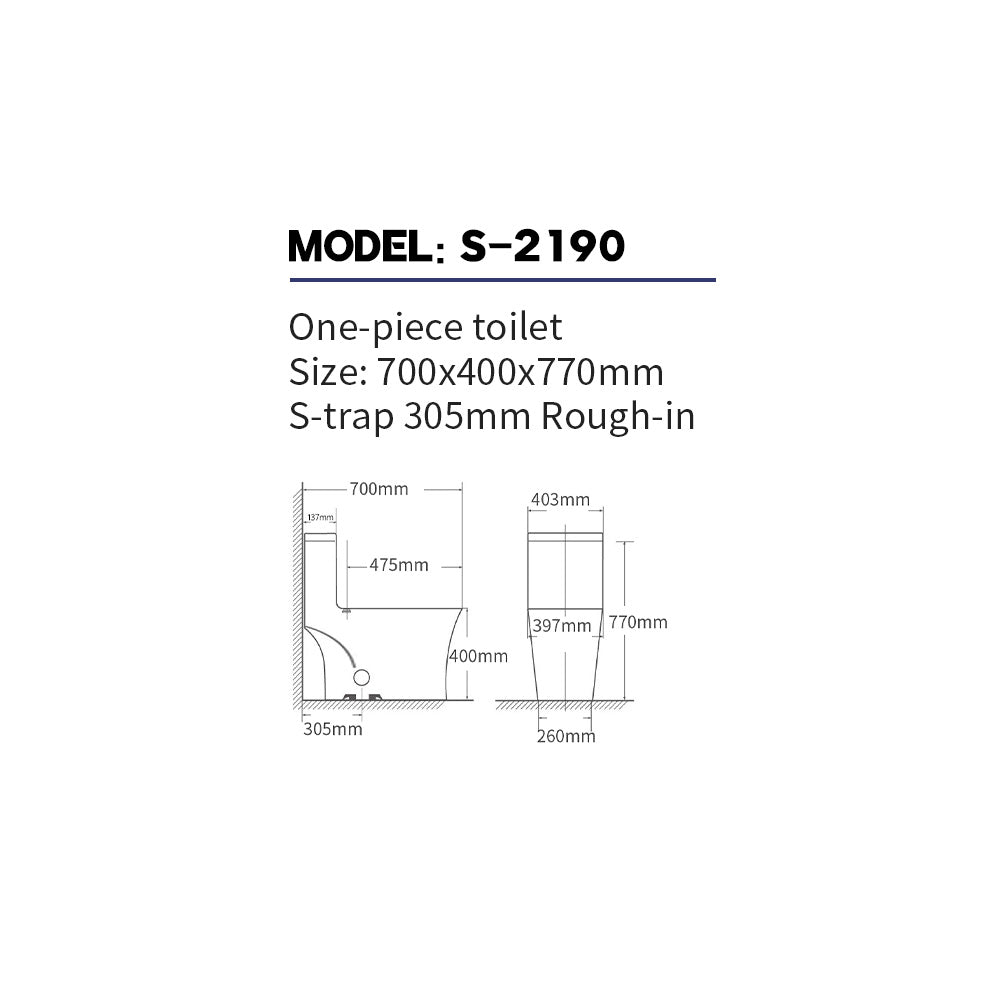

Mark the closet flange from the dimensioned drawing, not from the tank outline.

A concealed trapway means the S-shaped passage is wrapped inside the ceramic skirt rather than standing out beside the bowl. From the side, you see one glossy white surface running to the floor.

That matters in rental flats and hotel suites, where cleaning staff get one plain surface to wipe instead of a bowl with an exposed trap. It also keeps the toilet looking finished when the room is lightly furnished.

Cast as one piece, the body has no tank-to-bowl joint. Compared with a two piece toilet, there is one fewer joint to check at handover. Distributors comparing skirted toilets can list this one piece model for buyers who want the trapway out of sight.

MOQ

30 pcs

Lead time

30–45 days (typical)

Rough-in

12 inch

Documents

cUPC certified

One code covers the range, so there is no button option to specify on the order line. State quantity and destination port, and we add carton and marking details to the quotation. Retailers that list skirted toilets by seat width can place 2190 beside other one piece toilets in the same order.

We reply within 12 business hours. Private label and branded manuals are handled through our OEM and ODM service.

Specifiers who supply their own toilet seat should send the seat drawing with the enquiry. We compare it against the elongated bowl shape and the 400 mm width before production is confirmed. Order a new toilet and its seat together, so the fit is checked once before production.

Tank clearance matters too. At 770 mm in height, the body needs headroom beneath shelves and window sills, so check the finished wall build-up before you set the closet flange.

Distributors carrying several skirted toilets in different widths should keep the 400 mm seat code as the baseline and add wider models for rooms with extra space. This keeps one core product on every pallet and makes replenishment orders easy to forecast.
