Deep-Bowl Dual-Flush Seamless Skirted Elongated One-Piece Toilet, 28-Inch Projection
Send a spec. Get a real quote in 12h.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Deep Bowl Wording
A 710 mm projection listed with a deep bowl
The title describes 6636 as a deep bowl model with a 28 inch projection. The projection figure is published, the bowl depth is not.
Bowl depth is title language
Deep bowl is how the listing describes the shape. Ask for the sectional drawing before that phrase is repeated in your own catalogue.

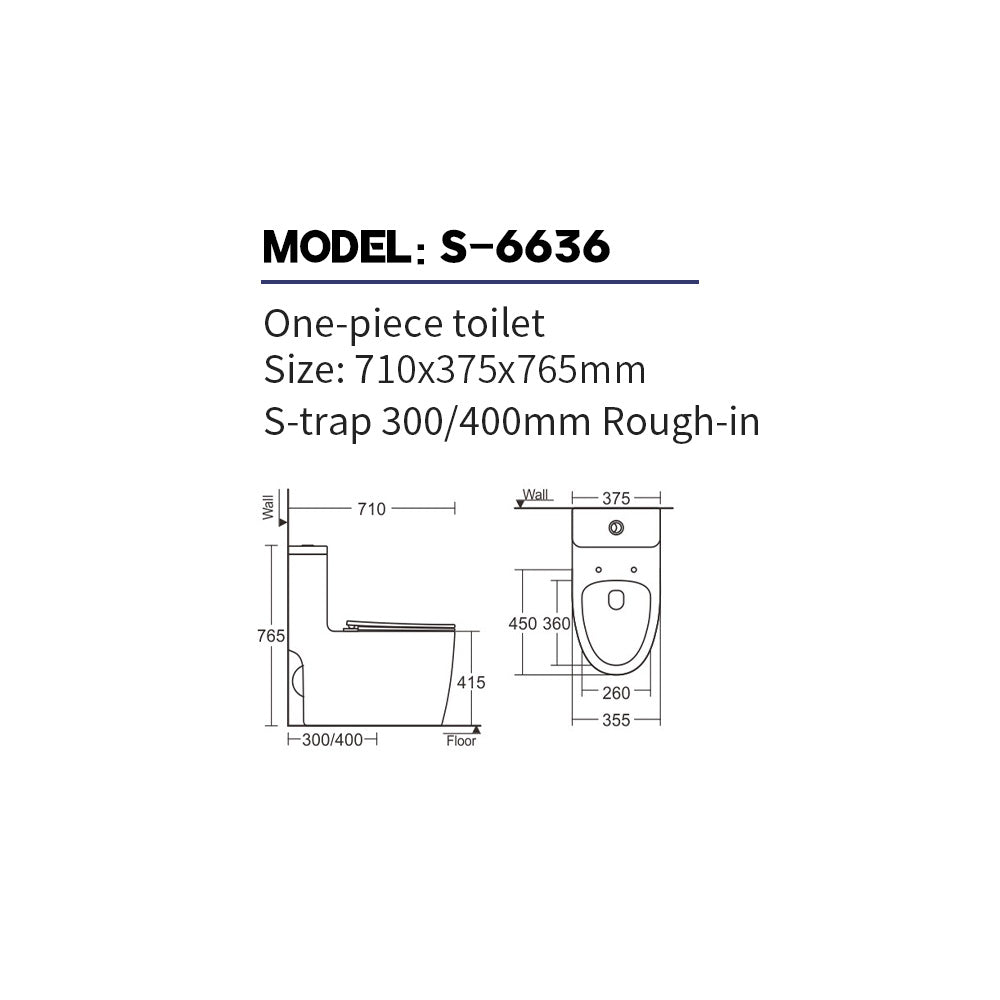

710 mm of published projection
Projection is the figure that governs how far the pan comes off the wall. It is the number to plot on a tight floor plan.
Flush control sits on the top face according to the tags. Comparable projections are listed under elongated one-piece toilets.
Fit & Clearance
Plotting 710 mm of reach on a floor plan
Projection is the entry that decides the plan on this model.
Projection and width move independently. A body can be long and still narrow, which is what the 375 mm width entry shows here.
The waste position has to come off the drawing and not off this size line. Rough-in and seat height are both absent from the published record.
Plot projection from the finished wall, not from the stud line.
Construction & Finish
Reading the finish line on model 6636
One line names the material and one names the colour.
Two lines and no more
The record gives a material and a colour. Anything about surface behaviour or production has to come from the factory in writing, not from this page.
The title also uses the word seamless for the skirt. Read that as a description of the styling and confirm the real profile on the drawing.
Ask the drawing to show the skirt line and the base outline.
Compliance
Claims that need evidence before a submittal
Before repeating a description in your own listing, ask for the drawing or the report behind it. That protects both sides.
Nothing in this record carries a certification. Descriptive phrases from a title are not evidence and will not survive a submittal review.
Review bodies differ from one country to the next. Name yours in the enquiry so the answer covers the right authority instead of a general one.
Procurement
What to settle in writing before 6636 is booked
The published floor for 6636 is 30 pieces.
Private label work on this model runs through the SANIKB OEM and ODM program. Product copy should be checked against the drawing first.
Include these details with the RFQ
- Quantity and delivery window
- Destination port and Incoterm
- Seat and cover scope
- Sectional drawing for bowl detail
- Flush valve specification
- Carton print and pallet quantity
- Documents required at destination
Ask for the sectional drawing before catalogue copy is written.
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
What defines Model 6636 and how is it constructed?+
What are the exact dimensions of 6636 and which projects does the slim depth suit?+
How does 6636 install and what should I verify on the rough-in?+
What flush system and button does 6636 use?+
How does 6636 compare with other standard dual-flush models in the range?+
If I need a single-flush or a different size class, what are the alternatives to 6636?+
What are the procurement terms — MOQ, OEM/ODM, and compliance for 6636?+

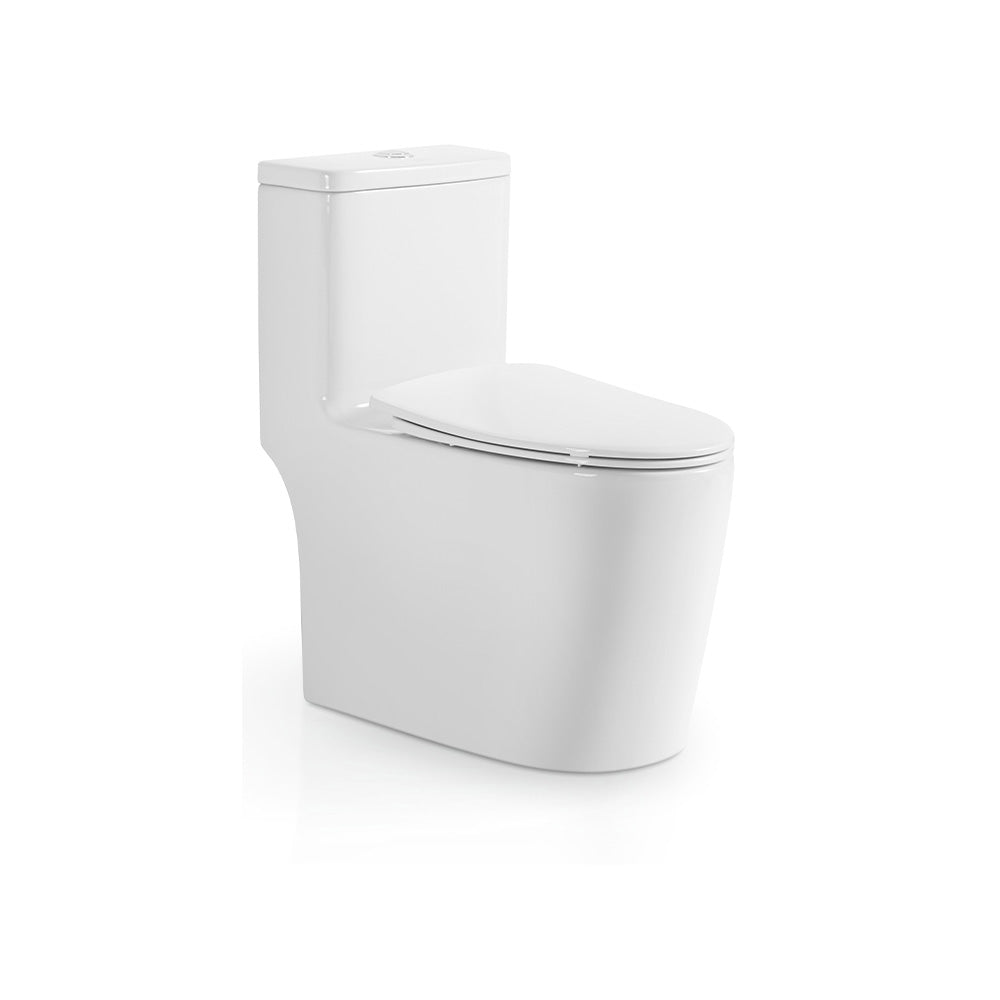

Model 6636 is a floor-mounted, one-piece toilet cast in glossy white vitreous china with an elongated bowl and a modern skirted, concealed-trapway body that wipes clean in seconds. It measures 28 x 14.8 x 30.1 in and sits in the standard-class size class, paired with a dual-flush valve actuated by a top button.
Model 6636 runs a siphonic dual-flush at a standard 1.28 GPF (4.8 L) full and about 0.8 GPF reduced, mounted to a standard 12 in (305 mm) rough-in so installers match common North American waste outlets. As factory-direct production, SANIKB controls vitreous-china casting, glazing and quality control in-house, and OEM flush volumes can be configured to your market water-consumption rules.
Key product details include:
- Model: 6636
- Material: White vitreous china (high-fired, fully glazed)
- Bowl: Elongated
- Trapway: Skirted (concealed)
- Flush: Dual-flush, siphonic, standard 1.28 GPF (4.8 L) full and about 0.8 GPF reduced
- Rough-in: Standard 12 in (305 mm)
- Actuation: Top button
- Dimensions (W x D x H): 28 x 14.8 x 30.1 in
- Mount: Floor-mounted
- Finish: Glossy white
- MOQ: 30 pcs
The standard-class footprint of Model 6636 makes it a practical specification for buyers standardizing one-piece toilets across a project. Typical fits include:
- Hotel guest rooms and multi-unit residential fit-outs
- Dealer floor stock and showroom display
- Light-commercial and project supply
- Buyers wanting a balanced, no-surprise footprint across an order
As a one-piece toilet OEM and ODM manufacturer, SANIKB supports private-label programs on Model 6636 so importers and brands can build a cohesive bathroom assortment under their own identity. Programs can include:
- Your logo and branding on the product and packaging
- Custom cartons, inserts and documentation
- Branded fittings and tailored model variants
- Configured flush volume to suit your market water-consumption rules
Model 6636 is supplied factory-direct at an MOQ of 30 pcs, which keeps trial orders and mixed-model container loads workable. Distributors, importers, dealers and project buyers deal with the manufacturer rather than a trading layer, with direct pricing and consistent batch quality across repeat orders. Combine Model 6636 with other sizes from the one-piece range in a single shipment, then request a quote with your target quantities and destination port.
Model 6636 is high-fired vitreous china, supplied cUPC-ready for North American projects, with exact certificate scope confirmed per model and market. In-house QC covers kiln firing, glaze coverage, water-tightness, flush-and-drain function and dimensional checks before packing, and the unit is crated in foam-cushioned export packaging engineered for ocean freight. Third-party and pre-shipment inspection are welcome so your team verifies build quality before goods leave the plant.
