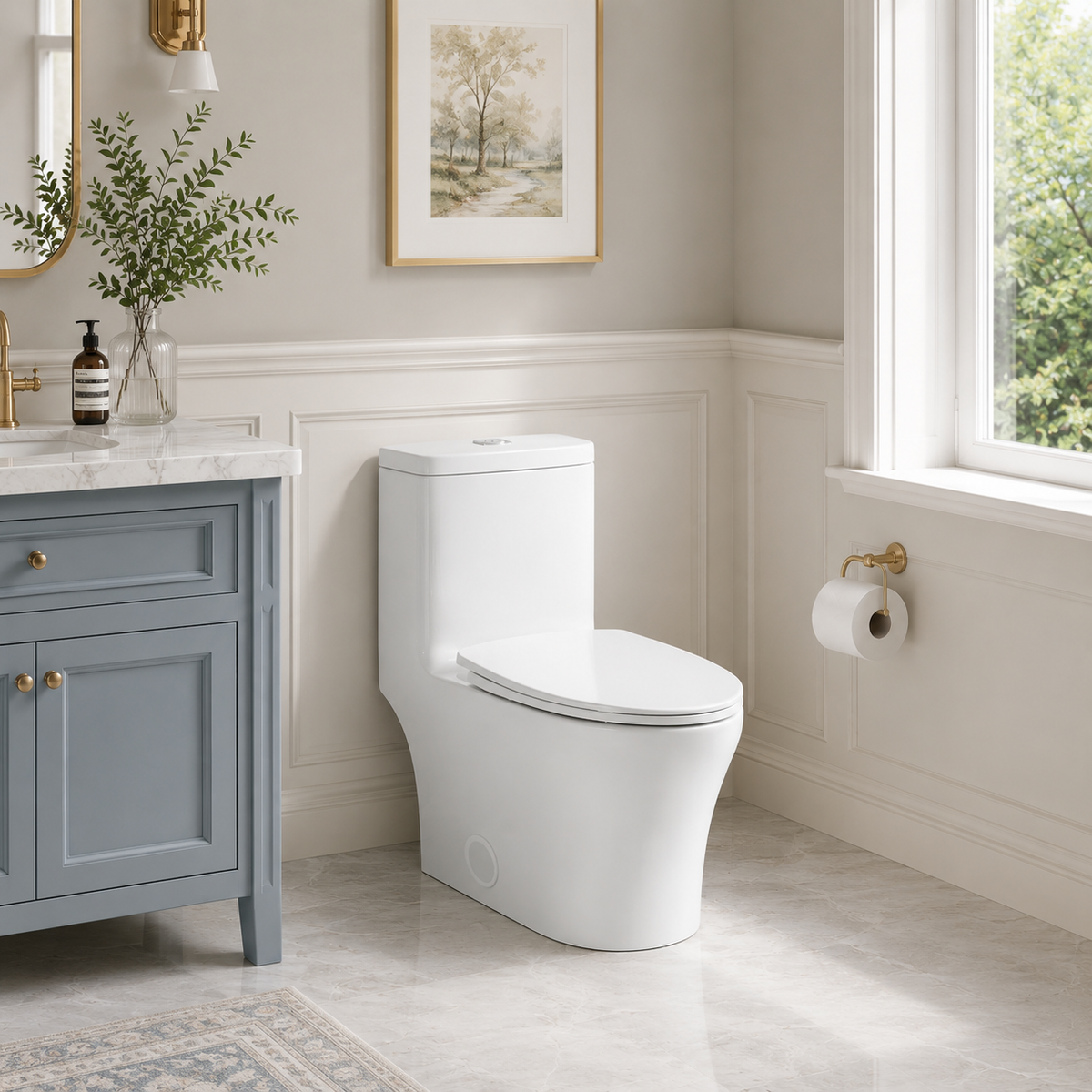

Squared-Tank Skirted Elongated One-Piece Toilet, Dual-Flush

Hotel corridors, multifamily blocks and master bath refits all ask for the same thing from a toilet: a clean outline and fast installation. Model 2213, a squared tank skirted one-piece toilet dual flush pan, answers with a skirted design that closes the sides of the base.

A skirted toilet leaves fewer exposed edges around the pan, and the squared tank keeps lines straight against tiled walls. Contractors fitting a new toilet in every unit can use one drawing for the whole building, and the skirted design reads the same in each room.

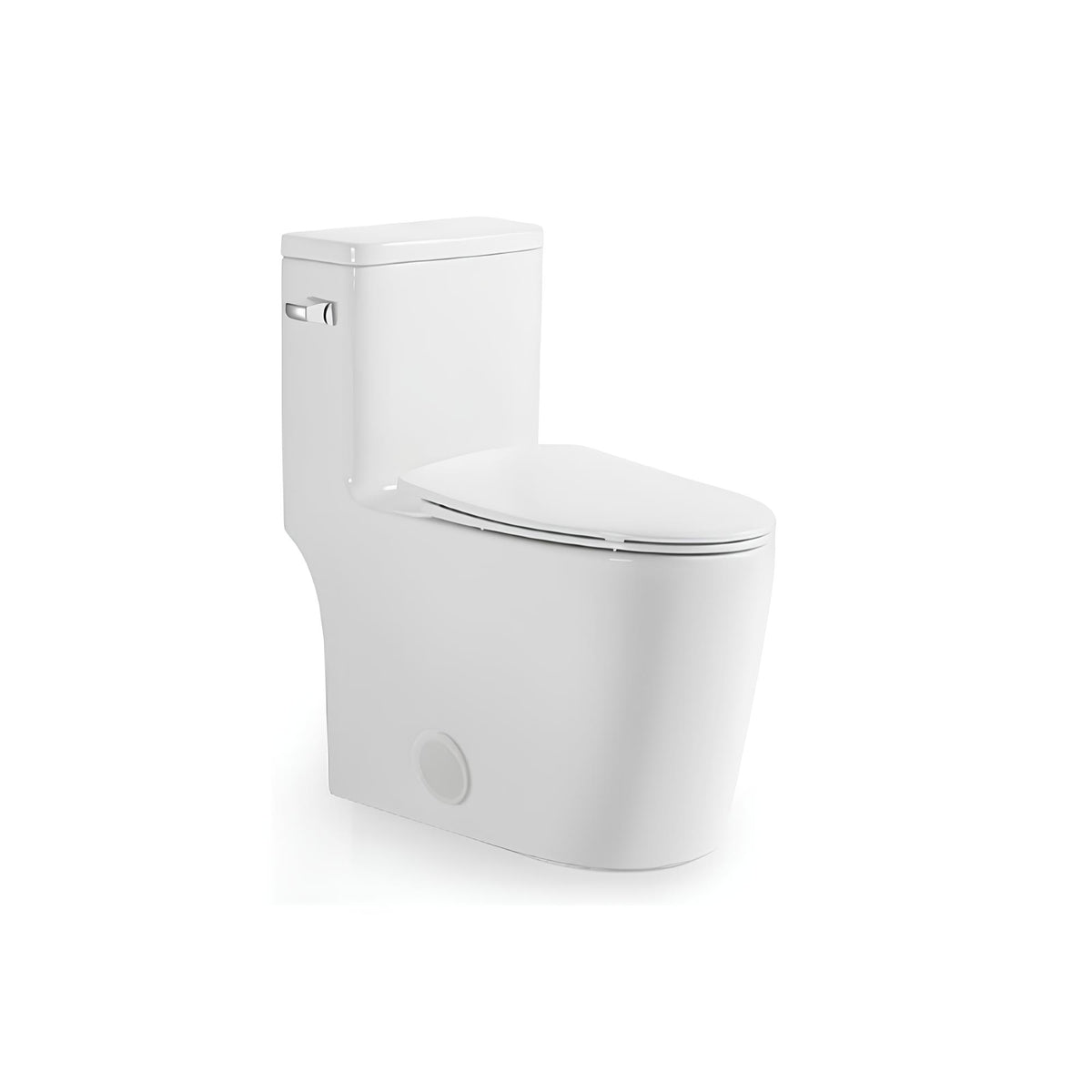

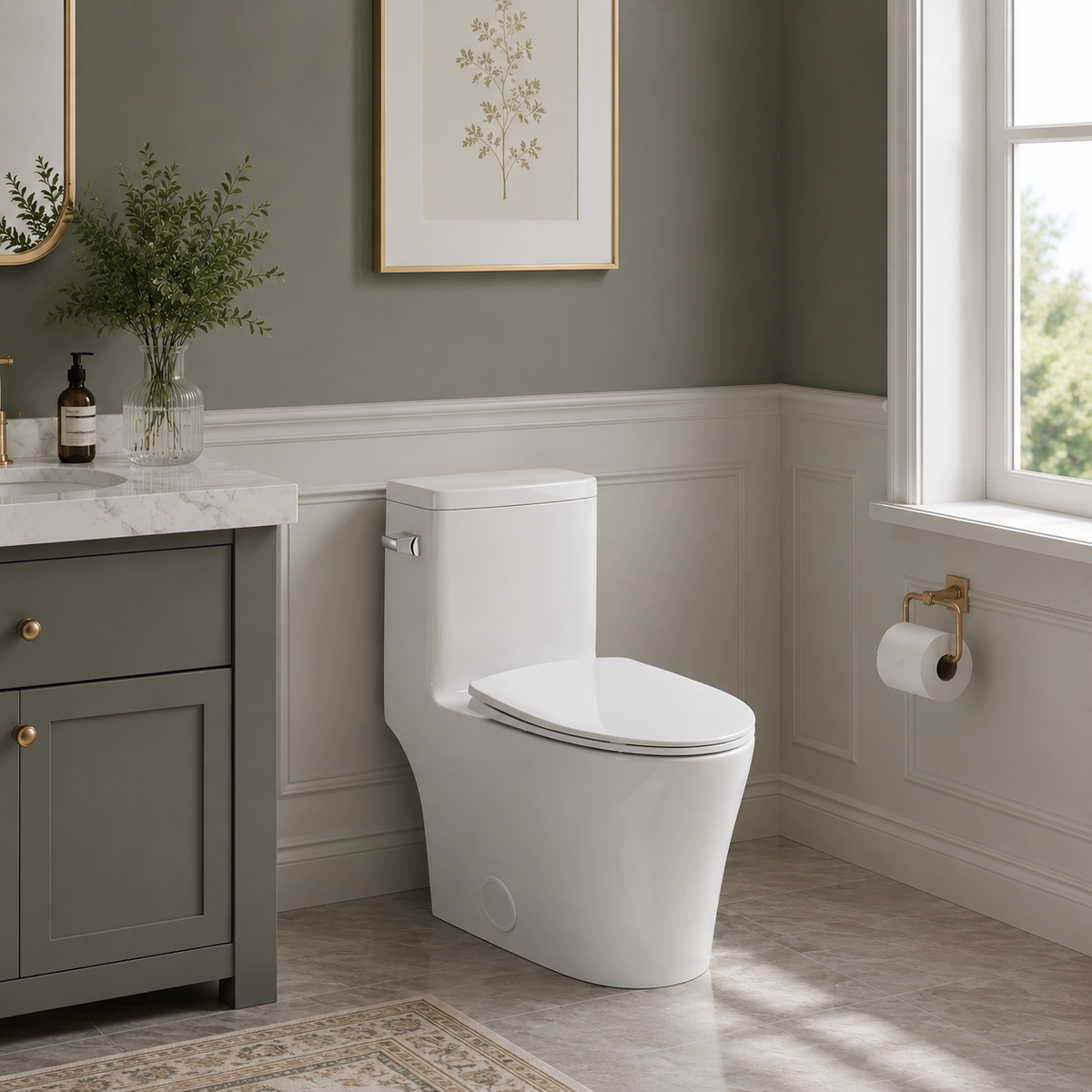

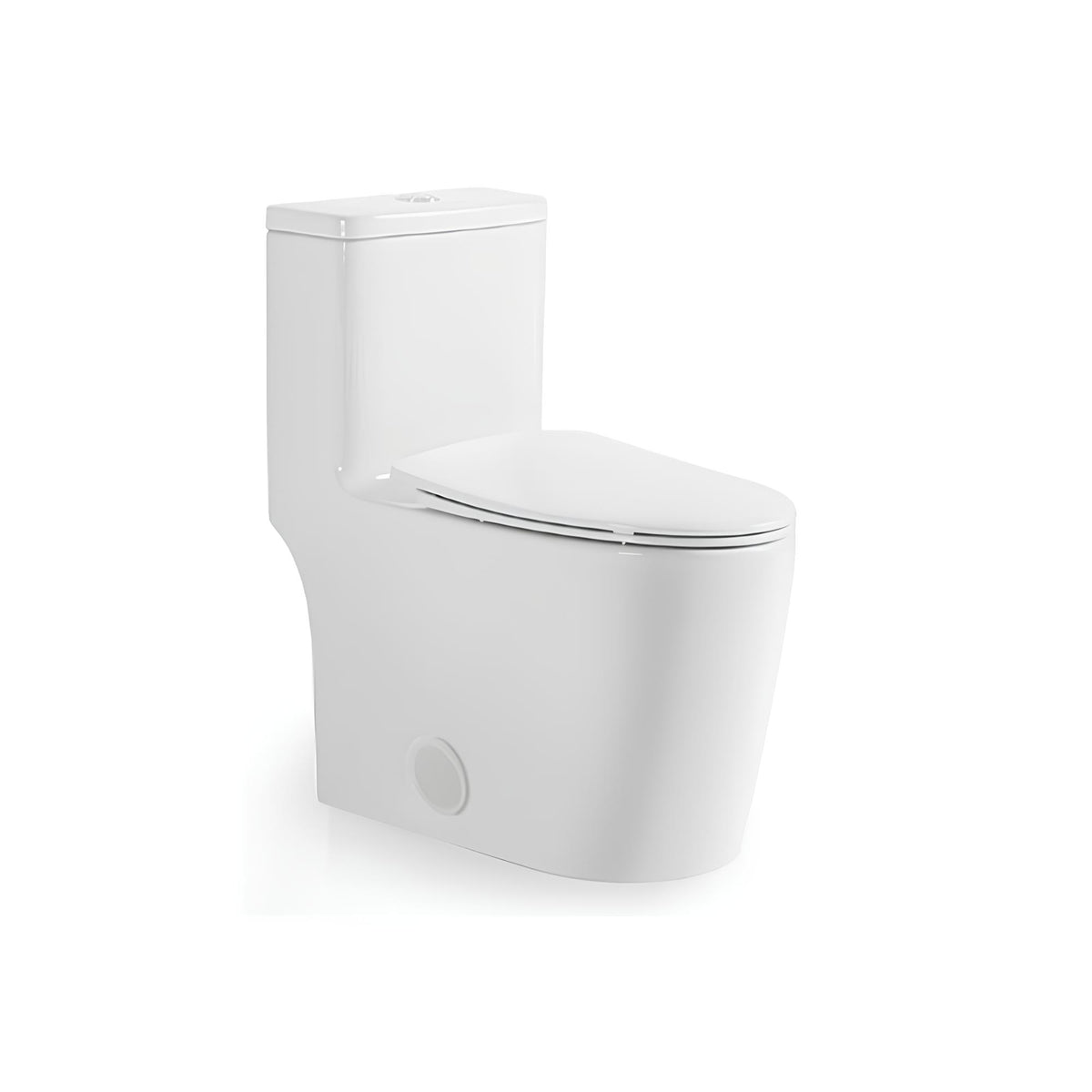

Two codes cover the flush button choice: 2213 carries the top button and 2213B the side button. Everything else on the two codes is identical.

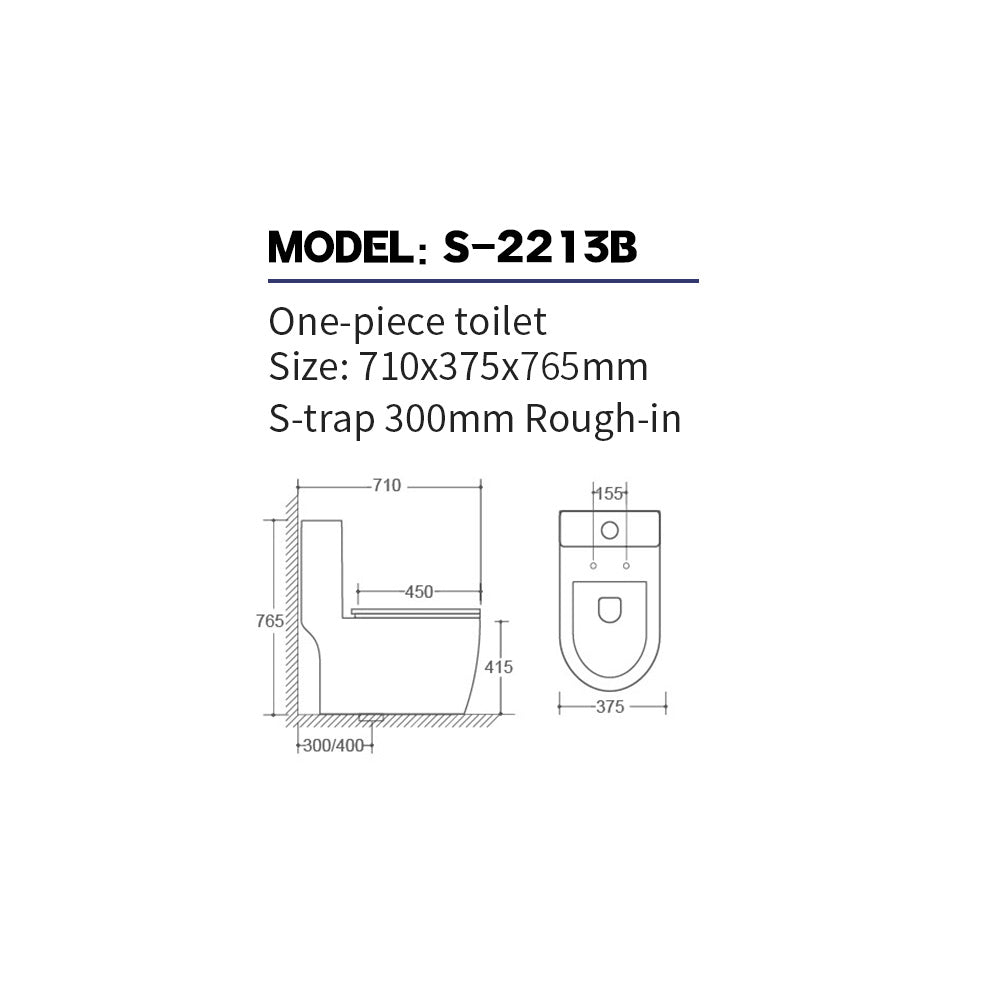

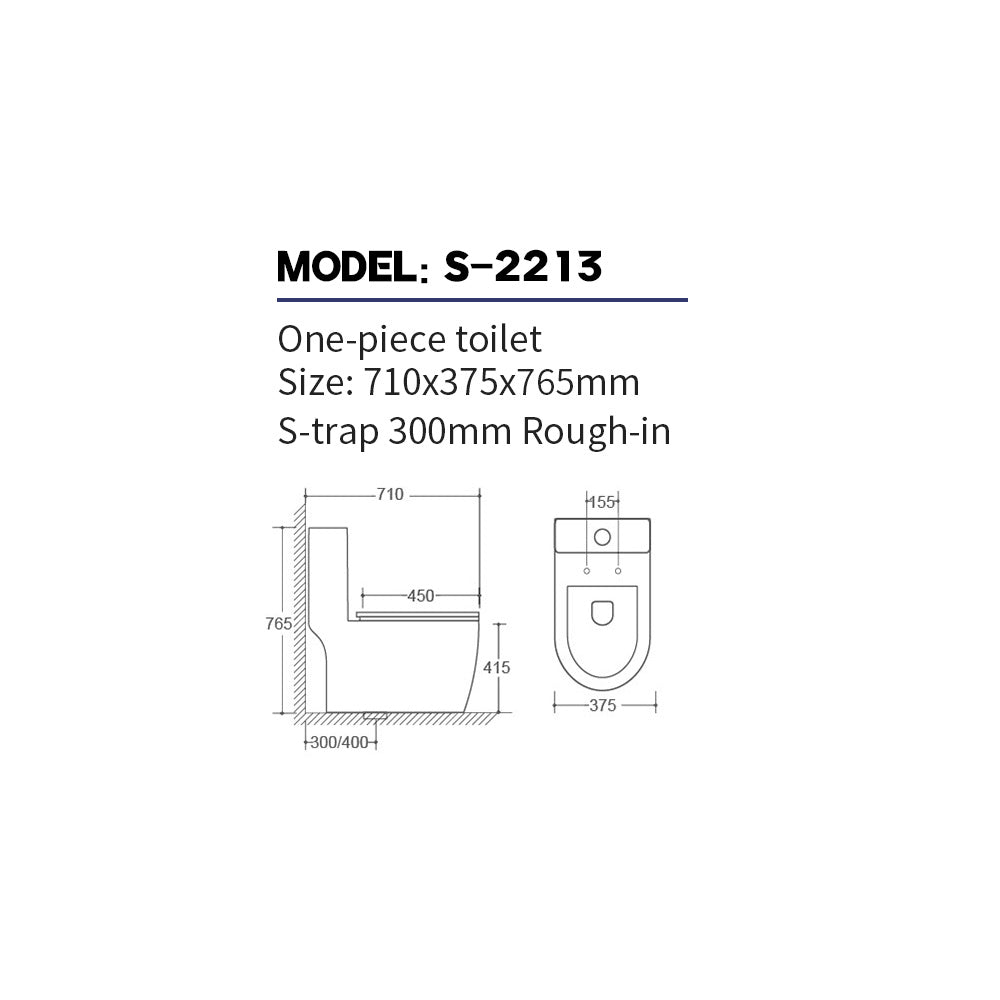

Overall size runs 710 × 375 × 765 mm, and the rough in size is 12 inch with an S trap outlet.

Overall Size

28.0" × 14.8" × 30.1" (710 × 375 × 765 mm)

Mounting

Floor-mounted

Flush System

Dual flush

Order Codes

2213 / 2213B

Material

Vitreous china ceramic

Finish

Glossy white

Outlet

S trap, 12 inch rough-in

Check the 710 mm projection against the depth of the room, and the 375 mm width against the vanity and the wall. Check the 765 mm height against any window sill or niche on the plan.

Confirm the rough in size, 12 inch to an S trap, against the existing waste. Request the drawing at enquiry stage and file it with the submittal.

More skirted shapes sit in the one-piece toilet collection.

Contract buyers work to a document list, and skirted toilets are no exception. Send that list with the enquiry and we match each item to 2213 or 2213B before the order is confirmed.

Include the destination market and the reviewing body; for a master bath refit, add the room count per phase. Documents are prepared against that market rather than against a generic template.

Among skirted toilets, a skirted design closes the gap along the floor line, so the pan reads as a plain block from the front. That matters most in a master bath, where a new toilet is often visible from the bedroom door.

Pair the toilet design with straight-edged fittings. A squared tank and a skirted design look consistent next to rectangular vanities, framed mirrors and a square shower tray.

Before approving the plan, confirm three dimensions on the drawing: 710 mm of projection, 375 mm of width and 765 mm of height. With those fixed, the skirted design drops into the layout without surprises on site, and the same check works for every new toilet in the building.

Typical lead time is 30–45 days, and the minimum is 30 pcs. Split the quantity between 2213 and 2213B on the first enquiry if a project needs both button positions.

Private label, carton artwork and your barcode are agreed through the OEM/ODM service. Name quantity per phase, destination port and Incoterm, and our written reply follows inside 12 business hours.
