Rimless Wall-Hung Toilet, 150 mm P-Trap Outlet

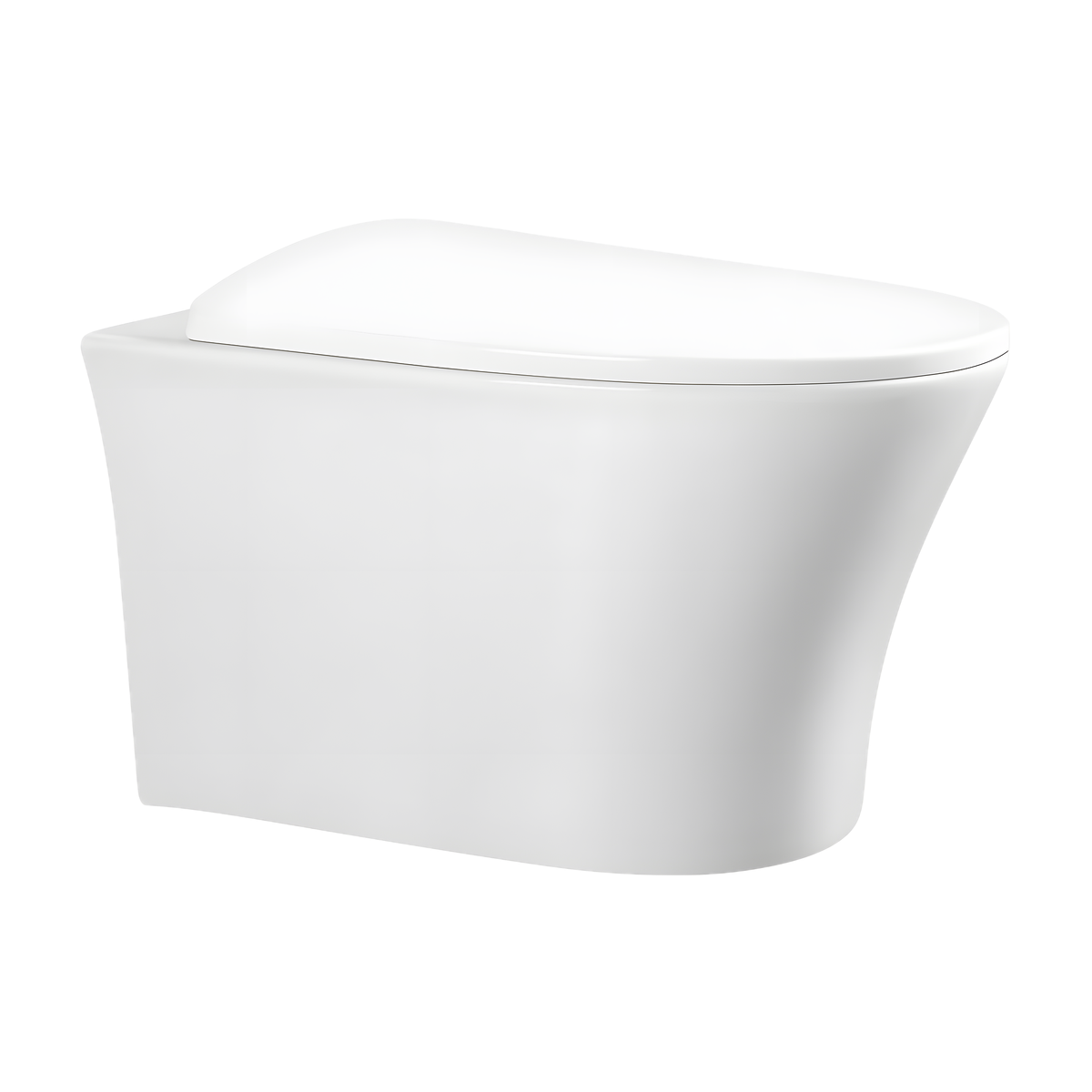

LJ-E07 is a rimless ceramic wall-hung toilet offered in White. The pan connects through a 150 mm P-trap outlet at the rear. The catalog prints one size for the model: 535 × 360 × 340 mm (21.1 × 14.2 × 13.4 in), length × width × height. The catalog entry reads LJ-E07 / Wall-hung Toilet. LJ-E07 is offered in White under one SKU, with ceramic as the printed material.
See the wall-hung toilet collection.
More in Rimless Toilets
Mix any models in one 20ft container · no per-model minimum
-
TC-7107BBlack Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet20.5" × 14.2" × 14.2"Wall-hung
-
TC-7102Rimless Swirl Flush Two-Piece Toilet TC-7102, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-7002Rimless Swirl Flush Two-Piece Toilet TC-7002, 8/10 Inch Rough-In, 2 Finishes25.0" × 15.0" × 32.7"Floor-mounted
-
TC-58184HRimless One-Piece Toilet, 10 Inch Rough-In, 710 × 400 × 765 mm28.0" × 15.7" × 30.1"Floor-mounted
-
TC-58175H650 mm Rimless One-Piece Toilet, 10 Inch Rough-In25.6" × 14.4" × 31.1"Floor-mounted
-
TC-58182H700 mm Rimless One-Piece Toilet, 10 Inch Rough-In27.6" × 15.0" × 28.7"Floor-mounted
-
TC-58107HRimless One-Piece Toilet, 10 Inch Rough-In, 710 × 390 × 730 mm28.0" × 15.4" × 28.7"Floor-mounted
-
LJ-E10490 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.3" × 14.4" × 14.2"Wall-hung
-
LJ-E09SRimless Wall-Hung Toilet, 170 mm P-Trap Outlet19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E09Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 9 Finishes19.1" × 14.4" × 14.4"Wall-hung
-
LJ-E08505 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes19.9" × 14.2" × 14.0"Wall-hung
-
LJ-E06Rimless Wall-Hung Toilet, 185 mm P-Trap Outlet20.9" × 14.2" × 14.6"Wall-hung
-
LJ-E03Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 12 Finishes19.9" × 13.6" × 14.4"Wall-hung
-
LJ-A18500 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet19.7" × 14.8" × 14.4"Wall-hung
-
LJ-A15Rimless Wall-Hung Toilet, 175 mm P-Trap Outlet, 3 Finishes20.9" × 14.4" × 14.4"Wall-hung
-
LJ-A13Rimless Wall-Hung Toilet, 170 mm P-Trap Outlet, 3 Finishes20.3" × 14.2" × 14.6"Wall-hung
-
LJ-A12Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 3 Finishes20.9" × 14.6" × 14.4"Wall-hung
-
LJ-A09H550 mm Rimless Wall-Hung Toilet, 180 mm P-Trap Outlet, 2 Finishes21.7" × 14.0" × 14.4"Wall-hung
-
HSJ-3048Rimless Washdown Two-Piece Toilet HSJ-3048, 10 Inch Rough-In25.6" × 13.4" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-3047Rimless Washdown Two-Piece Toilet HSJ-3047, 10 Inch Rough-In25.6" × 13.4" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-2557Rimless Washdown One-Piece Toilet, 8/10 Inch Rough-In26.4" × 15.7" × 28.7"Floor-mounted, S-trap or P-trap
-
HSJ-2550Rimless Washdown One-Piece Toilet, 6/10 Inch Rough-In26.6" × 14.6" × 29.5"Floor-mounted, S-trap or P-trap
-
HSJ-2548Rimless Siphonic One-Piece Toilet, 10 Inch Rough-In28.1" × 15.0" × 29.9"Floor-mounted, S-trap or P-trap
-
HSJ-2441Rimless Siphonic One-Piece Toilet, 10/12/16 Inch Rough-In27.2" × 14.6" × 30.3"Floor-mounted, S-trap or P-trap
-
HSJ-2401Rimless Washdown One-Piece Toilet, 10/12/16 Inch Rough-In25.6" × 14.2" × 29.3"Floor-mounted, S-trap or P-trap
Fit data
Rough-in, flush and size of LJ-E07
Send a spec. Get a real quote in 12 business hours.
Send the model, selected dimensions, quantity and destination. Confirm specifications, packing and documentation in your quotation.
12 consecutive years at KBIS and IBS.

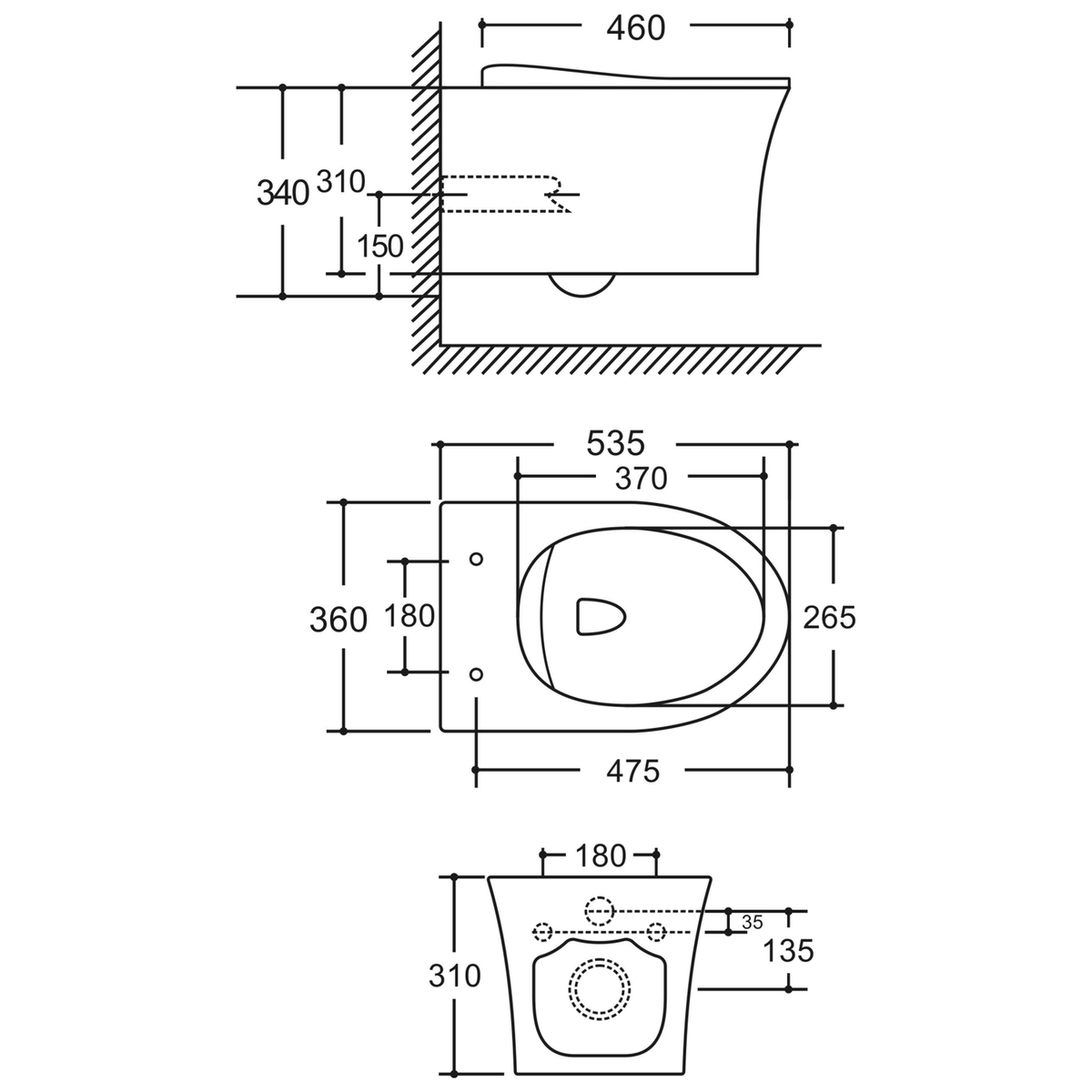

Rimless Body Size
LJ-E07 Rimless Wall Hung Toilet, 535 mm Long
535 mm
Length, 21.1 in.
360 mm
Width, 14.2 in.
340 mm
Height, 13.4 in.
150 mm
Rear P-trap outlet height.
Before Fabrication
LJ-E07 Bowl, Outlet and Finish
- Bowl
- Rimless
- Outlet
- 150 mm P-trap (rear)
- Material
- Ceramic
- Finish
- White
Verify against the official technical drawing before fabrication.
Per-Market Certification
LJ-E07 Certification Route
Matched to the destination market at quotation.
Certification documents for LJ-E07 are matched to the destination market at quotation.
Rimless Quote Request
Fields for an LJ-E07 Quote
Quote LJ-E07 in White.
LJ-E07 RFQ contents
- Model: LJ-E07
- Bowl: rimless
- Outlet: 150 mm P-trap
- Finish: White
- Quantity
- Destination market
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
FAQs
Is the LJ-E07 a rimless wall hung toilet?+
What size is the LJ-E07?+
What outlet height does the LJ-E07 print?+
How does the LJ-E07 compare with the FT-824?+
Ceramic forms the body of LJ-E07, one rimless wall hung toilet offered in White. Rimless is the catalog's own description of the bowl, and wall-hung is the printed mounting. Size reads 535 × 360 × 340 mm (21.1 × 14.2 × 13.4 in). The printed name line is LJ-E07 / Wall-hung Toilet, and the code is quoted as a single SKU. Each of those facts comes from the printed catalog page. The rear outlet is a 150 mm P-trap.
Drainage on LJ-E07 runs into the wall through a P-trap at 150 mm. In this catalog, P-trap values give the height of the rear outlet, so the wall drain is the measurement to take on site. Wall hung toilets with a rear outlet line up with the drain only when the heights agree. Length of 535 mm (21.1 in) is the other planning figure. Height of the body is 340 mm (13.4 in).
White is the finish offered for LJ-E07. Certification documents for LJ-E07 are matched to the destination market at quotation. Supply data printed for the code are the rimless bowl, the 150 mm P-trap outlet, the ceramic body and the 535 × 360 × 340 mm size. Mounting is wall-hung, as printed. Those values carry into a quotation without alternative versions under the code. The printed name line is the single entry for LJ-E07.
