700 mm Washdown One-Piece Toilet, 10 Inch Rough-In

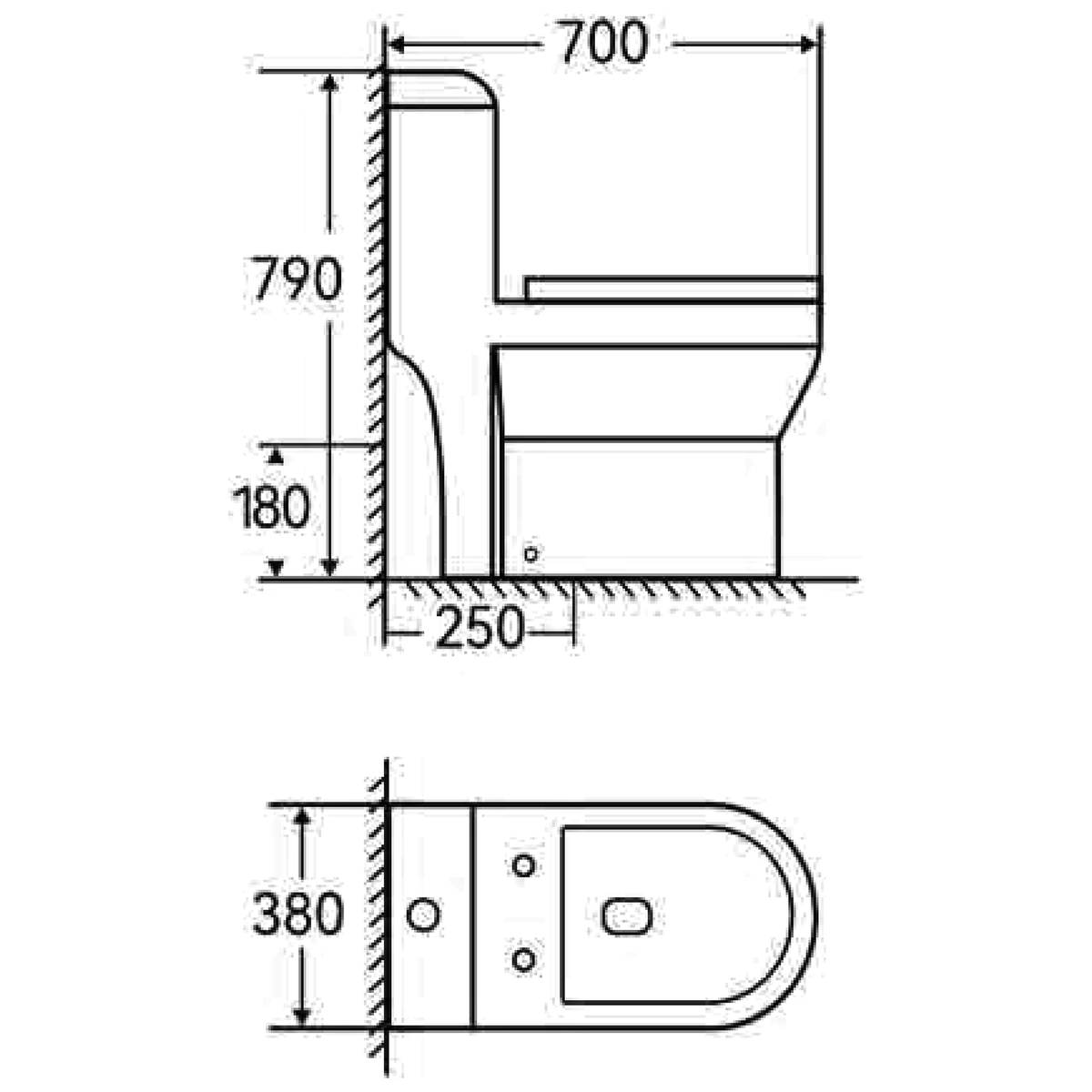

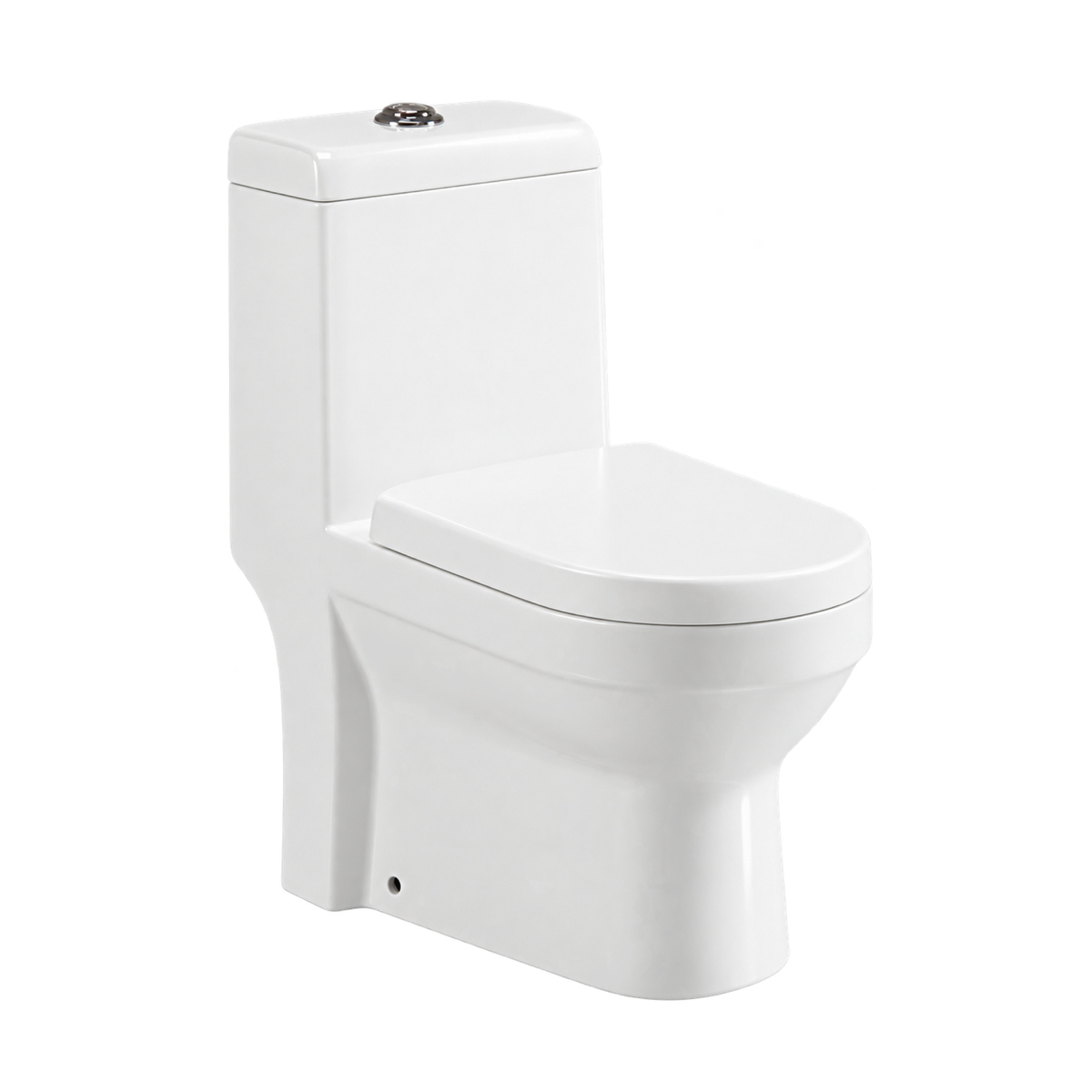

TC-5826H is a washdown one piece toilet, 10 inch rough in on the S-trap version at 250 mm. Washdown is the single flush type printed for the model. The body measures 700 × 380 mm on the floor and rises to 790 mm (31.1 in). White ceramic is the finish, and floor mounting is listed. TC-5826H prints a 380 mm width, while NBK-3071 is printed at 370 mm. Inch figures for TC-5826H read 27.6 × 15.0 × 31.1.

Washdown is printed for TC-5826H in both outlet versions. The body behind that flush is 700 mm long (27.6 in) and 380 mm wide (15.0 in). Height on TC-5826H is 790 mm, while NBK-3071 is printed at 795 mm. No other flush type is listed against TC-5826H, so the washdown entry applies whichever outlet is ordered. Buyers who want a washdown one-piece toilet at a 700 mm length can shortlist the code on these numbers.

TC-5826H is supplied as 1 SKU in White ceramic. The P-trap version, printed at a 180 mm outlet height, serves as the floor mount rear outlet toilet option. The S-trap version uses the 250 mm (10 in) rough-in, read from the finished wall to the outlet center. Measure the drain on site and confirm against the model spec sheet. The catalog prints one size for the model: 700 × 380 × 790 mm. Certification documents for the model are matched to the destination market at quotation.
