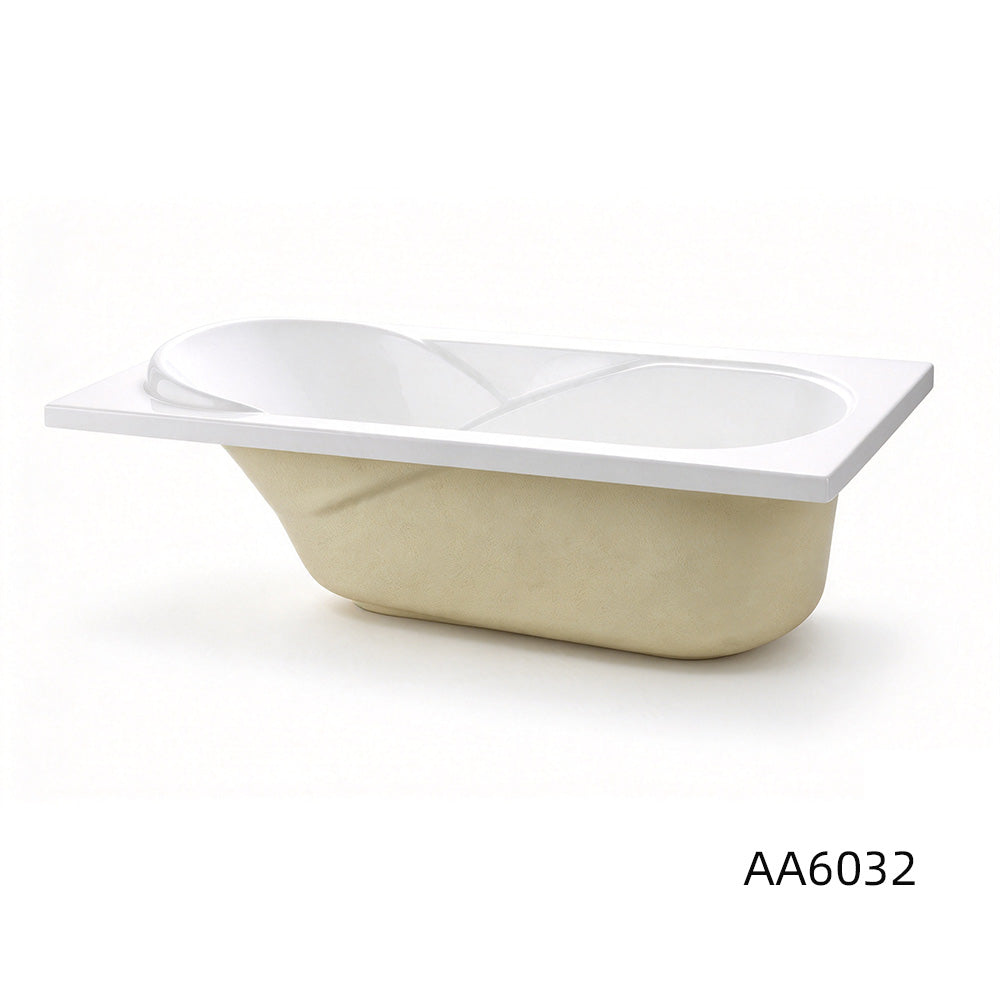

Flat-Rim Acrylic Drop-In Bathtub with Raised Sloped Backrest, 60 x 32 in
Estimated 40HQ loading
This white acrylic drop-in bathtub has a rectangular flat rim and a rounded inner basin. A raised, sloped backrest is formed at one end, with the drain at the opposite end. The overall dimensions are 1524 × 810 × 497 mm (60 × 31.9 × 19.6 in). There is no integral front apron; plan the surrounding deck, support and front enclosure to the approved installation drawing.
The basin opening is 1360 × 633 mm (53.5 × 24.9 in), and the drawing gives a basin depth of 415 mm (16.3 in). The drain opening is Ø55 mm, on the width centerline and 250 mm (9.8 in) from the drain end. The tub is cUPC certified. Confirm faucet mounting, drain and overflow fittings, order quantity and lead time when requesting a quote. SANIKB replies within 12 business hours. See the full drop-in bathtub range.
More in Drop-In Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
-
AA6032Drop-In Bathtub with Tile Flange and Sloped Lounge Backrest, 60 x 32 in60" × 31.9" × 19.6"Drop-in (three-wall alcove)
-
BBD6032Drop-In Bathtub with Tile Flange and Textured Floor, 60 x 32 in60" × 32" × 17.9"Drop-in (three-wall alcove)
-
BBG6328 / BBG6729Rectangular Drop-In Bathtub with Rounded Basin, 63 & 67 in63" / 66.5" × 27.6" / 28.7" × 15.7" / 13.8"Drop-in (deck or platform)
-
BBG5128 / BBG5528 / BBG5928Rectangular Drop-In Bathtub with Armrests, 51-59 in51.2" / 55.1" / 59.1" × 27.6" × 16.5" / 16.5" / 16.1"Drop-in (deck or platform)
-
B8022Two-Person Drop-In Whirlpool Bathtub with Twin Headrests, 75 in75" × 55.1" × 29.1"Drop-in (deck or platform)
-
D-8028QCompact Round Drop-In Bathtub, 55 in Diameter55" × 55.1" × 19.3"Drop-in (deck or platform)
-
D-8061QRectangular Drop-In Tub with Wide Flat Flange, 59-71 in59" / 67" / 71" × 31.5" × 19.7"Drop-in (deck or platform)
-
D-8051QWide-Rim Double-Ended Drop-In Bathtub, 59 & 67 in59" / 67" × 30.7" / 31.5" × 19.3"Drop-in (deck or platform)
-
D-8026QDouble-Ended Rectangular Drop-In Bathtub, 71 in71" × 31.5" × 18.9"Drop-in (deck or platform)
-
D-8021QRectangular Drop-In Bathtub, 29.5 in Wide, 59 & 67 in59" / 67" × 29.5" × 19.3"Drop-in (deck or platform)
-
D-8017QDouble-Ended Drop-In Bathtub with Bowed Ends, 59 & 67 in59" / 67" × 29.5" / 31.5" × 19.3"Drop-in (deck or platform)
-
D-8016QSingle-Ended Rectangular Drop-In Bathtub, 59 & 67 in59" / 67" × 29.5" / 31.5" × 19.7"Drop-in (deck or platform)
-
D-8013QRectangular Drop-In Acrylic Bathtub, Narrow Flat Flange, 59-67 in59" / 63" / 67" × 31.5" × 19.7"Drop-in (deck or platform)
-
D-8020QRounded Rectangle Double-Ended Drop-In Bathtub, 59-71 in59" / 67" / 71" × 29.5" × 19.3"Drop-in (deck or platform)
-
D-8062QNarrow Oval Drop-In Bathtub with Rolled Flange, 27.6 in Wide, 59 & 67 in59" / 67" × 27.6" × 18.5"Drop-in (deck or platform)
-
D-8022QStadium Drop-In Bathtub, White Gloss Acrylic, Narrow Flange, 59 & 67 in59" / 67" × 29.5" / 31.5" × 19.3"Drop-in (deck or platform)
-
D-8015QOval Drop-In Acrylic Bathtub, Narrow Rounded Flange, 59-67 in59" / 63" / 67" × 31.5" × 19.7"Drop-in (deck or platform)
-
D-8012QOval Drop-In Bathtub, Wide Flat Flange, 18.5 in High, 58-70 in58" / 61" / 65" / 70" × 31.3" / 31.5" / 31.7" × 18.5"Drop-in (deck or platform)
Tub sheet
Size and installation of AA6032
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
Shape & Layout
Flat-rim drop-in tub with a raised sloped backrest
The outer rim is rectangular, with a rounded inner basin and one raised, sloped backrest. The drain is at the opposite end.
Raised lounge end
The backrest rises above the flat rim at one end. The tub is single-ended, with the drain at the other end.
Flat rim, no integral apron
The rim runs around the basin, and there is no finished front apron below it. Plan the surrounding deck and front enclosure with the approved installation drawing.
Compare other sizes and layouts in the SANIKB drop-in bathtub collection.
Fit & Dimensions

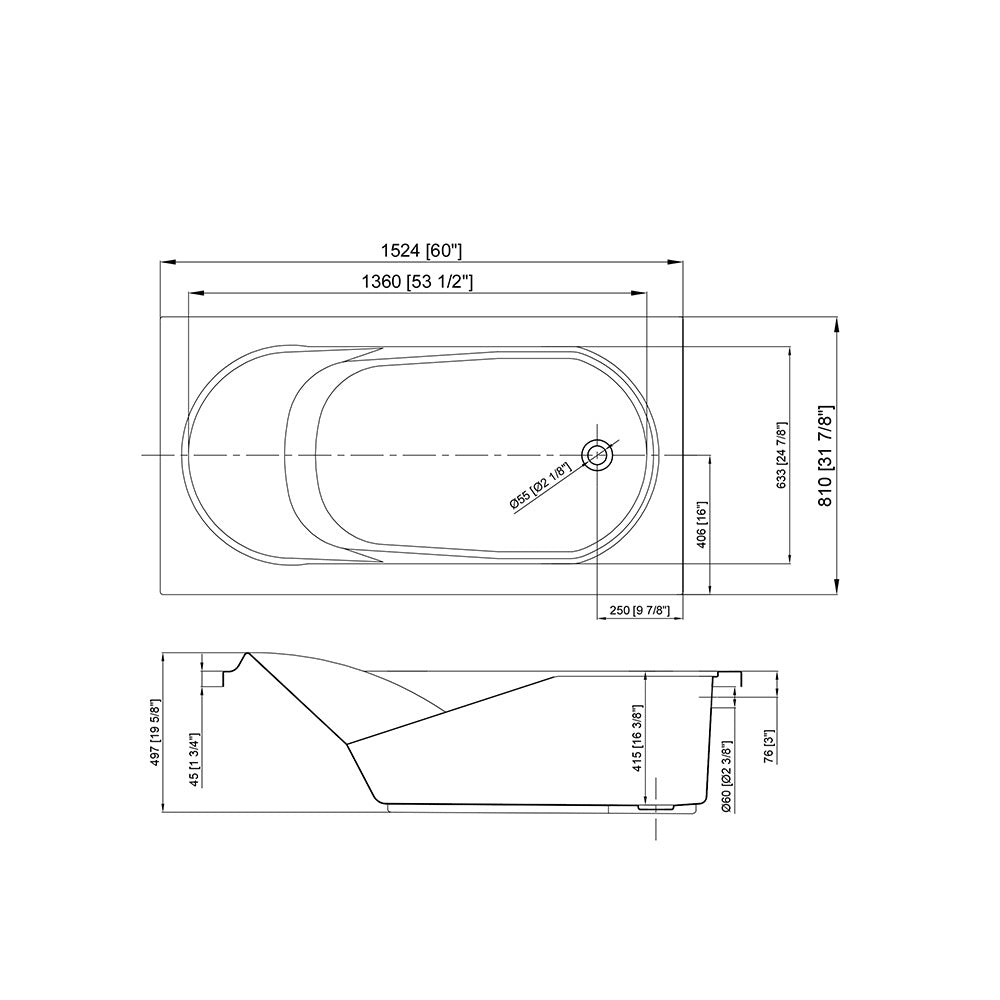

1524 x 810 mm overall, 1360 x 633 mm basin opening
Overall dimensions are 1524 × 810 × 497 mm (60 × 31.9 × 19.6 in), with the maximum height at the raised backrest. The basin opening is 1360 × 633 mm, and the drawing gives a basin depth of 415 mm.
- Overall Size
- 60" × 31.9" × 19.6" (1524 × 810 × 497 mm)
- Basin Opening
- 53.5" × 24.9" (1360 × 633 mm)
- Basin Depth
- 415 mm (16.3 in), as shown on the drawing
- Rim Detail
- 45 mm (1-3/4 in), as marked on the side view
- Drain
- Ø55 mm on the width centerline, 250 mm (9.8 in) from the end
- Drain Centerline
- 406 mm (16 in) from the side, as marked
- Overflow
- Ø60 mm opening; center 76 mm (3 in) below the rim
Use the dimensions for layout planning; confirm the cutout, support and drain/overflow connections against the approved installation drawing before the platform is built.
The supplied drawing shows one drain layout. Confirm the required orientation at quotation.
Material & Finish
White acrylic shell
The tub is made from acrylic with a white finish.
White
White finish for the bathroom layout
Match the surrounding deck and front enclosure to the room finish while keeping the tub dimensions and connections in the installation plan.
Confirm the faucet position and mounting method with the installation drawing before the plumbing is set out.
Specify the drain and overflow fittings required for the project; the included fitting scope is confirmed at quotation.
Record the exact flat-rim configuration and dimensions in the order.
Compliance
cUPC-certified acrylic bathtub
Request the certificate and approved installation drawing for the flat-rim product and keep them with the project specification.
This flat-rim acrylic bathtub is cUPC certified. Request the certificate documents against the exact product on the order.
Send the destination market and any submittal requirements with the inquiry so the document set can be checked for the project.
Procurement
Ordering the flat-rim drop-in bathtub
Specify the flat-rim configuration, 1524 × 810 × 497 mm overall dimensions and the required quantity. Order quantity and lead time are confirmed at quotation.
- Order Quantity
- Confirm at quotation
- Lead Time
- Confirm at quotation
- Quote Reply
- Within 12 business hours
Send the installation layout and fitting requirements with the request so the product configuration and delivery scope can be included in the quote.
Include these details with the RFQ
- Flat-rim configuration and 1524 × 810 × 497 mm overall size
- Quantity
- Destination market and port
- Drain orientation and drain/overflow fitting scope
- Faucet mounting plan
- Requested delivery window
Confirm the quantity, configuration, fitting scope and lead time in the written quotation before ordering.
