Alcove Bathtub with Tile Flange and Sloped Lounge Backrest, 60 x 32 in
SANIKB AA6032 is a single-ended acrylic alcove bathtub, 1524 × 810 × 497 mm (60 × 31.9 × 19.6 in), with an integral tile flange along the back and both ends. It has no apron: the front edge is a flat rim, and the face below it is closed on site, usually with a framed and tiled apron wall. One end is a long sloped lounge backrest that rises above the rim; the drain sits on the centerline at the other end, with the overflow in the same end wall.
AA6032 is made in left-hand and right-hand versions, AA6032L and AA6032R, named by the drain side as you face the tub. The finish is glossy white acrylic, the underside carries a reinforcement layer, and the tub is cUPC certified. Quote requests are answered within 12 business hours. See SANIKB alcove bathtubs.
More in Alcove Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
-
BBD6032Alcove Bathtub with Tile Flange and Textured Floor, 60 x 32 in60" × 32" × 17.9"Three-wall alcove
-
G-908Alcove Whirlpool Bathtub with Hourglass Basin, 63 in63" × 31.5" × 23.6"Three-wall alcove
-
6111Rectangular Alcove Whirlpool Bathtub with Headrest, 59 in59" × 31.5" × 26.8"Three-wall alcove
-
FT072Alcove Whirlpool Tub with Apron Front, Single-Ended, 71 in71" × 31.5" × 23.2"Three-wall alcove
-
D-1022Rectangular Alcove Bathtub with Apron Front and End Drain, 60 in60" × 29.9" × 18.5"Three-wall alcove
-
BTS603260x32 Acrylic Skirted Apron Bathtub60" × 31 1/2" × 21 1/16"Alcove
-
BTS603060x30 Acrylic Alcove Bathtub60" × 30" × 22"Alcove
-
BTA603260x32 Acrylic Alcove Bathtub60" × 31 7/8" × 22"Three-wall alcove
Tub sheet
Size and installation of AA6032
Every option below is a produced configuration with its own SKU. 1 size × 2 hands. Name the exact SKU on each purchase order line.
-
NO. AA6032L60" x 32"Left-hand -
NO. AA6032R60" x 32"Right-hand
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Shape & Layout

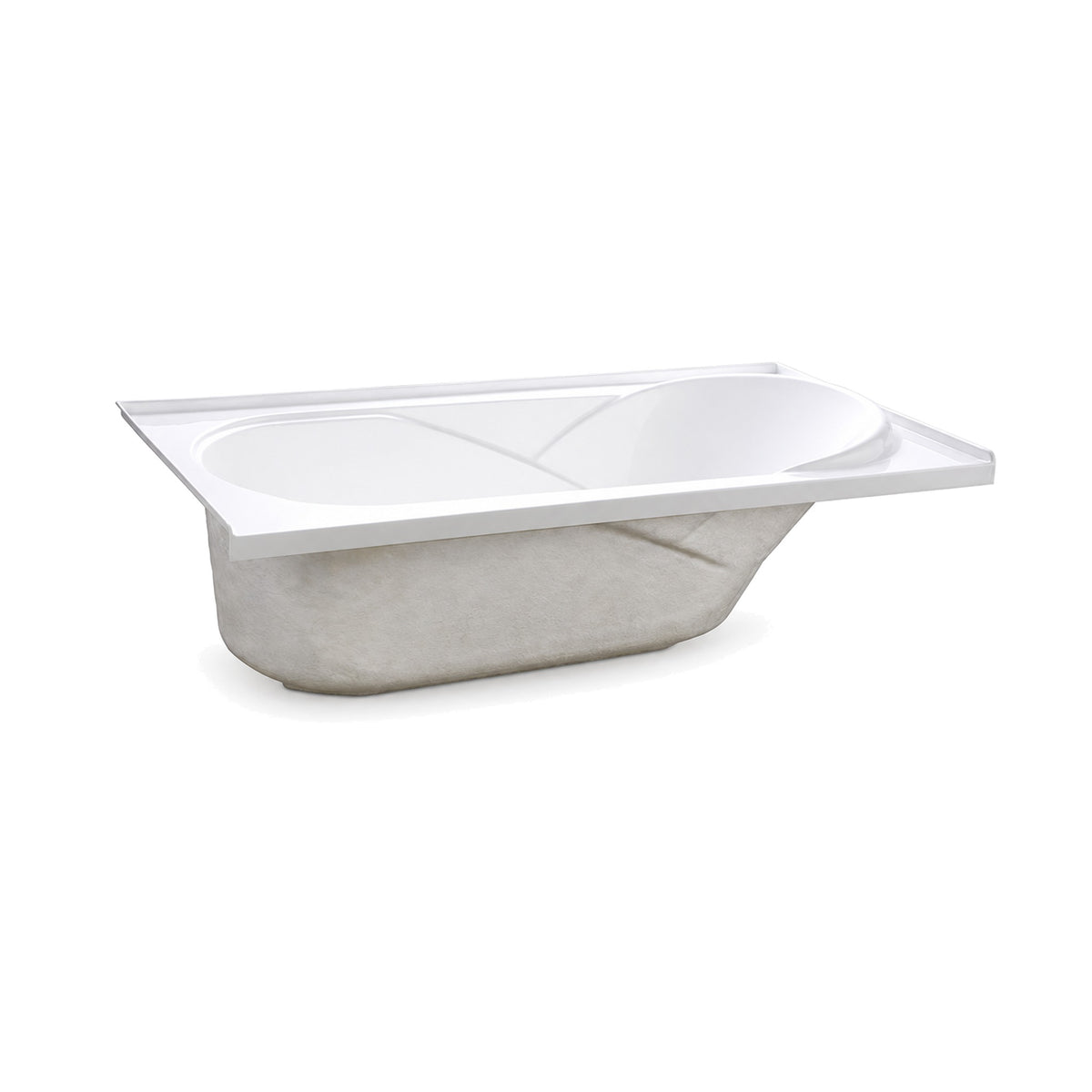

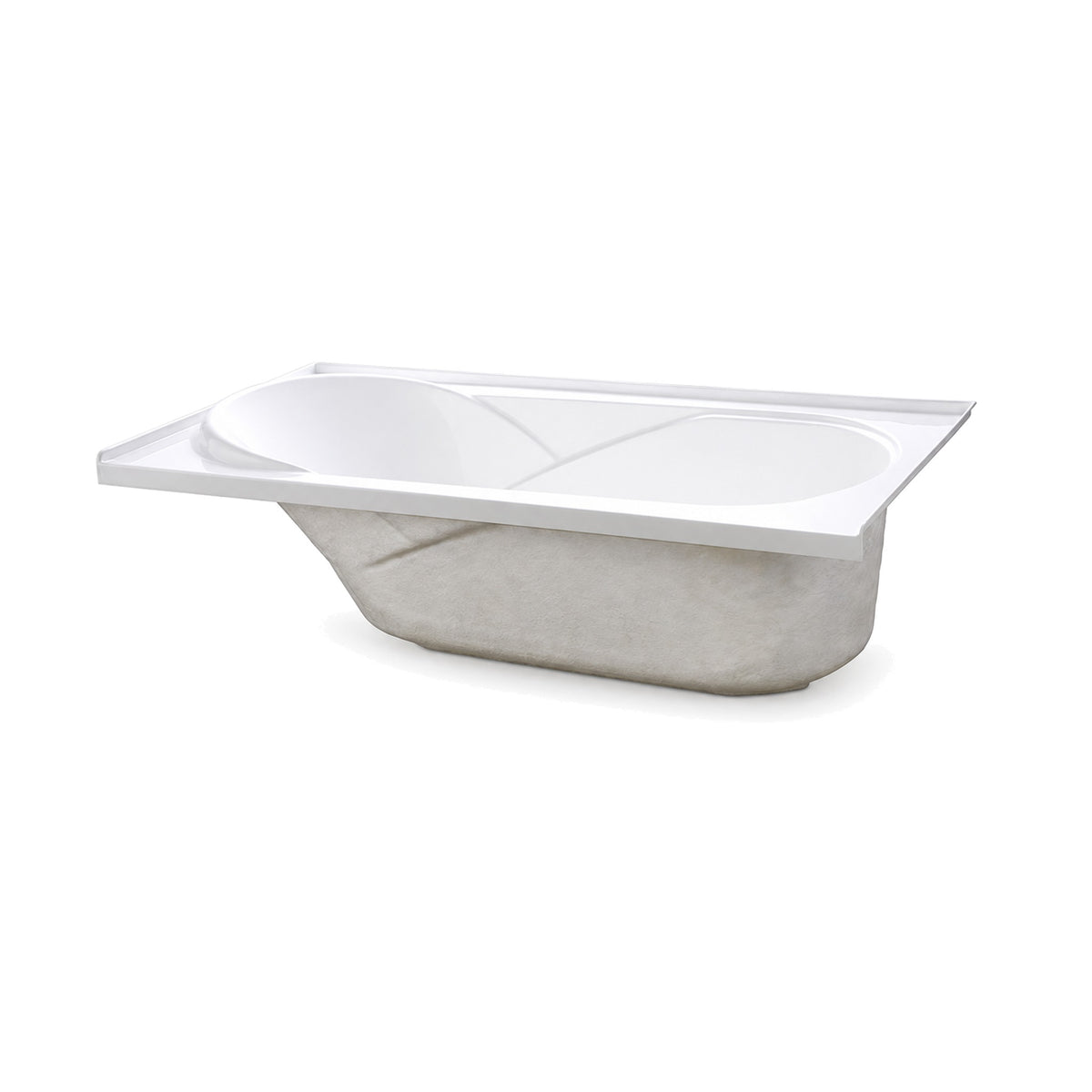

Single-ended alcove tub with a lounge backrest
AA6032 is a rectangle in plan with a rounded basin. One end is a long sloped backrest that rises above the rim; the drain sits on the centerline at the other end.
Sloped lounge end
The backrest runs from the basin floor up past the rim line, so the bather reclines along a long slope and faces the drain end. Basin depth at the drain end is 415 mm (16.3 in).
Tile flange on three sides
An integral upturned flange runs along the back and both ends, so wall tile or panels lap over it. The front edge is a flat rim with no apron.
Compare other alcove shapes and lengths in the SANIKB alcove bathtubs collection.
Fit & Niche

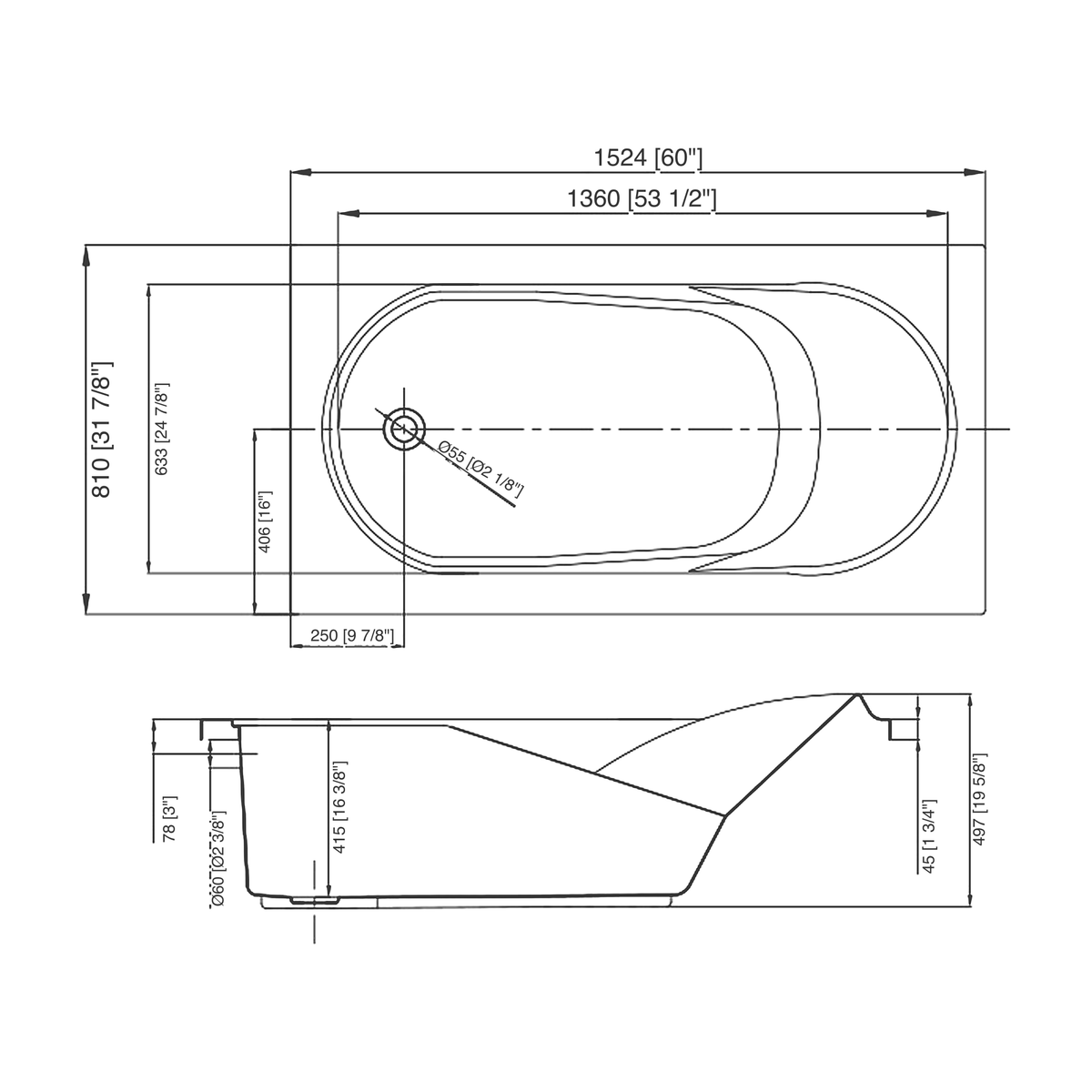

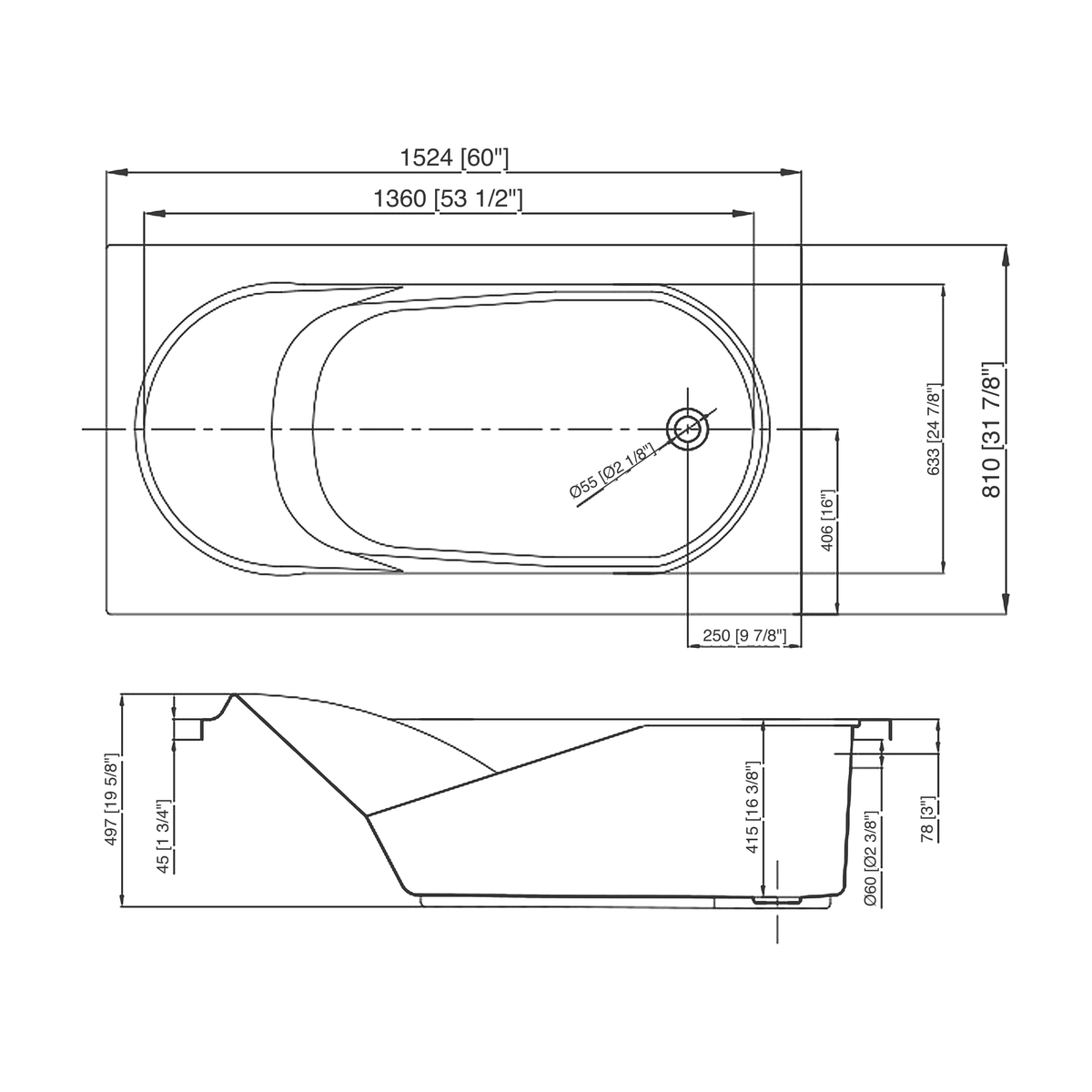

1524 x 810 mm for a 60 x 32 alcove
AA6032 measures 1524 × 810 × 497 mm, or 60 × 31.9 × 19.6 in. The 497 mm height is taken at the backrest end, which stands above the flat rim.
- Overall Size
- 60" × 31.9" × 19.6" (1524 × 810 × 497 mm)
- Basin Opening
- 53.5" × 24.9" (1360 × 633 mm)
- Basin Depth
- 16.3" (415 mm) at the drain end
- Drain
- Ø55 mm on the centerline, 250 mm (9.8 in) from the end
- Hand
- AA6032L left-hand / AA6032R right-hand
Left-hand and right-hand name the drain side as you face the open front of the tub. Pick the hand from the drain position in the niche plumbing.
Frame the niche and the apron wall to the approved AA6032 drawing for the hand you order.
Construction & Finish
Glossy white acrylic with a reinforced underside
The shell is formed from acrylic sheet in glossy white. The underside carries a reinforcement layer, the grey textured surface below the rim.
White
One color across the project
AA6032 is made in white. Ordering every unit in the same color and surface keeps a multi-unit fit-out consistent from room to room.
The rim has no tap holes. The tub spout and valve go on the end wall above the drain, set out in the niche plumbing.
Drain and overflow trim scope is agreed at quotation, since it changes what goes in the carton.
Note any transit damage on the delivery receipt, and set the reporting window in the supply agreement.
Compliance
cUPC certification for model AA6032
Request the certificate and approved drawing against AA6032 by name so they file correctly with the alcove tub schedule.
AA6032 is cUPC certified. For a submittal, ask for the certificate number and its validity against this model so the paperwork matches the destination market.
Name the destination market and the documents you need in the inquiry. Both are settled at quotation stage, and written replies are issued within 12 business hours.
Procurement
Ordering AA6032 for alcove projects
AA6032 is made in one size in two hands, AA6032L and AA6032R. Quantities are set per project in the quotation.
- Standard Lead Time
- 30-45 days after sample approval
- Quote Reply
- Sent within 12 business hours
Production starts once the sample is approved, so build the sample round into the project schedule. Private label work is handled through the SANIKB OEM and ODM program.
Include these details with the RFQ
- Quantity of AA6032L and AA6032R
- Destination market and port
- Niche size and drain side from your layout
- Drain and overflow trim scope
- Brand marking on carton
- Requested shipping window
Treat the lead time above as indicative until the quotation is issued.
