SANIKB D-1022 - white rectangular alcove bathtub with flat apron front, sloped backrest and end drainSANIKB D-1022 dimension drawing
01 / 02

Rectangular Alcove Bathtub with Apron Front and End Drain, 60 in

SKU D-1022
Size
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material Acrylic
Type Alcove bathtub
Size 60" × 29.9" × 18.5" (1520 × 760 × 470 mm) Custom sizes
Mount Three-wall alcove
Finish
White

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

SANIKB D-1022 is a single-ended acrylic alcove bathtub for a three-wall niche, with a flat apron front that runs straight down to the floor. A sloped backrest fills one end; the drain sits on the centerline at the other end, with the overflow at the same end. D-1022 is made in one size, SKU D-1022: 1520 × 760 × 470 mm (60 × 29.9 × 18.5 in). The rim is a wide flat deck with no tap holes, so the tub takes a wall-mounted or floor-standing filler, and the finish is glossy white.

Inner depth runs from 420 mm (16.5 in) at the backrest to 440 mm (17.3 in) at the drain. Quote requests for D-1022 are answered within 12 business hours. See SANIKB alcove bathtubs.

More in Alcove Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 7

Tub sheet

Size and installation of D-1022

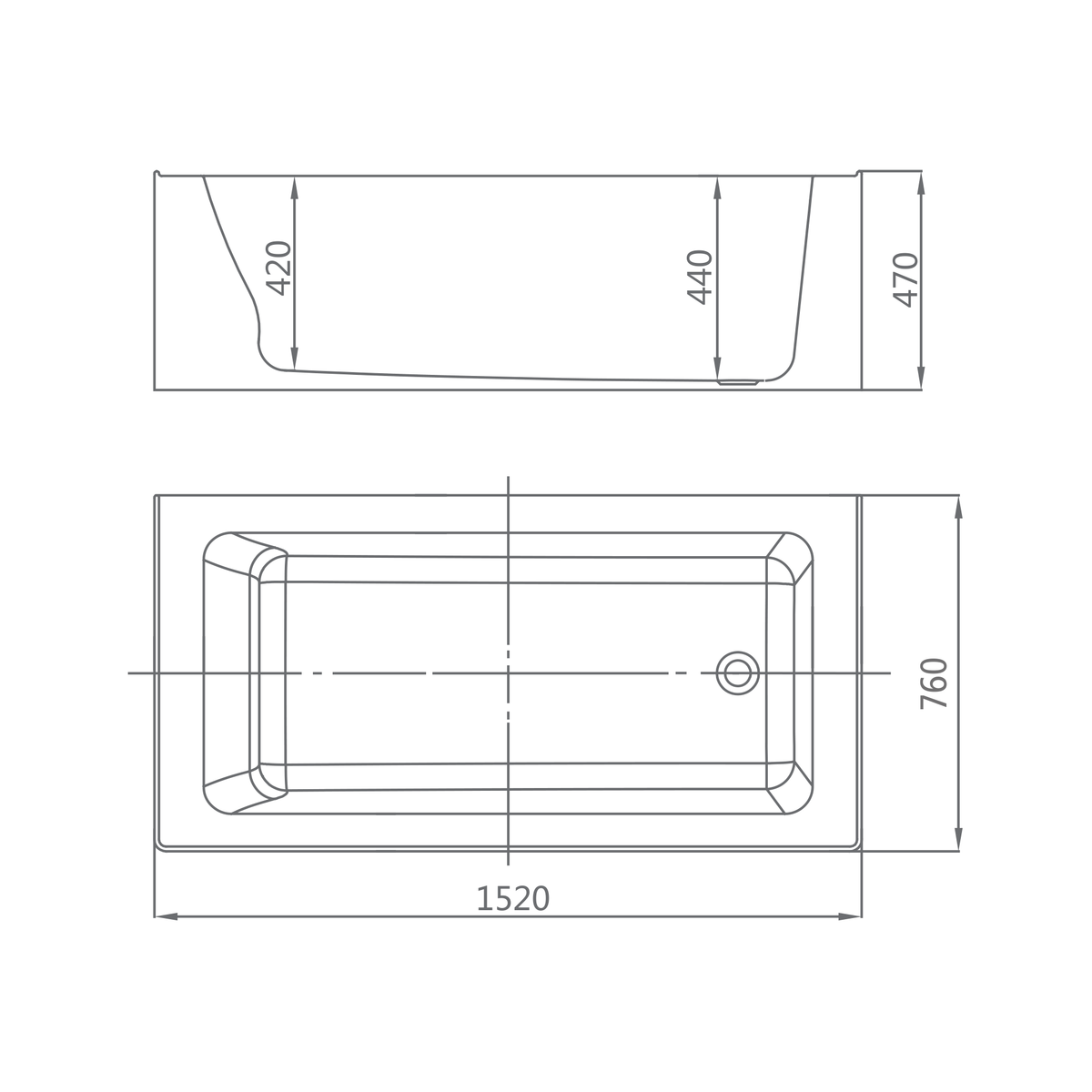

SANIKB D-1022 dimension drawing
Dimension drawing
Size range60" × 29.9" × 18.5" (1520 × 760 × 470 mm)
InstallationThree-wall alcove
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 1 business day.

Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about Rectangular Alcove Bathtub with Apron Front and End Drain, 60 in SKU D-1022
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.

Wholesale · 20 ft / 40 ft · Mix available

Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 1 business day

    12 editions of the International Builders' Show (IBS).

    — Most recent
    Feb 2026 KBIS · Orlando, USA
    Mar 2026 Expo Revestir · São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Layout

    Single-ended rectangle with an apron front

    D-1022 is a rectangle with square corners and a rectangular inner basin. One end is a sloped backrest; the drain sits on the centerline at the other end, with the overflow at the same end.

    01 / BACKREST

    Sloped backrest at one end

    The bather reclines against the sloped end and faces the drain end. Inner depth is 420 mm (16.5 in) at the backrest and 440 mm (17.3 in) at the drain.

    02 / APRON

    Flat front skirt to the floor

    The side facing the room is a flat apron that runs down to the floor. There are no feet: the tub sits flat on the floor under a wide flat deck.

    Project buyers fitting out rows of identical bathrooms usually shortlist alcove tubs by niche length first. Compare other shapes and lengths in the SANIKB bathtub range.

    Fit & Niche

    1520 mm long for a 60-inch alcove

    D-1022 measures 1520 × 760 × 470 mm, or 60 × 29.9 × 18.5 in, with the drain on the centerline at the end opposite the backrest.

    Overall Size
    60" × 29.9" × 18.5" (1520 × 760 × 470 mm)
    Installation
    Alcove, apron front, flat to floor
    Backrest
    Single-ended, drain at the opposite end
    Faucet Mount
    Wall or floor; no tap holes in the deck

    Small upturned lips run along both rim ends. The edge detail on the ends and along the wall side, and which long side goes to the back wall, are confirmed on the approved drawing before the niche is framed.

    D-1022 is made in one size. Measure the finished niche against 1520 mm before the tub goes into a layout.

    Construction & Finish

    Acrylic shell in glossy white

    The shell is formed from pure acrylic sheet and finished in white with a gloss surface.

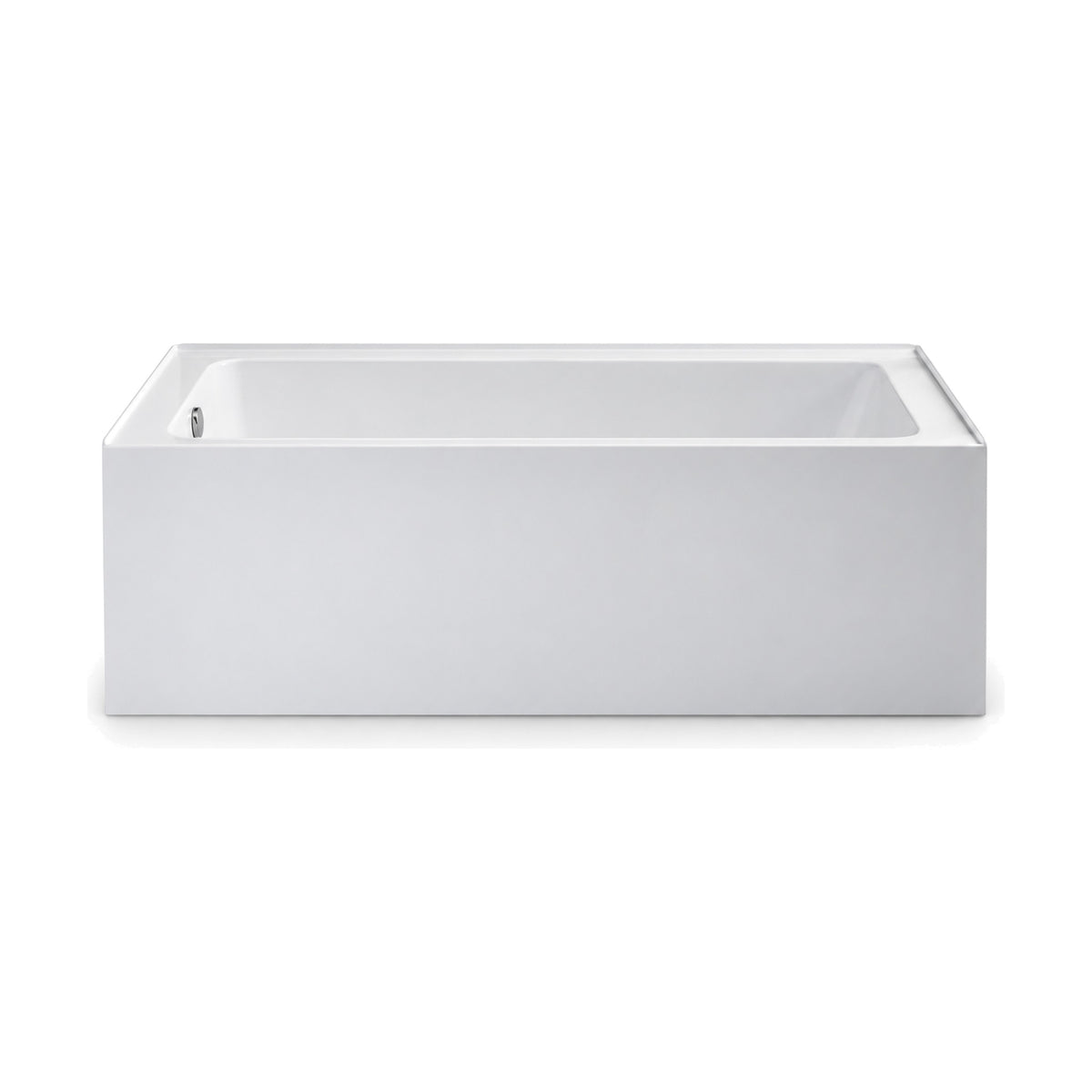

    SANIKB D-1022 - white rectangular alcove bathtub with flat apron front, sloped backrest and end drain

    White

    One color across the project

    D-1022 is made in white. Ordering every unit in the same color and surface keeps a multi-unit fit-out consistent from room to room.

    The rim is a wide flat deck above a rectangular basin. Drain and overflow trim scope is agreed at quotation, since it changes what goes in the carton.

    Acrylic can scuff if cartons are dragged or stacked badly. Agree the packing method and how transit damage is reported before the first shipment leaves.

    Note any transit damage on the delivery receipt, and set the reporting window in the supply agreement.

    Compliance

    Compliance documents for model D-1022

    Documents by model

    Request the certificate and approved drawing against D-1022 by name so they file correctly with the alcove tub schedule.

    For a submittal, ask for the document references and their validity against this model so the paperwork matches the destination market.

    Name the destination market and the documents you need in the inquiry. Both are settled at quotation stage, and written replies are issued within 12 business hours.

    Procurement

    Ordering D-1022 for alcove projects

    D-1022 is made in a single size, SKU D-1022. Quantities are set per project in the quotation.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Sent within 12 business hours

    Production starts once the sample is approved, so build the sample round into the project schedule. Private label work is handled through the SANIKB OEM and ODM program.

    Include these details with the RFQ

    • Quantity of D-1022
    • Destination market and port
    • Niche length and wall side from your layout
    • Drain and overflow trim scope
    • Brand marking on carton
    • Requested shipping window

    Treat the lead time above as indicative until the quotation is issued.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 1 business day
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    1 business day Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request

    FAQs

    What kind of acrylic alcove bathtub is D-1022?

    D-1022 is a single-ended acrylic alcove bathtub built for a three-wall niche, with a flat apron front that drops straight to the floor. The shell is formed from pure acrylic sheet and finished in glossy white. A sloped backrest occupies one end, while the drain and overflow share the opposite end, with the drain set on the centerline. SANIKB produces it as one SKU, D-1022, so every unit in a project schedule matches.

    Which dimensions should a 60-inch niche be framed around for D-1022?

    D-1022 measures 1520 × 760 × 470 mm, equal to 60 × 29.9 × 18.5 in, and that is the only size made. Framers working to a 60-inch alcove should set the finished niche length against 1520 mm and against the approved drawing. Which long side meets the back wall, plus the edge detail at both rim ends, are fixed on that drawing before studs go up.

    How deep is the bathing well from backrest to drain?

    Inner depth on D-1022 is 420 mm (16.5 in) under the sloped backrest and 440 mm (17.3 in) at the drain end. Bathers recline against the backrest and face the drain. Beneath a wide flat deck, the basin keeps a rectangular outline, and the tub rests directly on the floor without feet, with small upturned lips running along both rim ends.

    Can a deck-mounted faucet be fitted to D-1022?

    D-1022 has no tap holes in its deck, so plan for a wall-mounted or floor-standing filler instead. Rough-in for the filler belongs at the drain end, matching the position marked on the approved drawing. Drain and overflow trim scope gets agreed during quotation, because it changes what ships inside each carton.

    What does a distributor need to send to quote D-1022?

    To quote D-1022, send the order quantity, destination market and port, niche length with wall side from your layout, trim scope, carton brand marking and the shipping window you want. MOQ is 45 pcs · 1×40HQ. SANIKB answers in writing within 12 business hours, and standard lead time runs 30-45 days after sample approval. Private label orders go through the OEM and ODM program.

    Which certification paperwork comes with D-1022?

    For a project submittal, request the compliance document references and their validity listed against model D-1022, together with the approved drawing, so both documents file cleanly with your tub schedule. Packing method and the window for reporting transit scuffs on acrylic should also be settled before the first container leaves. Other lengths and shapes appear in the SANIKB alcove bathtubs range.
