60x30 Acrylic Alcove Bathtub
- 60" × 30" × 22" 1524 × 762 × 560 mm
60x30 Acrylic Bathtub Specifications & Drain Configurations
The BTS6030L and BTS6030R are the same 60x30 acrylic bathtub with the drain repositioned to the opposite end. Every dimension is identical — simply spec the orientation that matches your plumbing rough-in.

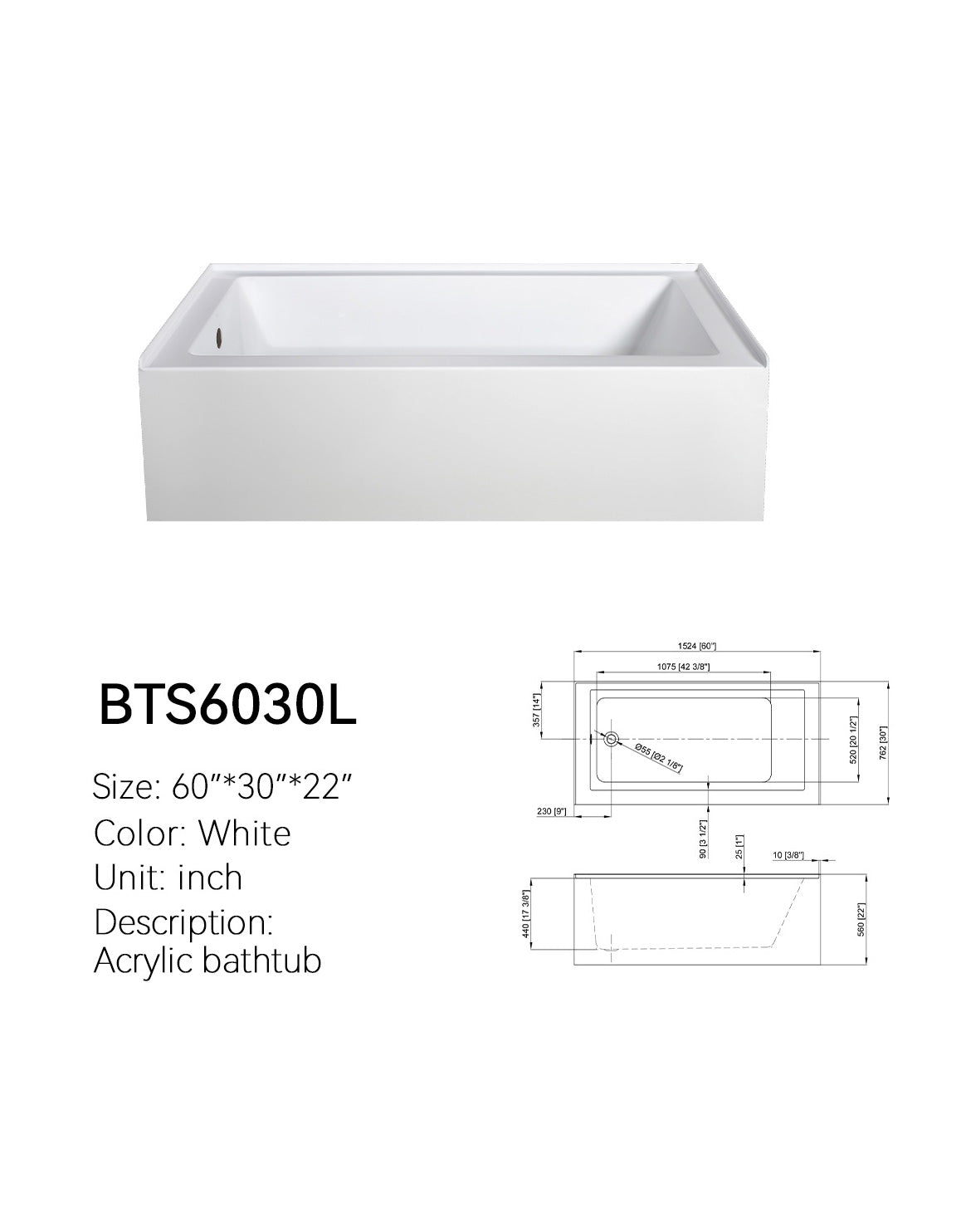

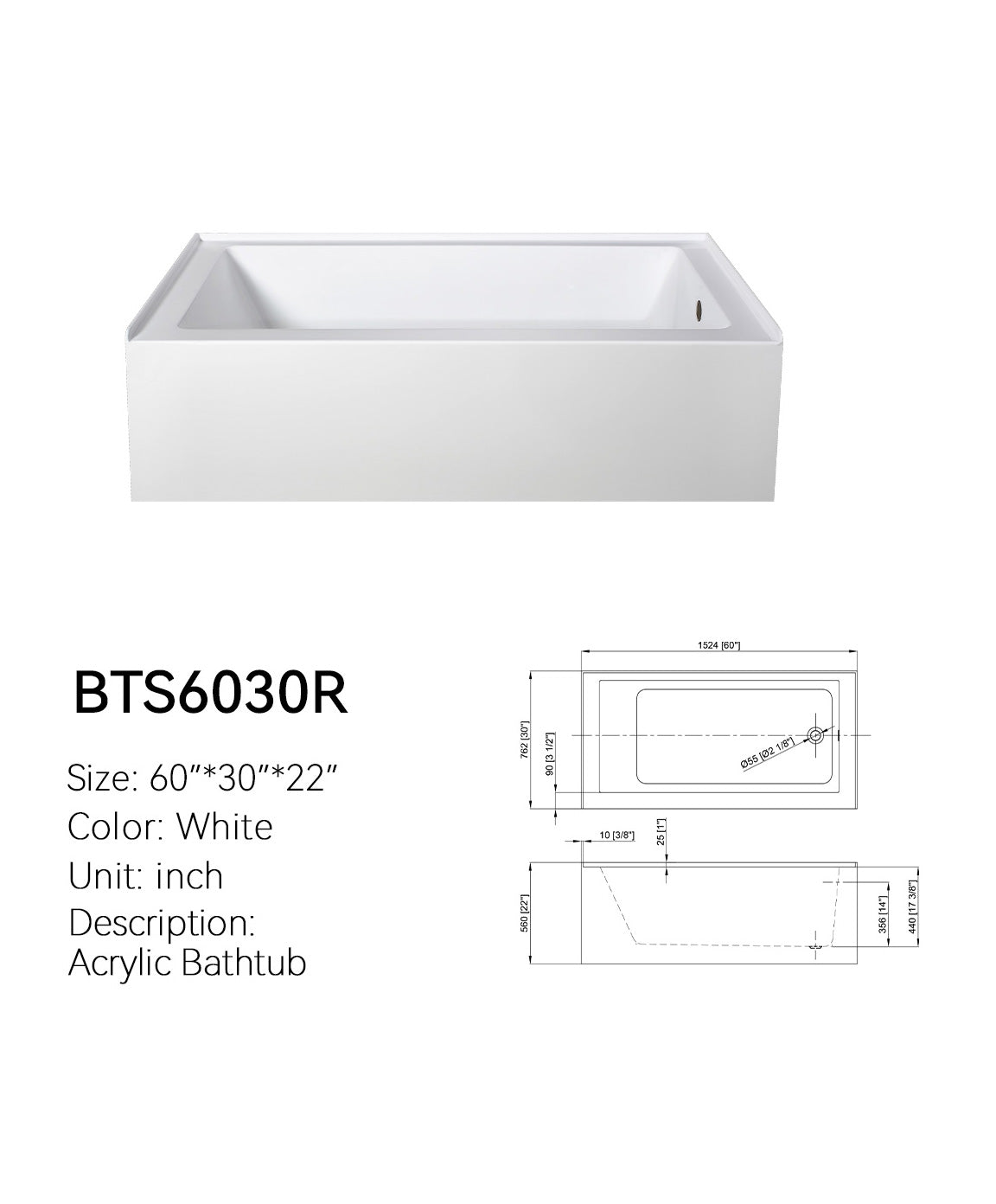

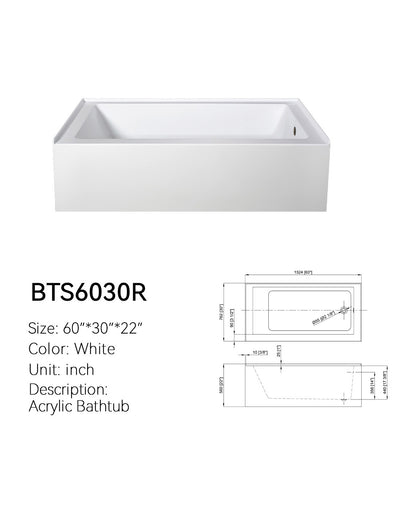

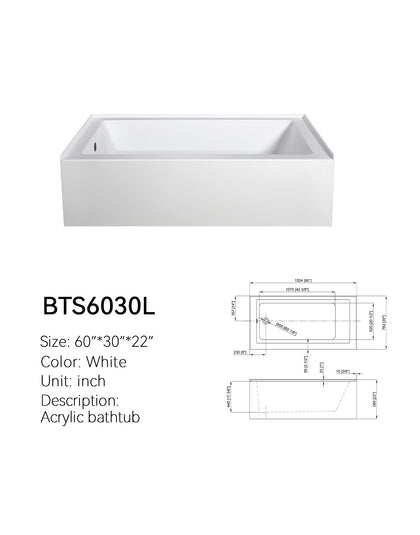

| Specification | BTS6030L | BTS6030R |
|---|---|---|
| Drain orientation | Left-hand drain | Right-hand drain |
| Overall size | 60" × 30" × 22"1524 × 762 × 560 mm | 60" × 30" × 22"1524 × 762 × 560 mm |
| Interior length | approx. 42 3/8"1075 mm | approx. 42 3/8"1075 mm |
| Drain opening | Ø2 1/8"55 mm | Ø2 1/8"55 mm |
| Type | Alcove, apron-front | Alcove, apron-front |
| Material | Acrylic | Acrylic |
| Color | White | White |
| Mounting | Alcove, left or right drain | Alcove, left or right drain |
Because both models share an identical footprint, you can order left and right orientations on a single PO to cover mixed rough-ins across one project — with no change to framing, fit, or installation.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Send a spec. Get a real quote in 24h.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
This 60x30 acrylic bathtub is specified for volume installs where fit and durability matter more than ornamentation. The standardized 60" footprint drops into existing and new alcove framing without modification, and offering both drain orientations on one model line means you can cover left- and right-handed roughs from a single PO. For project buyers, the priority is units that arrive intact and perform over a long service life, so durability and freight-ready packaging are where this tub is built to hold up across full-building orders.
SANIKB supplies the BTS6030 series factory-direct and supports OEM/ODM and private-label programs for importers and brand owners. We can adjust color, packaging, and branding to your requirements, and provide spec sheets and CAD files to support your product listings and submittal packages. Pricing, MOQ, lead time, certification documentation, and delivery schedules are confirmed per project — send us your project specs or rough-in drawings and our OEM team will quote the correct model mix (L/R), volume, and timeline.
