SANIKB D-8013Q - white rectangular drop-in acrylic bathtub with a narrow flat flange and double-ended bowlSANIKB D-8013Q dimension drawing
01 / 02

Rectangular Drop-In Acrylic Bathtub, Narrow Flat Flange, 59-67 in

SKU D-8013Q-150
Size
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material Acrylic
Type Drop-in bathtub
Size 59" × 31.5" × 19.7" (1500 × 800 × 500 mm) Custom sizes
Mount Drop-in (deck or platform)
Finish
White

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

SANIKB D-8013Q is a rectangular drop-in bathtub in white acrylic, with a narrow flat flange and a double-ended bowl. The three SKUs differ only in length: D-8013Q-150 is 1500 × 800 × 500 mm (59 × 31.5 × 19.7 in), D-8013Q-160 is 1600 × 800 × 500 mm (63 × 31.5 × 19.7 in) and D-8013Q-170 is 1700 × 800 × 500 mm (67 × 31.5 × 19.7 in). The flange has no tap holes, so the faucet mounts on the wall behind the tub or on the surrounding deck. A written quote for D-8013Q follows within 12 business hours of your inquiry.

Compare rectangular and oval options in the drop-in bathtubs collection.

More in Drop-In Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 19

    Tub sheet

    Size and installation of D-8013Q

    Every option below is a produced configuration with its own SKU. 3 sizes. Name the exact SKU on each purchase order line.

    SANIKB D-8013Q dimension drawing
    Dimension drawing
    Size range59" / 63" / 67" × 31.5" × 19.7" (1500 / 1600 / 1700 × 800 × 500 mm)
    Sizes59" x 31"63" x 31"67" x 31"
    InstallationDrop-in (deck or platform)
    Finish White
    MaterialAcrylic

    Order codes

    SKUSize
    D-8013Q-15059" x 31"
    D-8013Q-16063" x 31"
    D-8013Q-17067" x 31"

    Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

    Compare · 3 sizes

    Size & spec comparison

    MaterialAcrylic
    TypeDrop-in bathtub
    MountingDrop-in (deck or platform)
    MOQ35–40 pcs · 1×40HQ
    59" x 31"D-8013Q-15063" x 31"D-8013Q-16067" x 31"D-8013Q-170
    Overall L×W×D
    59″ × 31.5″ × 19.7″
    1500 × 800 × 500 mm
    63″ × 31.5″ × 19.7″
    1600 × 800 × 500 mm
    67″ × 31.5″ × 19.7″
    1700 × 800 × 500 mm

    Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

    Send a spec. Get a real quote in 1 business day.

    Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

    We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

    One itemised quote — not five
    Feasibility & certification checked per market
    Have a spec file? Attach it to your inquiry below.
    — Project brief B2B only
    Enquiry about Rectangular Drop-In Acrylic Bathtub, Narrow Flat Flange, 59-67 in SKU D-8013Q-150
    Please enter your first name.
    Please enter your company name.
    Please enter a valid email.
    Please enter your phone number.

    Wholesale · 20 ft / 40 ft · Mix available

    Drag & drop or browse PDF / IMG / XLS · 4MB ×3
      Engineer reply within 1 business day

      12 editions of the International Builders' Show (IBS).

      — Most recent
      Feb 2026 KBIS · Orlando, USA
      Mar 2026 Expo Revestir · São Paulo, Brazil
      6 international shows annually
      2026 Expo Revestir

      2026Expo Revestir

      São Paulo, Brazil
      2026 KBIS

      2026KBIS

      Orlando, Florida
      2025 KBIS

      2025KBIS

      Las Vegas, USA
      2025 The Big 5

      2025The Big 5

      Dubai, UAE
      2024 IBS

      2024IBS

      Las Vegas, Nevada, USA
      2024 Expo Guadalajara

      2024Expo Guadalajara

      Guadalajara, Mexico
      2023 Canton Fair

      2023Canton Fair

      Guangzhou, China
      2019 Cersaie

      2019Cersaie

      Bologna, Italy
      2019 ISH

      2019ISH

      Frankfurt, Germany
      2017 The Big 5

      2017The Big 5

      Dubai, UAE
      2014 KBIS

      2014KBIS

      Las Vegas — US debut
      2013 BAU

      2013BAU

      Munich, Germany

      Factory documentation

      Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

      IAPMO cUPC certificate
      ISO 9001 quality management certificate
      WRAS approved product certificate
      IAPMO certificate of listing
      UDEM CE technical inspection certificate

      Shape & Flange

      Rectangular bowl with a narrow flat flange

      D-8013Q is a rectangular drop-in tub. A narrow flat flange runs around the outline and rests on the deck, and the bowl is double-ended.

      01 / FLANGE

      Flat, narrow flange

      The flange is flat and narrow and follows the rectangular outline. Cut the deck opening to the approved drawing for the SKU ordered.

      02 / FAUCET

      Faucet on the wall or deck

      The flat flange is not drilled for taps. The faucet mounts on the wall behind the tub or on the surrounding deck.

      Oval and stadium drop-in tubs are in the drop-in bathtub range.

      Fit & Footprint

      1500, 1600 or 1700 mm long

      Width is 800 mm (31.5 in) and height is 500 mm (19.7 in) on all three D-8013Q sizes.

      D-8013Q-150
      59" × 31.5" × 19.7" (1500 × 800 × 500 mm)
      D-8013Q-160
      63" × 31.5" × 19.7" (1600 × 800 × 500 mm)
      D-8013Q-170
      67" × 31.5" × 19.7" (1700 × 800 × 500 mm)

      A rectangular outline makes the deck opening simple to set out, but the cut-out and support under the shell should still come from the approved drawing for the SKU on order.

      Keep an access panel or route to the waste in the deck design.

      Construction & Finish

      White acrylic, rectangular drop-in

      D-8013Q is made from pure acrylic sheet in white, with a narrow flat flange squared to the rectangular outline.

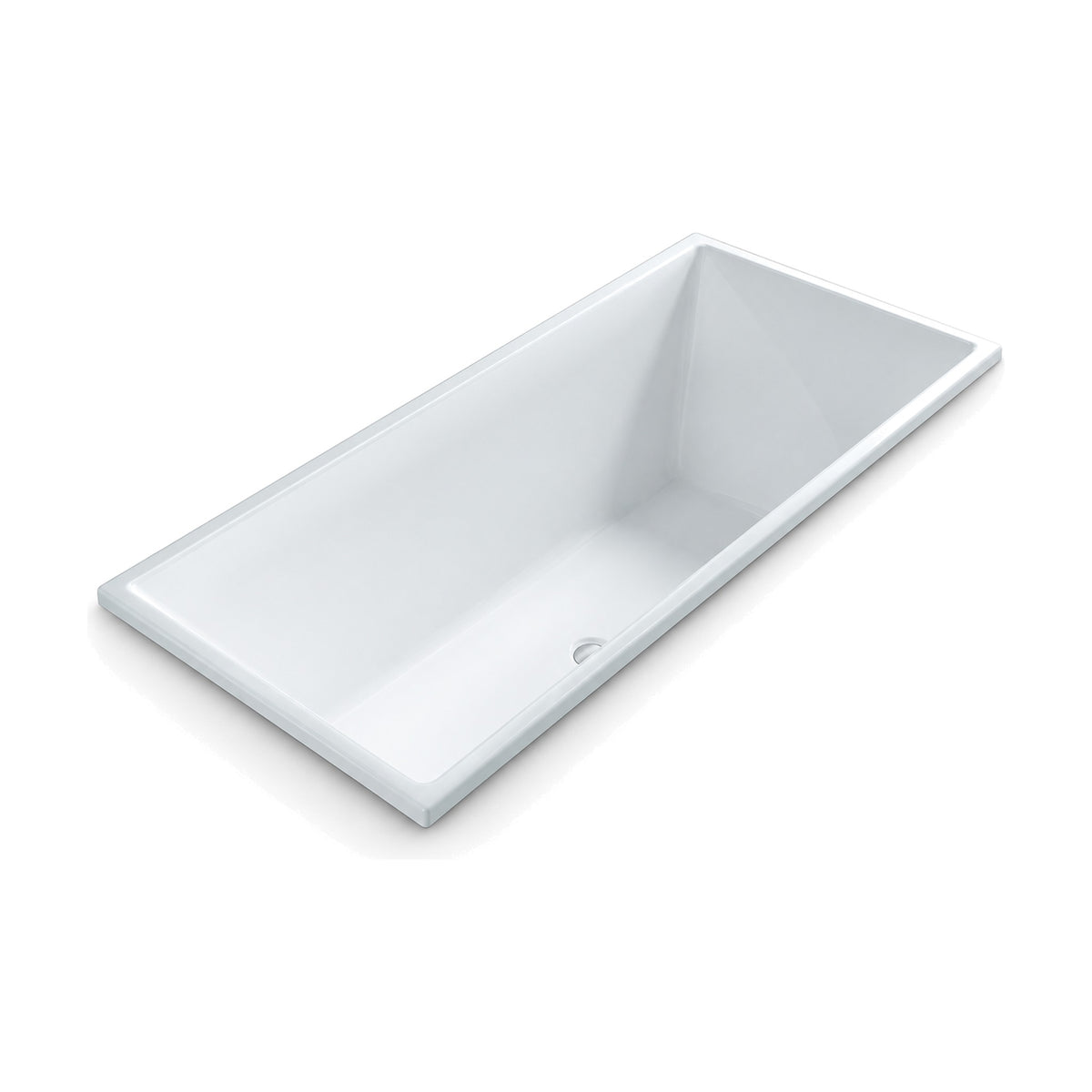

      SANIKB D-8013Q - white rectangular drop-in acrylic bathtub with a narrow flat flange and double-ended bowl

      White

      Made in white

      D-8013Q is made in white across its three lengths.

      The surface finish is confirmed on the approval sample before the production run.

      The flange corners are the points most exposed to knocks. Agree corner protection in the carton and a damage reporting procedure before dispatch.

      Note damaged corners or flange edges on the delivery receipt before signing.

      Compliance

      Compliance documents, D-8013Q

      Documents by SKU list

      Request documents against D-8013Q and list which of the three lengths are on the order.

      Ask for the current document reference and its validity for your market before the tub is submitted on a project.

      Name the documents and destination in your inquiry; SANIKB sends a written reply within 12 business hours.

      Procurement

      Ordering D-8013Q in three lengths

      The SKUs are D-8013Q-150 (1500 mm), D-8013Q-160 (1600 mm) and D-8013Q-170 (1700 mm).

      Standard Lead Time
      30-45 days after sample approval
      Sizes
      3 lengths, 800 mm wide

      Quantities for each length are agreed at quotation. See the bathtub manufacturer range for other models on the same order.

      Include these details with the RFQ

      • Quantity for each of the three SKUs
      • Destination market and port
      • Deck cut-out drawing
      • Faucet position: wall or surrounding deck
      • Carton marking
      • Delivery window

      Until the quotation is issued, read the D-8013Q lead time as a guide.

      How we work

      From enquiry to shipment

      A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

      1. 01

        Send the enquiry

        Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

        Replied within 1 business day
      2. 02

        Our sales team contacts you

        A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

        Email or WhatsApp
      3. 03

        Quotation

        You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

        FOB or CIF
      4. 04

        Sample approval

        We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

        Before mass production
      5. 05

        Production and shipment

        Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

        30–45 days after approval
      50+ New models developed every year, tracking current North American and European trends
      1 business day Maximum first response to an enquiry
      Since 2000 Foshan factory, B2B trade only

      OEM and ODM to your specification

      We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

      • Your logo on product, carton and documentation
      • Private-label packaging and manuals
      • Custom finish matched to your standard
      • Custom dimensions and tooling where volume supports it
      • Product development from your reference or price target
      • Destination-market documentation prepared on request

      FAQs

      Why choose D-8013Q as a double-ended acrylic drop in tub?

      D-8013Q is an acrylic drop in tub with a backrest shaped at both ends of a rectangular bowl, so either end can serve as the head of the bath. White acrylic forms the whole shell, and a narrow flat flange squared to the outline sits on the deck top. It is made in three lengths, each 800 mm wide.

      Which three lengths of D-8013Q can be ordered?

      Three SKUs share an 800 mm width and a 500 mm height and change only in length. D-8013Q-150 measures 1500 × 800 × 500 mm (59 × 31.5 × 19.7 in), D-8013Q-160 measures 1600 × 800 × 500 mm (63 × 31.5 × 19.7 in), and D-8013Q-170 measures 1700 × 800 × 500 mm (67 × 31.5 × 19.7 in). The rectangular outline, narrow flat flange and white acrylic are the same on all three.

      Where does the faucet go on a D-8013Q installation?

      On D-8013Q the faucet goes on the wall behind the tub or on the surrounding deck, because the narrow flat flange is made without tap holes. Faucet position, wall or surrounding deck, is one of the items to state on the RFQ. Take the deck cut-out and support details from the approved drawing for the length ordered.

      How many pieces make up a D-8013Q minimum order?

      Minimum order for D-8013Q-150 is 40 pcs, while D-8013Q-160 and D-8013Q-170 each start at 35 pcs, all based on one 40HQ container. Quantities for each length are agreed at quotation. Standard lead time runs 30-45 days after sample approval, and the final figure is fixed in the written quotation.

      What should a buyer send when requesting a D-8013Q quote?

      A D-8013Q quote needs the quantity per SKU, the destination market and port, the deck cut-out drawing, and whether the faucet sits on the wall or deck. Name any certificate documents needed for submittals. SANIKB replies in writing within 12 business hours, and private-label work runs through our OEM and ODM service; other shapes sit in the drop-in bathtubs collection.
