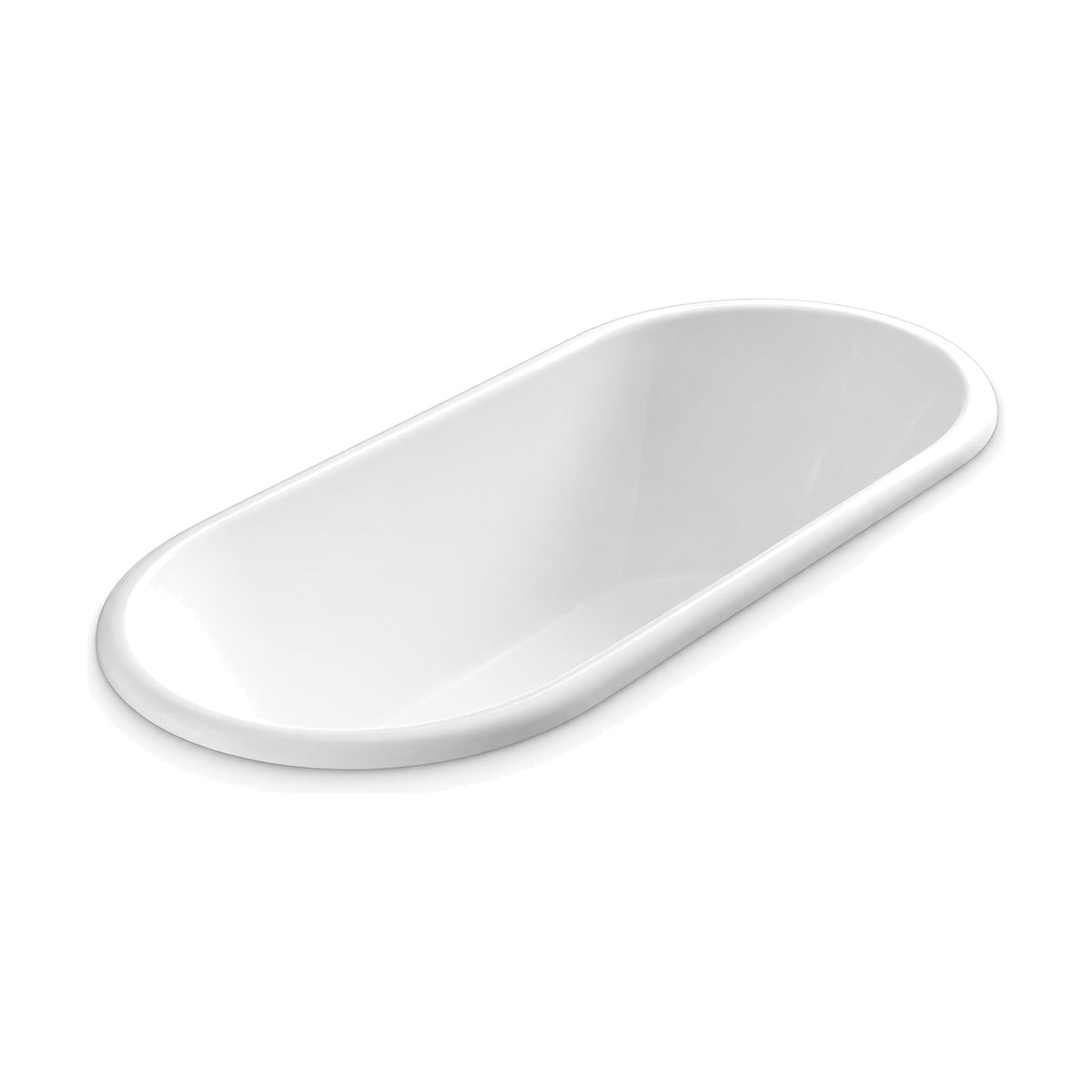

SANIKB D-8062Q - white narrow oval drop-in acrylic bathtub with a rounded rolled flangeSANIKB D-8062Q dimension drawing
01 / 02

Narrow Oval Drop-In Bathtub with Rolled Flange, 27.6 in Wide, 59 & 67 in

SKU D-8062Q-150
Size
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material Acrylic
Type Drop-in bathtub
Size 59" × 27.6" × 18.5" (1500 × 700 × 470 mm) Custom sizes
Mount Drop-in (deck or platform)
Finish
White

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

SANIKB D-8062Q is a narrow oval drop-in bathtub in white acrylic, 700 mm (27.6 in) wide and 470 mm (18.5 in) high, finished with a rounded, rolled flange. Two lengths are made: D-8062Q-150 at 1500 × 700 × 470 mm (59 × 27.6 × 18.5 in) and D-8062Q-170 at 1700 × 700 × 470 mm (67 × 27.6 × 18.5 in). The flange has no tap holes, so the taps and hand shower mount on the surrounding deck or on the wall. Send quantities per length and SANIKB answers within 12 business hours.

Other drop-in models are in the drop-in bathtubs collection.

More in Drop-In Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 19

    Tub sheet

    Size and installation of D-8062Q

    Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

    SANIKB D-8062Q dimension drawing
    Dimension drawing
    Size range59" / 67" × 27.6" × 18.5" (1500 / 1700 × 700 × 470 mm)
    Sizes59" x 28"67" x 28"
    InstallationDrop-in (deck or platform)
    Finish White
    MaterialAcrylic

    Order codes

    SKUSize
    D-8062Q-15059" x 28"
    D-8062Q-17067" x 28"

    Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

    Compare · 2 sizes

    Size & spec comparison

    MaterialAcrylic
    TypeDrop-in bathtub
    MountingDrop-in (deck or platform)
    MOQ50–55 pcs · 1×40HQ
    59" x 28"D-8062Q-15067" x 28"D-8062Q-170
    Overall L×W×D
    59″ × 27.6″ × 18.5″
    1500 × 700 × 470 mm
    67″ × 27.6″ × 18.5″
    1700 × 700 × 470 mm

    Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

    Send a spec. Get a real quote in 1 business day.

    Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

    We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

    One itemised quote — not five
    Feasibility & certification checked per market
    Have a spec file? Attach it to your inquiry below.
    — Project brief B2B only
    Enquiry about Narrow Oval Drop-In Bathtub with Rolled Flange, 27.6 in Wide, 59 & 67 in SKU D-8062Q-150
    Please enter your first name.
    Please enter your company name.
    Please enter a valid email.
    Please enter your phone number.

    Wholesale · 20 ft / 40 ft · Mix available

    Drag & drop or browse PDF / IMG / XLS · 4MB ×3
      Engineer reply within 1 business day

      12 editions of the International Builders' Show (IBS).

      — Most recent
      Feb 2026 KBIS · Orlando, USA
      Mar 2026 Expo Revestir · São Paulo, Brazil
      6 international shows annually
      2026 Expo Revestir

      2026Expo Revestir

      São Paulo, Brazil
      2026 KBIS

      2026KBIS

      Orlando, Florida
      2025 KBIS

      2025KBIS

      Las Vegas, USA
      2025 The Big 5

      2025The Big 5

      Dubai, UAE
      2024 IBS

      2024IBS

      Las Vegas, Nevada, USA
      2024 Expo Guadalajara

      2024Expo Guadalajara

      Guadalajara, Mexico
      2023 Canton Fair

      2023Canton Fair

      Guangzhou, China
      2019 Cersaie

      2019Cersaie

      Bologna, Italy
      2019 ISH

      2019ISH

      Frankfurt, Germany
      2017 The Big 5

      2017The Big 5

      Dubai, UAE
      2014 KBIS

      2014KBIS

      Las Vegas — US debut
      2013 BAU

      2013BAU

      Munich, Germany

      Factory documentation

      Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

      IAPMO cUPC certificate
      ISO 9001 quality management certificate
      WRAS approved product certificate
      IAPMO certificate of listing
      UDEM CE technical inspection certificate

      Flange & Taps

      Rolled flange, taps off the tub

      D-8062Q is an oval tub with a rounded, rolled flange that sits on the deck top. The flange carries no tap holes, so the taps stay off the tub itself.

      01 / FLANGE

      Rounded rolled rim

      The flange is rolled over into a rounded edge rather than finished as a flat deck around the oval opening.

      02 / TAPS

      Taps on the deck or wall

      No tap holes are cut in the rolled flange. A deck-mounted tap set and hand shower go on the surrounding deck beside the tub, or the taps mount on the wall.

      Wider drop-in tubs are in the drop-in bathtub range.

      Fit & Footprint

      700 mm wide, 1500 or 1700 mm long

      D-8062Q is 700 mm (27.6 in) wide and 470 mm (18.5 in) high, in 1500 mm and 1700 mm lengths.

      D-8062Q-150
      59" × 27.6" × 18.5" (1500 × 700 × 470 mm)
      D-8062Q-170
      67" × 27.6" × 18.5" (1700 × 700 × 470 mm)
      Installation
      Drop-in, rolled flange on a built deck

      At 700 mm wide, D-8062Q leaves more deck depth for a tap set than an 800 mm tub in the same space. Take the cut-out and support details from the approved drawing for each length.

      The backrest arrangement is confirmed on the approved drawing; check the bowl profile there before specifying.

      Construction & Finish

      White acrylic with a rolled rim

      D-8062Q's white pure acrylic shell ends in a flange rolled over into a rounded edge around the oval opening.

      SANIKB D-8062Q - white narrow oval drop-in acrylic bathtub with a rounded rolled flange

      White

      One color, rolled rim

      D-8062Q is made in white. The surface finish is confirmed on the approval sample.

      The rolled edge is the only part of the tub seen above the deck, so check it on the approval sample before production.

      The rolled flange edge takes knocks in handling. Agree how it is protected in the carton and how transit damage is reported.

      Record flange damage in writing at unpacking.

      Compliance

      D-8062Q compliance documents

      Documents for D-8062Q

      Ask for paperwork against D-8062Q and list D-8062Q-150, D-8062Q-170 or both as ordered.

      Request the compliance documents for D-8062Q and their validity for the project market before submittal.

      Market and document needs go in the inquiry, and a written answer is sent within 12 business hours.

      Procurement

      Ordering D-8062Q

      Order D-8062Q-150 (1500 mm) or D-8062Q-170 (1700 mm), both 700 mm wide.

      Standard Lead Time
      30-45 days after sample approval
      Width
      700 mm (27.6 in)

      Quantities are agreed per SKU at quotation. Browse other SANIKB models in the bathtub manufacturer range, or see OEM and ODM service for own-brand packing.

      Include these details with the RFQ

      • Quantity per length
      • Destination market and port
      • Deck cut-out drawing
      • Tap set and hand shower scope
      • Carton marking
      • Target shipping date

      The quotation confirms the D-8062Q lead time.

      How we work

      From enquiry to shipment

      A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

      1. 01

        Send the enquiry

        Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

        Replied within 1 business day
      2. 02

        Our sales team contacts you

        A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

        Email or WhatsApp
      3. 03

        Quotation

        You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

        FOB or CIF
      4. 04

        Sample approval

        We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

        Before mass production
      5. 05

        Production and shipment

        Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

        30–45 days after approval
      50+ New models developed every year, tracking current North American and European trends
      1 business day Maximum first response to an enquiry
      Since 2000 Foshan factory, B2B trade only

      OEM and ODM to your specification

      We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

      • Your logo on product, carton and documentation
      • Private-label packaging and manuals
      • Custom finish matched to your standard
      • Custom dimensions and tooling where volume supports it
      • Product development from your reference or price target
      • Destination-market documentation prepared on request

      FAQs

      What sizes is D-8062Q made in?

      D-8062Q-150 is 1500 × 700 × 470 mm (59 × 27.6 × 18.5 in) and D-8062Q-170 is 1700 × 700 × 470 mm (67 × 27.6 × 18.5 in).

      Does D-8062Q have a backrest at one end or both?

      The backrest arrangement for D-8062Q is confirmed on the approved drawing. Check the bowl profile there before specifying it.

      Where do the taps go on D-8062Q?

      Not on the tub. The rolled flange has no tap holes, so the taps and hand shower mount on the surrounding deck or on the wall.

      How is D-8062Q installed?

      It drops into a built deck and the rolled flange rests on the deck top. Cut the opening and plan the support from the approved drawing for the length ordered.

      What color and rim does D-8062Q have?

      White acrylic with a rounded, rolled flange rim. The surface finish is confirmed on the sample you approve.

      How do we request a D-8062Q quotation?

      Send quantities per SKU, the destination market and port, and the tap scope. D-8062Q replies are issued within 12 business hours. Standard D-8062Q lead time is 30-45 days after sample approval.
