SANIKB BBG5128 / BBG5528 / BBG5928 - white rectangular drop-in acrylic bathtub with a flat deck and a single sloped backrestSANIKB BBG5128 / BBG5528 / BBG5928 - top view showing the sloped backrest, armrest recesses and drainSANIKB BBG5128 dimension drawing, 1300 x 700 mmSANIKB BBG5528 dimension drawing, 1400 x 700 mmSANIKB BBG5928 dimension drawing, 1500 x 700 mm
01 / 05

Rectangular Drop-In Bathtub with Armrests, 51-59 in

SKU BBG5128
Size
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material Acrylic
Type Drop-in bathtub
Size 51.2" × 27.6" × 16.5" (1300 × 700 × 420 mm) Custom sizes
Mount Drop-in (deck or platform)
Finish
White

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

SANIKB BBG5128, BBG5528 and BBG5928 are one rectangular drop-in bathtub in white acrylic, made in three lengths: BBG5128 is 1300 × 700 × 420 mm (51.2 × 27.6 × 16.5 in), BBG5528 is 1400 × 700 × 420 mm (55.1 × 27.6 × 16.5 in) and BBG5928 is 1500 × 700 × 410 mm (59.1 × 27.6 × 16.1 in). The flat deck has a recessed armrest at the middle of each long side. The backrest slopes at one end, the drain and overflow are at the other, and the basin floor carries a textured area.

The deck has no tap holes, so the faucet mounts on the surrounding platform or on the wall. Written quotes are returned within 12 business hours. Compare other outlines in the drop-in bathtubs collection, or see compact sizes in small bathtubs.

More in Small Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 10

    Tub sheet

    Size and installation of BBG5128 / BBG5528 / BBG5928

    Every option below is a produced configuration with its own SKU. 3 sizes. Name the exact SKU on each purchase order line.

    SANIKB BBG5128 dimension drawing, 1300 x 700 mm
    Dimension drawing
    Size range51.2" / 55.1" / 59.1" × 27.6" × 16.5" / 16.5" / 16.1" (1300 / 1400 / 1500 × 700 × 420 / 420 / 410 mm)
    Sizes51" x 28"55" x 28"59" x 28"
    InstallationDrop-in (deck or platform)
    Finish White
    MaterialAcrylic

    Order codes

    SKUSize
    BBG512851" x 28"
    BBG552855" x 28"
    BBG592859" x 28"

    Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

    Compare · 3 sizes

    Size & spec comparison

    MaterialAcrylic
    TypeDrop-in bathtub
    MountingDrop-in (deck or platform)
    MOQ55–60 pcs · 1×40HQ
    51" x 28"BBG512855" x 28"BBG552859" x 28"BBG5928
    Overall L×W×D
    51.2″ × 27.6″ × 16.5″
    1300 × 700 × 420 mm
    55.1″ × 27.6″ × 16.5″
    1400 × 700 × 420 mm
    59.1″ × 27.6″ × 16.1″
    1500 × 700 × 410 mm
    Spec sheetPDFPDFPDF

    Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

    Send a spec. Get a real quote in 1 business day.

    Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

    We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

    One itemised quote — not five
    Feasibility & certification checked per market
    Have a spec file? Attach it to your inquiry below.
    — Project brief B2B only
    Enquiry about Rectangular Drop-In Bathtub with Armrests, 51-59 in SKU BBG5128
    Please enter your first name.
    Please enter your company name.
    Please enter a valid email.
    Please enter your phone number.

    Wholesale · 20 ft / 40 ft · Mix available

    Drag & drop or browse PDF / IMG / XLS · 4MB ×3
      Engineer reply within 1 business day

      12 editions of the International Builders' Show (IBS).

      — Most recent
      Feb 2026 KBIS · Orlando, USA
      Mar 2026 Expo Revestir · São Paulo, Brazil
      6 international shows annually
      2026 Expo Revestir

      2026Expo Revestir

      São Paulo, Brazil
      2026 KBIS

      2026KBIS

      Orlando, Florida
      2025 KBIS

      2025KBIS

      Las Vegas, USA
      2025 The Big 5

      2025The Big 5

      Dubai, UAE
      2024 IBS

      2024IBS

      Las Vegas, Nevada, USA
      2024 Expo Guadalajara

      2024Expo Guadalajara

      Guadalajara, Mexico
      2023 Canton Fair

      2023Canton Fair

      Guangzhou, China
      2019 Cersaie

      2019Cersaie

      Bologna, Italy
      2019 ISH

      2019ISH

      Frankfurt, Germany
      2017 The Big 5

      2017The Big 5

      Dubai, UAE
      2014 KBIS

      2014KBIS

      Las Vegas — US debut
      2013 BAU

      2013BAU

      Munich, Germany

      Factory documentation

      Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

      IAPMO cUPC certificate
      ISO 9001 quality management certificate
      WRAS approved product certificate
      IAPMO certificate of listing
      UDEM CE technical inspection certificate

      Shape & Armrests

      Rectangular drop-in tub with armrest recesses

      BBG5128, BBG5528 and BBG5928 share one design: a rectangular white acrylic tub whose flat deck rests on the platform, with a single-ended basin set into it.

      01 / ARMRESTS

      A recessed armrest on each long side

      The deck has a trapezoid armrest recess at the middle of each long side, 500 mm (19 11/16 in) long at the deck, as dimensioned on the drawing for each size.

      02 / BASIN

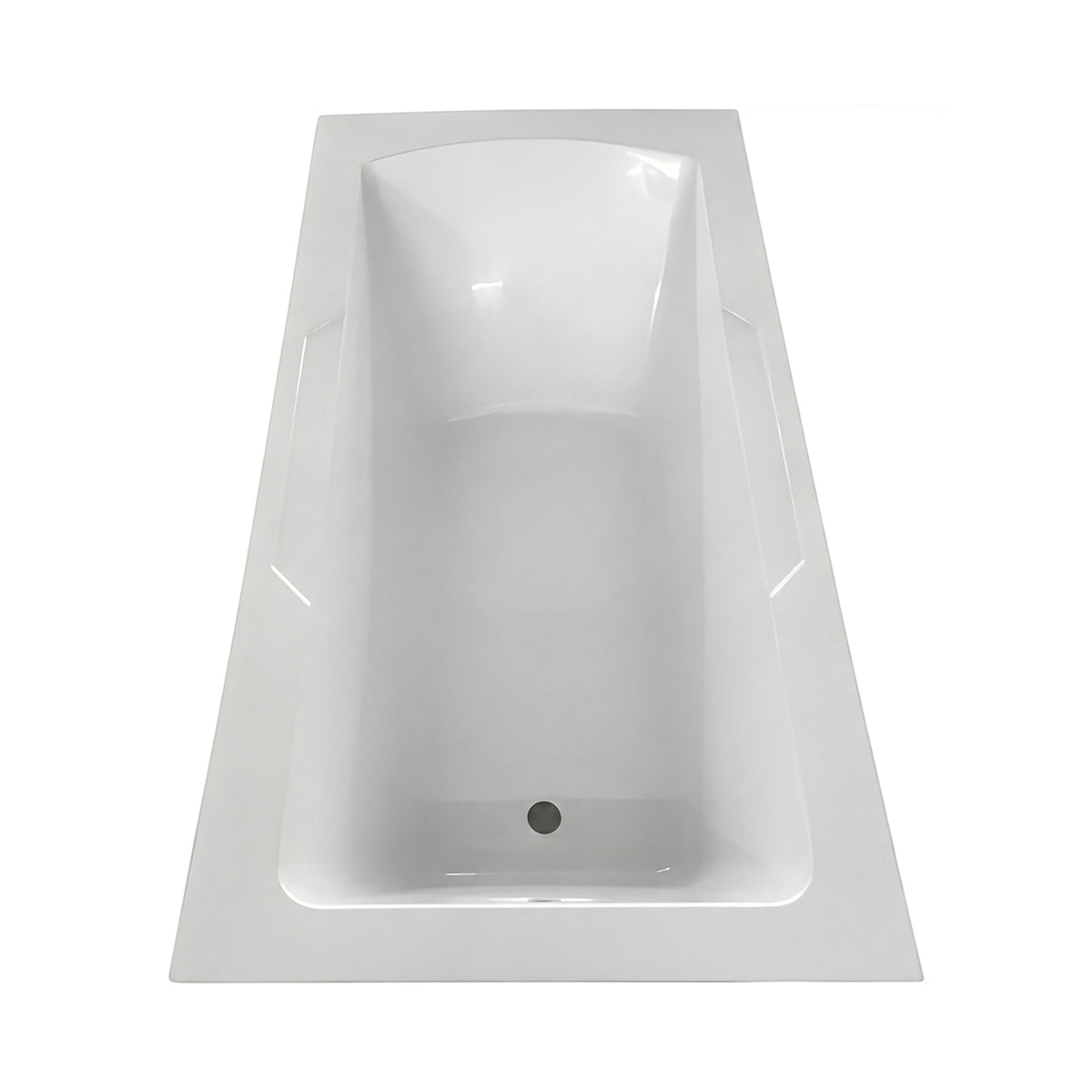

      Sloped backrest and textured floor

      The backrest slopes at one end of the basin; the drain and overflow are at the other end. The basin floor carries a textured area, shown stippled on the drawings.

      For other outlines and lengths, see the drop-in bathtubs collection.

      Fit & Platform

      Three lengths, 1300 to 1500 mm, all 700 mm wide

      The three models differ in length and, slightly, in height; all are 700 mm (27.6 in) wide.

      BBG5128
      51.2" x 27.6" x 16.5" (1300 x 700 x 420 mm)
      BBG5528
      55.1" x 27.6" x 16.5" (1400 x 700 x 420 mm)
      BBG5928
      59.1" x 27.6" x 16.1" (1500 x 700 x 410 mm)
      Installation
      Drop-in, flat deck rests on the platform
      Faucet Mounting
      Platform deck or wall; no tap holes in the deck

      On all three drawings the drain center is 220 mm (8 11/16 in) from the drain-end edge of the deck. Take the cut-out and drain position for the model you order from the approved drawing for that size.

      Frame the platform only once the approved drawing for the chosen size is in hand.

      Construction & Finish

      Acrylic tub in white

      The tub is made in white acrylic.

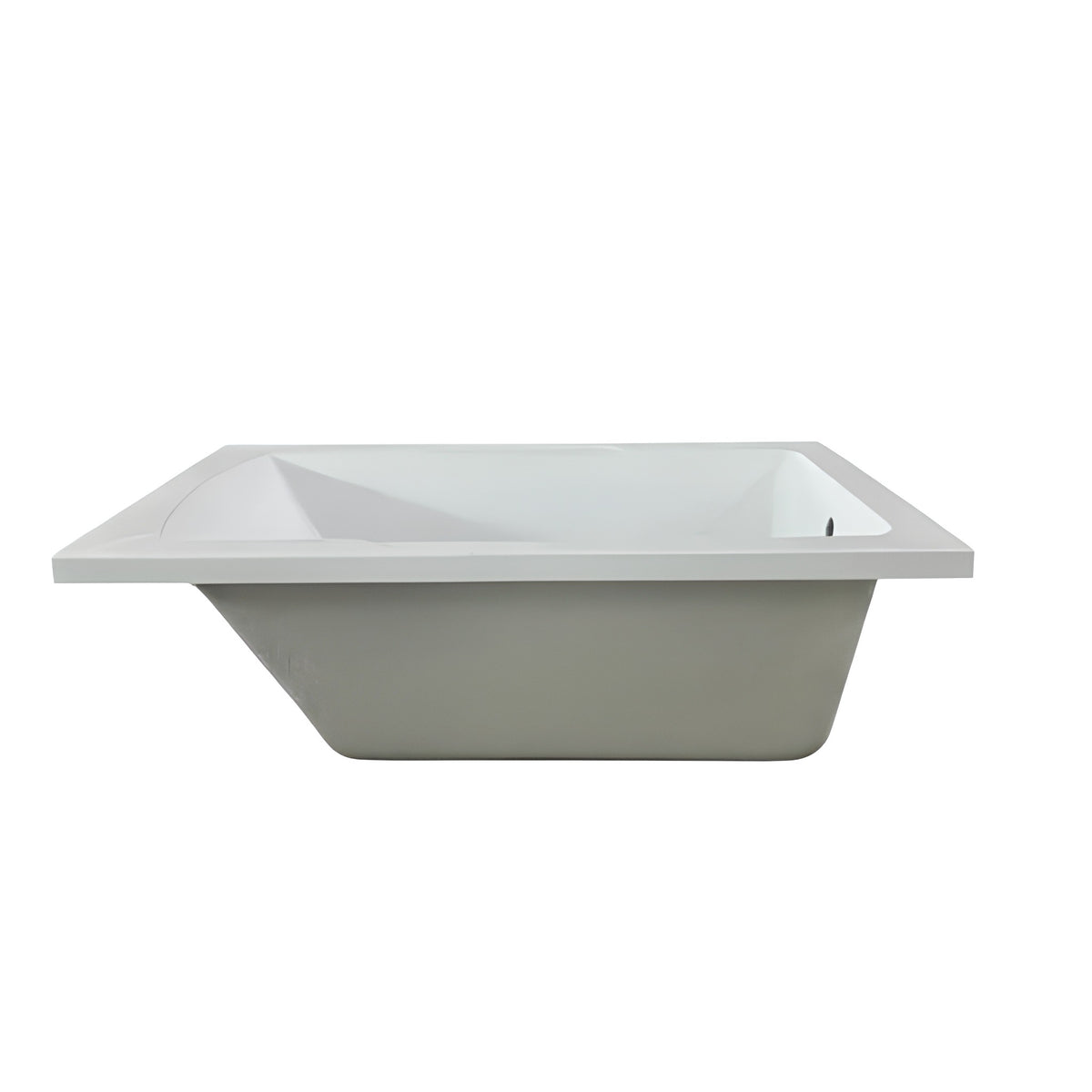

      SANIKB BBG5128 / BBG5528 / BBG5928 - white rectangular drop-in acrylic bathtub with a flat deck and a single sloped backrest

      White

      One color for all three sizes

      BBG5128, BBG5528 and BBG5928 are all made in white, so a project that mixes the three lengths keeps one color across its bathrooms.

      Gloss level is confirmed on the approval sample. If sheen matters to your specification, approve it on that sample before the order is confirmed.

      Write the approved sample reference into the purchase order.

      Compliance

      Compliance documents

      Paperwork per model

      Request documents against the model you plan to order: BBG5128, BBG5528 or BBG5928.

      Before BBG5128, BBG5528 or BBG5928 goes into a submittal, ask for the compliance document references and their validity so the paperwork matches your destination market.

      Name the market and the documents you need when you send the inquiry; written replies are issued within 12 business hours.

      Procurement

      Ordering by model

      Quotations are prepared per model, and lead time is 30-45 days after sample approval.

      Models
      BBG5128, BBG5528, BBG5928
      MOQ per model (one 40HQ)
      60 / 55 / 55 pcs
      Standard Lead Time
      30-45 days after sample approval

      List the quantity for each model and any other SANIKB models that will ship with it. Private label marking can be raised in the same inquiry; see our OEM and ODM service.

      Include these details with the RFQ

      • Quantity of BBG5128, BBG5528 and BBG5928
      • Destination market and port
      • Deck or wall faucet and waste scope, if any
      • Carton marking and label language
      • Ship date the order must meet

      Treat the lead time as indicative until the quotation is issued.

      How we work

      From enquiry to shipment

      A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

      1. 01

        Send the enquiry

        Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

        Replied within 1 business day
      2. 02

        Our sales team contacts you

        A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

        Email or WhatsApp
      3. 03

        Quotation

        You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

        FOB or CIF
      4. 04

        Sample approval

        We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

        Before mass production
      5. 05

        Production and shipment

        Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

        30–45 days after approval
      50+ New models developed every year, tracking current North American and European trends
      1 business day Maximum first response to an enquiry
      Since 2000 Foshan factory, B2B trade only

      OEM and ODM to your specification

      We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

      • Your logo on product, carton and documentation
      • Private-label packaging and manuals
      • Custom finish matched to your standard
      • Custom dimensions and tooling where volume supports it
      • Product development from your reference or price target
      • Destination-market documentation prepared on request

      FAQs

      Which lengths does this drop in bathtub come in?

      BBG5128, BBG5528 and BBG5928 are the same armrest design offered at three lengths. BBG5128 is 1300 × 700 × 420 mm (51.2 × 27.6 × 16.5 in); BBG5528 is 1400 × 700 × 420 mm (55.1 × 27.6 × 16.5 in); BBG5928 is 1500 × 700 × 410 mm (59.1 × 27.6 × 16.1 in). Width stays at 700 mm across the family, and all three are made in white acrylic, so a project that mixes the three lengths keeps one color.

      What makes the armrests on BBG5128 to BBG5928 different from a plain rim?

      BBG5128, BBG5528 and BBG5928 each carry a trapezoid recess at the middle of both long sides of the flat deck, measuring 500 mm (19 11/16 in) along the deck edge. The recesses are dimensioned on the drawing for each size, and the cut-out size and drain position for the platform are taken from the approved drawing for the model you order.

      Can a faucet be fitted on the tub deck?

      BBG5128, BBG5528 and BBG5928 have no tap holes in the acrylic deck, so the faucet mounts on the surrounding platform or on the wall. If you want a faucet or waste to travel with the tubs, name it in your inquiry; that scope is agreed at quotation.

      How is the bathing end laid out inside the basin?

      BBG5128, BBG5528 and BBG5928 are single-ended: a sloped backrest rises at one end, and the drain with its overflow sits at the opposite end, with the drain center 220 mm (8 11/16 in) from that edge of the deck. The basin floor also carries a textured zone. Each unit is made in one orientation only, so your installer should fix the backrest end before the platform is framed.

      What do we send to get a quotation for a container order?

      BBG5128 ships at an MOQ of 60 pcs, while BBG5528 and BBG5928 each ship at 55 pcs, the count per model that fills one 40HQ. Send us units per size, your destination port, and any other SANIKB items joining the load; a written reply follows within 12 business hours. Production runs 30-45 days after sample approval, and custom branding is handled by our OEM and ODM service. More compact sizes appear under small bathtubs.
