SANIKB D-8022Q - white gloss stadium-shaped drop-in acrylic bathtub with a narrow rounded flangeSANIKB D-8022Q dimension drawing
01 / 02

Stadium Drop-In Bathtub, White Gloss Acrylic, Narrow Flange, 59 & 67 in

SKU D-8022Q-150
Size
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material Acrylic
Type Drop-in bathtub
Size 59" × 29.5" × 19.3" (1500 × 750 × 490 mm) Custom sizes
Mount Drop-in (deck or platform)
Finish
White

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

SANIKB D-8022Q is a stadium-shaped drop-in bathtub in white gloss acrylic, finished with a narrow rounded flange and a double-ended bowl. Its width steps up with the length: D-8022Q-150 measures 1500 × 750 × 490 mm (59 × 29.5 × 19.3 in) and D-8022Q-170 measures 1700 × 800 × 490 mm (67 × 31.5 × 19.3 in). The flange has no tap holes, so the faucet mounts on the surrounding deck or on the wall. Quotes for D-8022Q are issued within 12 business hours.

See related shapes in the SANIKB drop-in bathtub range.

More in Drop-In Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 19

    Tub sheet

    Size and installation of D-8022Q

    Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

    SANIKB D-8022Q dimension drawing
    Dimension drawing
    Size range59" / 67" × 29.5" / 31.5" × 19.3" (1500 / 1700 × 750 / 800 × 490 mm)
    Sizes59" x 30"67" x 31"
    InstallationDrop-in (deck or platform)
    Finish White
    MaterialAcrylic

    Order codes

    SKUSize
    D-8022Q-15059" x 30"
    D-8022Q-17067" x 31"

    Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

    Compare · 2 sizes

    Size & spec comparison

    MaterialAcrylic
    TypeDrop-in bathtub
    MountingDrop-in (deck or platform)
    MOQ35–40 pcs · 1×40HQ
    59" x 30"D-8022Q-15067" x 31"D-8022Q-170
    Overall L×W×D
    59″ × 29.5″ × 19.3″
    1500 × 750 × 490 mm
    67″ × 31.5″ × 19.3″
    1700 × 800 × 490 mm

    Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

    Send a spec. Get a real quote in 1 business day.

    Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

    We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

    One itemised quote — not five
    Feasibility & certification checked per market
    Have a spec file? Attach it to your inquiry below.
    — Project brief B2B only
    Enquiry about Stadium Drop-In Bathtub, White Gloss Acrylic, Narrow Flange, 59 & 67 in SKU D-8022Q-150
    Please enter your first name.
    Please enter your company name.
    Please enter a valid email.
    Please enter your phone number.

    Wholesale · 20 ft / 40 ft · Mix available

    Drag & drop or browse PDF / IMG / XLS · 4MB ×3
      Engineer reply within 1 business day

      12 editions of the International Builders' Show (IBS).

      — Most recent
      Feb 2026 KBIS · Orlando, USA
      Mar 2026 Expo Revestir · São Paulo, Brazil
      6 international shows annually
      2026 Expo Revestir

      2026Expo Revestir

      São Paulo, Brazil
      2026 KBIS

      2026KBIS

      Orlando, Florida
      2025 KBIS

      2025KBIS

      Las Vegas, USA
      2025 The Big 5

      2025The Big 5

      Dubai, UAE
      2024 IBS

      2024IBS

      Las Vegas, Nevada, USA
      2024 Expo Guadalajara

      2024Expo Guadalajara

      Guadalajara, Mexico
      2023 Canton Fair

      2023Canton Fair

      Guangzhou, China
      2019 Cersaie

      2019Cersaie

      Bologna, Italy
      2019 ISH

      2019ISH

      Frankfurt, Germany
      2017 The Big 5

      2017The Big 5

      Dubai, UAE
      2014 KBIS

      2014KBIS

      Las Vegas — US debut
      2013 BAU

      2013BAU

      Munich, Germany

      Factory documentation

      Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

      IAPMO cUPC certificate
      ISO 9001 quality management certificate
      WRAS approved product certificate
      IAPMO certificate of listing
      UDEM CE technical inspection certificate

      Shape & Flange

      Stadium outline, straight sides, rounded ends

      D-8022Q has a stadium shape: straight long sides joined by rounded ends. A narrow rounded flange frames the bowl above the deck.

      01 / BOWL

      Double-ended stadium bowl

      Both rounded ends of the bowl are shaped as backrests, so the bather can recline at either end.

      02 / FAUCET

      Faucet off the flange

      There are no tap holes in the narrow flange. The faucet mounts on the surrounding deck or on the wall, with its position fixed before the deck is tiled.

      Oval, rectangular and wide-flange drop-in models are in the drop-in bathtub range.

      Fit & Footprint

      750 mm wide at 1500, 800 mm wide at 1700

      D-8022Q is 490 mm (19.3 in) high in both sizes, but the width changes with length: 750 mm (29.5 in) for the shorter tub and 800 mm (31.5 in) for the longer one.

      D-8022Q-150
      59" × 29.5" × 19.3" (1500 × 750 × 490 mm)
      D-8022Q-170
      67" × 31.5" × 19.3" (1700 × 800 × 490 mm)
      Installation
      Drop-in, flange on a built deck
      Material
      Acrylic, white gloss

      Because the two sizes differ in width as well as length, each needs its own deck cut-out. Take both from the approved drawings rather than scaling one from the other.

      Confirm the support under the shell on the approved drawing before the deck is framed.

      Construction & Finish

      White gloss acrylic, stadium outline

      D-8022Q is made from pure acrylic sheet in white gloss, with a narrow rounded flange tracing the stadium outline.

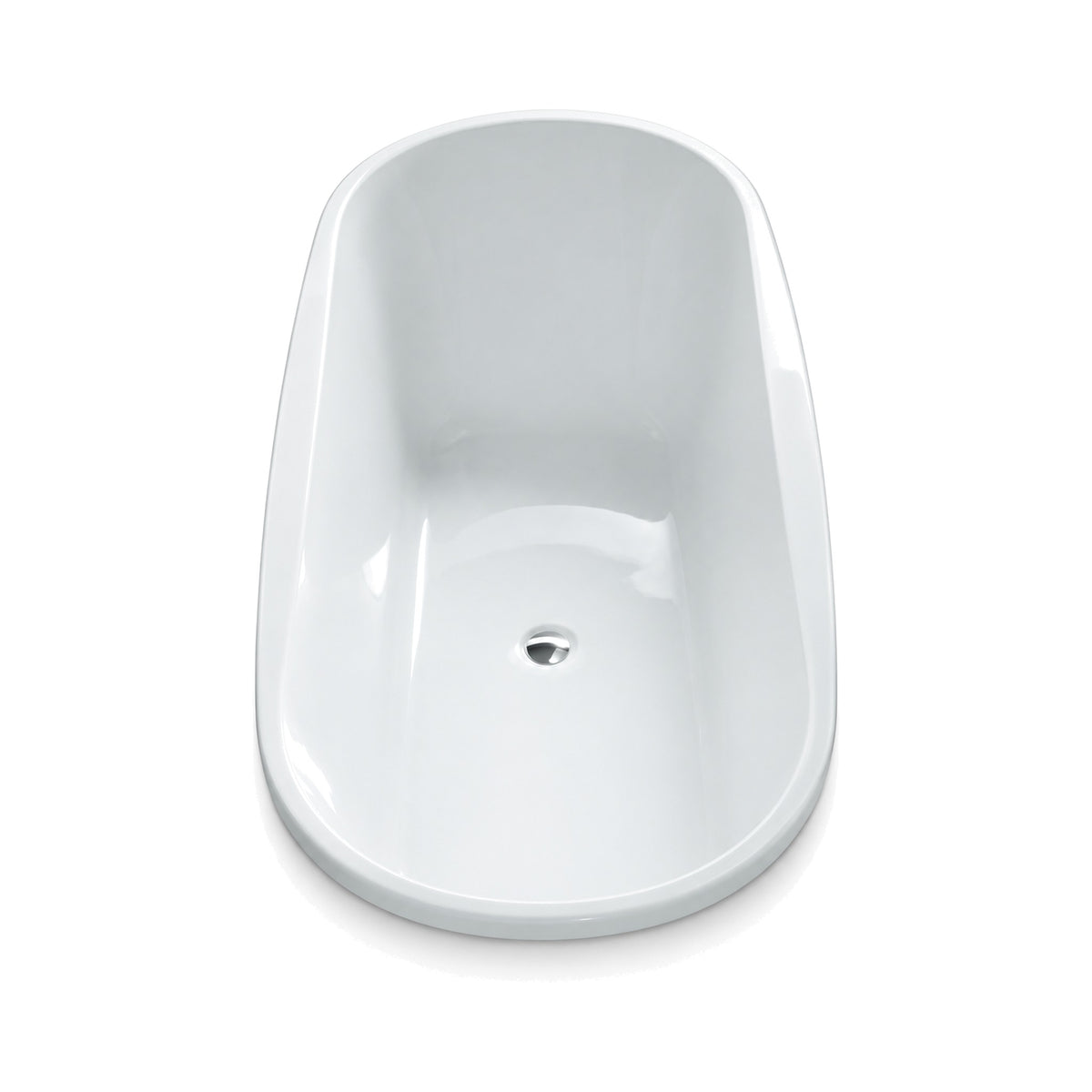

      SANIKB D-8022Q - white gloss stadium-shaped drop-in acrylic bathtub with a narrow rounded flange

      White

      Gloss on both sizes

      Both D-8022Q sizes are made in white gloss, so a project using the two widths gets one finish.

      A gloss surface shows handling marks more readily than a matte one. Agree protective film or wrapping inside the carton at quotation.

      Set out how transit damage is recorded and reported before the order leaves.

      Record any damage before the tub is moved from the delivery point.

      Compliance

      Compliance documents, D-8022Q

      One model, two widths

      Documents are issued against D-8022Q. Note whether D-8022Q-150, D-8022Q-170 or both are ordered.

      Ask for the current compliance documents for D-8022Q and their validity in the destination market before the tub is specified in a submittal.

      Your inquiry should carry the market and the documents needed; replies on D-8022Q are sent within 12 business hours.

      Procurement

      Ordering D-8022Q

      D-8022Q-150 is the 1500 × 750 mm size and D-8022Q-170 is the 1700 × 800 mm size.

      Standard Lead Time
      30-45 days after sample approval
      Quote Reply
      Within 12 business hours

      Quantities for each size are set at quotation. Further SANIKB models are in the bathtub manufacturer range.

      Include these details with the RFQ

      • Quantity of D-8022Q-150 and D-8022Q-170
      • Destination market and port
      • Deck cut-out drawings for each size
      • Surface protection in the carton
      • Carton marking
      • Requested delivery window

      Confirm the D-8022Q lead time on the quotation.

      How we work

      From enquiry to shipment

      A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

      1. 01

        Send the enquiry

        Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

        Replied within 1 business day
      2. 02

        Our sales team contacts you

        A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

        Email or WhatsApp
      3. 03

        Quotation

        You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

        FOB or CIF
      4. 04

        Sample approval

        We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

        Before mass production
      5. 05

        Production and shipment

        Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

        30–45 days after approval
      50+ New models developed every year, tracking current North American and European trends
      1 business day Maximum first response to an enquiry
      Since 2000 Foshan factory, B2B trade only

      OEM and ODM to your specification

      We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

      • Your logo on product, carton and documentation
      • Private-label packaging and manuals
      • Custom finish matched to your standard
      • Custom dimensions and tooling where volume supports it
      • Product development from your reference or price target
      • Destination-market documentation prepared on request

      FAQs

      What are the D-8022Q dimensions?

      D-8022Q-150 is 1500 × 750 × 490 mm (59 × 29.5 × 19.3 in) and D-8022Q-170 is 1700 × 800 × 490 mm (67 × 31.5 × 19.3 in). The longer size is also 50 mm wider.

      What shape is D-8022Q?

      It is stadium-shaped, with straight long sides and rounded ends, and the bowl is double-ended with a backrest at each end.

      What faucet setup suits D-8022Q?

      A faucet on the surrounding deck or on the wall; the flange has no tap holes. Mark the faucet position on the deck drawing before the cut-out is made.

      How is D-8022Q installed?

      It drops into a built deck with the narrow rounded flange resting on the top. Each size needs its own cut-out, taken from the approved drawing.

      What finish does D-8022Q have?

      White gloss acrylic on both sizes. Agree surface protection inside the carton at quotation, since gloss shows handling marks.

      How do we order D-8022Q?

      Give the quantity for each size and the destination port. Expect a quote within 12 business hours and a standard lead time of 30-45 days after sample approval.
