Compact Oval Undermount Ceramic Basin, 15-Inch With Overflow

Overall exterior size and interior bowl opening are listed separately below. The exterior footprint determines countertop and cabinet clearance; the interior opening is the usable basin area measured at the rim.

• Model: SN001
• Product type: oval undermount bathroom sink
• Material: ceramic, white glazed finish
• Color: white
• Overall exterior dimensions: 15.2 in by 12.2 in (385 mm by 310 mm)
• Overall exterior depth: 8.1 in (205 mm)
• Interior bowl opening at rim: 13.4 in by 10.2 in (340 mm by 260 mm)
• Drain outlet diameter: 1.8 in (45 mm)
• Drain seat outer diameter: 2.8 in (70 mm)
• Faucet holes: none (faucet mounts in the countertop)

The 8.1 in (205 mm) figure is the overall exterior depth of the basin, not the interior bowl depth. Confirm usable bowl depth at quotation if your fabrication drawings require it.

The SN001 is listed in vitreous china ceramic with a glossy white finish. For hospitality or multifamily specifications, approve the finish against a sample and request the model care instructions for the housekeeping team. Identify the approved finish in the order and review samples for later batches when a consistent appearance across rooms or project phases is required.

For programs that require additional material detail beyond what is shown on the model specification, those points are confirmed with the factory at the quotation stage rather than assumed.

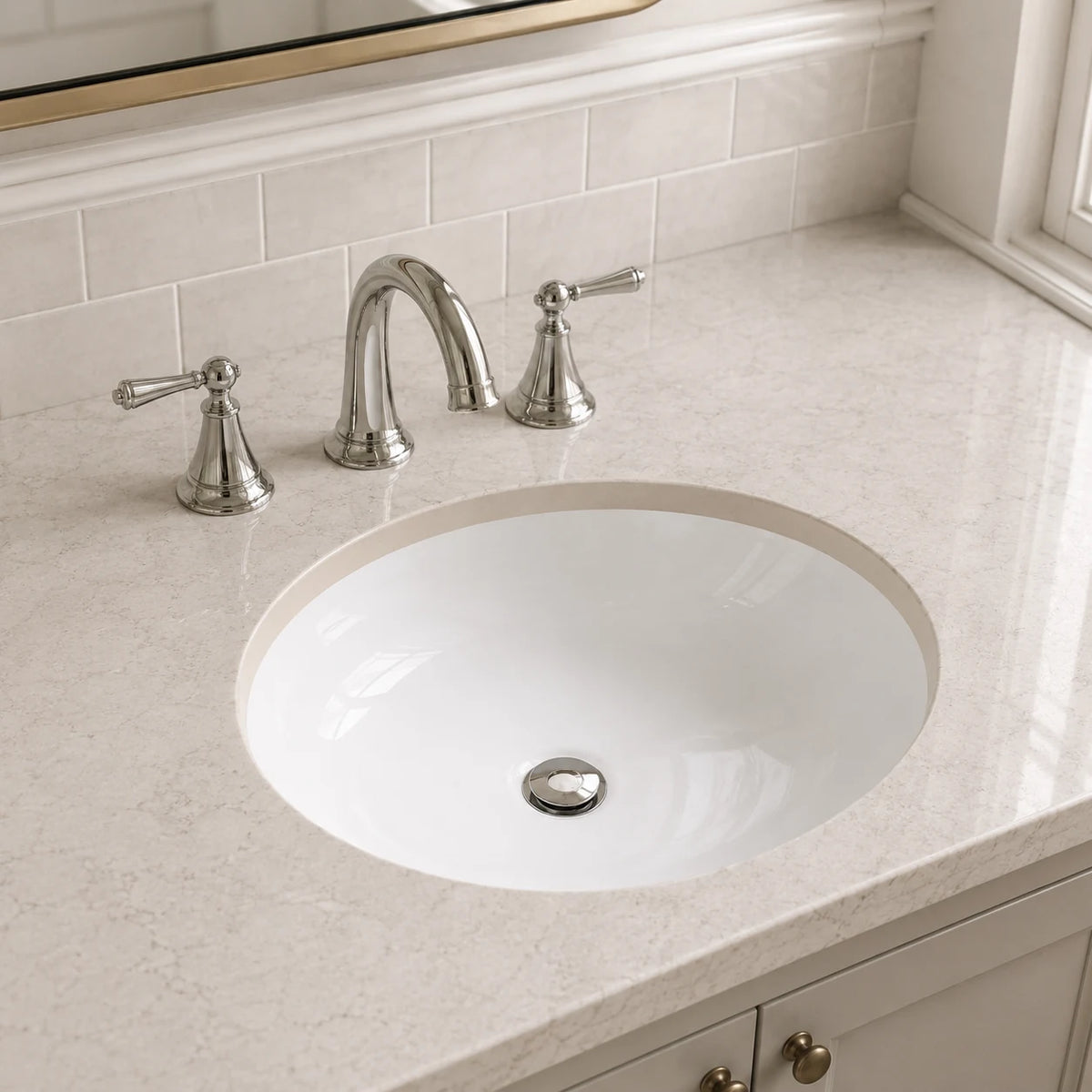

As an undermount basin, the SN001 seats beneath the countertop, so the visible edge is the cut stone or solid-surface reveal rather than a basin rim. Coordinate the countertop cutout and reveal style (positive, negative, or flush) with your fabricator using the confirmed exterior and bowl-opening dimensions above. Mounting hardware, support clips, and a cutout template are scoped at the RFQ stage based on the countertop material and the program.

The drain outlet measures 1.8 in (45 mm), with a molded drain seat of 2.8 in (70 mm) outer diameter. Select drain hardware to match this outlet and the basin's confirmed overflow configuration. For a basin without an overflow channel, choose a compatible drain without overflow openings; confirm the stopper mechanism and installation requirements separately. Finalize the drain selection against the basin and drain manufacturer drawings.

The compact footprint makes the SN001 a fit for projects where space is limited but a finished, coordinated bathroom is required. It is specified by a range of B2B buyers, including:

• Multifamily developers standardizing a single basin across many units
• Hospitality FF&E buyers fitting compact guest bathrooms
• Distributors and importers building a wholesale ceramic basin catalog
• Private-label brands sourcing an unbranded oval undermount basin
• Kitchen and bath showroom dealers quoting from confirmed specs
• General contractors coordinating cutouts and drain selection on site
• Senior living and healthcare facilities renovating in phases
• Architects and interior designers specifying into construction documents

For later project phases, retain the SN001 model code, approved drawing and finish reference from the original order. Confirm the current specification and compare the proposed sample with earlier installations before approving a repeat order.

SANIKB supplies the SN001 on an OEM and ODM basis. Private-label buyers can take the basin unbranded, with retail packaging, inserts, and SKU or barcode support scoped per program. Customization options within the factory's ceramic capability are reviewed against your drawings and volume; the specific scope, tooling, and pre-production approval steps are set per program at the RFQ stage. This lets a brand or sourcing manager run the SN001 as part of a private-label line rather than a one-off purchase.

Minimum order quantity is set per program, and lead time is confirmed at quotation based on order volume and customization. Export packaging suitable for ocean freight and palletized handling is available on request, which matters for a ceramic basin moving through container transit and warehouse handling. Samples of the SN001 are available on request for spec approval before a volume commitment.

Spec sheets and dimensioned drawings are provided to support catalog listings, fabrication, and customs documentation.
