Rimless Toilets

Rimless toilets drop the hollow rim channel under the bowl edge, so the inside of the bowl is one open, glazed surface from the seat line down. This collection groups 27 rimless toilets across 3 body types: 14 wall hung, 9 one-piece and 4 two-piece models in ceramic. Washdown is listed on 7 models, swirl on 3 and siphonic on 2. The printed P-trap height is 180 mm on 22 models, with others at 150, 170, 175 or 185 mm. All 13 floor-standing models list a 250 mm (10 in) S-trap, and some add 6, 8, 12 or 16 in settings. Body lengths run from 485 to 715 mm. White is listed on 25 models and black on 9, with gray, gold and other colors on selected models. Hotel, apartment and commercial washroom projects can keep one rimless bowl style across wall hung and floor-standing rooms.

Service
OEM / ODM · free mold from 300 pcs
MOQ
1×20ft container · any mix
Lead time
30–45 days after sample
27 products

Send a spec. Get a real quote in 12 business hours.

B2B only. No bot replies, no generic catalogues. A SANIKB engineer reads your brief and replies with feasibility, MOQ, lead-time and an itemised price — within 12 business hours.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Bowl edge first, flush second

    What a rimless toilet label settles, and what it leaves open

    A rimless toilet is defined by one feature: the bowl has no hollow channel folded under its top edge. That single word says nothing about the body, the drain or the flushing system, so a rimless toilet bowl still has to be specified like any other pan.

    Across the 27 models here, the rimless label sits on three body types and several flushing descriptions. On the 14 wall hung pans the spec sheets print only "Rimless" under flush. The 13 floor-standing bodies split further, and some list two versions: 7 models carry a washdown description, 3 a swirl description, and 2 list siphonic as an alternative version next to washdown. Four one-piece models in the TC-58 group print rimless alone.

    For a buyer, that means two separate lines on the order sheet. One line fixes the bowl edge, which reads rimless on every model in this range. The other line fixes the flush family and the drain, and that is where models differ. Treat a rimless request without those two details as incomplete, and the quote will come back with questions instead of figures.

    Range snapshot

    Rimless toilets here, counted by body and outlet

    Counts across the 27 models, grouped by body type, length, outlet and certification tag.

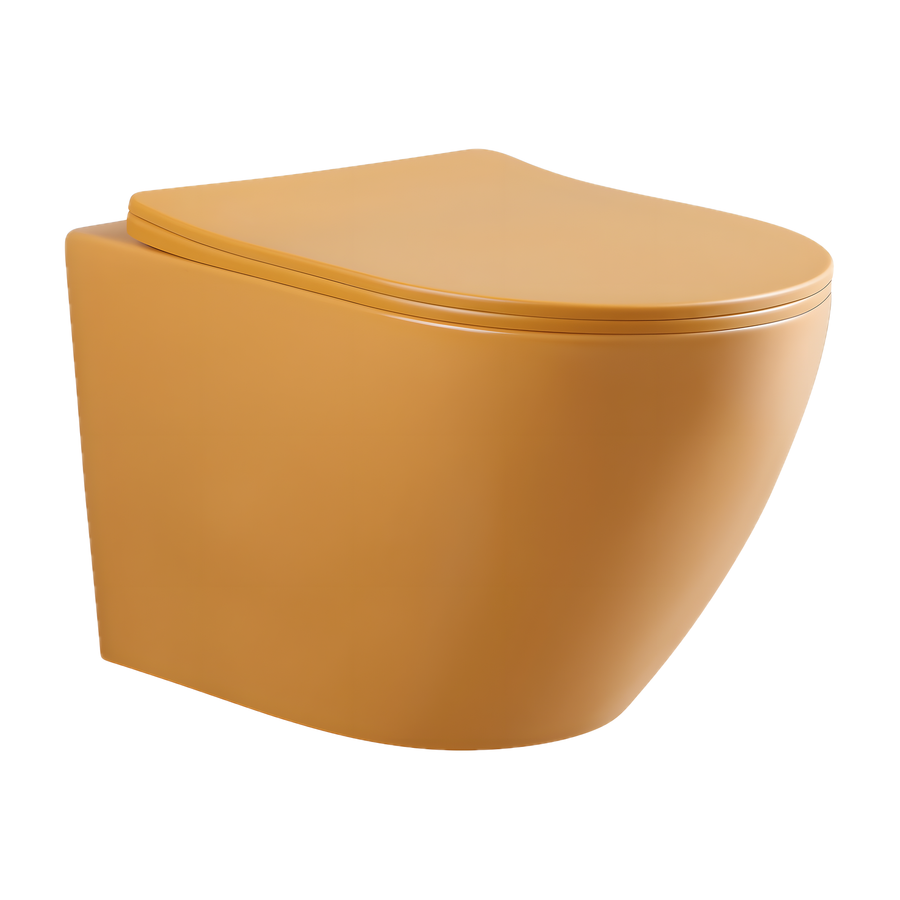

    SANIKB LJ-E09 wall-hung toilet, Orange
    27
    rimless models in ceramic
    14 / 13
    wall hung vs floor-standing bodies
    485–550 mm
    wall hung pan lengths
    635–715 mm
    floor-standing body lengths
    22
    models printing a 180 mm P-trap height
    4
    models carrying a CE tag (TC-7107B, TC-7006G, TC-7002, TC-7102)

    Eight rimless bodies measured

    Size, outlet and flush description for eight representative models

    Rows use the listed size, outlet, flush and finish of each model. Sizes are length × width × height.

    BodySize (mm)OutletFlush descriptionFinish
    LJ-E09SWall hung485 × 365 × 365P-trap 170 mmRimlessWhite
    LJ-E07Wall hung535 × 360 × 340P-trap 150 mmRimlessWhite
    LJ-A09HWall hung550 × 355 × 365P-trap 180 mmRimlessWhite / Matt Black
    LJ-E06Wall hung530 × 360 × 370P-trap 185 mmRimlessWhite
    TC-7002Two-piece635 × 380 × 830S-trap 8 / 10 in; P-trap 180 mmSwirl, rimlessWhite / Gray
    HSJ-3048Two-piece650 × 340 × 770S-trap 10 in; P-trap 180 mmWashdown, rimlessWhite
    HSJ-2550One-piece675 × 370 × 750S-trap 6 / 10 in; P-trap 180 mmWashdown, rimlessWhite
    HSJ-2548One-piece715 × 380 × 760S-trap 10 in; P-trap 180 mmSiphonic / Washdown versions, rimlessWhite

    The shortest pans, LJ-E09 and LJ-E09S, share a 485 mm body but differ in outlet height: 180 mm versus 170 mm.

    Cross-room pairings

    Pairings for projects that mix wall hung and floor rooms

    Hotel and apartment schedules often include both carrier walls and standard floor drains. The black and gray picks pair a wall hung pan with a floor-standing body listed in the same color; the last three single out one model each.

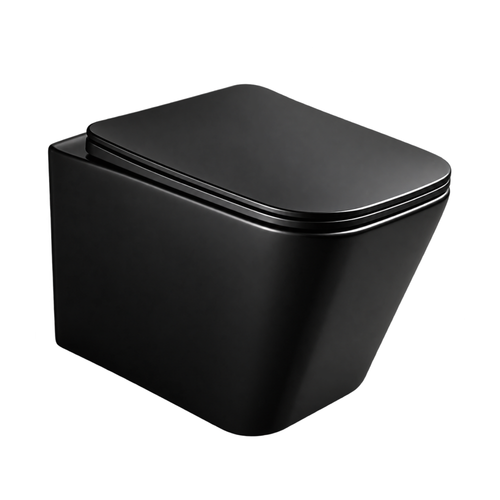

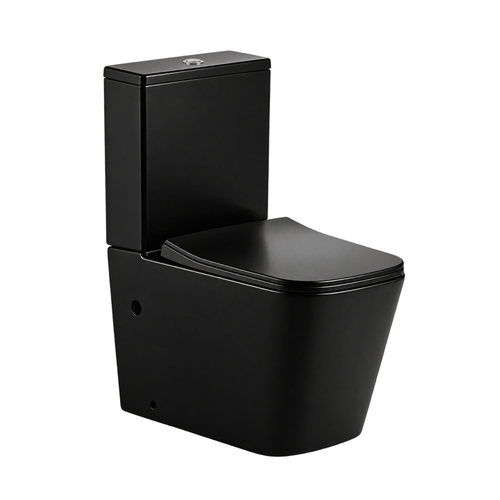

    SANIKB TC-7107B rimless wall hung toilet 180mm p trapBlack, wall sideTC-7107B is a black wall-hung pan at 520 mm long with a 180 mm P-trap. Its floor partner is TC-7102, a two-piece body offered in white or black.SANIKB TC-7102 two-piece toilet, BlackBlack, floor sideTC-7102 prints a swirl, rimless flush with S-trap 8 or 10 in and a 180 mm P-trap, listing both S-trap and P-trap outlets.SANIKB TC-7006G suspended toiletGray, wall sideTC-7006G is a gray 490 mm pan. TC-7002 is the matching two-piece body in white or gray, with the same listed 635 × 380 × 830 mm size as TC-7102.SANIKB LJ-E03 wall-hung toilet, WhiteWidest finish listLJ-E03 is offered in 12 finishes, including black, gold, green and silver, for designs where the floor rooms stay white.SANIKB HSJ-2441 27 inch rimless siphonic one piece toilet 10/12/16 inch rough inDeep S-trap settingsHSJ-2441 and HSJ-2401 are the only two models listing 12 and 16 in S-trap settings next to 10 in.SANIKB TC-58107H 28 inch rimless one piece toilet 10 inch rough inBidet-tagged bodyTC-58107H is the one model here tagged with a bidet feature; it is a 710 mm one-piece with a 10 in S-trap or 180 mm P-trap.

    Drain lookup

    Rimless models listed by printed outlet

    Match the site drain first, then shortlist from the matching row.

    P-trap 150 mm
    LJ-E07
    P-trap 170 mm
    LJ-E09S, LJ-A13
    P-trap 175 mm
    LJ-A15
    P-trap 185 mm
    LJ-E06
    P-trap 180 mm
    22 models: 9 wall hung pans plus all 13 floor-standing bodies
    S-trap 6 in (150 mm)
    HSJ-2550
    S-trap 8 in (200 mm)
    TC-7102, TC-7002, HSJ-2557
    S-trap 10 in (250 mm)
    All 13 floor-standing models
    S-trap 12 / 16 in (300 / 400 mm)
    HSJ-2441, HSJ-2401

    Wall hung pans in this range print P-trap figures only; an S-trap floor drain points to the one-piece and two-piece bodies.

    Rimless RFQ, line by line

    Building a rimless toilet inquiry that can be quoted in one pass

    1. List model codes and quantities

      Use the printed codes such as LJ-A12 or HSJ-2557, one line per model and finish. Pricing is quoted per order, with MOQ stated per model.

    2. State the drain for each room type

      Give the P-trap height or the S-trap setting in inches for every line, so the outlet in the quote matches the site.

    3. Name the flush version where there is a choice

      HSJ-2548 and HSJ-2441 come in siphonic or washdown versions, and HSJ-2401 in washdown or swirl. Say which one you need.

    4. Fix the finish wording

      Write glossy white, matt white or matt black exactly as printed for LJ-A12, LJ-A13 and LJ-A15, and name the color from the finish list for LJ-E03 (12 finishes) or LJ-E09 (9 finishes).

    5. Add branding and destination

      Private-label marking runs through our OEM/ODM service page at /pages/oem-odm-service. Include the destination port; written replies come within 12 business hours.

    FAQs

    Which rimless toilet models are in this collection?

    The collection holds 27 rimless toilets: 14 wall hung, 9 one-piece and 4 two-piece models. Body lengths run from 485 to 715 mm, widths from 340 to 400 mm and heights from 340 to 830 mm. Use the type filter to split wall hung from floor-standing bodies, and see the full wall hung toilet range for non-rimless options.

    What outlet options do the rimless toilets use?

    The printed P-trap height is 180 mm on 22 models, with others at 150, 170, 175 or 185 mm. All 13 floor-standing models list a 250 mm (10 in) S-trap rough-in, measured from the finished wall to the outlet center. Some add 8 in (3 models), 12 in (2), 16 in (2) or 6 in (1). Confirm each setting against the product drawing.

    How does a rimless bowl differ from a standard rimmed bowl?

    A rimless bowl has no hollow channel tucked under its top edge, so water is directed across an open, glazed bowl surface instead of through rim holes. The open edge is the main reason specifiers choose it for washrooms that are cleaned often, such as hotels and serviced apartments. Flushing style and outlet are separate choices, so check both on each product page.

    What is the MOQ and lead time for rimless toilets?

    MOQ, samples and lead time are quoted per model, because they depend on the model mix, finish, carton marking and destination. Send the rimless toilet models, quantities and destination port in one inquiry, and the quotation states each figure line by line. Written replies are issued within 12 business hours, so a project schedule can be checked before the order is placed.

    Can rimless toilets be supplied under our own brand?

    Private-label supply runs through the SANIKB OEM and ODM program: brand marking on the product, carton and inserts, with documents prepared model by model. Certification marks are listed per model (some models print CE), so name the target market and the marks it requires, and the quotation lists which models fit. Wall hung and floor-standing rimless models can share one container.

    How should a distributor choose between the rimless models?

    Start with the wall: wall hung bodies need a wall-hung installation, while one-piece and two-piece bodies stand on the floor. Next, match the outlet, either a P-trap height or an S-trap rough-in, to the drain on site. Then choose among washdown, swirl and siphonic versions where listed, and compare body length, which runs from 485 to 715 mm.
